ABB 3HAC055437-004 IRB6700 AC Servo Motor

Product Details

3HAC055437-004 IRB6700 Product Description

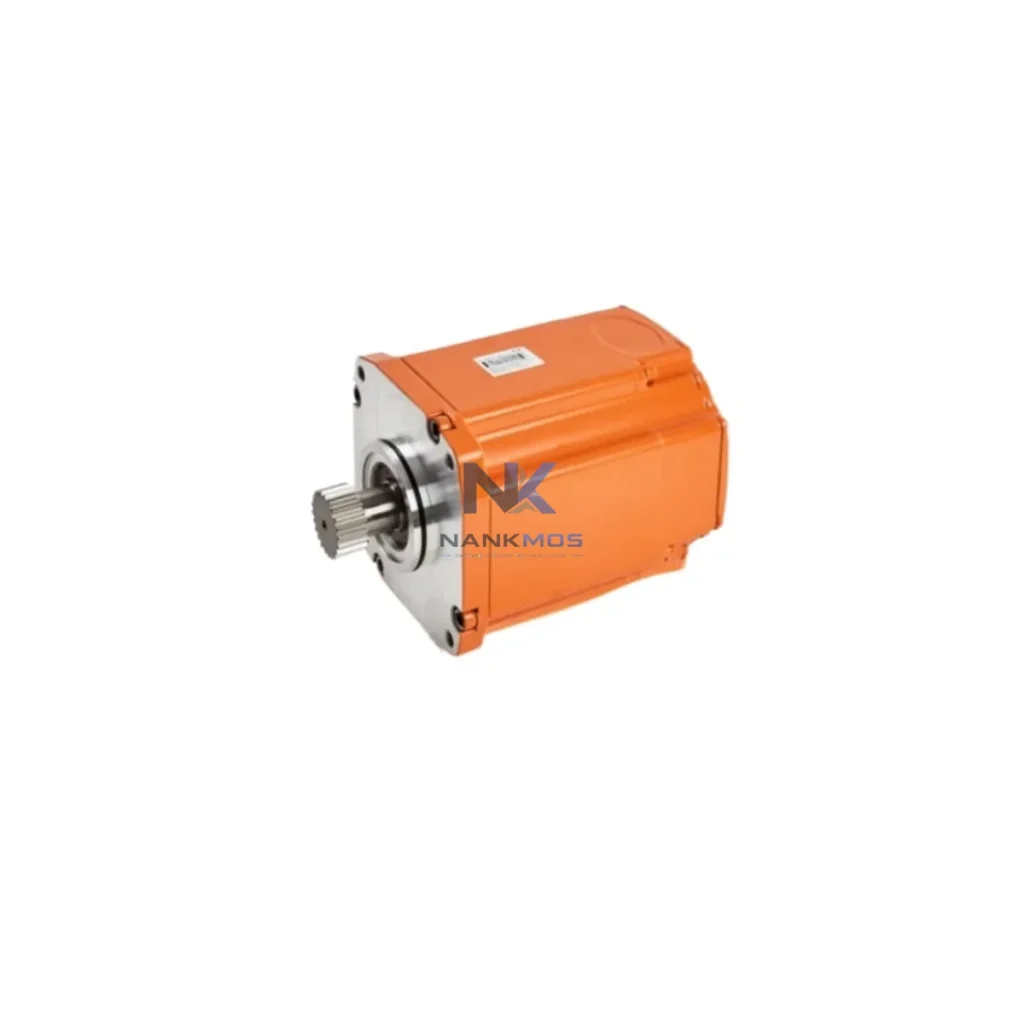

The ABB 3HAC055437-004 is a factory-matched AC servo motor engineered specifically for deployment within the IRB6700 industrial robot platform — ABB's flagship high-payload articulated robot series designed for demanding manufacturing environments. This motor module is not a standalone component; it is a precision-integrated element of a layered robotic control architecture that spans the controller layer, drive layer, motion execution layer, and feedback layer. Understanding its role within the full system is essential for correct specification, commissioning, and long-term maintenance planning.

In modern industrial automation, the reliability of a robotic cell depends not on any single component but on the coherence of the entire control stack. The 3HAC055437-004 is designed to operate within that stack with full system traceability — matched to ABB's IRC5 robot controller, driven by the DSQC drive units, and coordinated through the RobotWare motion software layer. Every parameter, from torque curve to encoder resolution, is calibrated to the IRB6700's mechanical design, ensuring that motion commands issued from the controller are executed with the precision and repeatability that high-cycle manufacturing demands.

The 3HAC055437-004 motor operates as part of a tightly integrated robotic automation platform. Its performance is inseparable from the surrounding system architecture, and correct deployment requires attention to the full control stack:

At the controller layer, the ABB IRC5 robot controller provides the motion planning, path interpolation, and real-time axis coordination that drives this motor. The IRC5's RAPID programming environment allows engineers to define motion profiles, speed limits, and zone parameters that directly govern how the 3HAC055437-004 responds during high-speed or high-torque operations. For multi-robot cells, the IRC5 MultiMove option enables coordinated motion across multiple IRB6700 units sharing a common workspace.

At the drive layer, the DSQC series drive units — including the DSQC661 and DSQC662 axis computer boards — translate controller commands into precise current and voltage waveforms delivered to the motor windings. The drive stack is matched to the motor's electrical characteristics, and substituting non-OEM drive components risks instability, fault codes, or premature motor failure. The 3HAC026254-001 drive unit and associated DSQC633 I/O board are commonly deployed alongside this motor in standard IRB6700 configurations.

At the feedback and signal layer, the motor's integrated resolver provides continuous position and velocity feedback to the IRC5 controller. This closed-loop signal path is critical for maintaining path accuracy during high-payload operations. The 3HAC044168-001 serial measurement board (SMB) manages resolver signal conditioning and battery-backed position memory, ensuring that axis positions are retained across power cycles without requiring manual re-calibration.

At the power layer, the ABB DSQC609 power supply unit and associated 3HAC025338-001 transformer module provide the regulated DC bus voltage required by the drive stack. Voltage stability at the power layer directly affects motor torque consistency and thermal performance. In installations with frequent duty cycles or high ambient temperatures, additional thermal management at the power layer should be evaluated during commissioning.

At the I/O and safety layer, the DSQC652 digital I/O board and the IRC5's integrated safety controller manage emergency stop circuits, axis enable signals, and external safety device integration. The 3HAC055437-004 motor's enable chain is routed through this safety architecture, ensuring that any safety event — whether triggered by a light curtain, safety mat, or external PLC — results in a controlled, coordinated stop across all axes.

At the HMI and programming layer, the ABB FlexPendant (3HAC028357-001) provides the operator interface for jogging, program execution, and fault diagnostics. Engineers commissioning a replacement 3HAC055437-004 motor will use the FlexPendant to perform axis calibration, load the correct motor calibration data, and verify resolver offset values before returning the robot to production.

At the maintenance and diagnostics layer, ABB RobotStudio software enables offline simulation, motor parameter verification, and predictive maintenance scheduling. When a 3HAC055437-004 motor is replaced, RobotStudio's calibration tools allow engineers to validate the new motor's performance against the robot's original motion model, reducing commissioning time and minimizing production downtime.

The IRB6700 platform — and by extension the 3HAC055437-004 motor — is deployed across a wide range of heavy industrial applications where payload capacity, reach, and motion repeatability are critical:

In automotive manufacturing, IRB6700 robots equipped with this motor handle spot welding, body-in-white assembly, and press tending operations. The motor's torque characteristics support the high-inertia loads associated with welding gun manipulation and large panel handling, where axis 1–3 motors bear the greatest mechanical stress during full-reach, high-speed cycles.

In metal fabrication and foundry environments, the IRB6700 is used for machine tending, die casting extraction, and heavy part transfer. The 3HAC055437-004's IP54 protection and Class F insulation make it suitable for environments with elevated ambient temperatures, metal particulate, and occasional coolant mist exposure — provided that the robot's protective covers and seals are maintained in accordance with ABB's service schedule.

In general manufacturing and palletizing, the IRB6700 handles end-of-line palletizing, case packing, and heavy fixture manipulation. In these applications, the motor's consistent torque delivery across the full speed range ensures smooth acceleration and deceleration profiles, reducing mechanical stress on the robot's gearboxes and extending the service interval between gearbox oil changes.

In energy and process industries — including offshore, power generation, and chemical processing — IRB6700 robots are deployed for inspection, maintenance, and material handling tasks in controlled hazardous environments. In these sectors, the availability of verified spare parts with documented 12-month warranty coverage is a procurement requirement, not merely a preference, as unplanned downtime carries significant operational and safety consequences.

Q1: Is the 3HAC055437-004 compatible with all IRB6700 variants, and does it require axis-specific calibration after installation?The 3HAC055437-004 is designed for the IRB6700 series and is typically associated with the high-torque axes (axis 1–3) of the robot. However, compatibility must be verified against the specific IRB6700 variant (IRB6700-150/3.2, IRB6700-200/2.6, IRB6700-235/2.65, IRB6700-245/3.0, IRB6700-300/2.7, or IRB6700-155/3.5) and the robot's serial number documentation. After installation, axis calibration using the ABB FlexPendant and, where applicable, the Levelmeter calibration tool is mandatory. Resolver offset values must be loaded from the robot's calibration data file to restore path accuracy to factory specification.

Q2: Can this motor be integrated into an IRC5 system running an older RobotWare version, and are there firmware compatibility considerations?The 3HAC055437-004 is compatible with IRC5 controllers running RobotWare 5.x and 6.x. However, if the controller is running a RobotWare version older than the motor's production batch, it is advisable to verify that the motor's parameter file (MOC.cfg) is consistent with the installed RobotWare version. ABB's service documentation provides motor parameter files for each RobotWare release. In cases where a firmware update is required, this should be planned as part of the maintenance window to avoid production interruption. Our team can advise on compatibility verification prior to shipment.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed on this unit?Every 3HAC055437-004 unit supplied by NANKMOS is subject to pre-shipment functional testing, including insulation resistance verification, resolver signal integrity check, and visual inspection for mechanical damage, connector integrity, and seal condition. The 12-Month Warranty covers manufacturing defects and component failures under normal operating conditions as defined by ABB's IRB6700 installation and maintenance manual. Warranty claims are supported by our technical team, and replacement units can be dispatched from stock to minimize downtime. For critical production environments, we recommend maintaining a verified spare unit on-site; contact us to discuss consignment stock or priority supply arrangements.
