ABB 3HAC057980-003 Servo Motor

Product Details

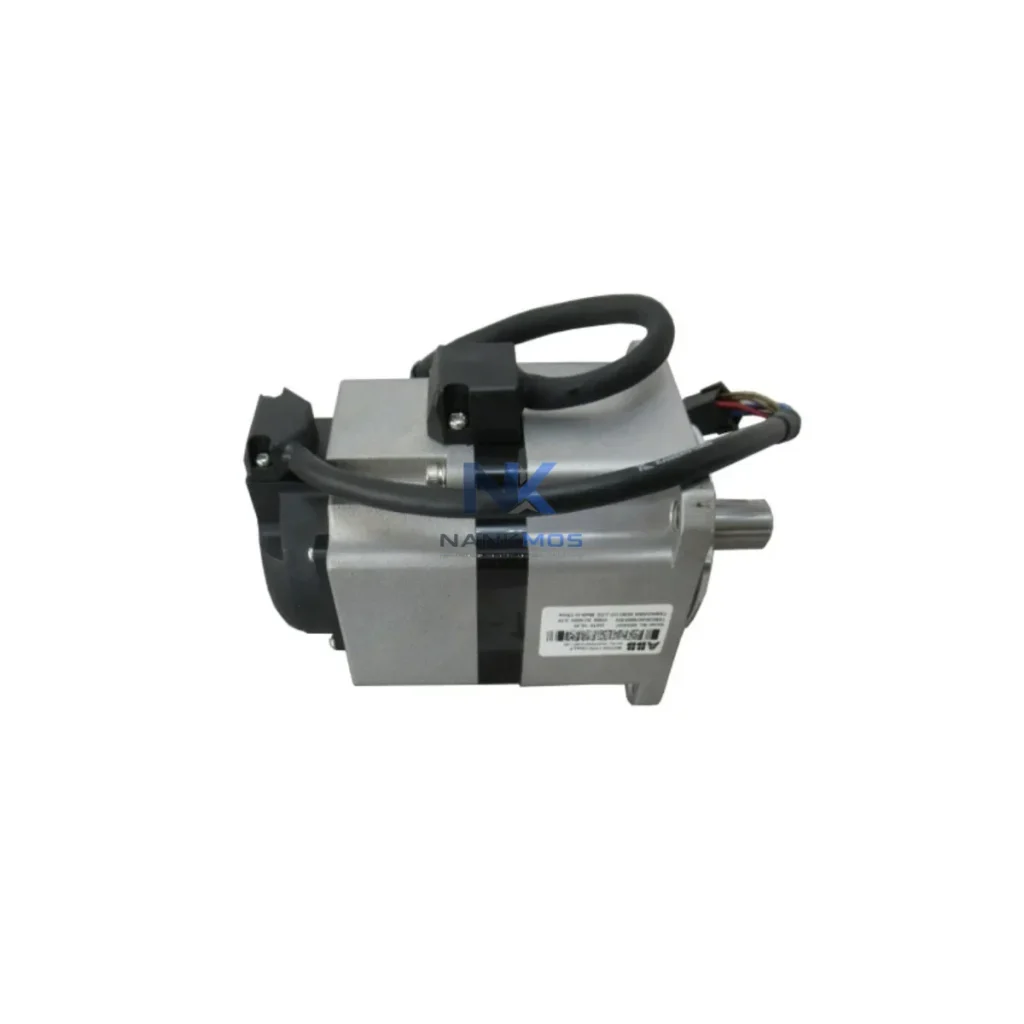

3HAC057980-003 Product Description

The ABB 3HAC057980-003 is a precision servo motor with integrated pinion, purpose-engineered for deployment within ABB's IRC5 robotic control architecture. As a direct axis-drive component, it occupies a critical position in the execution layer of the automation stack — translating digital motion commands from the IRC5 controller into precise, repeatable mechanical output across robot joint axes. Its system-matched design ensures full compatibility with ABB's motion control firmware, drive calibration routines, and safety supervision logic, making it the preferred replacement and expansion component for IRC5-based robotic cells in high-demand industrial environments.

Unlike generic servo motors, the 3HAC057980-003 is validated against ABB's internal motion parameter libraries, enabling plug-and-replace deployment without manual encoder recalibration or drive re-tuning. This reduces commissioning time, minimises production downtime, and preserves the integrity of the robot's dynamic model — a critical requirement in precision assembly, arc welding, material handling, and palletising applications where positional repeatability directly impacts product quality.

Every unit supplied by NANKMOS undergoes pre-shipment functional verification, including encoder signal integrity checks, winding resistance measurement, and mechanical backlash inspection. All units are covered by a 12-Month Warranty from the date of dispatch, with full traceability documentation available on request. Global logistics support ensures rapid delivery to manufacturing sites across Asia, Europe, the Middle East, and the Americas.

The 3HAC057980-003 servo motor does not operate in isolation — it functions as a precision actuator within a tightly integrated, multi-layer automation architecture. Understanding its system context is essential for correct specification, commissioning, and long-term maintenance planning.

At the control layer, the ABB IRC5 Main Computer (DSQC1000) executes RAPID motion programs and coordinates all axis movements through the motion planner. Motion commands are transmitted via the internal motion bus to the ABB Drive Unit (DSQC668 / DSQC669), which generates the PWM drive signals that energise the 3HAC057980-003 motor windings. The ABB Axis Computer (DSQC667) manages real-time position feedback from the motor's integrated encoder, closing the servo loop with microsecond-level precision.

Power delivery to the drive system is managed by the ABB Power Supply Unit (DSQC661), which conditions incoming three-phase supply into the regulated DC bus voltage required by the drive units. Upstream, the ABB Panel Board (DSQC662) distributes power and I/O signals across the cabinet, while the ABB Safety Module (DSQC400 / SafeMove) enforces speed and position limits, providing the functional safety supervision required in collaborative and semi-collaborative robot deployments.

At the I/O layer, the ABB I/O Unit (DSQC652) interfaces digital and analogue signals from end-of-arm tooling, conveyor encoders, and peripheral sensors into the IRC5 controller, enabling coordinated motion sequencing. For multi-robot or line-integrated deployments, the ABB DeviceNet / PROFINET Gateway bridges the IRC5 internal bus to plant-level fieldbus networks, allowing the robot cell to participate in broader MES or SCADA-coordinated production flows.

The ABB FlexPendant (DSQC679) serves as the HMI layer, providing operators with real-time axis status, alarm diagnostics, and manual jog capability — critical during commissioning of a replacement 3HAC057980-003 motor or following a scheduled maintenance interval. For cabinet-level thermal management, the ABB Fan Unit (DSQC627) maintains drive and controller temperatures within specification, protecting the servo system during high-duty-cycle production runs.

Together, these components form a coherent, validated automation platform. Specifying the 3HAC057980-003 as the axis motor ensures that every layer of this architecture — from motion planning to power delivery to safety supervision — operates with the parametric consistency that ABB's system design intends.

The ABB 3HAC057980-003 servo motor is deployed across a broad range of industrial sectors where IRC5-based robotic systems form the backbone of automated production:

Automotive Manufacturing: In body-in-white welding lines and powertrain assembly cells, IRC5 robots equipped with 3HAC057980-003 axis motors deliver the sub-millimetre repeatability required for spot welding, sealing, and precision fastening operations. The motor's system-matched encoder feedback ensures consistent TCP (Tool Centre Point) accuracy across multi-shift production schedules.

Electronics and Semiconductor Assembly: High-speed pick-and-place and PCB handling applications demand low-inertia, high-bandwidth servo response. The 3HAC057980-003, operating within the IRC5 motion control loop, provides the dynamic stiffness and settling time performance required for fine-pitch component placement and optical inspection positioning.

Food, Beverage and Packaging: In hygienic palletising and case-packing lines, IRC5 robots with correctly specified axis motors maintain throughput targets while accommodating frequent product changeovers. The 3HAC057980-003's robust mechanical construction supports the continuous duty cycles typical of 24/7 packaging operations.

Metal Fabrication and Foundry: Arc welding, plasma cutting, and press-tending applications subject robot axis motors to elevated thermal and vibration loads. The 3HAC057980-003's industrial-grade construction and ABB's validated thermal derating parameters ensure reliable operation in these demanding environments.

Petrochemical and Process Industries: In hazardous-area-adjacent material handling and inspection applications, IRC5 robots provide the controlled, repeatable motion required for safe operation near process equipment. Correct axis motor specification — using OEM-matched components such as the 3HAC057980-003 — is essential for maintaining the functional safety integrity of the robot system in these environments.

Maintenance and Spare Parts Management: Across all sectors, plant maintenance teams managing IRC5 robot fleets benefit from holding verified OEM-matched spare motors. NANKMOS maintains in-stock inventory of the 3HAC057980-003, enabling rapid dispatch to minimise unplanned downtime. Pre-shipment testing and 12-Month Warranty coverage provide the supply chain assurance required for critical production assets.

Q1: Is the ABB 3HAC057980-003 compatible with all IRC5 controller variants, and does it require drive parameter reconfiguration after replacement? The 3HAC057980-003 is designed for use within the ABB IRC5 platform, including the IRC5 Single Cabinet, Dual Cabinet, and IRC5 Compact variants. As an OEM-matched component, it is pre-configured to the motor parameter files stored in the IRC5 controller's system parameters. In most replacement scenarios, the controller will recognise the motor via its resolver/encoder signature without requiring manual drive parameter re-entry. However, following any axis motor replacement, ABB's standard commissioning procedure — including a revolution counter update and fine calibration using the FlexPendant — must be performed to restore full positional accuracy. NANKMOS recommends retaining the robot's calibration data backup prior to any maintenance intervention.

Q2: What is the recommended approach for integrating the 3HAC057980-003 into a multi-robot cell with shared fieldbus communication? In multi-robot IRC5 deployments connected via PROFINET, DeviceNet, or EtherNet/IP, the axis motor itself does not require fieldbus configuration — its interface is entirely internal to the IRC5 drive system. The fieldbus gateway (e.g., ABB DSQC688 PROFINET Device) handles all plant-network communication at the controller level. When replacing a 3HAC057980-003 in a networked cell, the primary integration consideration is ensuring that the robot's I/O mapping and motion program remain intact in the IRC5 controller backup. NANKMOS recommends verifying controller backup integrity before and after any axis motor replacement in a networked production environment.

Q3: What warranty and supply chain support does NANKMOS provide for the ABB 3HAC057980-003, and how quickly can units be dispatched for emergency maintenance? NANKMOS maintains in-stock inventory of the ABB 3HAC057980-003 and provides a 12-Month Warranty from the date of dispatch on all units supplied. Each unit undergoes pre-shipment functional verification, including encoder signal integrity testing, winding resistance measurement, and mechanical inspection, with full traceability documentation available. For emergency maintenance requirements, expedited global shipping is available to manufacturing sites across Asia, Europe, the Middle East, and the Americas. To confirm current stock availability, lead times, and logistics options for your location, contact NANKMOS directly at [email protected] or +86 18359268345.
