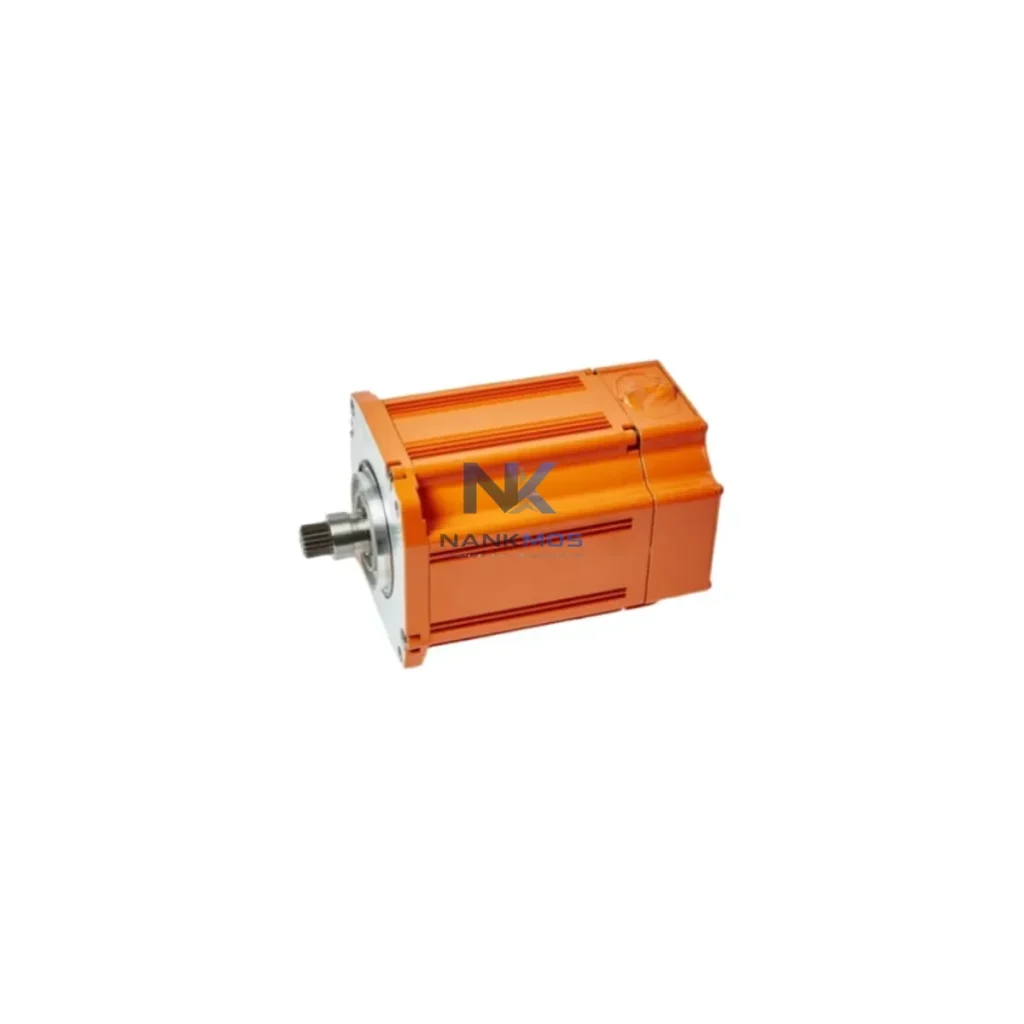

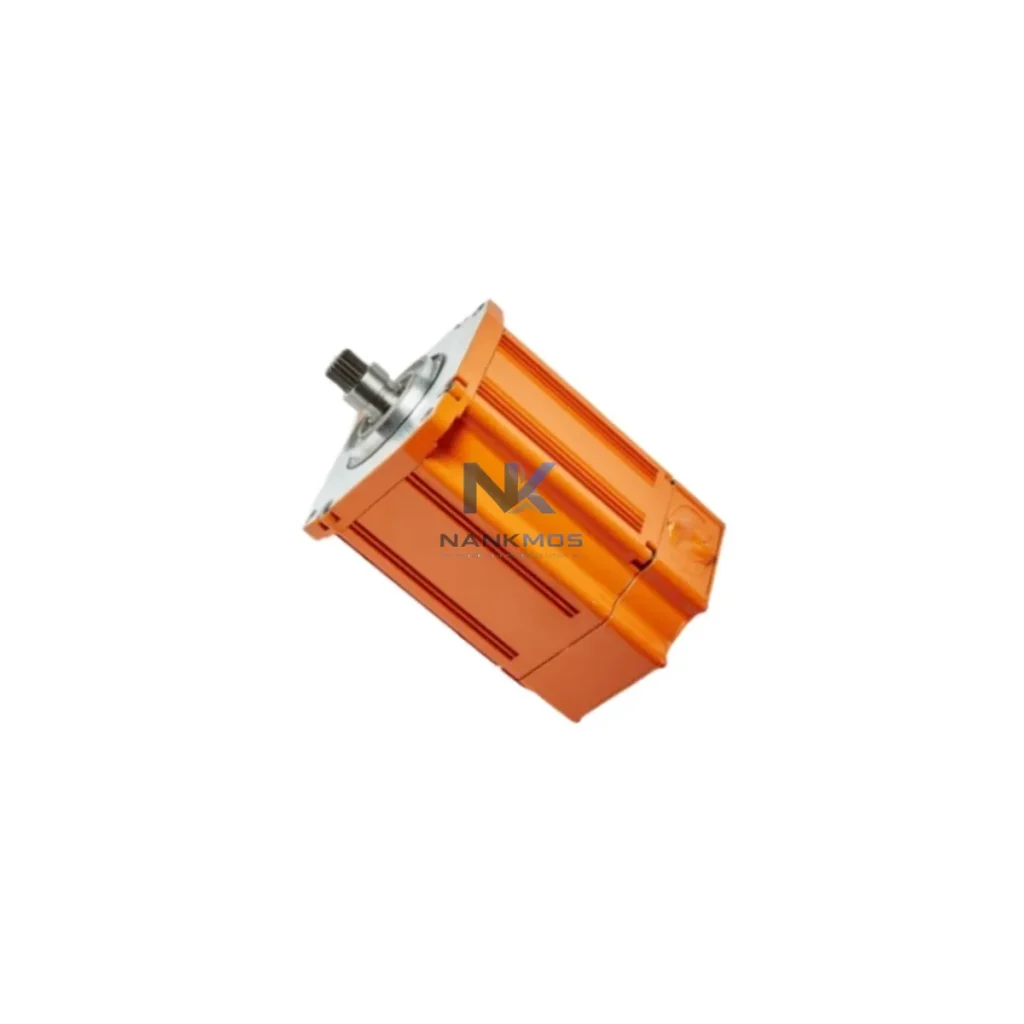

ABB 3HAC058993-003 IRB6600 Robot Servo Motor

Product Details

3HAC058993-003 IRB6600 Product Description

The ABB 3HAC058993-003 is a precision-engineered servo motor purpose-built for the IRB6600 robot series, one of ABB's most widely deployed heavy-payload industrial robots. Designed to operate within ABB's integrated motion control architecture, this motor delivers consistent torque output, high positional accuracy, and long-term mechanical reliability across demanding industrial environments. As a direct system-matched replacement component, the 3HAC058993-003 ensures full compatibility with the IRB6600's axis drive chain, eliminating the integration risk associated with non-OEM substitutes.

In modern robotic automation, servo motor integrity is foundational to system performance. The IRB6600 platform is commonly deployed in automotive body-in-white welding, heavy material handling, foundry operations, and large-scale assembly lines where uptime is critical and unplanned downtime carries significant operational cost. The 3HAC058993-003 is engineered to restore full axis performance with minimal reconfiguration, supporting rapid return-to-production in maintenance and overhaul scenarios.

Every unit supplied by NANKMOS undergoes pre-shipment functional verification, ensuring electrical integrity, encoder signal fidelity, and mechanical condition are confirmed prior to dispatch. Backed by a 12-Month Warranty, this component is stocked for immediate availability and global express shipping.

The ABB 3HAC058993-003 servo motor does not operate in isolation — it is a critical node within a tightly coupled robotic control architecture. Understanding its system context is essential for engineers planning maintenance, spare parts procurement, or robot refurbishment projects.

At the motion control layer, the 3HAC058993-003 interfaces directly with the ABB IRC5 Controller, which manages all axis coordination, path planning, and real-time motion execution for the IRB6600. The IRC5's drive system — typically comprising the DSQC627 Drive Unit or DSQC663 Drive Unit — converts controller commands into precise current waveforms delivered to the servo motor windings. Maintaining OEM motor specifications ensures the drive unit operates within its designed current and impedance envelope, protecting both the motor and the drive electronics.

Encoder feedback is routed through the ABB Axis Computer Board (DSQC668) or equivalent measurement board, which processes resolver or encoder signals to close the position and velocity control loops. Signal integrity at this layer is non-negotiable — any degradation in encoder feedback directly impacts path accuracy and can trigger axis fault conditions. The 3HAC058993-003 provides the correct feedback interface for seamless loop closure without parameter re-tuning.

Power distribution to the servo motor is managed through the IRC5's Power Supply Unit (DSQC661), which conditions incoming three-phase supply and distributes regulated DC bus voltage to the drive modules. Correct motor impedance matching ensures stable bus loading across all active axes, particularly important in multi-robot cells where shared power infrastructure is common.

At the communication layer, the IRC5 controller connects to plant-level SCADA and PLC systems via ABB DeviceNet, PROFIBUS, or EtherNet/IP communication boards (e.g., DSQC612, DSQC643), enabling coordinated motion sequencing with upstream conveyor systems, vision inspection stations, and safety PLCs. The servo motor's reliable operation underpins the deterministic cycle times that these communication protocols depend upon.

For safety architecture, the IRB6600 system integrates with ABB SafeMove2 safety supervision software and external safety relays or safety PLCs (such as the ABB Pluto Safety PLC or equivalent), which monitor axis speed, position limits, and standstill conditions. A correctly functioning servo motor is prerequisite for SafeMove2 to validate safe operating envelopes — a degraded or mismatched motor can cause nuisance safety trips or, more critically, mask genuine safety boundary violations.

In refurbishment and overhaul projects, the 3HAC058993-003 is typically replaced alongside associated wear components including ABB robot wrist unit seals, axis gearbox assemblies (3HAC series), and SMB (Serial Measurement Board) battery packs, ensuring a comprehensive mechanical and electrical restoration of the affected axis.

Automotive Manufacturing: The IRB6600 is a cornerstone robot in automotive body shop automation, performing spot welding, material handling, and press tending operations. The 3HAC058993-003 supports high-duty-cycle axis operation in these environments, where robots may execute thousands of cycles per shift. Servo motor reliability directly determines line OEE (Overall Equipment Effectiveness), making verified OEM replacement stock a critical supply chain asset for automotive Tier 1 and OEM facilities.

Foundry and Heavy Industry: ABB designed the IRB6600 with foundry-rated protection options for operation in high-temperature, high-particulate environments. In die casting, sand casting, and forging applications, servo motors are exposed to thermal cycling and vibration loads that accelerate wear. Stocking the 3HAC058993-003 as a critical spare reduces mean time to repair (MTTR) in these high-consequence production environments.

Metal Fabrication and Welding: In robotic arc welding and plasma cutting cells, precise axis control is essential for weld seam tracking and torch positioning. The 3HAC058993-003 maintains the positional repeatability (±0.1 mm class) that IRB6600 welding applications require, ensuring consistent weld quality across long production runs.

Logistics and Palletizing: High-payload palletizing lines using the IRB6600 demand continuous, high-torque axis operation across extended production windows. Servo motor endurance in these applications is directly linked to throughput consistency and end-of-line packaging integrity.

Process Industry and Energy: In power generation, petrochemical, and water treatment facilities where robotic inspection and maintenance automation is expanding, the IRB6600 platform provides the reach and payload capacity for remote handling tasks. Long-term spare parts availability — including the 3HAC058993-003 — is a key factor in lifecycle cost planning for capital-intensive process industry installations.

Q1: Is the ABB 3HAC058993-003 compatible with all IRC5 controller variants and drive configurations? The 3HAC058993-003 is designed for the IRB6600 axis drive chain and is compatible with standard IRC5 single-cabinet and dual-cabinet controller configurations. It interfaces with ABB's DSQC-series drive units through the robot's internal cabling harness. Engineers should verify the specific axis assignment and cable connector configuration against the robot's mechanical documentation (product manual and spare parts catalogue) before installation. No drive parameter re-tuning is required when replacing with an OEM-matched unit — the IRC5 controller retains axis calibration data in the SMB unit, and a standard axis calibration procedure (using the ABB calibration pendulum or CalibWare) is performed post-installation to restore full positional accuracy.

Q2: What pre-installation checks are recommended when fitting a replacement 3HAC058993-003 in a production robot? Prior to installation, engineers should inspect the axis gearbox output for wear or backlash that may have contributed to the original motor failure, as a degraded gearbox can accelerate re-failure of a new motor. The motor cable and resolver/encoder cable should be inspected for insulation damage or connector pin corrosion. After mechanical installation and cable reconnection, perform an IRC5 system restart and review axis error logs before running the calibration procedure. Confirm that the SMB battery is serviceable to ensure calibration data retention. NANKMOS supplies each 3HAC058993-003 with pre-shipment test documentation confirming electrical integrity.

Q3: How does NANKMOS support long-term spare parts availability and warranty coverage for the 3HAC058993-003? NANKMOS maintains verified stock of the ABB 3HAC058993-003 for immediate dispatch, supporting both planned maintenance schedules and emergency breakdown scenarios. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and verified functional failures under normal operating conditions. Global express shipping is available to minimise robot downtime. For facilities managing multiple IRB6600 units, NANKMOS can support consignment stock arrangements and scheduled replenishment planning. Contact [email protected] or +86 18359268345 to discuss volume requirements and lead time commitments.
