ABB 3HAC063913-001 DSQC3041 Robot Drive Module

Product Details

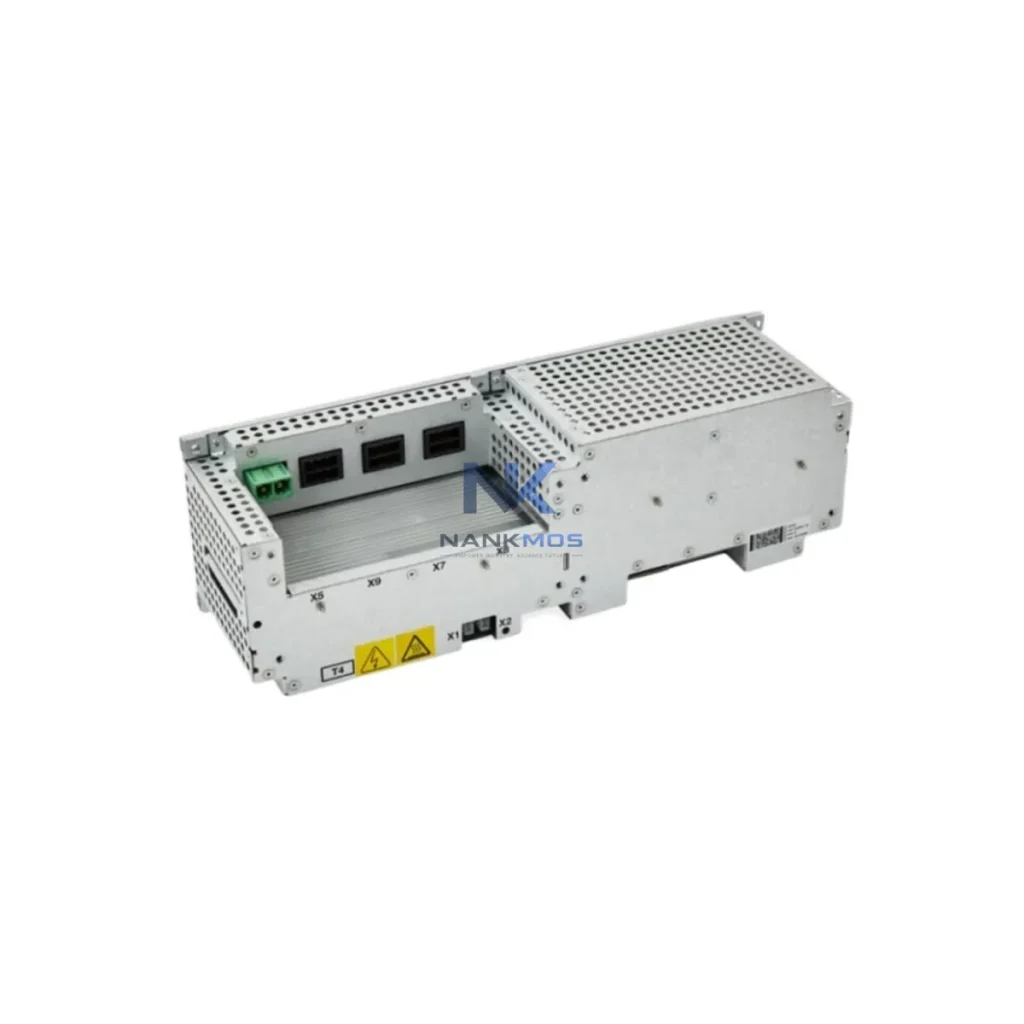

3HAC063913-001 DSQC3041 Product Description

The ABB 3HAC063913-001 (DSQC3041) is a precision-engineered robot drive module designed for the IRC5 robot controller platform, delivering intelligent energy control across demanding industrial automation environments. As manufacturing facilities push toward leaner energy consumption and higher equipment utilization, this drive module plays a central role in regulating motor power delivery, minimizing reactive energy losses, and maintaining consistent production line throughput. Each unit is sourced from verified supply channels, pre-shipment tested under load conditions, and backed by a 12-month warranty.

In a fully integrated IRC5-based robot cell, the ABB 3HAC063913-001 DSQC3041 drive module does not operate in isolation — it functions as the energy-regulating core within a coordinated automation architecture. The IRC5 controller cabinet, which houses the DSQC3041 alongside the DSQC3032A main computer board and DSQC609 power supply unit, distributes motion commands from the robot's motion planner to each axis drive. The DSQC3041 translates these commands into precisely modulated current waveforms delivered to the servo motors, ensuring that energy is consumed only in proportion to the actual mechanical demand of each axis.

When integrated with an ABB PLC or a third-party Siemens S7-1500 PLC via PROFINET, the drive module receives real-time production cycle data that allows it to pre-position axes during low-demand intervals, reducing unnecessary motor energization. The DSQC3041 works in concert with the DSQC688 I/O module to receive digital feedback signals from proximity sensors and safety interlocks, enabling the controller to cut motor excitation during tool changes or conveyor pauses — a direct reduction in idle-state energy consumption.

For facilities using a SCADA system or an energy management platform such as ABB Ability Energy Manager, the IRC5 controller can relay axis-level power consumption data upstream via OPC-UA or Modbus TCP, allowing plant engineers to benchmark the DSQC3041's contribution to overall cell energy efficiency. Paired with a Fluke 435-II power quality analyzer or equivalent power monitoring module at the cabinet input, operators can correlate drive-level current draw with production throughput, identifying opportunities to reschedule high-torque moves to off-peak tariff windows.

The drive module also interfaces with the ABB SafeMove2 safety controller embedded in the IRC5 platform, ensuring that speed and torque limits are enforced during collaborative or restricted-zone operations — preventing energy spikes caused by uncontrolled acceleration events. When the robot operates in coordinated motion with a KUKA KR C4 or Fanuc R-30iB controller on a shared production line, the DSQC3041's deterministic response time ensures that inter-robot synchronization does not introduce energy-wasting micro-stops or re-acceleration cycles.

Factory energy audits consistently identify robot drive systems as one of the top three contributors to avoidable energy waste in automated assembly lines. The ABB 3HAC063913-001 DSQC3041 addresses this at the hardware level by implementing field-oriented motor control (FOC), which continuously adjusts the phase angle and amplitude of the drive current to match the instantaneous torque requirement of each robot axis. This eliminates the fixed-excitation losses common in older drive architectures, where motors draw near-rated current regardless of actual load.

During production line balancing exercises, the DSQC3041's integration with the IRC5 motion planner allows engineers to implement speed-adaptive cycle profiles — slowing non-critical path moves to reduce peak current demand without extending overall cycle time. This technique, sometimes called energy-aware path planning, can reduce per-cycle energy consumption by 8–15% in high-duty-cycle welding or assembly applications without any mechanical modifications to the robot cell.

Thermal load management is another key benefit. By maintaining high drive efficiency across the full speed-torque envelope, the DSQC3041 generates less waste heat per unit of mechanical output compared to legacy drive modules. This reduces the cooling load on the IRC5 cabinet's internal fans and the facility's HVAC system — a secondary energy saving that compounds over multi-shift operations. Reduced thermal stress also extends the service life of adjacent components such as the DSQC609 power supply and the DSQC3032A controller board, lowering the total cost of ownership and reducing unplanned downtime.

For predictive maintenance programs, the IRC5 controller logs drive current signatures, temperature trends, and fault event histories that can be exported to a CMMS or analyzed by ABB Ability Condition Monitoring. Anomalies in the DSQC3041's current waveform — such as increased harmonic distortion or elevated no-load current — serve as early indicators of bearing wear or winding degradation in the connected servo motor, allowing maintenance teams to schedule replacements during planned shutdowns rather than responding to emergency failures. This shift from reactive to predictive maintenance directly improves equipment utilization and stabilizes production line throughput.

NANKMOS maintains ready stock of the ABB 3HAC063913-001 DSQC3041 to support rapid replacement scenarios where production continuity is critical. All units undergo a structured pre-shipment test protocol covering power-on self-test, axis enable verification, and thermal cycling, ensuring that the replacement drive is fully functional before it reaches the customer's facility. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units.

Q1: What measurable energy savings can I expect from replacing a degraded drive with the ABB 3HAC063913-001 DSQC3041? A degraded drive module typically exhibits increased switching losses and higher idle-state current draw. Replacing it with a fully functional DSQC3041 restores the drive to its designed efficiency curve. In practice, customers report a 5–12% reduction in per-cycle energy consumption and a measurable decrease in cabinet operating temperature, which also reduces cooling energy demand.

Q2: Is the DSQC3041 compatible with all IRC5 controller variants, and can it be used with third-party PLCs or SCADA systems? The 3HAC063913-001 DSQC3041 is designed for the ABB IRC5 controller platform and is compatible with IRC5 Single Cabinet, Compact, and Panel Mounted Controller variants. The IRC5 controller communicates with external PLCs (Siemens, Allen-Bradley, Mitsubishi) and SCADA systems via standard industrial protocols including PROFINET, EtherNet/IP, and DeviceNet, making the drive's operational data accessible to plant-level energy management systems.

Q3: What does the pre-shipment test process cover, and what does the 12-month warranty include? Each DSQC3041 unit undergoes a multi-stage pre-shipment test: power-on self-test, axis enable and disable cycle verification, load simulation, and thermal stability check. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental parameters. Warranty claims are processed within 5 business days of fault confirmation.

Q4: How quickly can a replacement DSQC3041 be sourced, and is ongoing inventory availability guaranteed? NANKMOS maintains a dedicated inventory buffer for high-demand IRC5 drive modules including the 3HAC063913-001 DSQC3041. In-stock units are dispatched within 1–3 business days. For facilities with critical uptime requirements, we recommend establishing a consignment stock arrangement or a scheduled replenishment agreement to ensure a replacement unit is always on-site before a failure event occurs.
