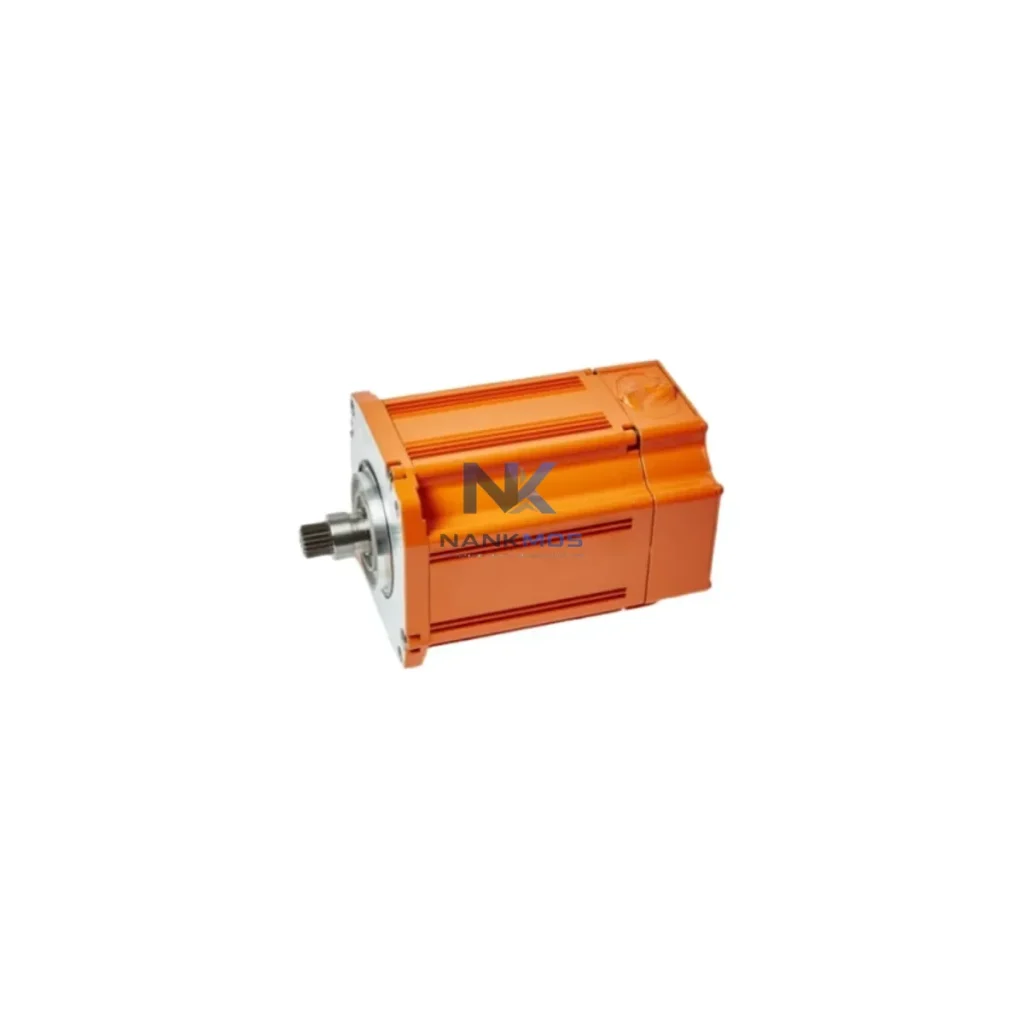

ABB 3HAC17484-2x IRB7600 Servo Motor

Product Details

3HAC17484-2x IRB7600 Product Description

The ABB 3HAC17484-2 is a precision-engineered servo motor designed for the IRB7600 heavy-duty industrial robot series, operating under the IRC5 controller platform. Built to IE3-class efficiency standards, this motor delivers tightly regulated torque and speed response while minimising energy draw across extended production cycles. For facilities running continuous robotic welding, material handling, or press-tending operations, the 3HAC17484-2 directly reduces per-cycle energy consumption and thermal load on the drive cabinet — two of the most significant contributors to unplanned downtime and elevated operating costs in high-throughput manufacturing environments.

In a fully integrated robotic cell, the ABB 3HAC17484-2 does not operate in isolation — its energy performance is shaped by every upstream and downstream component in the drive chain. The ABB IRC5 controller governs motion profiles and acceleration ramps, and when tuned correctly, it allows the 3HAC17484-2 to operate within its optimal torque band, avoiding the energy spikes that occur during aggressive start-stop cycles. Pairing this motor with the ABB DSQC662 drive unit or equivalent axis computer ensures that regenerative braking energy is captured and redistributed rather than dissipated as heat.

On the power monitoring side, integrating a power measurement module — such as those from the ABB CP600 or compatible third-party DIN-rail power analysers — into the robot cell's panel allows engineers to track real-time kWh consumption per robot axis. This data feeds directly into SCADA systems or energy management platforms, enabling load-balancing decisions across multi-robot lines. When the 3HAC17484-2 is flagged as drawing above its baseline current signature, predictive maintenance workflows can be triggered before a fault develops.

The motor's feedback signals — encoder position, velocity, and thermal status — are processed by the IRC5's DSQC400-series I/O modules, which relay state data to the line PLC (commonly a Siemens S7-1500 or Allen-Bradley ControlLogix in mixed-vendor environments). This closed-loop visibility allows the PLC to adjust robot task scheduling based on thermal load, preventing the motor from operating in a degraded thermal state that would otherwise increase resistive losses and reduce efficiency. HMI panels — including ABB CP600 operator panels — can surface motor health KPIs directly to line operators, reducing the diagnostic lag between a performance deviation and a corrective action.

For facilities using PROFINET or EtherNet/IP as their plant communication backbone, the IRC5 controller's communication modules ensure that the 3HAC17484-2's operational data is available to the broader MES or SCADA layer without additional protocol conversion overhead. This integration is particularly valuable in energy-intensive press-tending or spot-welding lines where cycle synchronisation between the robot and a servo press drive or welding inverter directly affects total line energy draw.

The primary energy benefit of the ABB 3HAC17484-2 in a production line context is its ability to maintain consistent torque output at reduced current draw compared to lower-efficiency motor classes. In a typical IRB7600 installation running two shifts per day, the cumulative energy saving over a 12-month period — relative to a non-IE3 replacement — can represent a measurable reduction in facility electricity costs, particularly in regions with time-of-use tariffs where peak-hour consumption carries a premium.

Beyond direct energy savings, the 3HAC17484-2 contributes to production line stability in several ways. Its precise speed regulation reduces mechanical shock at the end of each motion segment, lowering wear on gearbox components and extending the interval between scheduled maintenance stops. Fewer unplanned stops mean higher overall equipment effectiveness (OEE) and a more predictable production takt. In lines where robot cycle time is the bottleneck, even a marginal improvement in motion repeatability — enabled by the motor's tight encoder feedback loop — can translate into additional units per shift without any increase in energy input.

Thermal load management is another critical dimension. The 3HAC17484-2's IE3-class winding design generates less heat per unit of mechanical output than standard-efficiency alternatives. In enclosed robot cells or compact drive cabinets, this reduces the cooling demand on the enclosure's thermal management system — whether that is a cabinet air conditioner, heat exchanger, or forced-air cooling unit. Lower cabinet temperatures extend the service life of adjacent components, including the IRC5 drive modules, capacitor banks, and communication hardware.

All units supplied are drawn from maintained inventory, pre-shipment tested against ABB's functional specifications, and covered by a 12-month warranty. This ensures that replacement units arrive ready to install, minimising the time the production line spends in an unplanned maintenance state.

Q1: What energy savings can I expect from replacing a failed motor with the ABB 3HAC17484-2?The 3HAC17484-2 is rated to IE3 efficiency class, which means it operates with lower resistive losses than IE1 or IE2 motors of equivalent output. In continuous two-shift robotic operations, this typically results in a measurable reduction in per-axis energy consumption. Exact savings depend on duty cycle, load profile, and ambient temperature, but the reduction in heat generation alone reduces cooling overhead in the drive cabinet.

Q2: Is the 3HAC17484-2 compatible with IRC5 controllers other than the standard cabinet version?Yes. The 3HAC17484-2 is designed for the IRB7600 platform and is compatible with the IRC5 single-cabinet and IRC5 panel-mounted controller variants. It interfaces with the standard ABB axis computer and resolver/encoder feedback chain. If you are operating a customised IRC5 configuration, verify the axis computer firmware version against ABB's compatibility matrix before installation.

Q3: What is the recommended replacement and testing procedure?All units are pre-shipment tested prior to dispatch. Upon receipt, verify the motor's encoder connector integrity and check for transit damage before installation. Follow ABB's IRB7600 maintenance manual for axis motor replacement, including the required resolver calibration and brake release verification steps. After installation, run the IRC5's motor calibration routine and confirm current draw is within the expected range before returning the robot to production.

Q4: What does the 12-month warranty cover, and what is the stock availability?The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, operation outside rated parameters, or physical impact. Units are held in stock and are available for immediate dispatch. For urgent replacement requirements, contact us directly to confirm lead time and shipping options.
