3HAC17810-1 3HAB8101-3 IRB523HNA014908-001 Product Description

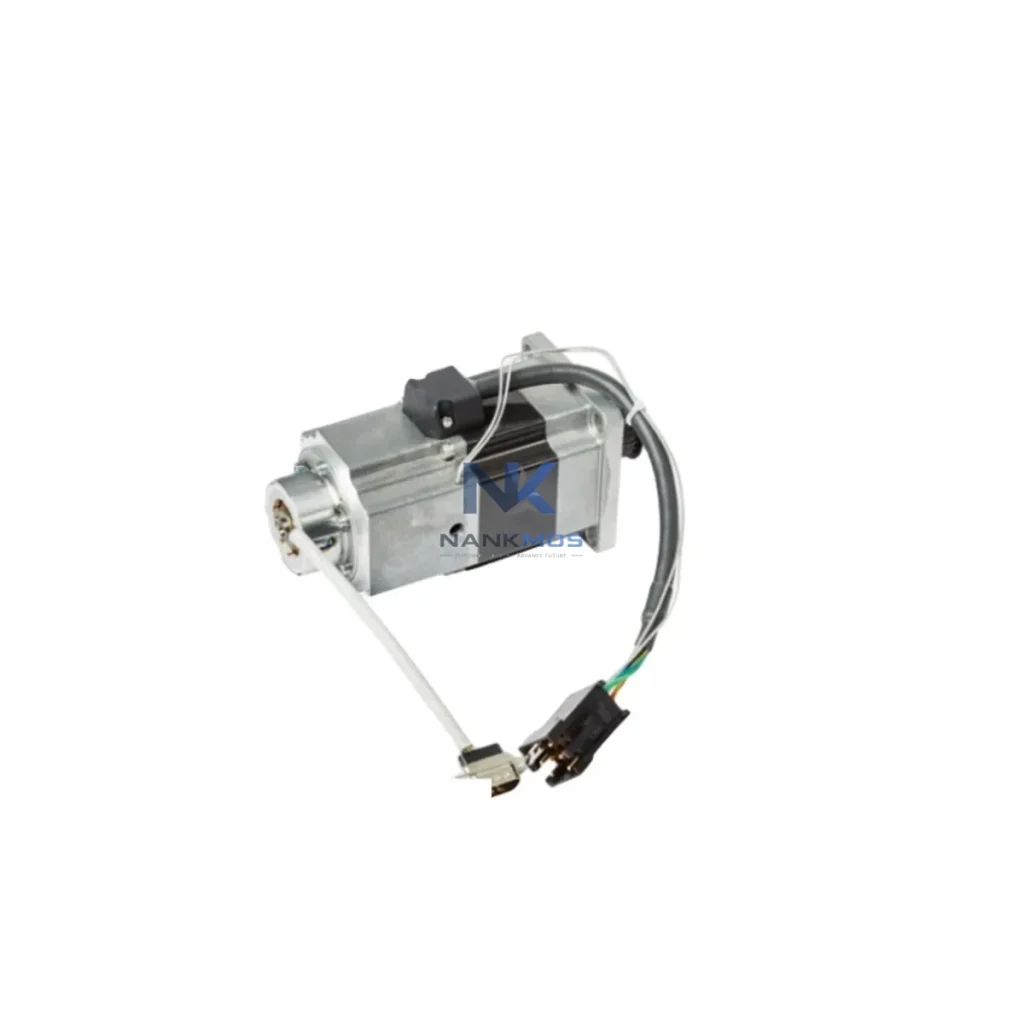

The ABB 3HAC17810-1 is a precision servo motor designed for Axis 5 and Axis 6 of the ABB IRB 52 articulated robot, integrating seamlessly into the IRC5 controller architecture for high-speed, high-accuracy motion control in smart manufacturing environments. Equipped with a factory-fitted pinion gear (cross-referenced as 3HAB8101-3 and 3HNA014908-001), this motor is engineered to deliver consistent torque, low backlash, and reliable positional feedback across demanding production cycles in automotive, electronics assembly, semiconductor handling, and general industrial automation.

In a connected factory environment, the 3HAC17810-1 does not operate in isolation. It forms a critical node in the robot's internal data chain — from the IRC5 drive module through the axis computer board, resolver feedback loop, and ultimately to the RobotWare motion planner. The motor's resolver signal is transmitted back to the IRC5 drive unit, where real-time position data is processed and synchronized with the robot's motion program. This closed-loop servo architecture ensures sub-millimeter repeatability and enables the IRC5 controller to execute complex multi-axis coordinated movements with deterministic timing.

From a smart factory data flow perspective, the ABB IRB 52 robot — powered by the 3HAC17810-1 on its wrist axes — connects upward to SCADA systems and MES platforms via the IRC5's built-in Ethernet/IP or PROFINET interface. Operators monitoring production lines through ABB's FlexPendant or remote PC-based RobotStudio can observe real-time axis load, motor temperature, and positional deviation without interrupting the production cycle. When integrated with an ABB Panel PC or third-party HMI, alarm thresholds for motor overload or resolver fault can be configured to trigger automated line stops or maintenance alerts, reducing unplanned downtime.

For facilities running multi-robot cells, the IRC5 MultiMove function allows the 3HAC17810-1-equipped IRB 52 to coordinate with other ABB robots — such as the IRB 1200 or IRB 2600 — sharing motion data across a common controller network. This architecture supports synchronized pick-and-place, welding, and dispensing operations where wrist-axis precision is critical. The motor's compatibility with the IRC5 Compact controller also makes it suitable for space-constrained workcells where cabinet footprint is a design constraint.

Remote diagnostics are supported through ABB Ability™ Connected Services, which can monitor motor health parameters — including winding resistance trends, encoder signal quality, and thermal cycling history — and transmit this data to cloud-based dashboards for predictive maintenance scheduling. When paired with an ABB JOKAB Safety relay or a Pilz PNOZ safety controller, the system can implement safe-speed monitoring on Axis 5/6, ensuring compliance with ISO 10218 robot safety standards during collaborative operation zones.

In terms of network infrastructure, the IRB 52 robot cell typically connects through an industrial-grade managed Ethernet switch — such as a Hirschmann RS20 or Cisco IE-2000 — to the plant's automation backbone. This switch aggregates data from the IRC5 controller, any connected vision systems (e.g., Cognex In-Sight cameras for part verification), and upstream conveyor PLCs (e.g., Siemens S7-1200 or Allen-Bradley CompactLogix) into a unified PROFINET or EtherNet/IP segment. The 3HAC17810-1's role in this ecosystem is foundational: without reliable wrist-axis motion, the robot cannot complete its end-of-arm tooling tasks, and the entire data flow — from sensor trigger to SCADA confirmation — breaks down.

Every 3HAC17810-1 unit supplied by NANKMOS undergoes pre-shipment functional verification, including resolver signal integrity check, pinion mesh inspection, and winding insulation resistance test. Units are shipped with full traceability documentation and are backed by a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions. Stock is maintained for rapid dispatch to minimize robot downtime in production-critical environments.

The 3HAC17810-1 sits at the motion execution layer of the smart factory data stack. Signal flow begins at the IRC5 drive module, which receives motion commands from the axis computer board running RobotWare. The resolver embedded in the 3HAC17810-1 feeds back real-time angular position data to the drive, completing the servo loop at update rates exceeding 1 kHz. This high-frequency feedback loop is what enables the IRB 52 to achieve its rated ±0.02 mm repeatability on Axis 5/6 — critical for precision dispensing, small-part assembly, and camera-guided pick operations.

At the cell level, the IRC5 controller communicates upstream via PROFINET to a Siemens S7-1500 PLC managing conveyor sequencing and part presence detection from Balluff inductive sensors. The PLC's PROFINET master role allows it to issue robot start/stop commands and receive robot-ready status signals without additional gateway hardware. For facilities using Allen-Bradley infrastructure, the IRC5's EtherNet/IP adapter interface enables direct integration with a CompactLogix or ControlLogix PLC, sharing robot state data through standard CIP messaging.

Where legacy serial devices remain in the cell — such as older Keyence vision controllers or Cognex DataMan barcode readers communicating via RS-232 — a Moxa NPort serial device server bridges the data to the Ethernet segment, ensuring all device data converges at the SCADA layer. The SCADA platform (Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC) aggregates robot cycle data, motor load trends, and production counts into unified dashboards accessible by plant engineers and remote maintenance teams.

Edge computing nodes — such as a Siemens SIMATIC IPC or an Advantech UNO series industrial PC — can run local OPC-UA servers that buffer robot data during network interruptions and synchronize with cloud MES platforms (SAP ME, Rockwell FactoryTalk) when connectivity is restored. This architecture ensures no production data is lost even during planned network maintenance windows.

One of the most common challenges in robot-integrated production lines is protocol fragmentation — where the robot controller, PLC, vision system, and SCADA platform each speak different industrial protocols, creating data silos that prevent unified monitoring. The IRC5 controller paired with the 3HAC17810-1 addresses this by supporting multiple fieldbus interfaces simultaneously, allowing a single robot cell to participate in both a PROFINET segment (for PLC coordination) and an EtherNet/IP segment (for MES reporting) without additional protocol converters.

Remote monitoring gaps are another frequent pain point. Without reliable wrist-axis feedback, robot path deviations accumulate silently until a quality escape occurs. The 3HAC17810-1's resolver-based feedback, combined with IRC5's built-in axis monitoring functions, enables continuous deviation tracking. When integrated with ABB Ability™, threshold breaches trigger automatic email or SMS alerts to maintenance personnel, enabling remote diagnosis before the issue escalates to a production stop.

For production line transparency, the IRC5 controller's data logging capability — accessible via RobotStudio's online monitoring module — records cycle time, axis load, and error codes with millisecond timestamps. This data can be exported to CSV or connected directly to a Grafana dashboard via OPC-UA, giving process engineers full visibility into robot performance trends without requiring on-site presence.

System expansion is simplified by the IRC5 MultiMove architecture: adding a second IRB 52 robot to an existing cell requires only a software license upgrade and network configuration — no new controller hardware. The 3HAC17810-1's standardized mechanical and electrical interface ensures that replacement or expansion units can be installed and calibrated within a single maintenance shift, minimizing production impact.

Q1: What communication protocols does the ABB IRC5 controller support for SCADA integration?The IRC5 controller natively supports PROFINET, EtherNet/IP, DeviceNet, and Modbus TCP through optional fieldbus adapter modules. For SCADA integration, OPC-UA server functionality is available via RobotWare add-on options, enabling direct data exchange with Ignition, WinCC, and other OPC-UA-compatible platforms without additional gateway hardware.

Q2: How is remote diagnostics performed on the 3HAC17810-1 motor during production?Remote diagnostics are performed through ABB Ability™ Connected Services, which monitors resolver signal quality, motor winding temperature, and axis load in real time. Alerts are configurable via the ABB cloud portal and can be forwarded to maintenance teams via email or integrated into the plant's CMMS for automated work order generation. No physical access to the robot is required for routine health checks.

Q3: Is the 3HAC17810-1 compatible with IRC5 Compact controllers used in smaller workcells?Yes. The 3HAC17810-1 is fully compatible with the IRC5 Compact controller, which shares the same drive architecture as the standard IRC5 cabinet. The resolver interface, drive bus protocol, and RobotWare motion parameters are identical across IRC5 variants, ensuring plug-and-play replacement without software reconfiguration.

Q4: What does the 12-month warranty cover, and what is the pre-shipment test process?The 12-month warranty covers manufacturing defects, resolver signal failure, winding insulation breakdown, and premature mechanical wear under normal operating conditions. Pre-shipment testing includes resolver signal integrity verification, pinion mesh inspection, winding resistance measurement, and insulation resistance testing to IEC 60034 standards. Full test documentation is provided with each unit. Contact NANKMOS for warranty claims or technical support.
