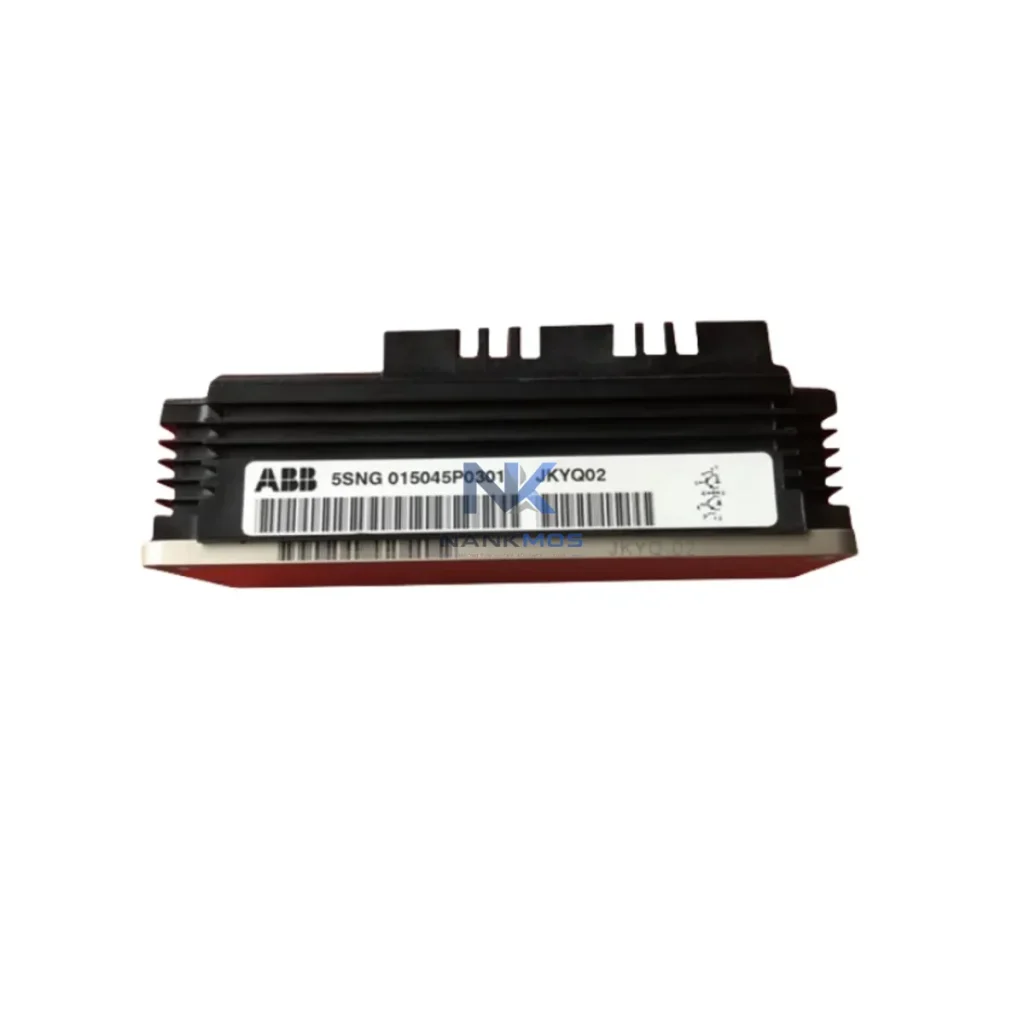

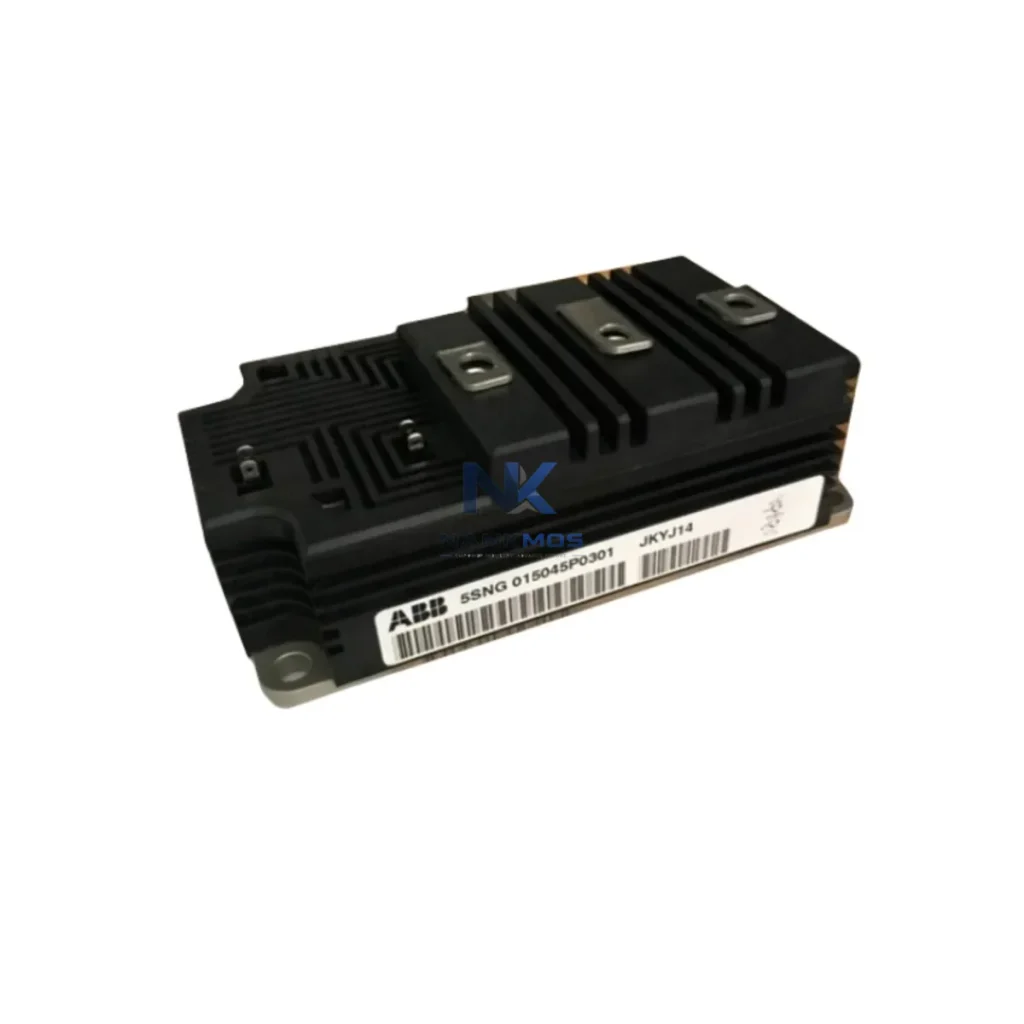

ABB 5SNG015045P0301 IGBT Module

Product Details

5SNG015045P0301 Product Description

The ABB 5SNG015045P0301 is a high-power press-pack IGBT module engineered for demanding control architectures in industrial drive systems, grid-tied converters, and high-voltage inverter platforms. As a core switching element within ABB's HiPak product family, this module delivers the electrical performance, thermal stability, and long-term reliability required for mission-critical automation infrastructure. Its role extends beyond a single switching device — it is a system-level component that defines the power conversion backbone of multi-axis drive cabinets, active front-end rectifiers, and regenerative braking units across heavy industrial environments.

The 5SNG015045P0301 operates at the power conversion layer of a complete automation architecture, where its performance directly influences the stability and efficiency of every upstream and downstream subsystem. In a typical high-power drive cabinet, this IGBT module is stacked within a press-pack assembly alongside the ABB 5SNA0750G650300 IGBT or equivalent HiPak devices to form a three-phase inverter bridge. Gate drive signals are conditioned and isolated by the ABB AGDR-76C or AGDR-61C gate driver units, which provide short-circuit protection, desaturation detection, and soft-turn-off capability — critical for protecting the module under fault conditions.

At the control layer, the drive's modulation strategy is executed by an ABB ACS880 or ACS6000 series drive controller, which generates PWM references that are translated into gate pulses by the AGDR driver chain. The DC bus voltage feeding the IGBT stack is stabilized by a dedicated ABB PCS100 active front-end or a diode rectifier bridge, with DC link capacitor banks providing energy buffering and ripple suppression. Voltage and current transducers — such as LEM HAIS 1000-P or ABB EV sensor modules — monitor real-time electrical parameters and feed back to the drive's closed-loop control algorithm.

At the I/O and signal layer, ABB AC500 PLC modules or a SIMATIC S7-400H redundant controller may supervise the drive system, issuing run/stop commands, speed references, and fault acknowledgment signals via PROFIBUS-DP or PROFINET fieldbus. Fiber-optic communication links between the gate driver and the control board eliminate ground loop interference in high-dV/dt switching environments. For thermal management, the press-pack stack interfaces with a liquid-cooled heatsink assembly, and coolant flow is monitored by a Pt100 RTD sensor integrated into the cooling circuit, with alarms routed to the PLC's analog input module.

In redundant architectures — common in steel rolling mills, offshore platforms, and power generation applications — a parallel IGBT stack using additional 5SNG015045P0301 modules provides N+1 redundancy at the inverter stage, with automatic bypass switching managed by the drive controller. This modular redundancy approach, combined with the press-pack topology's inherent short-circuit failure mode, ensures that a single device failure results in a controlled short rather than an open circuit, preserving system continuity and enabling planned maintenance without unscheduled downtime.

Steel & Metals Processing: In rolling mill main drives and coiler/uncoiler systems, the 5SNG015045P0301 forms the inverter core of multi-megawatt variable-speed drives. Its 4500 V blocking voltage and 1500 A current rating accommodate the high-torque, low-speed demands of roughing and finishing mill stands, where precise speed regulation and rapid torque response are essential for product quality and process stability.

Power Generation & Grid Interconnection: In wind turbine full-power converters and hydro generator excitation systems, HiPak IGBT modules handle the AC-DC-AC conversion between the generator and the grid. The press-pack construction ensures reliable clamping pressure over decades of thermal cycling, while the module's low switching losses contribute to overall plant efficiency and reduced cooling infrastructure costs.

Oil, Gas & Petrochemical: Variable-frequency drives for compressor trains, pipeline pumps, and subsea motor systems rely on high-voltage IGBT modules to achieve soft-start capability, energy savings, and process control precision. The 5SNG015045P0301's robust construction and pre-shipment testing protocol align with the stringent reliability requirements of hazardous-area installations and remote offshore platforms.

Water & Wastewater Treatment: Large pump and blower drives in municipal water infrastructure benefit from the module's efficiency at partial load, reducing energy consumption during variable-demand operation. Integration with SCADA systems via the drive's fieldbus interface enables remote monitoring and predictive maintenance scheduling.

Marine & Shipboard Power: In electric propulsion systems and shaft generator converters, HiPak modules provide the power density and reliability demanded by classification societies. The press-pack assembly's vibration tolerance and double-sided cooling compatibility make it suitable for compact marine drive cabinets subject to vessel motion and salt-air environments.

Q1: Is the ABB 5SNG015045P0301 compatible with existing ABB HiPak press-pack stacks and AGDR gate driver platforms? Yes. The 5SNG015045P0301 is designed within ABB's HiPak press-pack family and is mechanically and electrically compatible with standard HiPak stack assemblies. It interfaces directly with ABB AGDR-series gate driver units (AGDR-61C, AGDR-76C) and conforms to the clamping force, contact geometry, and gate drive voltage specifications common to the HiPak platform. Always verify the specific gate drive timing parameters against the ABB datasheet before commissioning in a new stack configuration.

Q2: What pre-shipment testing and quality assurance procedures apply to this module? Every 5SNG015045P0301 unit supplied by NANKMOS undergoes pre-shipment electrical verification including VCES blocking voltage test, gate threshold check, and visual inspection for contact surface integrity. Units are shipped in anti-static, humidity-controlled packaging with individual test records. The 12-Month Warranty covers manufacturing defects and electrical parameter conformance from the date of shipment, providing procurement teams with a documented quality baseline for incoming inspection and project scheduling.

Q3: How should long-term maintenance and spare parts inventory be planned for systems using this IGBT module? For critical drive systems, a minimum of one spare press-pack stack (comprising matched 5SNG015045P0301 modules) should be held on-site or in a regional warehouse to support rapid replacement during unplanned outages. NANKMOS maintains stock availability with short lead times to support both planned maintenance windows and emergency procurement. Contextual Integration with your existing ABB drive platform means that replacement modules can be installed and commissioned without firmware changes or control system reconfiguration, minimizing mean time to repair (MTTR) and supporting long-term asset lifecycle management.
