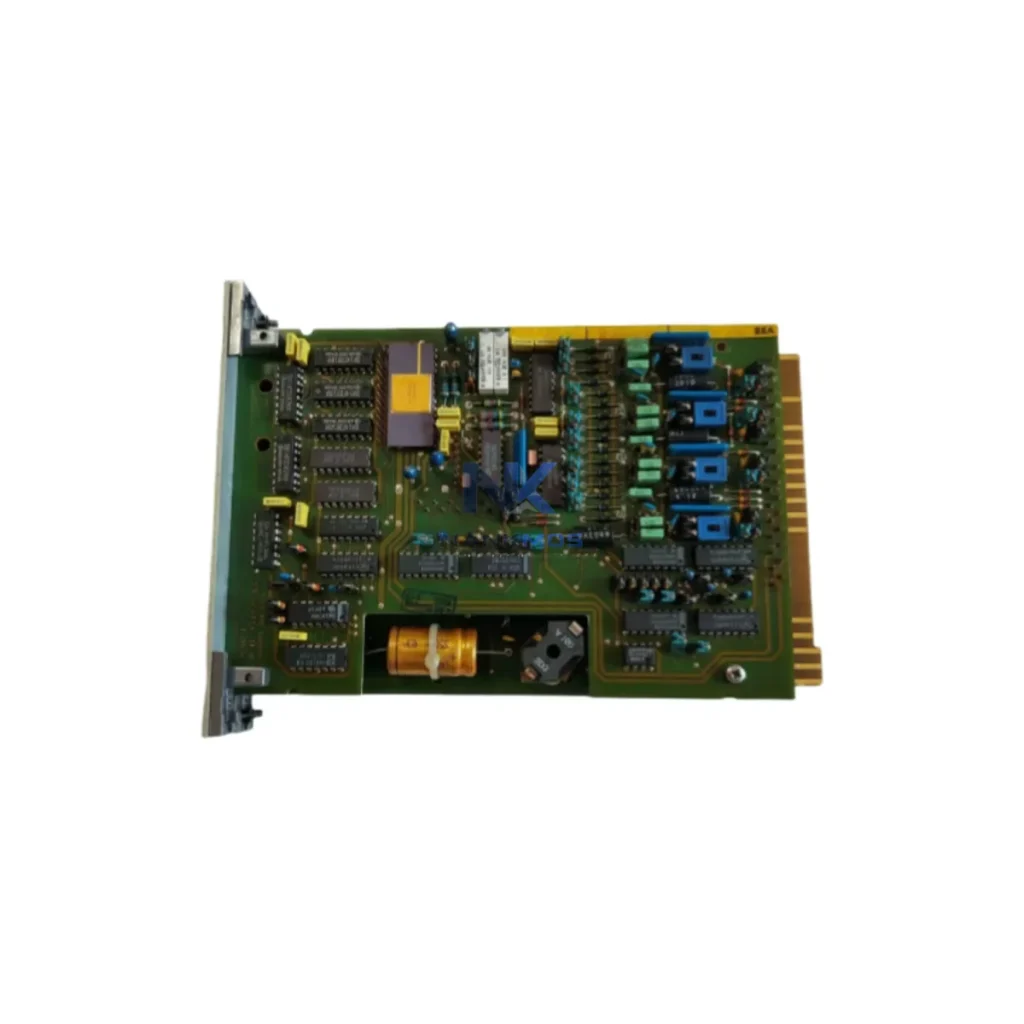

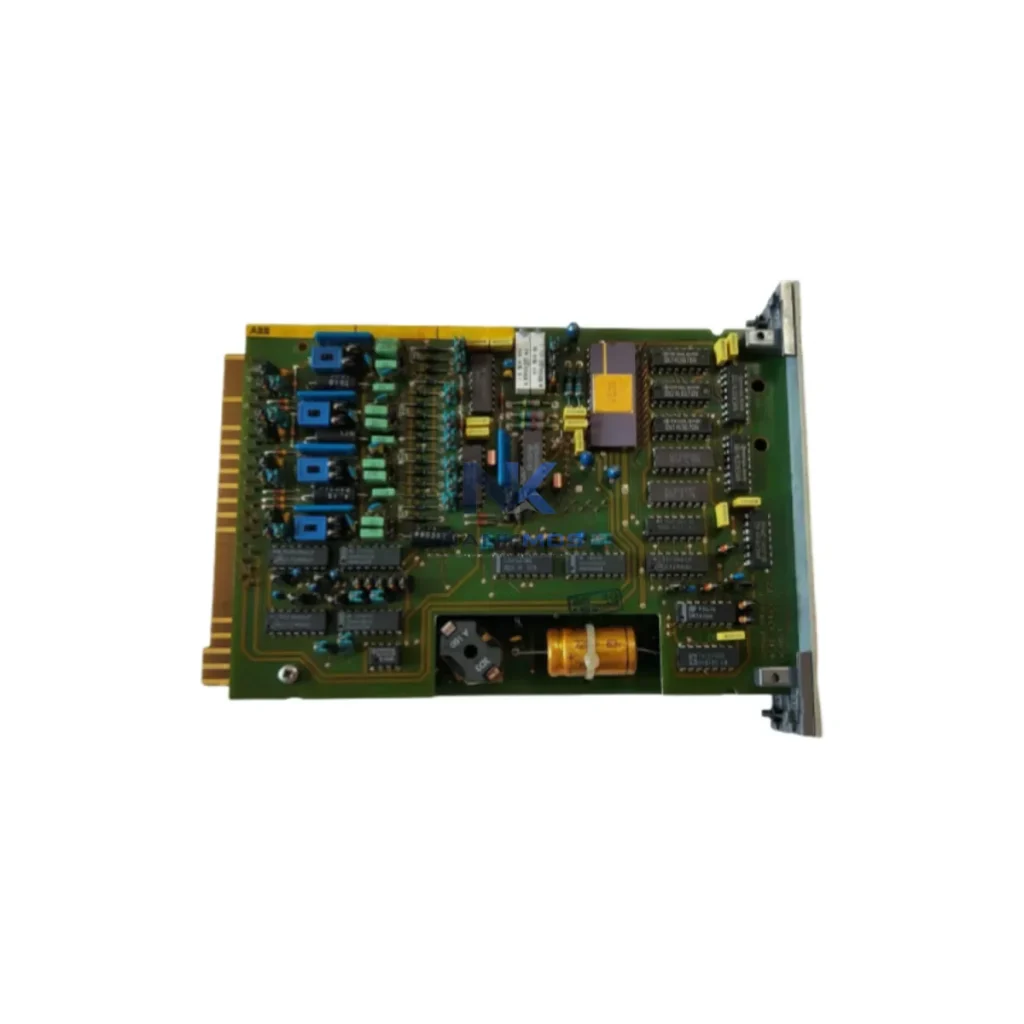

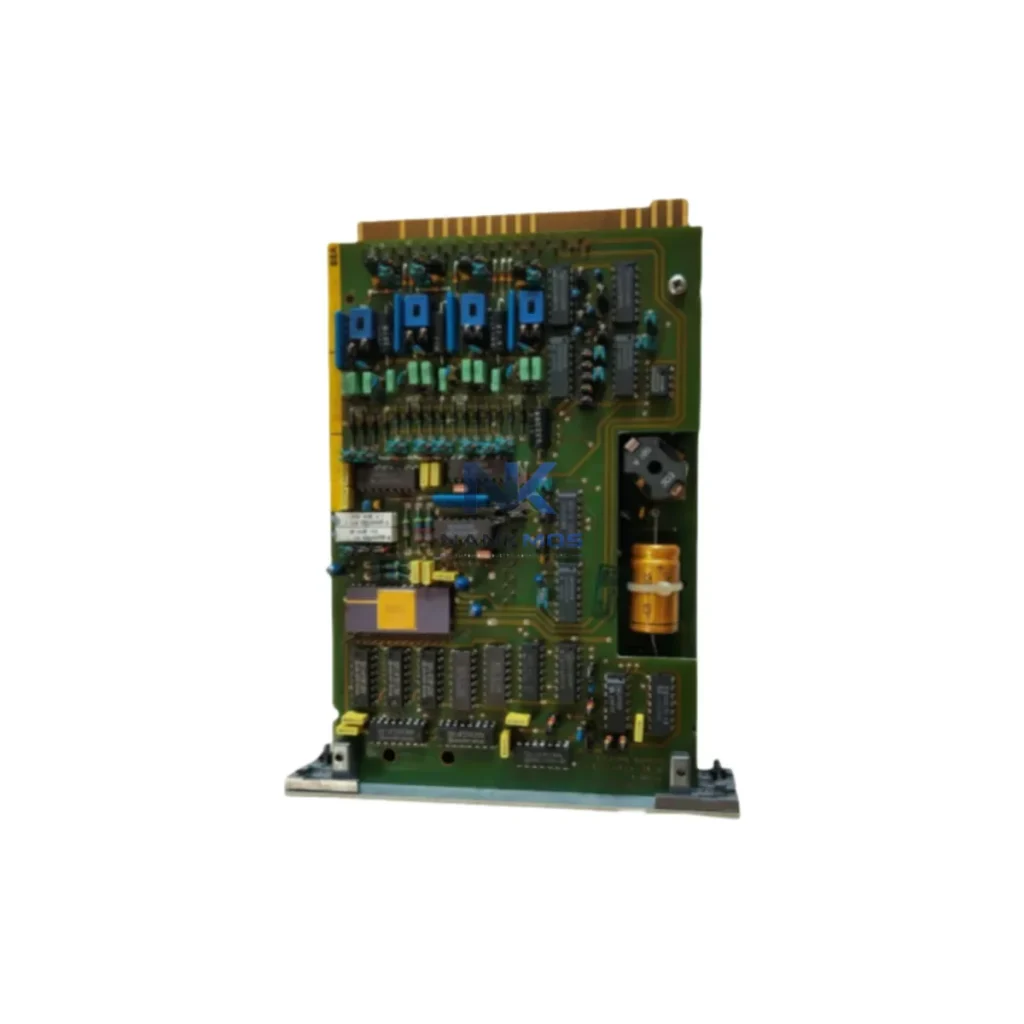

ABB 70AB02B-E Analog I/O Module

Product Details

70AB02B-E Product Description

The ABB 70AB02B-E is a precision-engineered Analog I/O Module designed for seamless deployment within the ABB MOD 300 and Bailey Infi 90 Distributed Control System (DCS) platforms. As a core signal-layer component, the 70AB02B-E bridges field instrumentation and the control processor, enabling accurate analog signal acquisition, conditioning, and transmission across multi-loop process environments. Its architecture-native design ensures direct compatibility with MOD 300 backplane infrastructure, eliminating integration overhead and reducing commissioning time in both greenfield and retrofit installations.

Engineered for demanding industrial environments — including power generation, petrochemical refining, oil and gas processing, water treatment, and marine propulsion control — the 70AB02B-E delivers stable, repeatable analog performance across extended operational cycles. Its modular form factor supports hot-swap capability within compatible MOD 300 racks, enabling maintenance teams to replace or reconfigure I/O channels without process interruption. Combined with a pre-shipment functional test protocol and a 12-Month Warranty, this module is a reliable choice for both capital projects and emergency spares procurement.

Contextual Integration is central to the 70AB02B-E's value proposition. Rather than functioning as a standalone signal card, it operates as a synchronized node within a layered automation hierarchy — coordinating with CPU modules, power supply units, communication gateways, and HMI systems to maintain signal fidelity and system-wide data consistency. This integration depth makes the 70AB02B-E particularly effective in architectures where analog signal accuracy directly influences regulatory compliance, safety interlock logic, or advanced process optimization algorithms.

The 70AB02B-E achieves its full performance potential when deployed within a complete ABB MOD 300 automation architecture. At the control layer, the module interfaces directly with ABB MOD 300 Master Controller units, which execute process logic and issue setpoint commands to field devices via the analog output channels of the 70AB02B-E. The controller's scan cycle synchronizes with the I/O module's update rate, ensuring that analog values presented to the control algorithm reflect real-time field conditions without latency-induced deviation.

Power integrity is maintained through dedicated MOD 300 Power Supply Modules, which provide regulated DC voltage to the I/O backplane. Voltage stability directly affects analog signal accuracy; the 70AB02B-E's internal signal conditioning circuitry is calibrated to operate within the power envelope defined by ABB's rack power specifications. In redundant power configurations, automatic switchover prevents supply interruptions from propagating to the analog signal chain.

At the communication layer, ABB Infi-Net Communication Modules and Bailey Network 90 gateways aggregate process data from multiple I/O modules — including the 70AB02B-E — and transmit structured data packets to supervisory systems, historians, and SCADA platforms. This communication architecture supports both peer-to-peer controller coordination and upstream data delivery to ABB System 800xA or legacy Infi 90 Operator Stations, enabling unified process visualization across the plant.

Digital I/O coordination is handled by companion ABB MOD 300 Digital I/O Modules, which share the same backplane infrastructure as the 70AB02B-E. This co-location allows the control system to correlate analog measurements with discrete status signals — for example, pairing a 4–20 mA flow transmitter reading from the 70AB02B-E with a valve position feedback from a digital input module to validate control loop closure. Signal Isolator Modules installed upstream of the 70AB02B-E protect the analog input channels from ground loops and common-mode voltage interference originating in field wiring, preserving measurement accuracy in electrically noisy environments such as motor control centers or high-voltage switchgear rooms.

For installations requiring protocol translation, Modbus RTU/TCP Gateway Modules compatible with the MOD 300 architecture enable the 70AB02B-E's analog data to be exposed to third-party SCADA systems, energy management platforms, or condition monitoring tools without modifying the native DCS configuration. This interoperability layer is particularly valuable in hybrid automation environments where legacy ABB DCS infrastructure coexists with modern IIoT edge computing nodes.

Power Generation: In combined-cycle and coal-fired power plants, the 70AB02B-E monitors turbine inlet temperature, steam pressure, and feedwater flow through 4–20 mA transmitter inputs. The module's analog output channels drive control valves and damper actuators in response to setpoints issued by the MOD 300 master controller, maintaining boiler efficiency and turbine load balance within regulatory limits.

Petrochemical Refining: Distillation column temperature profiling and reactor pressure control rely on high-resolution analog signal acquisition. The 70AB02B-E's multi-channel architecture allows simultaneous monitoring of multiple process variables within a single rack slot, reducing cabinet footprint in space-constrained refinery control rooms while maintaining the signal density required for advanced process control (APC) applications.

Oil and Gas Processing: Offshore and onshore gas compression stations deploy the 70AB02B-E within MOD 300 safety-instrumented and process control architectures. The module's compatibility with redundant I/O configurations supports SIL-rated loop designs where analog signal availability is a functional safety requirement. Pre-shipment testing documentation supports HAZOP review and FAT (Factory Acceptance Test) compliance.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the 70AB02B-E to monitor pH, dissolved oxygen, turbidity, and flow rate transmitters across multiple treatment stages. The module's stable analog performance over extended duty cycles reduces calibration frequency and supports unattended overnight operation in remote pump stations.

Mining and Metallurgy: Ore processing and smelting operations subject control hardware to vibration, dust, and thermal cycling. The 70AB02B-E's industrial-grade construction and rack-mounted installation within sealed MOD 300 enclosures provide the environmental protection required for reliable analog signal processing in these harsh conditions. Conveyor speed references, furnace temperature setpoints, and slurry flow measurements are typical analog I/O applications in this sector.

Q1: Is the ABB 70AB02B-E compatible with both MOD 300 and Bailey Infi 90 DCS platforms? Yes. The 70AB02B-E is designed for the ABB MOD 300 and Bailey Infi 90 DCS families, which share a common backplane and I/O bus architecture. The module installs directly into standard MOD 300 I/O racks without adapter hardware. Compatibility should be verified against the specific rack revision and controller firmware version in your installation; our technical team can assist with cross-reference validation prior to shipment.

Q2: Does the 70AB02B-E support redundant I/O configurations for high-availability process control? The 70AB02B-E is compatible with MOD 300 redundant I/O architectures where dual-module configurations provide automatic failover for critical analog loops. In redundant deployments, both primary and secondary modules are continuously powered and synchronized; the controller switches to the secondary module without process disruption if the primary module fails diagnostics. Redundancy configuration is managed at the MOD 300 controller level and does not require modification of the 70AB02B-E module itself.

Q3: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted? Every 70AB02B-E unit supplied by NANKMOS is functionally tested prior to shipment using MOD 300-compatible test fixtures that verify analog input accuracy, output linearity, backplane communication integrity, and power consumption within ABB-specified limits. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by our technical team at [email protected], and replacement units are dispatched from in-stock inventory to minimize process downtime.
