ABB 70AS47b-E HESG446923R1 Analog Output Module

Product Details

70AS47b-E HESG446923R1 Product Description

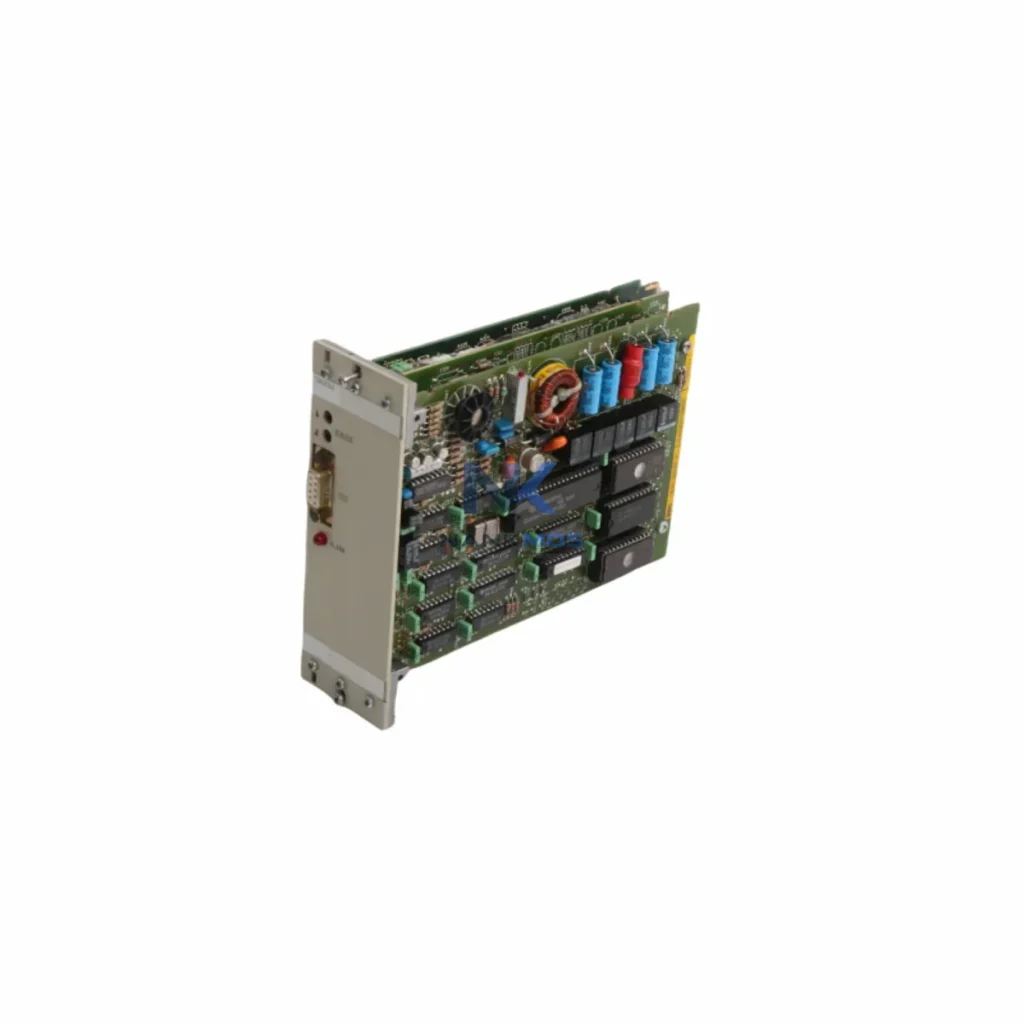

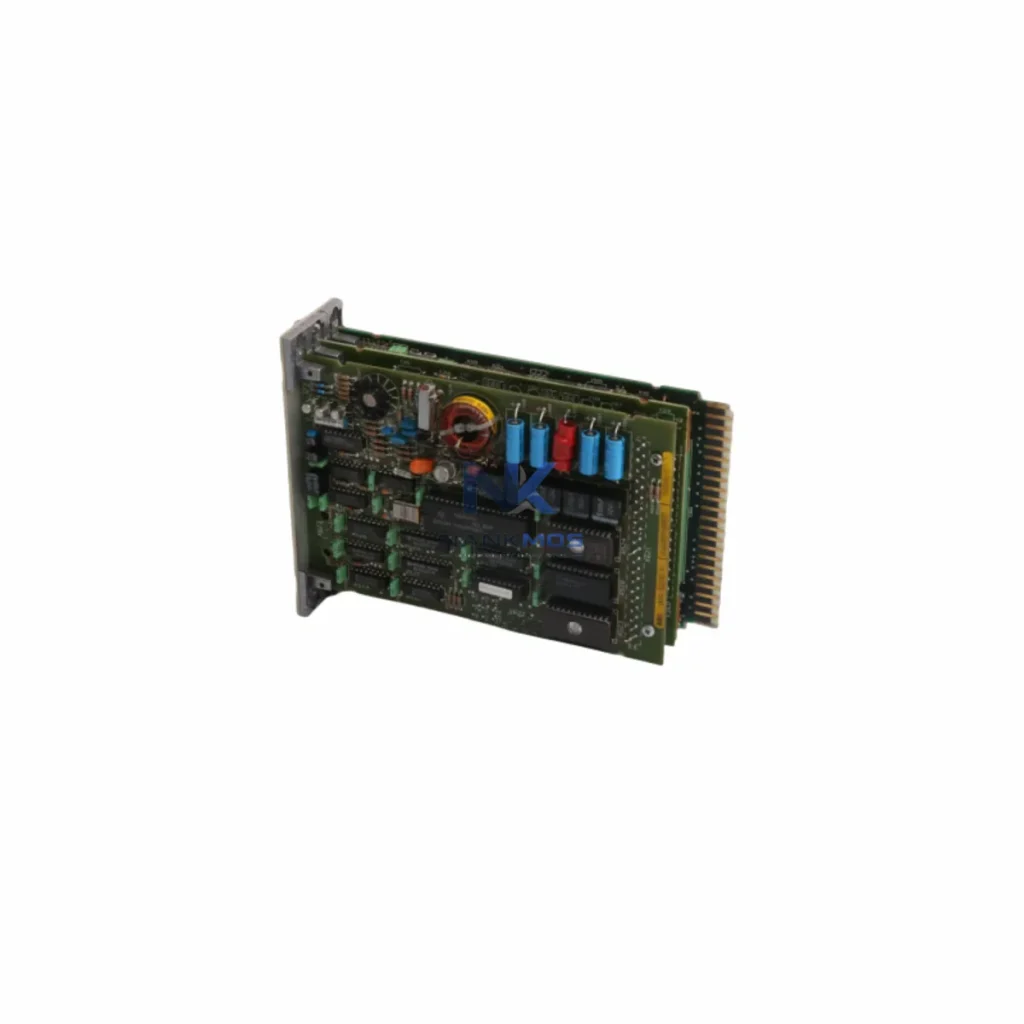

The ABB HESG446923R1 (part number 70AS47b-E) is a precision analog output module engineered for the Advant OCS distributed control system architecture. Designed to deliver stable, high-resolution analog signals across demanding process environments, this module serves as a critical data link between the DCS controller layer and field-level actuators — including control valves, variable frequency drives, and positioners — in smart factory and process automation deployments. With native compatibility across the Advant Master and Advant OCS platform, the HESG446923R1 enables seamless integration into multi-node control networks where signal fidelity, deterministic response, and system-wide data transparency are non-negotiable.

In a modern smart factory, the HESG446923R1 occupies a pivotal position in the analog output layer of the Advant OCS control hierarchy. The data flow begins upstream at the operator level, where SCADA platforms and HMI terminals — such as ABB's own Operate IT or third-party WinCC-based systems — issue setpoint commands through the Advant Fieldbus AF100 network. These commands are received by the Advant Controller AC450 or AC110, which processes the control logic and dispatches analog output instructions to the HESG446923R1 module via the local backplane bus.

The module then converts digital control values into precise 4–20 mA or voltage signals, driving downstream field devices including ABB ACS580 variable frequency drives for pump and fan speed regulation, electro-pneumatic valve positioners, and proportional control actuators. In parallel, analog feedback signals from field sensors — pressure transmitters, flow meters, and temperature sensors connected through remote I/O nodes such as the ABB S800 I/O series — are routed back through the Advant OCS network to close the control loop in real time.

For sites requiring protocol bridging, the HESG446923R1 operates alongside communication gateways such as the ABB CI854 PROFIBUS DP master module or third-party Modbus-to-AF100 converters, enabling legacy field devices and modern PROFIBUS instruments to coexist within the same Advant OCS segment. Industrial Ethernet switches at the supervisory layer aggregate data from multiple Advant OCS stations, feeding historian servers and MES platforms for production analytics and OEE tracking.

Edge computing nodes deployed at the cell controller level can subscribe to real-time analog output status data from the HESG446923R1 via OPC DA/UA adapters, enabling local anomaly detection and predictive maintenance algorithms without burdening the central SCADA server. Power supply modules such as the ABB DSQC series ensure stable 24 VDC rail voltage to the Advant OCS subrack, maintaining output signal integrity even during grid fluctuations. The result is a fully transparent, end-to-end data chain — from operator setpoint to field actuator response — that supports the real-time visibility and remote diagnostic capabilities demanded by Industry 4.0 deployments.

Many industrial sites operating legacy DCS platforms face persistent challenges: protocol fragmentation between older Advant OCS nodes and newer PROFIBUS or Industrial Ethernet devices creates data silos that obscure production performance. The HESG446923R1 addresses this by providing a stable, high-resolution analog output interface that integrates natively with the Advant OCS backplane, eliminating signal conversion errors that arise when analog outputs are routed through incompatible third-party modules.

Remote monitoring gaps are resolved by pairing the HESG446923R1 with AF100-to-OPC gateway solutions, allowing SCADA operators to visualize real-time analog output values, trend historical setpoint deviations, and configure alarm thresholds for out-of-range conditions — all without physical access to the control cabinet. This capability is especially valuable for unmanned substations, offshore platforms, and geographically distributed process plants where on-site intervention is costly.

Production line transparency is further enhanced by integrating analog output data into MES dashboards, where setpoint adherence rates and actuator response times become KPIs for continuous improvement programs. System expansion is straightforward: additional HESG446923R1 modules can be added to existing Advant OCS subracks without reconfiguring the AF100 network topology, supporting phased capacity increases as production demands grow. Every unit shipped by NANKMOS undergoes functional output testing and is covered by a 12-Month Warranty, ensuring operational confidence from day one of installation.

Q1: What communication protocols does the ABB HESG446923R1 support in an Advant OCS network? The HESG446923R1 communicates natively over the Advant Fieldbus AF100 backplane protocol within the Advant OCS and Advant Master DCS architecture. For integration with PROFIBUS DP or Modbus RTU field devices, a protocol gateway module such as the ABB CI854 or a third-party Modbus bridge is required. OPC DA/UA connectivity to SCADA and MES systems is achieved through the Advant OCS station's communication server layer.

Q2: How does the HESG446923R1 support remote diagnostics and predictive maintenance? When integrated with an OPC-enabled Advant OCS communication server, real-time analog output values and module status data can be streamed to remote SCADA dashboards or edge analytics platforms. Operators can configure alarm limits for output deviation, monitor channel health, and trigger maintenance workflows without physical access to the subrack — reducing unplanned downtime and enabling condition-based maintenance strategies.

Q3: Is the HESG446923R1 compatible with modern Industrial Ethernet and SCADA architectures? The module operates within the Advant OCS backplane environment, which connects to supervisory Ethernet networks via Advant OCS station controllers equipped with Ethernet communication boards. This allows SCADA systems running on standard TCP/IP infrastructure to access analog output data through OPC servers, making the HESG446923R1 compatible with contemporary SCADA, historian, and MES platforms without replacing the existing DCS hardware.

Q4: What quality assurance and warranty coverage does NANKMOS provide for the HESG446923R1? Every ABB HESG446923R1 unit supplied by NANKMOS is subject to pre-shipment functional testing, including analog output channel verification across the full 4–20 mA range. Units are shipped with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Inventory is maintained in stock for immediate dispatch, with expedited shipping options available for urgent production requirements.
