ABB 81AA10E GJR2370200R1100 DCS Control Module

Product Details

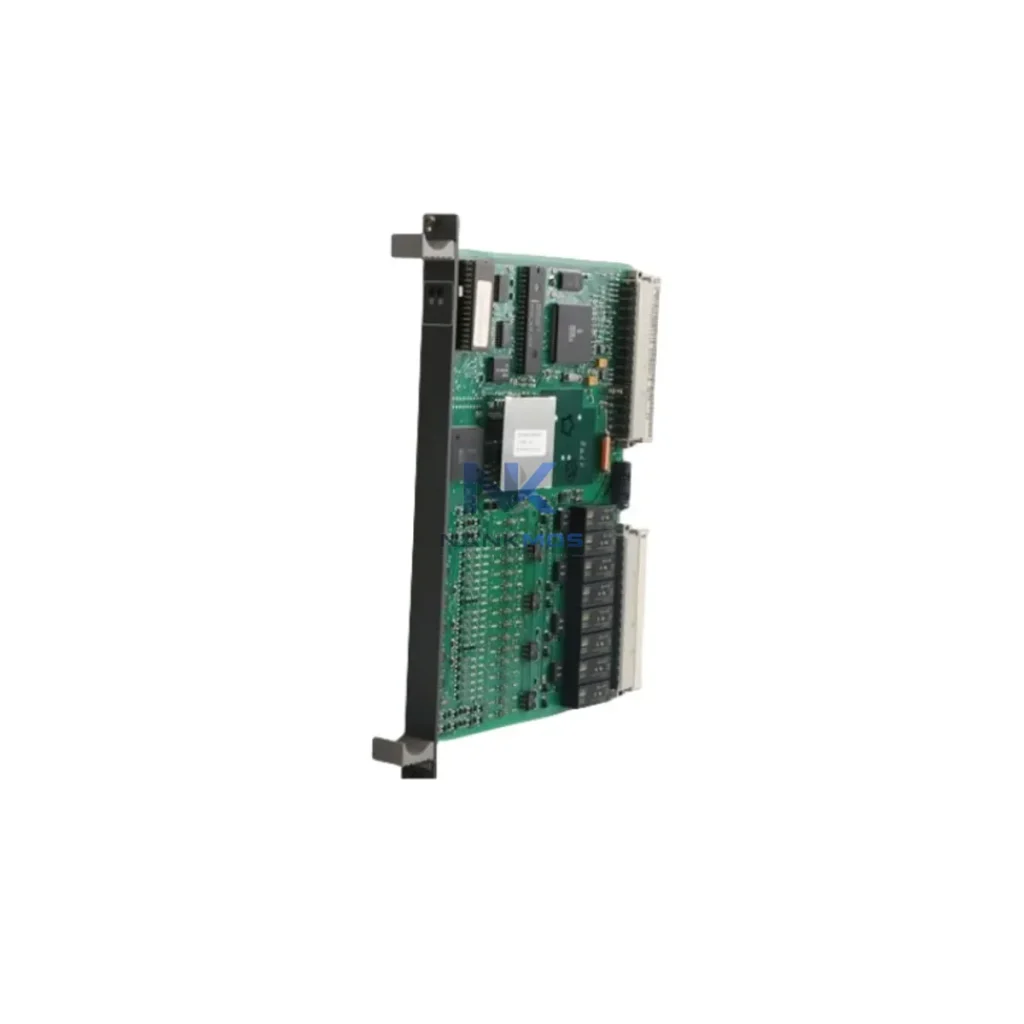

81AA10E GJR2370200R1100 Product Description

The ABB 81AA10E (part number GJR2370200R1100) is a dedicated control module engineered for deployment within the ABB Advant Master Distributed Control System (DCS) architecture. Designed to operate as a core processing and coordination node within the control layer, this module delivers deterministic scan-cycle execution, structured I/O coordination, and seamless integration across the multi-tier automation hierarchy. Whether deployed in a greenfield installation or as a verified replacement in an existing Advant Master rack, the 81AA10E maintains full system consistency with the surrounding control platform.

At NANKMOS, every 81AA10E GJR2370200R1100 unit undergoes pre-shipment functional testing and is backed by a 12-Month Warranty, ensuring operational confidence from the moment of installation. Global inventory availability supports rapid dispatch for both planned maintenance cycles and unplanned replacement scenarios.

The 81AA10E GJR2370200R1100 does not operate in isolation — its value is fully realized when considered within the complete Advant Master automation platform. In a typical Advant Master installation, the control layer anchors the entire system hierarchy. The 81AA10E interfaces directly with the ABB DSPC 172 / DSPC 110 processor boards that govern scan-cycle timing and program execution, ensuring that all downstream I/O operations remain synchronized with the control strategy.

At the I/O layer, the module coordinates with ABB DSDI 110A digital input modules and DSDO 110A digital output modules, as well as DSAI 130A analog input modules for process variable acquisition. Signal integrity across these I/O nodes is maintained through the Advant Master backplane bus, which the 81AA10E manages as part of its rack coordination role. For analog output control loops, the DSAO 120A analog output module operates under command sequences routed through this control node.

At the communication layer, the 81AA10E supports integration with the ABB DSMB 127 MasterBus 300 communication module, enabling peer-to-peer controller communication across distributed rack segments. This is particularly relevant in multi-controller architectures where process data must be exchanged between geographically separated control cabinets without introducing latency into the control loop. For PROFIBUS DP connectivity, the ABB DSPB 01 PROFIBUS interface module extends the Advant Master platform into field device networks, allowing the 81AA10E to supervise drives, valve positioners, and intelligent field instruments.

Power integrity is maintained through the ABB DSSB 146 / DSSB 176 power supply modules, which provide regulated DC bus voltage to the rack. In redundant power configurations, dual power supply modules operate in hot-standby mode, ensuring that a single power supply failure does not interrupt control execution. The 81AA10E benefits directly from this redundancy architecture, as uninterrupted rack power is a prerequisite for deterministic control cycle performance.

At the HMI layer, operator interaction with the Advant Master system is typically managed through ABB Advant Station 500 Series operator workstations or legacy ABB MOD 300 operator panels, both of which receive real-time process data routed through the control layer where the 81AA10E resides. For modern integration scenarios, the ABB AC 800M controller platform can serve as a migration bridge, allowing Advant Master I/O infrastructure to be retained while upgrading the control execution environment.

In protection and safety-critical applications, the 81AA10E is often deployed alongside ABB DSCS 140 safety relay modules and hardwired interlock circuits that provide independent trip logic outside the DCS scan cycle. This layered protection architecture ensures that the control module's operational state does not compromise the integrity of emergency shutdown sequences.

Power Generation & Utilities: In thermal power plants and combined-cycle facilities, the ABB 81AA10E GJR2370200R1100 is deployed within turbine control and boiler management systems. Its deterministic control execution supports steam temperature regulation, fuel flow modulation, and burner management sequencing — all of which demand sub-second scan-cycle consistency across the control layer.

Oil, Gas & Petrochemical: Refinery and upstream processing facilities rely on Advant Master DCS platforms for continuous process control. The 81AA10E serves as the coordination node for distillation column control loops, compressor anti-surge systems, and separator level control — environments where control module reliability directly impacts process safety and throughput efficiency.

Pulp, Paper & Chemical Processing: Continuous manufacturing processes in pulp and paper mills require sustained DCS uptime across multi-year production campaigns. The 81AA10E supports stock preparation control, digester sequencing, and chemical dosing automation, where rack-level module consistency is essential for maintaining product quality specifications.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operating on ABB Advant Master platforms use the 81AA10E to manage pump sequencing, chemical feed control, and filtration cycle automation. The module's compatibility with the existing rack architecture eliminates the need for full system replacement during maintenance cycles.

Mining & Metals: In mineral processing and smelting operations, the 81AA10E supports conveyor sequencing, crusher control, and flotation cell automation. The harsh electrical environment of mining facilities — characterized by high-voltage switching transients and ground noise — makes the Advant Master rack's shielded backplane architecture particularly well-suited for sustained control module performance.

Marine & Offshore: Offshore platform automation systems and vessel automation installations using ABB Advant Master DCS benefit from the 81AA10E's compact rack form factor and robust operating temperature range. The module supports ballast control, cargo pump sequencing, and power management system integration in marine-grade control cabinet environments.

Q1: Is the ABB 81AA10E GJR2370200R1100 directly compatible with existing Advant Master AC 400 and AC 450 rack systems without firmware modification? Yes. The 81AA10E GJR2370200R1100 is designed for direct rack insertion into ABB Advant Master AC 400 and AC 450 series backplanes. The module communicates via the standard Advant Master internal bus protocol and does not require firmware reconfiguration for standard replacement scenarios. However, it is recommended to verify the existing rack's firmware revision and module slot assignment configuration prior to installation to ensure full compatibility with the active control strategy.

Q2: Can the 81AA10E be used in a redundant controller configuration within the Advant Master architecture? The Advant Master platform supports controller redundancy through paired processor configurations managed at the system level. The 81AA10E can participate in redundant architectures when paired with the appropriate redundancy management modules and configured according to ABB's Advant Master redundancy guidelines. In such configurations, the standby module maintains a synchronized state with the active controller, enabling bumpless transfer in the event of a primary module fault. Consult the system's existing redundancy configuration before substituting modules in a live redundant pair.

Q3: What does the NANKMOS 12-Month Warranty cover for the ABB 81AA10E GJR2370200R1100, and what is the typical lead time for replacement dispatch? The NANKMOS 12-Month Warranty covers functional defects identified under normal operating conditions consistent with ABB's published environmental and electrical specifications for the Advant Master platform. Each unit is pre-shipment tested prior to dispatch to verify core functional integrity. In the event of a warranty claim, NANKMOS provides replacement unit coordination to minimize control system downtime. For in-stock units, standard dispatch lead time is 1–3 business days for international shipments. Contact [email protected] or +86 18359268345 for real-time inventory confirmation and expedited shipping options.
