ABB 83SR04E-E GJR2390200R1210 Communication Control Board

Product Details

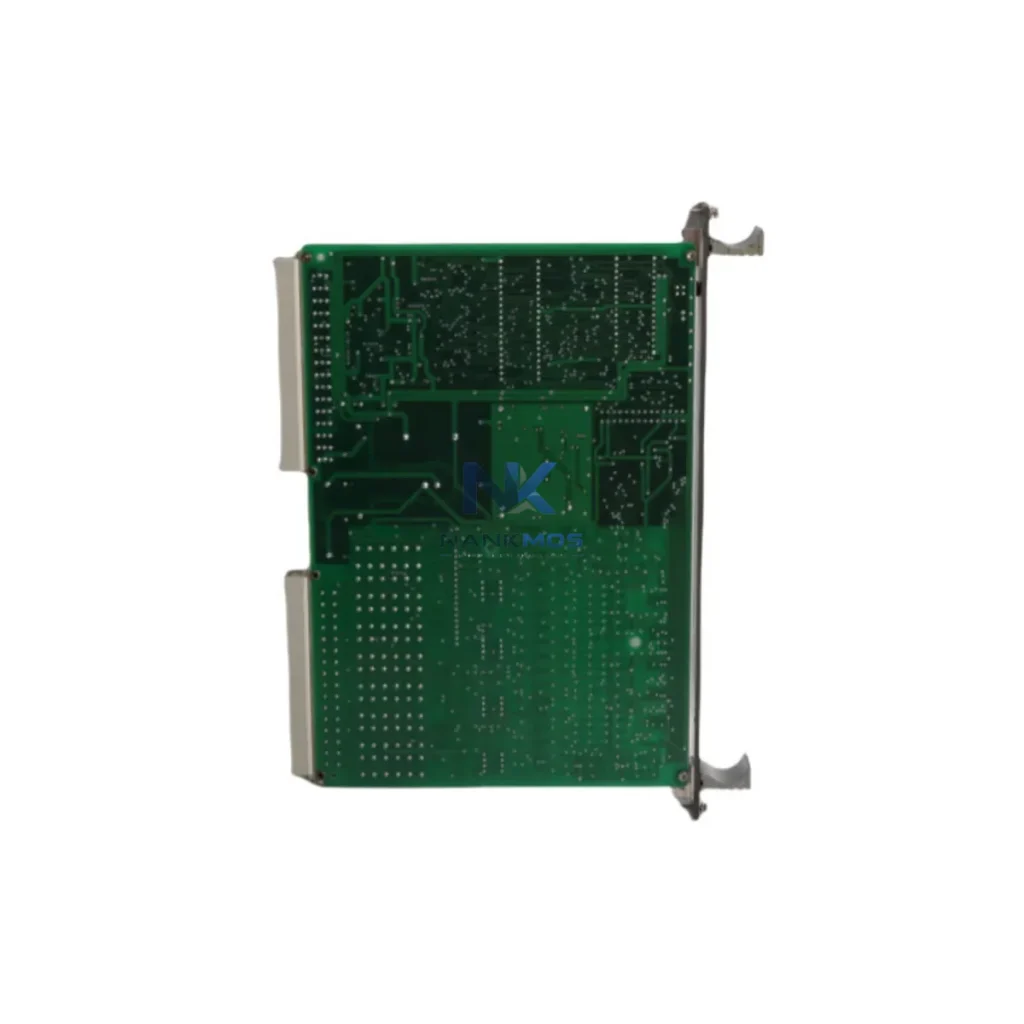

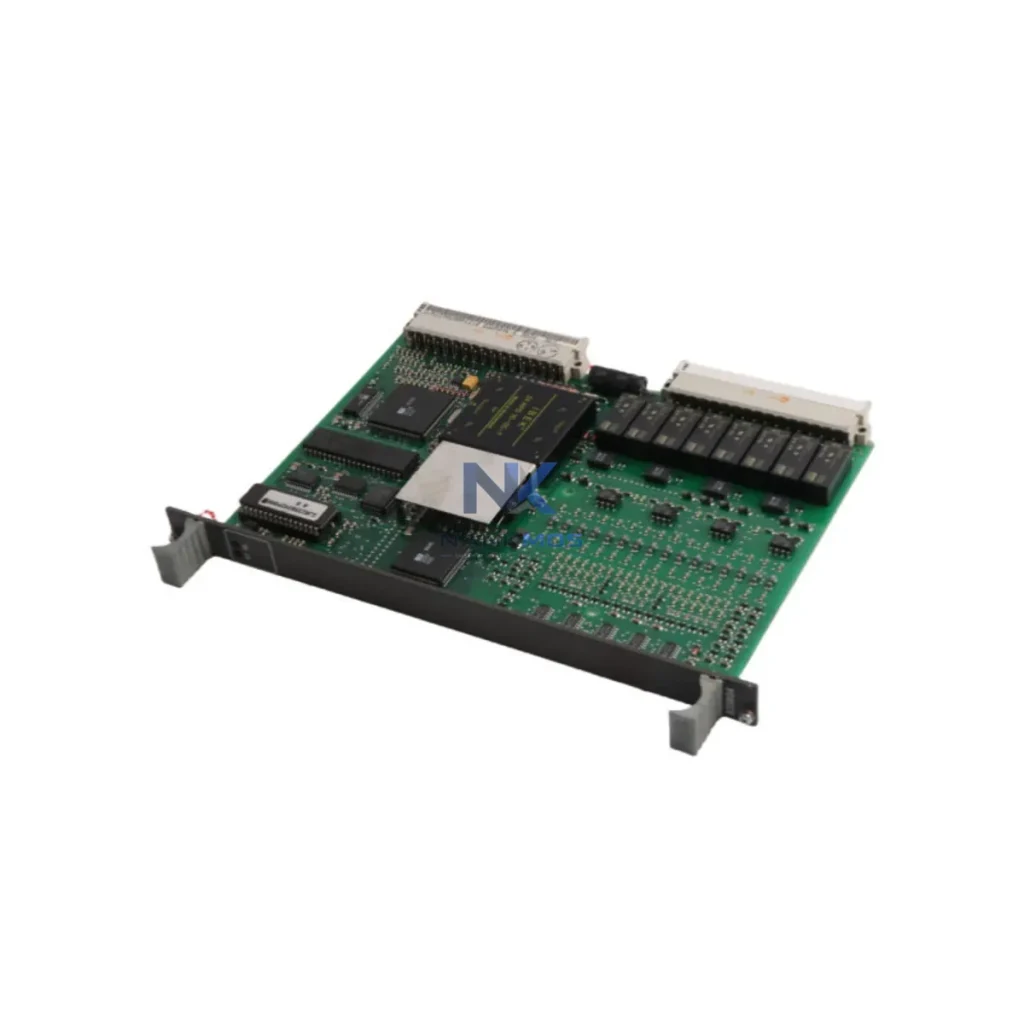

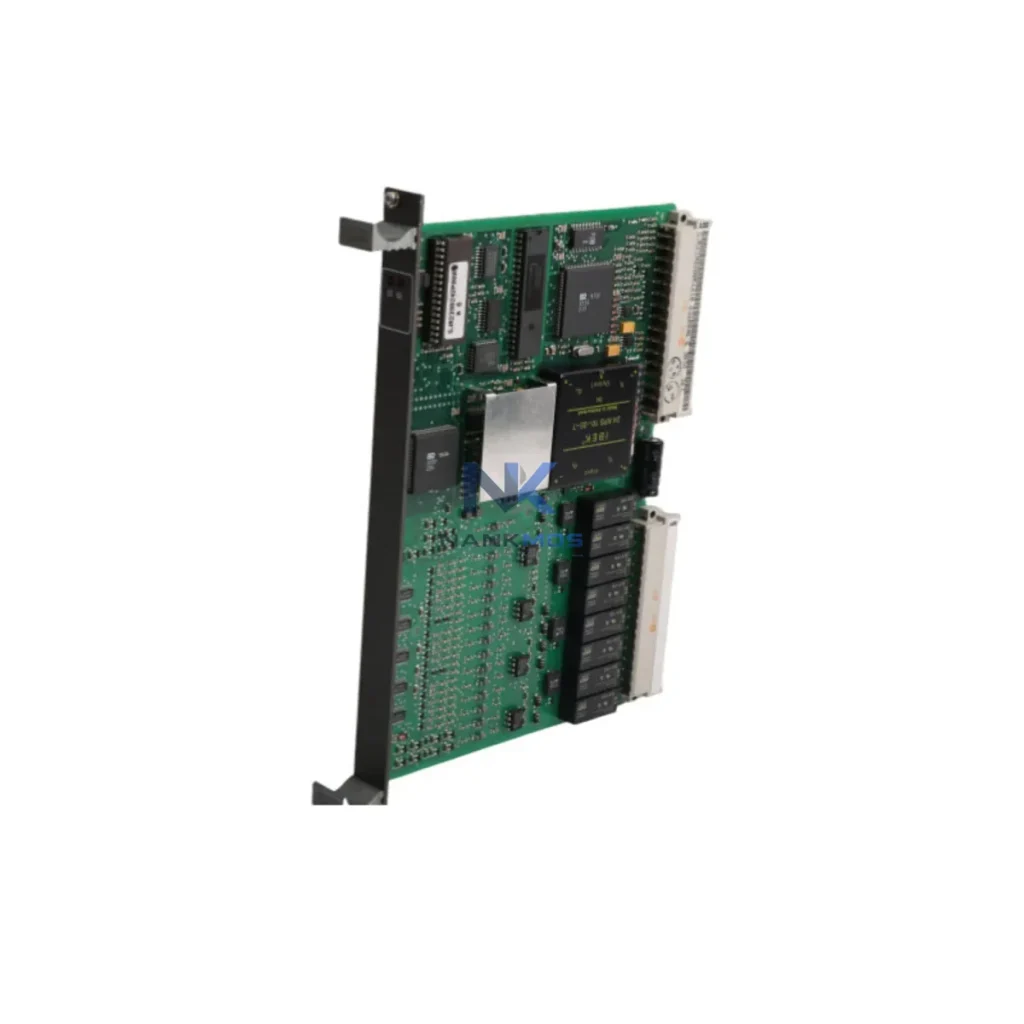

83SR04E-E GJR2390200R1210 Product Description

The ABB 83SR04E-E (GJR2390200R1210) is a dedicated communication control board engineered for the ABB AC500 PLC platform — one of the most widely deployed modular automation controllers in process industries, energy utilities, and discrete manufacturing. Designed to bridge field-level devices with supervisory control systems, this board enables seamless data exchange across PROFIBUS DP and Modbus RTU/TCP networks, making it a critical node in any smart factory data architecture. Whether you are integrating remote I/O racks, variable frequency drives, intelligent sensors, or HMI terminals into a unified control backbone, the 83SR04E-E delivers the protocol translation, network stability, and real-time throughput that modern industrial connectivity demands.

In a connected factory environment, data does not flow in isolation. The 83SR04E-E sits at the intersection of field instrumentation and upper-level SCADA or MES platforms, ensuring that every signal — from a pressure transmitter on a pipeline to a torque reading from a servo drive — reaches the control layer with minimal latency and maximum fidelity. Its role in the AC500 communication architecture allows engineers to configure multi-drop PROFIBUS segments, poll Modbus slave devices, and relay structured data packets upward to ABB System 800xA, Zenon SCADA, or third-party OPC-UA gateways without requiring additional protocol converters or middleware layers.

A typical smart factory deployment using the ABB 83SR04E-E begins at the field layer, where sensors, actuators, and intelligent field devices generate continuous process data. Consider a production line where ABB ACS880 variable frequency drives control conveyor motors and pump stations. Each drive exposes speed, current, fault status, and energy consumption data via PROFIBUS DP. The 83SR04E-E, installed in the AC500 CPU rack alongside an ABB PM564-ETH or PM573-ETH processor module, acts as the PROFIBUS master — cyclically polling each ACS880 node and mapping the returned data into the PLC's process image for real-time control logic execution.

Simultaneously, legacy Modbus RTU devices — such as ABB EL3000 series gas analyzers, third-party flow meters, or Yokogawa EJA pressure transmitters connected via RS-485 — are integrated through the board's Modbus master capability. This eliminates the need for standalone protocol gateways and reduces panel wiring complexity. The AC500 CPU consolidates all field data into a unified data model, which is then forwarded via Ethernet to an ABB System 800xA distributed control system or a Zenon-based SCADA platform for visualization, alarming, and historian logging.

For remote I/O expansion, the 83SR04E-E supports connection to ABB S900 remote I/O modules deployed in hazardous or geographically distributed areas. These I/O nodes communicate back to the AC500 controller over PROFIBUS DP, extending the control system's reach without running dedicated signal cables across long distances. In parallel, Siemens ET 200SP or Phoenix Contact Axioline remote I/O stations can be integrated into the same PROFIBUS segment, enabling mixed-vendor field architectures common in brownfield modernization projects.

At the supervisory layer, data aggregated by the AC500 platform is made available to HMI terminals — such as ABB CP600 operator panels or Weintek cMT series touchscreens — via Modbus TCP over the plant Ethernet network. Operators gain real-time visibility into process variables, equipment status, and alarm histories directly from the HMI interface. For edge analytics and IIoT connectivity, an ABB Edge Gateway or a Moxa MGate protocol converter can subscribe to the AC500 data model and forward selected tags to cloud platforms or MES systems using MQTT or OPC-UA, completing the full data chain from field sensor to enterprise dashboard.

Many industrial facilities operate with fragmented communication architectures — islands of automation where PLCs, drives, and instruments speak different protocols and cannot share data without manual intervention. The ABB 83SR04E-E directly addresses these integration challenges within the AC500 framework.

Protocol Fragmentation: Sites running a mix of PROFIBUS DP legacy devices alongside newer Modbus TCP instruments no longer require separate gateway hardware for each protocol domain. The 83SR04E-E consolidates both protocol stacks within a single AC500 slot, reducing hardware count, panel space, and potential failure points.

Data Silos and Production Transparency: Without a unified communication backbone, production data remains trapped in individual controllers. By connecting all field devices through the AC500 platform via the 83SR04E-E, operators and engineers gain a single source of truth for OEE calculations, energy monitoring, and production KPI tracking — feeding SCADA historians and MES databases with consistent, timestamped data.

Remote Monitoring and Diagnostics: The board's integration with the AC500 diagnostic framework allows remote engineers to interrogate PROFIBUS device status, read Modbus exception codes, and identify communication faults without dispatching field technicians. This capability is particularly valuable for unmanned substations, offshore platforms, and geographically distributed water treatment facilities where on-site intervention is costly and time-consuming.

Alarm Tracking and Response: Real-time alarm propagation from field devices through the AC500 to SCADA ensures that process deviations — such as a drive overcurrent fault or a sensor out-of-range condition — are immediately visible to control room operators. Alarm shelving, acknowledgment workflows, and escalation logic can be configured at the SCADA level, improving mean time to respond (MTTR) across the plant.

System Scalability: The modular AC500 architecture allows additional communication boards to be added as the network grows. New PROFIBUS segments, additional Modbus device groups, or supplementary Ethernet communication modules can be inserted into the CPU rack without redesigning the existing control program, protecting the initial engineering investment.

Q1: What is the maximum number of PROFIBUS DP slaves supported by the ABB 83SR04E-E on a single segment? The PROFIBUS DP standard supports up to 126 node addresses per segment (addresses 0–125), with practical deployments typically limited to 32 nodes per segment without repeaters to maintain signal integrity. The 83SR04E-E operates as a Class 1 PROFIBUS DP master within the AC500 system, supporting the full address range with appropriate network topology design. For larger installations, PROFIBUS repeaters or segment couplers can extend the node count and cable length.

Q2: Is the 83SR04E-E compatible with third-party PROFIBUS devices from vendors such as Siemens, Schneider Electric, or Phoenix Contact? Yes. PROFIBUS DP is an open, IEC 61158-compliant fieldbus standard, and the 83SR04E-E supports standard GSD (General Station Description) file-based device configuration. Any PROFIBUS DP slave device with a valid GSD file — regardless of manufacturer — can be integrated into the AC500 network managed by this board. This makes it suitable for mixed-vendor environments common in brownfield upgrades and multi-supplier plant expansions.

Q3: How does the board handle communication latency in time-critical control loops? PROFIBUS DP operates at baud rates up to 12 Mbit/s, with typical cycle times in the range of 1–10 ms for small-to-medium node counts. The 83SR04E-E is designed to operate within the AC500's deterministic scan cycle, ensuring that field data is refreshed within the PLC's configured task interval. For applications requiring sub-millisecond synchronization, ABB recommends evaluating PROFIBUS DP with equidistant bus cycle configuration or migrating to PROFINET IRT on compatible AC500 Ethernet modules.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the ABB 83SR04E-E GJR2390200R1210? Every ABB 83SR04E-E unit supplied by NANKMOS carries a 12-month warranty covering functional defects under normal operating conditions. Prior to dispatch, each board undergoes a pre-shipment functional test to verify communication port integrity, firmware version, and basic protocol response. Units are shipped in anti-static packaging with appropriate documentation. For volume orders or project-specific lead time requirements, contact our team at [email protected] or +86 18359268345 for a dedicated supply plan.
