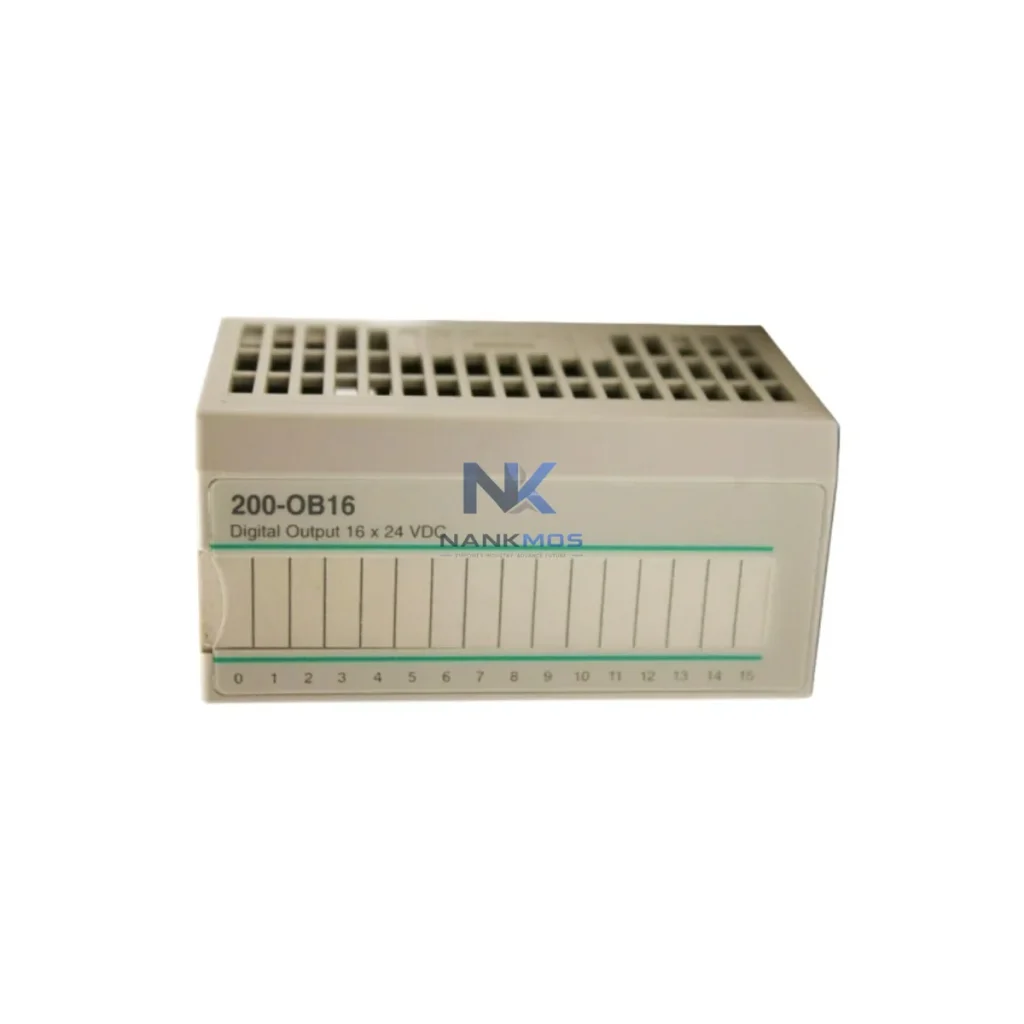

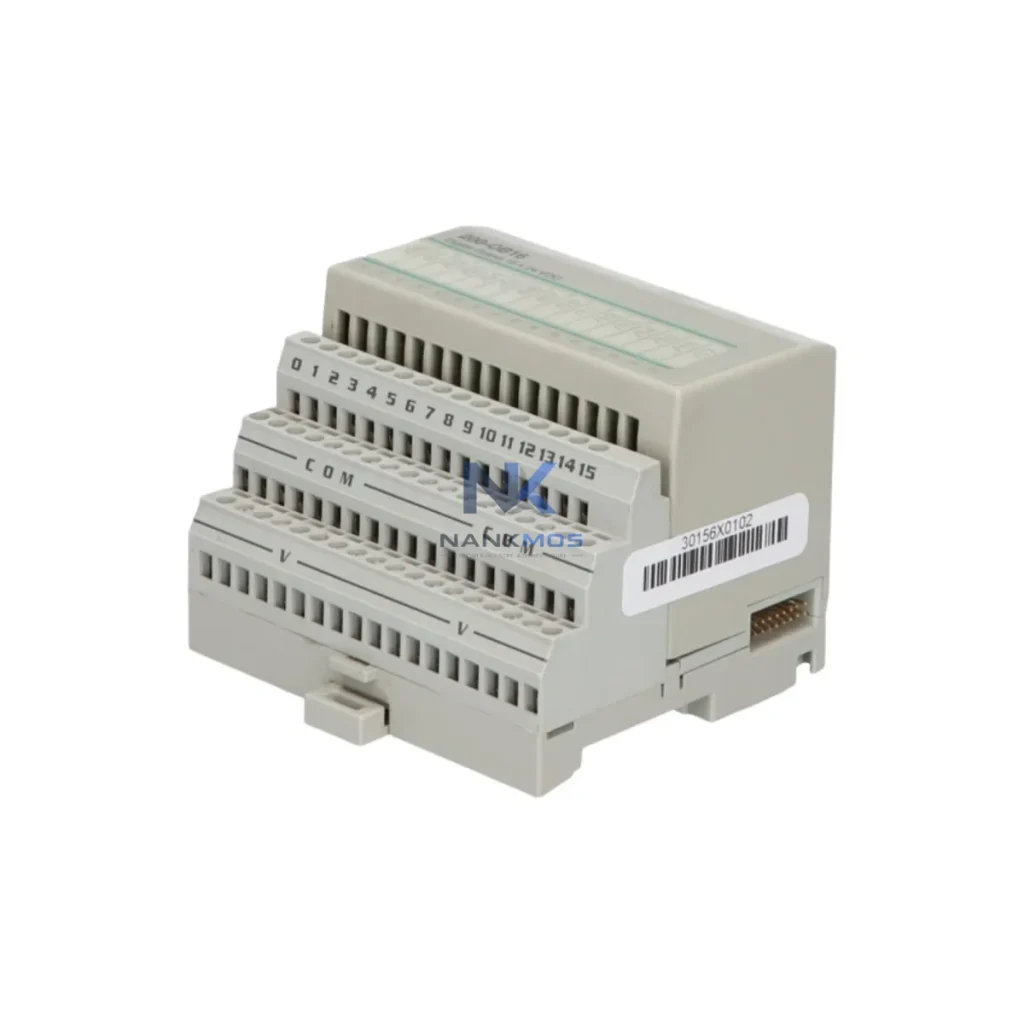

ABB ABB 200-OB16 PLC I/O Module

Product Details

ABB 200-OB16 Product Description

The ABB 200-OB16 is a 16-channel digital output module engineered for seamless integration within the ABB AC500 PLC platform. Designed to operate as a precision output layer within distributed control architectures, the 200-OB16 delivers reliable signal switching across demanding industrial environments — from discrete manufacturing lines to process-critical utilities. Its modular form factor, deterministic output response, and native compatibility with the AC500 backplane make it a foundational component for engineers building scalable, maintainable, and redundancy-capable automation systems.

In modern industrial control architecture, the digital output layer is not a peripheral afterthought — it is the terminal execution interface between the controller's logic decisions and the physical process. The ABB 200-OB16 fulfills this role with engineering precision, providing 16 independently addressable output channels capable of driving actuators, solenoid valves, motor starters, indicator lamps, and relay coils across a broad range of field devices. Each channel is rated for 24VDC operation, ensuring compatibility with standard field wiring conventions used across European and Asian automation installations.

System architects deploying the AC500 platform benefit from the 200-OB16's direct backplane integration, which eliminates the need for external signal conditioning between the CPU and the output field. This tight coupling reduces wiring complexity, minimizes propagation delay, and simplifies cabinet layout — all critical factors in high-density control panel designs where space, heat dissipation, and cable management are engineering constraints. The module's DIN rail mounting profile aligns with standard IEC 60715 rail systems, enabling consistent mechanical integration across multi-rack and multi-cabinet deployments.

The ABB 200-OB16 achieves its full engineering value when deployed as part of a coherent AC500 automation platform rather than as a standalone component. In a complete control architecture, the 200-OB16 operates downstream of the AC500 CPU module — such as the PM573-ETH or PM591-ETH — which executes the IEC 61131-3 control program and issues output commands via the internal backplane bus. The CPU's deterministic scan cycle ensures that output state changes on the 200-OB16 are synchronized with the overall program execution, maintaining process consistency across all connected field devices.

On the power supply layer, the CP600 power supply module provides regulated 24VDC to both the backplane and the field output circuits, ensuring stable voltage delivery even under transient load conditions caused by simultaneous actuator switching. For installations requiring power redundancy, dual CP600 units can be configured in parallel, with the 200-OB16 continuing to operate without interruption during a single power supply fault — a critical requirement in continuous process industries such as petrochemical refining and water treatment.

On the input side, the ABB 200-IB16 digital input module mirrors the 200-OB16's architecture, providing 16 channels of field signal acquisition. Together, these two modules form the core I/O layer of a balanced AC500 node, capable of handling a full 32-point discrete I/O complement within a single rack segment. For analog process variables — such as flow rates, pressure readings, and temperature signals — the 200-AO4I analog output module and 200-AI4I analog input module extend the platform's sensing and control reach into continuous process domains.

Communication integration is handled at the gateway layer, where modules such as the CM572-DP PROFIBUS DP master or the CM589-PNIO PROFINET IO controller enable the AC500 rack to participate in plant-wide fieldbus networks. This allows the 200-OB16's output states to be monitored and commanded from SCADA systems, DCS platforms, or remote engineering workstations without requiring dedicated point-to-point wiring from the control room. For installations using EtherNet/IP or Modbus TCP, the PM573-ETH CPU's onboard Ethernet port provides direct network connectivity, further reducing communication infrastructure costs.

At the HMI layer, ABB CP600 operator panels or third-party SCADA terminals connected via OPC-UA provide operators with real-time visibility into output channel states, enabling rapid fault identification and manual override capability during commissioning and maintenance windows. The 200-OB16's channel-level diagnostics — accessible via the AC500 engineering tool Automation Builder — report short-circuit conditions, overload events, and communication faults directly to the CPU's diagnostic buffer, reducing mean time to repair (MTTR) in production environments.

For protection and isolation requirements in high-voltage or electrically noisy environments, signal isolators and relay output modules such as the ABB ORIO series terminal relay modules can be interposed between the 200-OB16's transistor outputs and high-current field loads, extending the module's effective load range and providing galvanic isolation between the control circuit and the power circuit. This architecture is particularly relevant in motor control center (MCC) applications, where inductive switching transients from contactors and motor starters can otherwise compromise output module longevity.

The ABB 200-OB16 is deployed across a wide spectrum of industrial sectors where reliable discrete output control is a system-critical requirement:

Discrete Manufacturing & Assembly Lines: In automotive body shop and general assembly applications, the 200-OB16 controls pneumatic cylinder solenoids, part-present indicators, conveyor drive enables, and safety gate interlocks. Its 16-channel density allows a single module to manage an entire assembly station's actuator complement, reducing rack count and simplifying maintenance access.

Power Generation & Electrical Utilities: Substation automation and generator control systems use the 200-OB16 to issue switching commands to circuit breaker coils, transformer tap changers, and alarm annunciator panels. The module's deterministic output response and diagnostic transparency support IEC 61850-compliant protection relay coordination schemes.

Petrochemical & Refinery Process Control: In hazardous area control rooms (Zone 2 classified), the 200-OB16 — installed in purged and pressurized enclosures — controls shutdown valve solenoids, flare ignition systems, and emergency depressurization actuators. Its integration with the AC500's redundant CPU configurations supports SIL-rated safety instrumented system (SIS) architectures.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the 200-OB16 to control pump motor starters, chemical dosing pump enables, UV disinfection system triggers, and valve actuator commands across distributed lift station networks. Remote I/O configurations using the AC500's communication modules allow centralized SCADA supervision of geographically dispersed pump stations.

Mining & Metallurgy: Conveyor belt control systems, crusher motor sequencing, and ore processing plant automation rely on the 200-OB16's robust output switching capability in high-vibration, high-dust environments. DIN rail mounting within sealed control cabinets provides the mechanical stability required for continuous 24/7 operation in underground and surface mining installations.

Marine & Offshore: Vessel automation systems — including ballast water management, cargo pump control, and engine room auxiliary systems — use the 200-OB16 within DNV-GL or Lloyd's Register type-approved AC500 control panels. The module's wide operating temperature range and vibration tolerance support marine classification society requirements for shipboard automation equipment.

Q1: Is the ABB 200-OB16 compatible with all AC500 CPU variants, and can it be used in a redundant CPU configuration? The 200-OB16 is designed for the ABB AC500 I/O system and is compatible with the full range of AC500 CPU modules, including the PM571, PM573-ETH, PM591-ETH, and PM595 series. In redundant CPU configurations — where two PM595 or PM591 CPUs operate in hot-standby mode — the 200-OB16 continues to receive output commands from the active CPU via the backplane bus, with seamless switchover to the standby CPU in the event of a primary CPU fault. This architecture is validated for use in high-availability process control applications requiring sub-100ms failover response times.

Q2: What engineering tools are required to configure and commission the 200-OB16, and how is channel-level diagnostics accessed? Configuration and commissioning of the 200-OB16 is performed using ABB's Automation Builder engineering software, which provides a graphical hardware configuration editor, IEC 61131-3 programming environment, and integrated online diagnostic monitor. Channel-level diagnostics — including short-circuit detection, overload reporting, and communication fault flags — are mapped to the CPU's diagnostic buffer and can be accessed via the Automation Builder online monitor, the CP600 HMI operator panel, or any SCADA system connected via OPC-UA or PROFINET. No additional diagnostic hardware is required.

Q3: What is the warranty coverage for the ABB 200-OB16, and what stock and testing assurances are provided prior to shipment? Every ABB 200-OB16 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each unit undergoes functional output verification testing to confirm channel integrity, backplane communication response, and output switching performance. Units are held in climate-controlled storage to preserve component integrity. In-stock units are available for immediate shipment, supporting urgent project timelines and unplanned maintenance replacement requirements. For volume procurement or project-specific lead time commitments, contact [email protected] or +86 18359268345.
