ABB AC800M DCS Processor Module

Product Details

AC800M Product Description

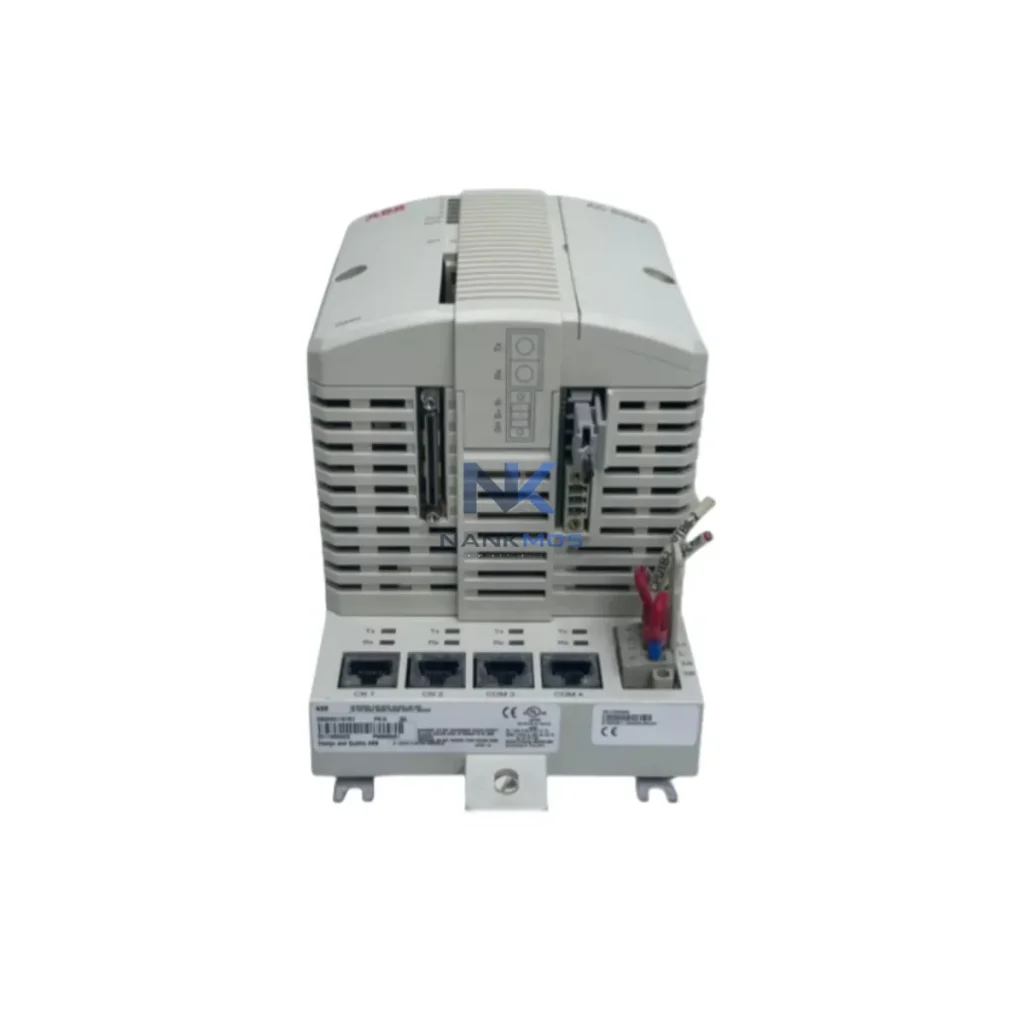

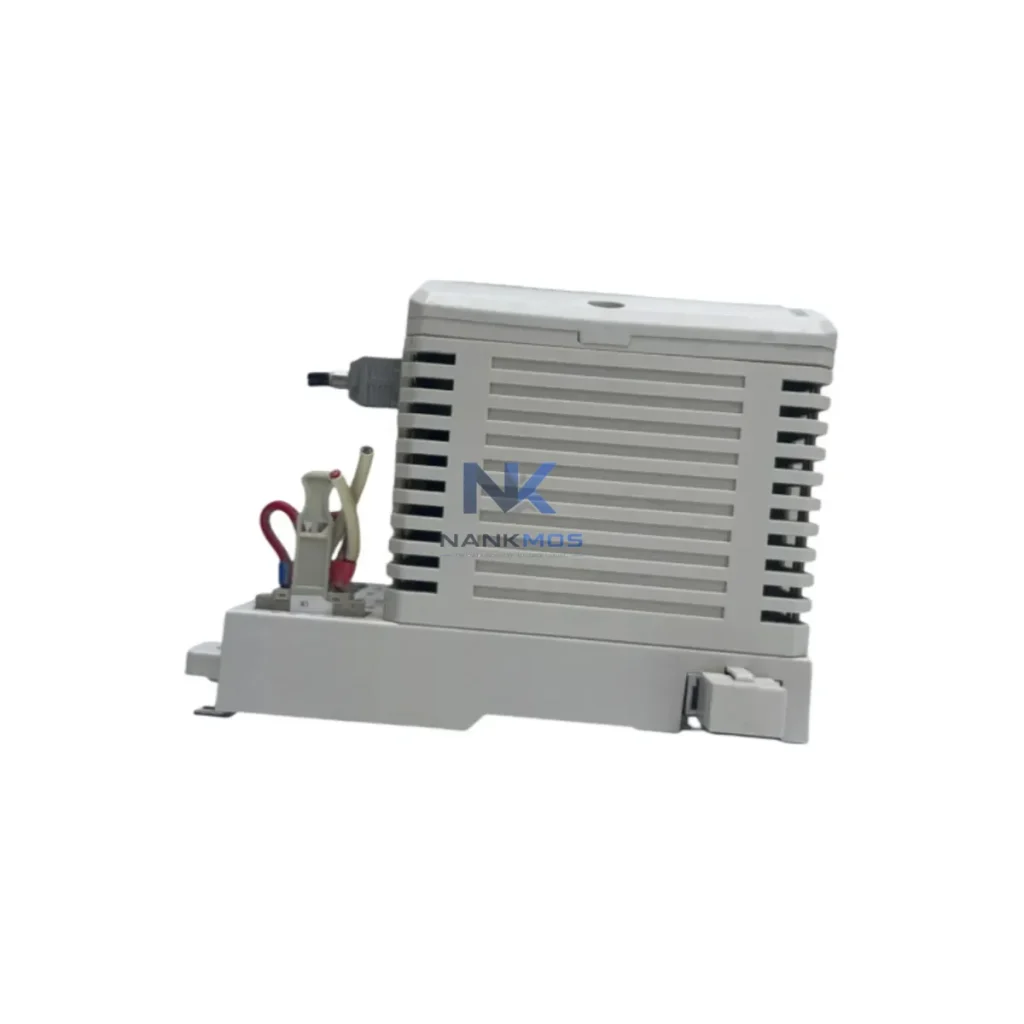

The ABB PM891K01 is a high-performance processor module engineered for deployment within the AC800M Distributed Control System (DCS) platform. Designed to serve as the computational core of a modular control architecture, the PM891K01 delivers deterministic scan-cycle execution, robust redundancy support, and seamless contextual integration across multi-layer industrial automation systems. Whether deployed in power generation, petrochemical processing, water treatment, or advanced manufacturing environments, this processor module provides the architectural backbone required for reliable, scalable, and maintainable process control.

At its core, the PM891K01 operates within ABB's AC800M controller family — a platform recognized globally for its open communication standards, modular I/O expansion, and long-term lifecycle support. The module supports both simplex and redundant CPU configurations, enabling engineers to design fault-tolerant control loops without architectural compromise. Its deterministic real-time processing ensures that critical control signals are executed within defined cycle times, maintaining process stability even under high-load conditions.

The PM891K01 achieves its full operational potential when integrated within a complete AC800M automation platform. In a typical control cabinet deployment, the processor module is mounted on an ABB TB820V2 ModuleBus Modem backplane, which provides the physical and electrical interface between the CPU and distributed I/O modules. Power is supplied through an ABB SD821 or SD822 power supply unit, ensuring stable 24 VDC delivery with sufficient current headroom for fully populated I/O racks.

For digital and analog signal acquisition, the PM891K01 interfaces with ABB DI810, DI811, AI810, and AO810 I/O modules via the ModuleBus, supporting both local and remote I/O expansion. In architectures requiring fieldbus connectivity, the ABB CI854B PROFIBUS DP communication interface module extends the control reach to field devices including variable frequency drives, intelligent valve positioners, and remote I/O stations. For Ethernet-based integration with SCADA systems or MES platforms, the CI867K01 Modbus TCP/IP communication module provides seamless OPC-DA and OPC-UA data exchange.

Redundancy is achieved by pairing two PM891K01 modules in a hot-standby configuration, supported by the ABB PM891 redundancy link cable and synchronized via the CEX-Bus. This architecture ensures bumpless transfer in the event of a primary CPU fault, maintaining continuous process control without operator intervention. HMI integration is typically accomplished through ABB's 800xA System 1 operator workstation, which communicates with the AC800M controller via OPC server or direct Ethernet connectivity.

In applications requiring motion coordination or drive integration, the PM891K01 can communicate with ABB ACS880 or ACS580 variable speed drives via PROFIBUS DP or Modbus RTU, enabling closed-loop speed and torque control from within the DCS environment. Signal isolation between field instruments and the controller backplane is maintained through DIN-rail mounted signal isolators and terminal modules such as the ABB TU810V1 or TU830V1, which provide safe, organized wiring interfaces for I/O module connections.

Power Generation: In thermal and hydroelectric power plants, the PM891K01 serves as the primary DCS processor for turbine governor control, boiler management, and auxiliary system supervision. Its redundant CPU capability ensures continuous operation during planned maintenance windows, while PROFIBUS DP connectivity enables direct integration with turbine protection relays and excitation control systems.

Petrochemical & Oil and Gas: Refinery and upstream processing facilities deploy the PM891K01 within safety-instrumented and basic process control systems. The module's deterministic scan cycle supports tight regulatory control of distillation columns, compressor anti-surge loops, and heat exchanger networks. Integration with ABB's System 800xA enables unified alarm management and advanced process control overlays.

Water and Wastewater Treatment: Municipal and industrial water treatment plants utilize the PM891K01 for pump sequencing, chemical dosing control, and SCADA-connected remote monitoring. Its Modbus TCP/IP capability allows direct communication with flow meters, level transmitters, and chlorination analyzers without additional protocol converters.

Mining and Metallurgy: In mineral processing and smelting operations, the PM891K01 manages conveyor sequencing, crusher control, and flotation cell regulation. Its wide operating temperature range and robust backplane mounting ensure reliable performance in dusty, high-vibration environments typical of mining control rooms.

Marine Propulsion and Offshore: Offshore platforms and vessel automation systems deploy the PM891K01 for dynamic positioning control, ballast management, and power management system integration. Its compact form factor and DIN-rail compatibility support installation in space-constrained marine control panels.

Q1: Is the PM891K01 compatible with existing AC800M racks and backplanes without hardware modification?Yes. The PM891K01 is fully compatible with the AC800M backplane ecosystem, including the TB820V2 and TB840A ModuleBus Modem units. No hardware modification is required for direct installation. Firmware version alignment between the CPU and connected I/O modules should be verified prior to commissioning using ABB's Control Builder M engineering tool.

Q2: How is CPU redundancy configured and validated in a PM891K01 hot-standby architecture?Redundancy is established by installing two PM891K01 modules in adjacent slots on the same backplane, connected via the dedicated redundancy link. The primary and standby CPUs synchronize application data and I/O states continuously. Switchover testing is performed by simulating a primary CPU fault through Control Builder M diagnostics, confirming bumpless transfer within the defined switchover time specification. All units supplied by NANKMOS are pre-shipment tested to validate redundancy link integrity.

Q3: What warranty and supply assurance does NANKMOS provide for the PM891K01?Every PM891K01 unit supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects and functional performance. Units are maintained in stock and undergo pre-shipment functional testing prior to dispatch. Global logistics support ensures fast delivery to power, petrochemical, water treatment, mining, and marine customers. For volume procurement or urgent replacement requirements, contact NANKMOS directly for lead time confirmation and technical pre-sales support.
