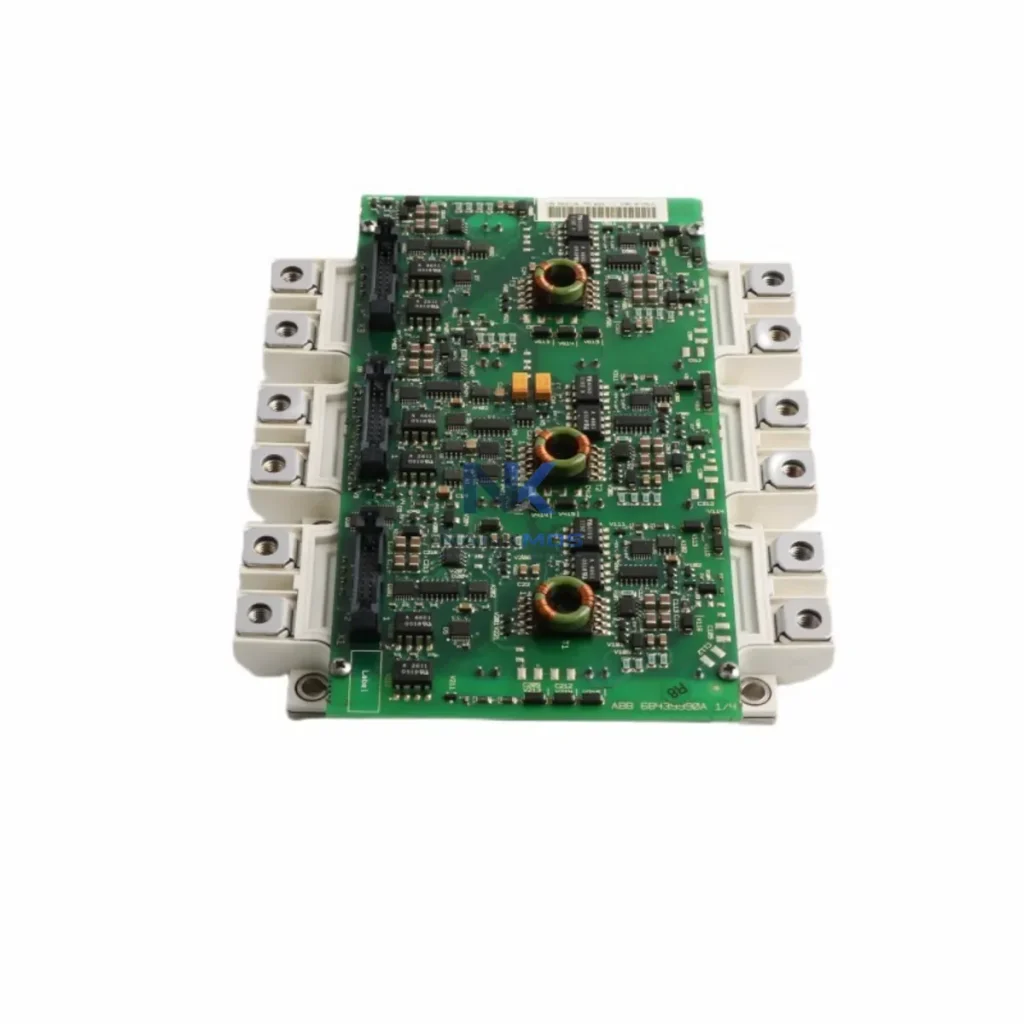

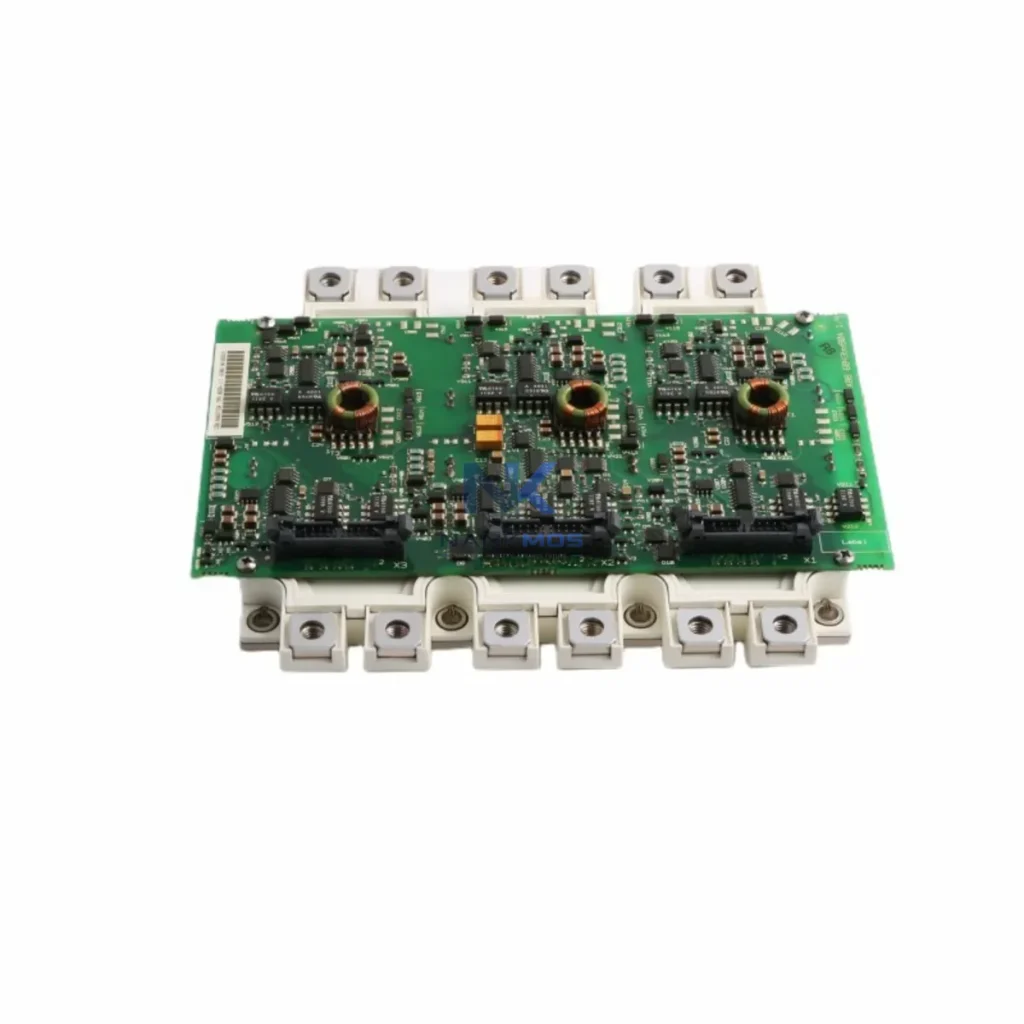

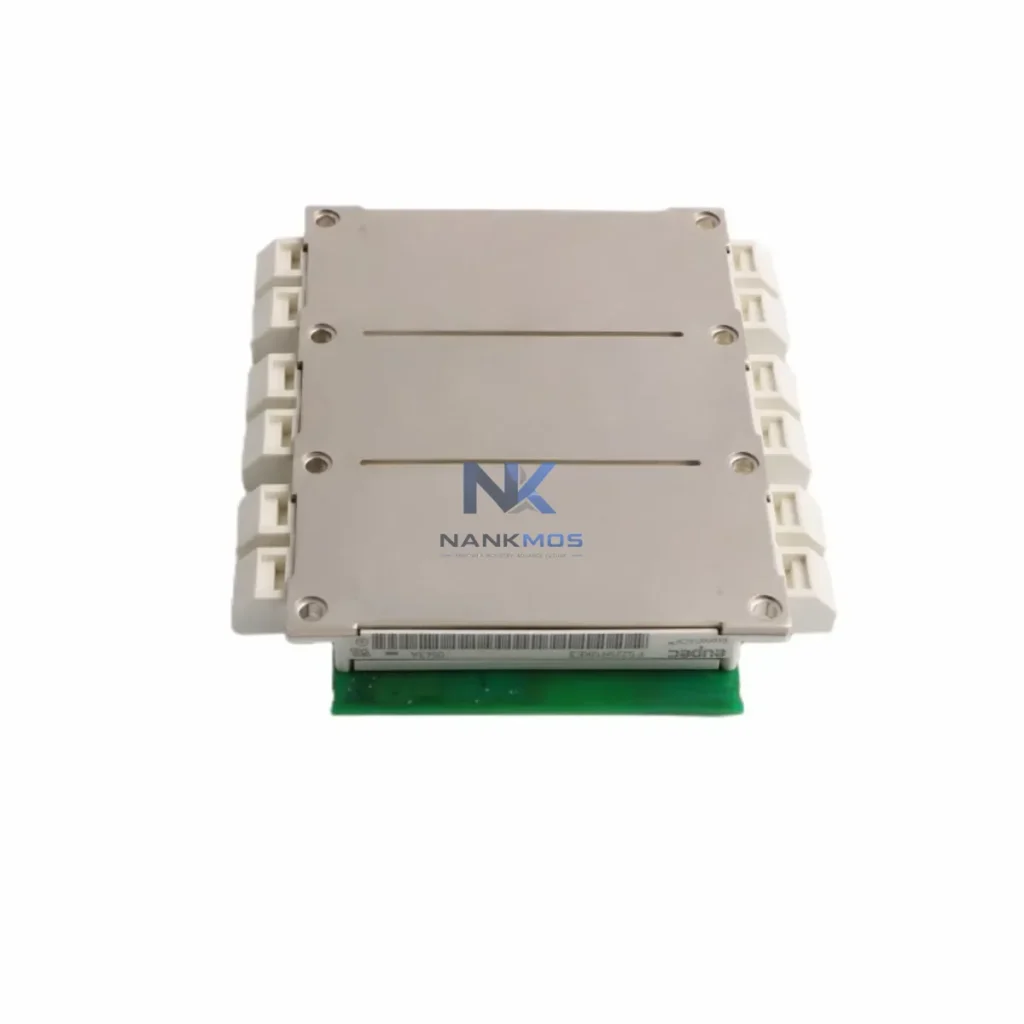

ABB AGDR-71C 68436770 Gate Driver Board

Product Details

AGDR-71C 68436770 Product Description

The ABB AGDR-71C (part number 68436770) is a precision gate driver board engineered for ABB ACS800 and ACS880 series variable speed drives. Designed to govern IGBT switching behavior with microsecond accuracy, this module sits at the heart of drive energy management — directly influencing switching losses, thermal load, and inverter efficiency across demanding industrial production environments. For facilities targeting measurable reductions in energy consumption and heat generation, the AGDR-71C delivers the switching precision that makes those gains achievable.

In smart production lines where energy budgets are tightly managed, the gate driver's role extends beyond simple IGBT control. The AGDR-71C regulates gate charge and discharge timing to minimize crossover losses during each switching event, reducing the cumulative energy dissipated as heat across thousands of switching cycles per second. This directly translates to lower thermal load on the drive's cooling system, extended IGBT module life, and reduced energy overhead from auxiliary cooling infrastructure.

The AGDR-71C does not operate in isolation — its energy efficiency contribution is realized within a coordinated automation architecture. In a typical ACS880 drive system, the gate driver interfaces directly with the IGBT power module stack, receiving firing signals from the drive control board (such as the RDCU-12C or RDCU-02C control unit) and translating them into precisely timed gate pulses. This coordination ensures that the inverter bridge operates at optimal switching efficiency across the full load range.

At the system level, the ACS880's DCLF-01 DC link filter and BAMU-01 brake unit work alongside the gate driver to manage regenerative energy and DC bus stability. When the AGDR-71C maintains clean switching transitions, the DC bus voltage ripple is reduced, which in turn improves the performance of connected power quality components. For multi-drive installations, this effect compounds — a well-tuned gate driver in each inverter unit contributes to measurable reductions in total harmonic distortion (THD) across the facility's power distribution network.

Integration with the ABB ACS880's FENA-21 Ethernet adapter or FDNA-01 PROFIBUS adapter enables real-time drive status feedback to SCADA systems and energy management platforms. When the gate driver is functioning correctly, drive efficiency data reported via these communication modules accurately reflects actual inverter performance — making the AGDR-71C a foundational component for energy monitoring accuracy. Facilities using ABB Ability™ or third-party SCADA platforms to track drive-level energy consumption depend on the gate driver's consistent switching behavior to ensure that reported efficiency figures are meaningful.

On the I/O and sensing side, the ACS880's AIAO-01 analog I/O extension module and AITC-01 temperature measurement module provide the feedback signals that the drive's control logic uses to adjust switching frequency and load management in real time. The AGDR-71C's stable gate drive output ensures that these feedback loops operate without the noise and instability that can result from poorly controlled IGBT switching. For motor control applications involving ABB's M3BP or M3AA series induction motors, this translates to smoother torque delivery, reduced motor heating, and lower energy consumption at partial load — a critical factor in variable-torque applications such as pumps, fans, and compressors.

HMI integration via ABB's CP600 series operator panels or third-party Siemens SIMATIC HMI units allows production operators to monitor drive energy consumption and efficiency metrics in real time. The accuracy of these displays depends on the drive's ability to report consistent performance data — which begins with reliable gate drive operation from the AGDR-71C.

In continuous production environments — automotive assembly, paper and pulp processing, chemical manufacturing, and food and beverage lines — variable speed drives running ABB ACS800 or ACS880 platforms are often among the largest individual energy consumers on the factory floor. The gate driver board is the component that determines how efficiently each drive converts DC bus energy into controlled AC output for the connected motor. A degraded or suboptimal gate driver introduces excess switching losses that accumulate over every operating hour, inflating energy costs and increasing thermal stress on the drive's power electronics.

Replacing a worn or failed AGDR-71C with a tested, in-stock unit restores the drive to its designed switching efficiency profile. For facilities tracking energy KPIs at the drive level — a practice increasingly common in ISO 50001-aligned energy management programs — this restoration is directly measurable in drive efficiency reports. Production lines that have implemented predictive maintenance programs using drive health data from SCADA or ABB Ability™ platforms can use gate driver replacement as a scheduled maintenance action, avoiding the unplanned downtime that results from gate driver failure during production.

Beyond energy efficiency, the AGDR-71C's role in IGBT protection directly supports production continuity. The gate driver's built-in desaturation detection and short-circuit protection circuits prevent catastrophic IGBT failure events that would require extended drive downtime for power module replacement. By catching fault conditions at the gate drive level, the AGDR-71C protects the more expensive IGBT stack components — reducing both maintenance costs and production interruption risk. For high-throughput production lines where unplanned downtime carries significant cost, this protective function has direct economic value beyond its energy efficiency contribution.

Facilities managing multiple ACS800 or ACS880 drives across a production site benefit from maintaining AGDR-71C units in their spare parts inventory. With in-stock availability and pre-shipment function testing, replacement units can be deployed rapidly during scheduled maintenance windows, keeping production line energy efficiency at designed levels without extended lead times.

Q: How does the AGDR-71C contribute to measurable energy savings in ACS800/ACS880 drives? A: The AGDR-71C controls IGBT gate timing with precision, minimizing switching crossover losses during each on/off transition. In high-frequency switching applications, these losses accumulate significantly over time. A properly functioning gate driver maintains the drive's designed efficiency curve, while a degraded unit introduces excess losses that increase energy consumption and heat generation. Replacing a worn gate driver restores the drive to its specified efficiency rating.

Q: Is the AGDR-71C compatible with both ACS800 and ACS880 drive platforms? A: The AGDR-71C (68436770) is designed for use in ABB ACS800 and ACS880 series drives. Compatibility depends on the specific drive model and inverter unit configuration. We recommend verifying the drive's service documentation or contacting our technical team to confirm fitment for your specific drive variant before ordering.

Q: What testing is performed before shipment, and what does the 12-month warranty cover? A: Each AGDR-71C unit undergoes function testing prior to dispatch to verify gate drive output, protection circuit operation, and communication interface integrity. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost.

Q: What is the typical lead time, and do you maintain stock for urgent replacement needs? A: The AGDR-71C 68436770 is maintained in stock for immediate dispatch, supporting urgent replacement requirements in production environments where drive downtime carries significant operational cost. Contact our team to confirm current stock levels and shipping options for your location.
