ABB AGDR-76C 68436800A IGBT Gate Driver Board

Product Details

AGDR-76C 68436800A Product Description

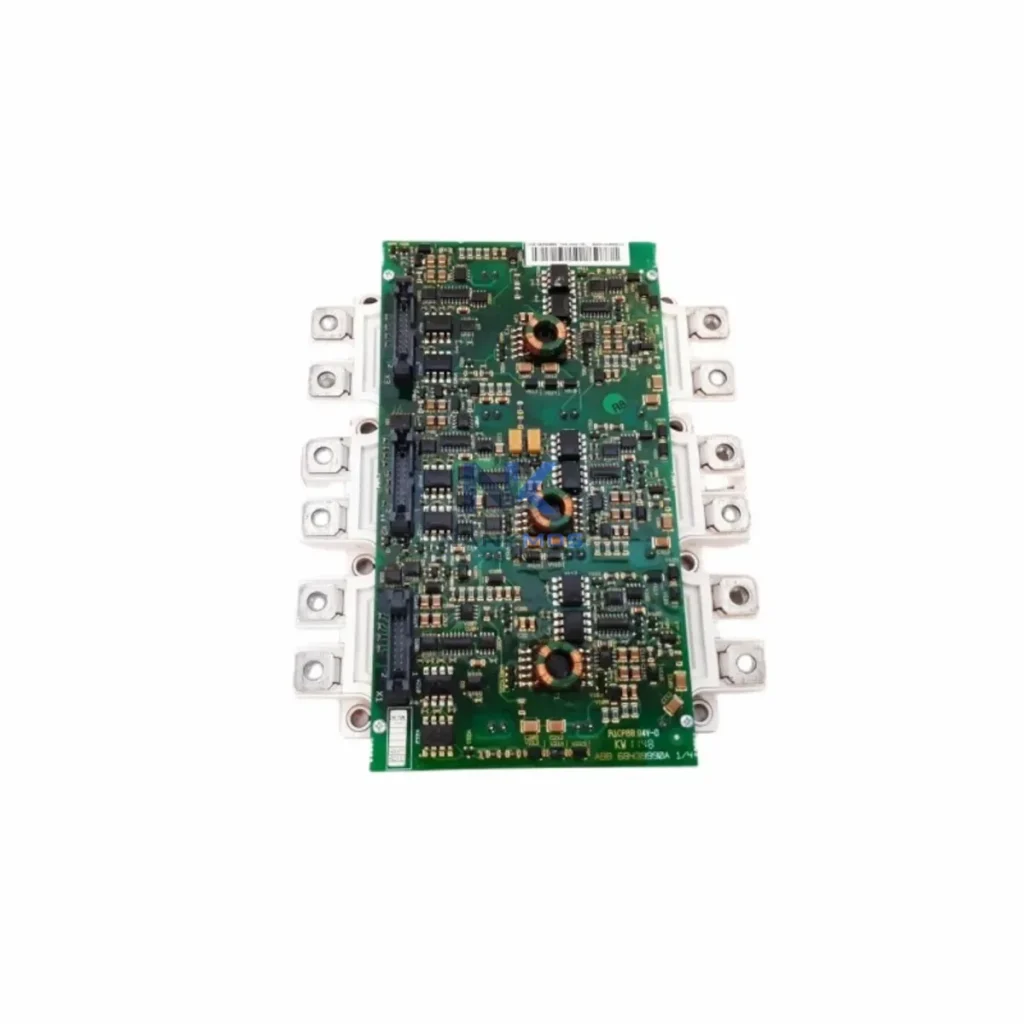

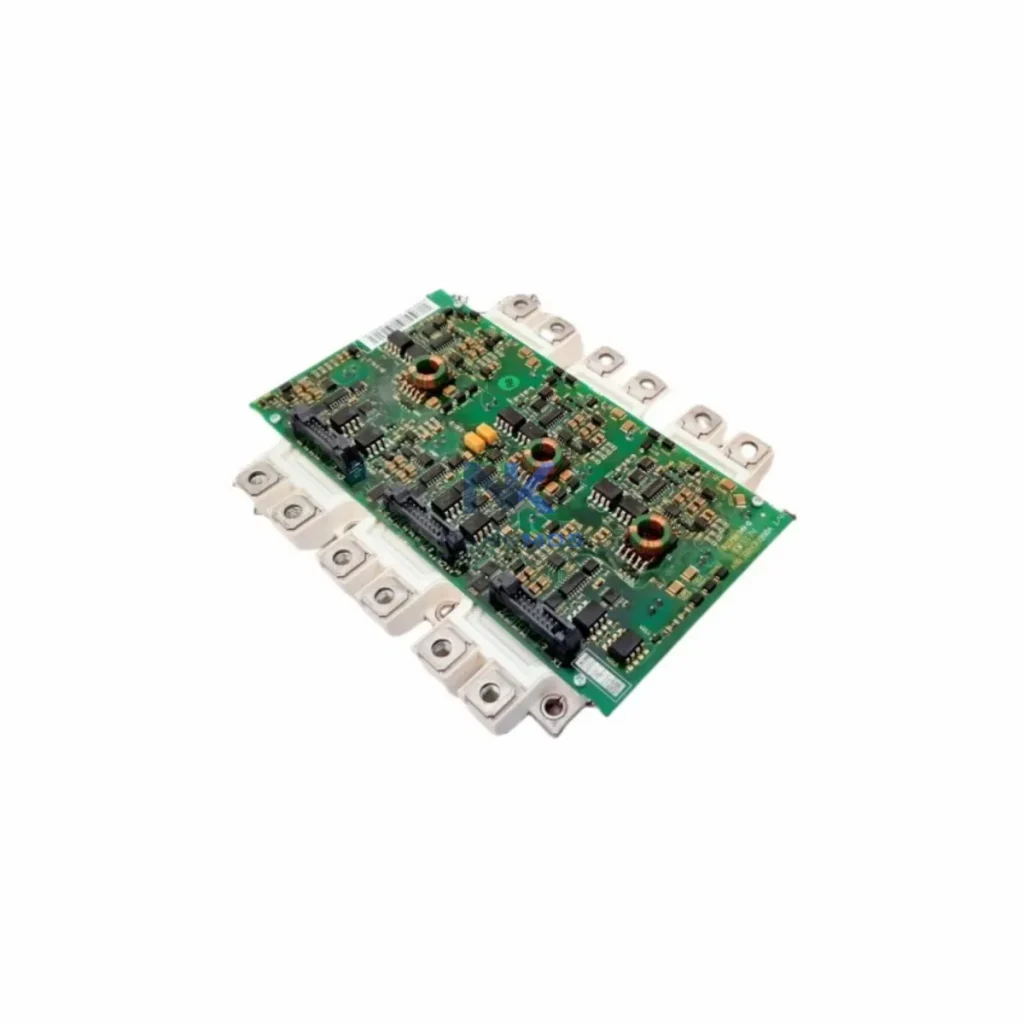

The ABB AGDR-76C 68436800A is a precision-engineered IGBT gate driver board designed for ABB ACS800 series variable frequency drives. Far beyond a simple switching component, the AGDR-76C serves as a critical node in the industrial data chain — bridging high-power IGBT switching events with the real-time control and diagnostic intelligence demanded by modern smart factory environments. In production lines where uptime is non-negotiable and data transparency is essential, this gate driver board enables the ACS800 drive to participate fully in fieldbus-based automation architectures, delivering reliable motor control signals while feeding operational data upstream to SCADA systems, HMI panels, and edge computing platforms.

Engineered and manufactured in Finland, the AGDR-76C 68436800A reflects ABB's commitment to industrial-grade reliability. Its role within the ACS800 ecosystem extends from raw power switching to network-aware drive management — making it an indispensable component for facilities pursuing Industry 4.0 connectivity, predictive maintenance, and real-time production visibility.

In a fully connected smart factory, the ABB AGDR-76C 68436800A operates at the intersection of power electronics and industrial communication. The data flow begins at the field level: sensors and encoders attached to motors controlled by the ACS800 drive generate continuous process signals — speed feedback, torque values, thermal readings, and fault states. The AGDR-76C gate driver board processes these switching commands from the ACS800's main control board (such as the ABB RMIO-11C or RMIO-02C), translating digital control signals into precise IGBT gate pulses that govern motor output with microsecond accuracy.

These gate-level events are not isolated — they are synchronized with the ACS800's DDCS fiber optic communication link, which connects the gate driver unit back to the drive's central processor. From there, the ACS800 communicates upstream via fieldbus adapter modules. When paired with the ABB RPBA-01 PROFIBUS-DP Adapter, the drive becomes a fully addressable node on a PROFIBUS network, enabling a Siemens S7-300 or S7-400 PLC to issue speed references, read actual values, and monitor fault registers in real time. Alternatively, the ABB RETA-01 EtherNet/IP Adapter connects the ACS800 directly to an Ethernet-based control backbone, where an Allen-Bradley ControlLogix PLC or a Rockwell FactoryTalk SCADA system can poll drive parameters at millisecond intervals.

At the network layer, industrial Ethernet switches — such as those in the ABB Ethernet Switch ES series or equivalent managed switches from Hirschmann or Moxa — route drive data packets across the plant floor to the control room. Remote I/O modules, including ABB S800 I/O units, aggregate additional field signals from pressure transmitters, flow meters, and temperature sensors, feeding a unified data stream into the SCADA platform. HMI panels running ABB CP600 or equivalent interfaces display real-time drive status, alarm histories, and trend graphs — all sourced from the ACS800's live operational data, which the AGDR-76C gate driver board helps generate through accurate switching and fault detection.

For facilities deploying edge computing, an industrial edge gateway — such as the ABB Ability Edge platform or a third-party device running OPC-UA — can subscribe to ACS800 drive data via the fieldbus network, performing local analytics before forwarding aggregated results to cloud-based MES or ERP systems. This architecture enables predictive maintenance algorithms to detect IGBT thermal stress patterns, gate signal anomalies, or switching frequency drift — conditions that the AGDR-76C's fault output signals can flag before a catastrophic drive failure occurs. The result is a closed-loop data chain: from IGBT gate pulse to cloud dashboard, with the ABB AGDR-76C 68436800A as the foundational switching intelligence at the drive's power stage.

In multi-drive cabinet installations, multiple ACS800 units — each equipped with AGDR-76C gate driver boards — share a common DDCS ring topology, coordinated by an ABB RDCO-03 DDCS Communication Module. This configuration allows a single master controller to synchronize speed and torque references across multiple drives simultaneously, a critical requirement for coordinated conveyor systems, winding lines, and multi-motor crane applications. The AGDR-76C's role in maintaining gate signal integrity across all drives in the ring ensures that synchronization errors do not propagate into mechanical misalignment or product defects.

Protocol Fragmentation: Many production sites operate a mix of legacy serial fieldbus devices and modern Ethernet-based controllers. The ACS800 drive, supported by the AGDR-76C gate driver, bridges this gap through its modular fieldbus adapter architecture — supporting PROFIBUS, Modbus RTU, DeviceNet, CANopen, and EtherNet/IP without requiring drive replacement. A single AGDR-76C-equipped ACS800 can communicate with both a legacy Modbus master and a modern EtherNet/IP scanner simultaneously through appropriate adapter selection.

Data Silos and Production Transparency: When drive data remains trapped at the field level — inaccessible to SCADA or MES systems — production managers lose visibility into motor load trends, energy consumption, and fault histories. The AGDR-76C enables the ACS800 to expose this data through standard fieldbus protocols, eliminating the data silo and making drive performance metrics available for production dashboards, OEE calculations, and energy audits.

Remote Monitoring and Alarm Tracking: Unplanned drive shutdowns caused by IGBT faults, overcurrent events, or gate signal failures are among the most disruptive events in continuous production. The AGDR-76C's integrated fault detection circuitry generates immediate fault signals that propagate through the ACS800's control chain to the fieldbus network, triggering alarms in the SCADA system and enabling remote maintenance teams to diagnose the fault condition without dispatching field personnel. Historical alarm logs stored in the SCADA database provide the data foundation for root-cause analysis and preventive maintenance scheduling.

System Scalability: As production capacity expands, additional ACS800 drives equipped with AGDR-76C gate driver boards can be added to the DDCS ring or fieldbus segment without architectural redesign. The modular nature of the ACS800 platform — and the AGDR-76C's role within it — ensures that network expansion is a configuration task rather than an engineering project, reducing time-to-production for new drive installations.

Q1: What fieldbus protocols does the ACS800 support when equipped with the AGDR-76C 68436800A gate driver board? The ACS800 drive supports PROFIBUS-DP, Modbus RTU/TCP, DeviceNet, CANopen, and EtherNet/IP through its modular fieldbus adapter slots. The AGDR-76C gate driver board operates within the drive's power stage and is compatible with all ACS800 fieldbus configurations. Protocol selection is determined by the installed adapter module (e.g., RPBA-01 for PROFIBUS, RETA-01 for EtherNet/IP), not by the gate driver board itself.

Q2: How does the AGDR-76C 68436800A contribute to network stability and communication reliability in multi-drive systems? The AGDR-76C maintains precise IGBT switching timing, which directly affects the quality of the drive's output voltage waveform and the accuracy of speed/torque feedback signals transmitted over the fieldbus. Degraded gate driver performance can introduce noise into the drive's control loop, potentially causing erratic fieldbus communication or false fault signals. A correctly functioning AGDR-76C ensures that the ACS800's communication interface operates on a stable, noise-free electrical foundation.

Q3: Can the AGDR-76C 68436800A support remote diagnostics and predictive maintenance integration? Yes. The AGDR-76C's fault output signals are processed by the ACS800's main control board and made available as drive parameters accessible via the fieldbus network. SCADA systems and edge computing platforms can poll these parameters continuously, enabling remote diagnostics without physical access to the drive cabinet. Predictive maintenance algorithms can monitor gate driver fault frequency, IGBT temperature trends, and switching anomalies to schedule maintenance before failure occurs.

Q4: What warranty and quality assurance does NANKMOS provide for the ABB AGDR-76C 68436800A? All ABB AGDR-76C 68436800A units supplied by NANKMOS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify gate signal output, fault detection circuitry, and DDCS interface integrity. In-stock units are available for immediate dispatch, with full traceability documentation provided upon request. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
