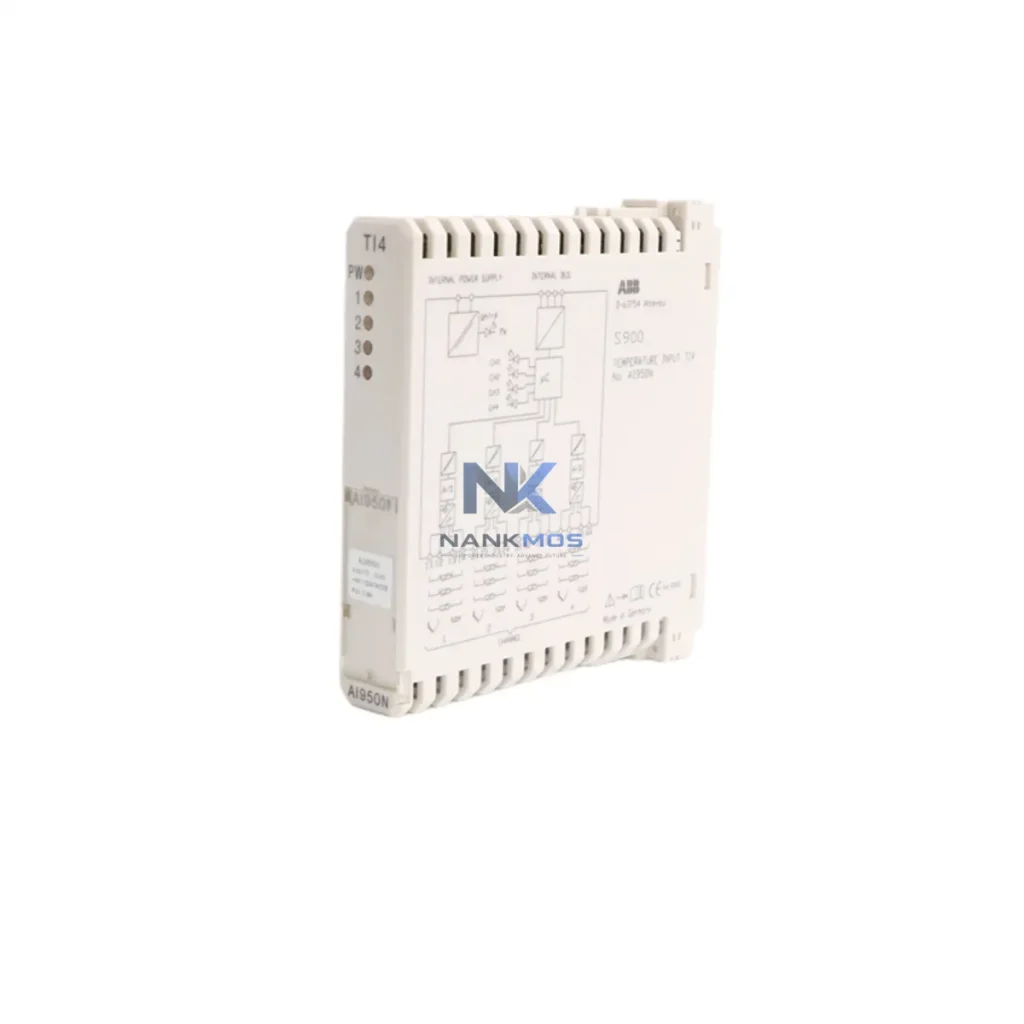

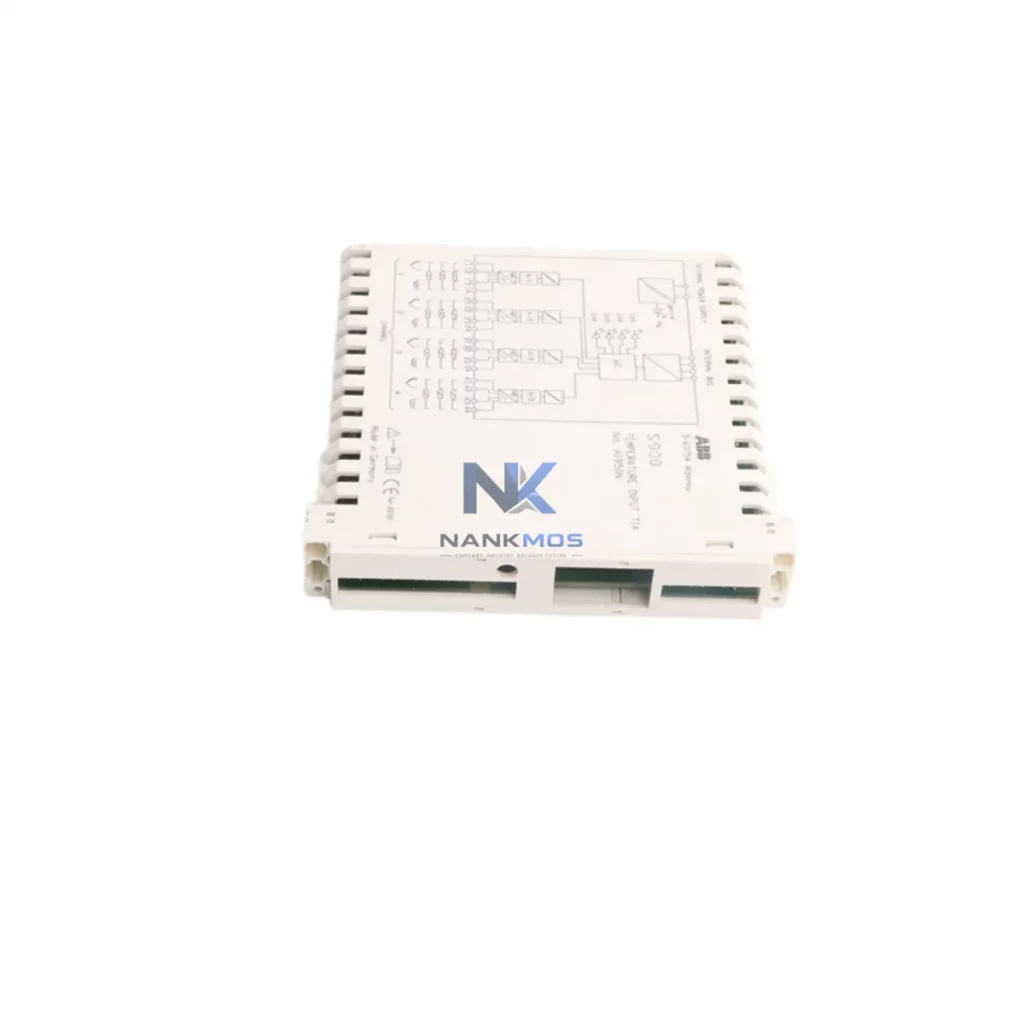

ABB AI950N 3KDE175523L9500 Temperature Input Module

Product Details

AI950N 3KDE175523L9500 Product Description

The ABB AI950N (3KDE175523L9500) is a high-precision, multi-channel temperature input module engineered for the AC500 PLC platform, purpose-built to serve as a critical data acquisition node within smart factory environments. Designed to accept RTD (Pt100, Pt1000, Ni100, Ni1000) and thermocouple (TC) signals across multiple channels simultaneously, the AI950N transforms raw thermal sensor data into structured digital values that flow seamlessly through industrial communication networks — enabling real-time process visibility, predictive maintenance, and closed-loop control across the entire automation architecture.

In a connected factory data chain, the AI950N sits at the field level, directly interfacing with temperature sensors embedded in motors, heat exchangers, furnaces, extruders, and HVAC systems. Its digitized outputs are transmitted upstream via PROFIBUS DP or Modbus RTU/TCP to the AC500 CPU modules — such as the PM573 or PM591 — where process logic executes control decisions in milliseconds. This tight integration between field sensing and PLC computation eliminates signal latency and ensures that temperature excursions trigger immediate alarm responses through the SCADA or DCS layer.

The AI950N's protocol flexibility makes it a natural bridge between legacy field instrumentation and modern IIoT-ready control architectures. When paired with the AC500's communication processor modules — including the CM572-DP for PROFIBUS or the CM589-PNIO for PROFINET — the temperature data captured by the AI950N can be forwarded to Wonderware, Ignition, or Siemens WinCC SCADA platforms without protocol conversion overhead. This direct data path supports real-time dashboards, historian logging, and alarm management from a single unified network backbone.

For distributed plant topologies, the AI950N integrates cleanly with remote I/O stations built on the AC500-eCo or TB541-ETH Ethernet coupler modules, extending temperature monitoring to remote skids, outdoor substations, and multi-zone production lines without running dedicated signal cables back to the control room. The module's data is accessible to edge gateway devices — such as the ABB Edge Controller or third-party Moxa MGate series gateways — enabling OPC-UA publication of temperature trends to cloud analytics platforms or MES systems for production KPI tracking.

Within variable frequency drive (VFD) applications, the AI950N provides motor winding and bearing temperature feedback that feeds directly into the drive's thermal protection logic. When integrated with ABB ACS880 or ACS580 drives via the AC500 PLC, the temperature loop closes automatically: if winding temperature exceeds the setpoint, the PLC issues a speed reduction or emergency stop command through the drive's fieldbus interface, protecting assets and preventing unplanned downtime. This same feedback loop applies to transformer monitoring, cooling tower control, and clean-room HVAC regulation.

The AI950N also supports remote diagnostics through the AC500's built-in web server and Automation Builder engineering software. Maintenance engineers can interrogate channel-level sensor health, verify calibration drift, and review historical temperature logs without physical site access — a capability that dramatically reduces mean time to repair (MTTR) in geographically distributed facilities. When combined with the AC500's redundancy options and the TU515 or TU516 terminal units, the module supports hot-swap replacement without process interruption, ensuring continuous data flow even during scheduled maintenance windows.

For HMI visualization, temperature values from the AI950N are mapped directly to CP600 or CP635 panel displays via the AC500's internal data bus, providing operators with real-time trend graphs, setpoint comparison, and alarm acknowledgment at the machine level. At the SCADA level, the same data populates historian databases for SPC analysis, energy consumption correlation, and regulatory compliance reporting — closing the loop between field measurement and enterprise decision-making.

Every ABB AI950N 3KDE175523L9500 unit shipped by NANKMOS undergoes pre-shipment functional verification, including channel accuracy checks and communication handshake tests, ensuring plug-and-play readiness upon arrival. Stock is maintained for immediate dispatch, and all units are covered by a 12-month warranty against manufacturing defects, backed by NANKMOS technical support for integration guidance and commissioning assistance.

The AI950N anchors the thermal sensing layer of a smart factory data chain. At the field level, Pt100 RTD sensors and Type-K thermocouples mounted on process equipment feed analog signals into the AI950N's input channels. The module digitizes these readings and places them on the AC500 I/O bus, where the PM573 or PM591 CPU retrieves them at each PLC scan cycle — typically 1–10 ms — for immediate use in PID control loops, safety interlocks, and energy management algorithms.

From the PLC, temperature data travels upstream via the CM572-DP PROFIBUS communication module to a plant-wide PROFIBUS DP network, where it is accessible to distributed control stations, remote I/O racks built on TB541-ETH Ethernet couplers, and SCADA servers running Ignition or Wonderware. Simultaneously, the CM589-PNIO PROFINET module can mirror the same data onto the Ethernet backbone, making it available to ABB CP635 HMI panels for operator visualization and to Moxa MGate 5111 gateways for OPC-UA publication to cloud or MES platforms.

In VFD-integrated applications, the temperature loop feeds into ABB ACS880 drive thermal protection logic via the AC500 PLC, while energy monitoring modules such as the ABB B23 or EQ meters correlate temperature trends with power consumption data — enabling energy efficiency KPIs to be tracked alongside process quality metrics. The complete data chain — from RTD sensor through AI950N, AC500 CPU, PROFIBUS/PROFINET network, SCADA historian, and MES dashboard — delivers end-to-end process transparency with no data gaps.

Many industrial sites operate with fragmented temperature monitoring: standalone data loggers, proprietary sensor networks, and PLC systems that do not share data with SCADA or MES platforms. The AI950N resolves these data silos by standardizing temperature acquisition within the AC500 ecosystem, where all channel data is immediately available on PROFIBUS DP and Modbus TCP networks without additional protocol converters or middleware.

For sites transitioning from legacy 4–20 mA analog loops to digital fieldbus architectures, the AI950N provides a direct migration path: existing RTD and TC sensors remain in place while the module handles digitization and network publication. This eliminates the need for separate signal conditioners or I/O converters, reducing panel footprint and wiring complexity. Remote monitoring is enabled natively through the AC500's web server and Automation Builder OPC server, allowing maintenance teams to access live temperature data and alarm histories from any networked workstation or mobile device.

Alarm tracking is enhanced by the AI950N's built-in wire-break detection and over-range indication, which generate discrete fault signals that the AC500 CPU can route to SCADA alarm management systems for timestamped logging and escalation workflows. For multi-zone production lines, the module's multi-channel architecture consolidates temperature data from multiple measurement points into a single network node, simplifying system expansion and reducing the number of communication addresses required on the PROFIBUS segment. As production capacity grows, additional AI950N modules can be added to the AC500 rack without changes to the network topology or SCADA configuration.

Q1: Does the ABB AI950N 3KDE175523L9500 support both RTD and thermocouple inputs on the same module?Yes. The AI950N is a universal temperature input module that accepts RTD types (Pt100, Pt1000, Ni100, Ni1000) and thermocouple types (J, K, T, E, R, S, B) on a per-channel configurable basis within the AC500 Automation Builder software. No hardware jumpers or external signal conditioners are required.

Q2: What communication protocols does the AI950N support for SCADA and remote monitoring integration?The AI950N communicates natively on the AC500 I/O bus. When paired with AC500 communication processor modules — CM572-DP for PROFIBUS DP or CM589-PNIO for PROFINET — temperature data is published to plant-wide networks accessible by SCADA platforms (Ignition, WinCC, Wonderware) and edge gateways supporting OPC-UA and Modbus TCP. Network cycle times are typically under 10 ms for PROFIBUS DP configurations.

Q3: Can the AI950N be replaced without shutting down the AC500 PLC system?Yes, when mounted on TU515 or TU516 terminal units, the AI950N supports hot-swap replacement. The terminal unit retains field wiring connections while the module is exchanged, minimizing process interruption. The AC500 CPU automatically re-initializes the replacement module upon insertion, restoring full channel operation within one PLC scan cycle.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the AI950N?All AI950N 3KDE175523L9500 units supplied by NANKMOS are covered by a 12-month warranty against manufacturing defects. Each unit undergoes pre-shipment functional verification including channel accuracy checks and PROFIBUS/Modbus communication handshake tests. Stock is available for immediate dispatch, and NANKMOS technical support is available for integration guidance, Automation Builder configuration assistance, and commissioning support.
