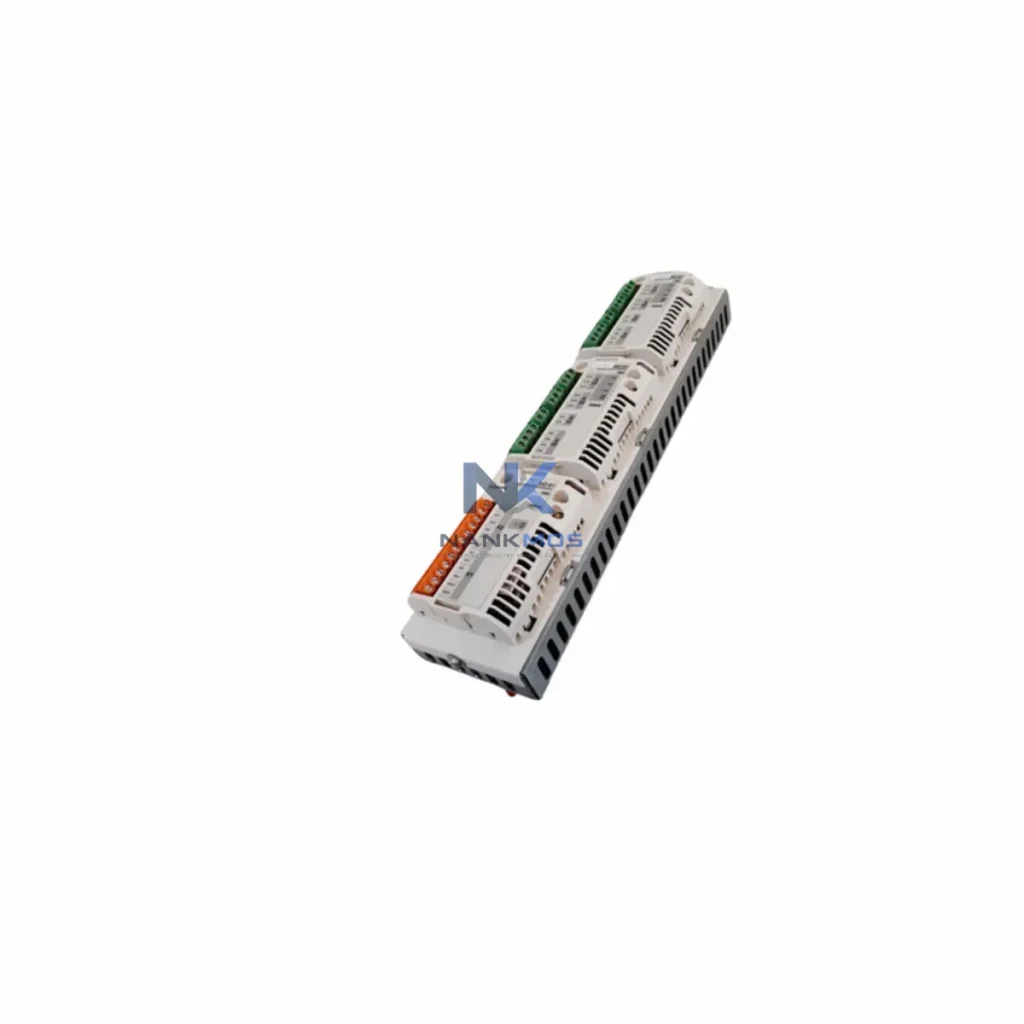

ABB AIMA-01C 64535943D Analog I/O Module

Product Details

AIMA-01C 64535943D Product Description

The ABB AIMA-01C is a high-performance analog I/O module engineered for the ABB AC500 PLC platform, delivering seamless multi-protocol connectivity across Profibus DP, Modbus TCP, and EtherNet/IP networks. Designed for demanding industrial environments, the AIMA-01C bridges the gap between field-level sensors, actuators, and upper-layer control systems — enabling real-time signal acquisition, protocol-transparent data transfer, and continuous remote diagnostics across the full smart factory data chain.

From signal conditioning at the field device level through to SCADA dashboards and MES integration, the AIMA-01C serves as a critical node in the industrial data flow architecture. Its robust analog channel resolution and multi-protocol gateway capability make it an essential component for engineers building scalable, transparent, and remotely manageable automation networks.

In a modern smart factory, data integrity depends on the unbroken flow of information from the physical process layer to the decision-making layer. The ABB AIMA-01C occupies a pivotal position in this chain. At the field level, analog sensors — including pressure transmitters, temperature probes, and flow meters — feed raw process signals into the AIMA-01C's high-resolution analog input channels. These signals are conditioned, digitised, and made available to the ABB AC500 PM595 CPU module over the AC500 backplane bus, where the PLC executes control logic in real time.

For distributed I/O architectures, the AIMA-01C integrates naturally alongside ABB TU515 terminal units and ABB DC532 digital I/O modules, forming a modular I/O station that can be extended without rewiring. When the plant network runs on Profibus DP, the AIMA-01C participates as a standard slave device, exchanging cyclic process data with the Profibus master — typically an ABB CI502-PNIO communication interface or equivalent gateway module — at deterministic scan rates suited to closed-loop control.

For Ethernet-based plants adopting EtherNet/IP or Modbus TCP, the AIMA-01C's data is surfaced through the AC500 CPU's Ethernet port or via an ABB CI504-PNIO PROFINET interface module, enabling integration with Siemens SIMATIC WinCC SCADA systems, Wonderware InTouch HMI panels, or any OPC-UA-capable historian. This protocol flexibility eliminates the need for standalone protocol converters on the network segment, reducing latency and single points of failure.

At the drive and motion layer, analog output signals from the AIMA-01C can directly command ABB ACS880 variable frequency drives for speed and torque reference, or interface with ABB ACSM1 servo drive systems for precision positioning tasks. This tight coupling between the I/O module and the drive layer ensures that process corrections — triggered by SCADA alarm logic or PLC interlocks — are executed with minimal delay.

Edge intelligence is added when the AC500 system connects to an ABB Edge Controller or a third-party industrial edge gateway running IEC 61131-3 soft PLC logic. Here, the AIMA-01C's real-time analog data feeds machine learning inference engines for predictive maintenance, anomaly detection, and energy optimisation — all without disrupting the primary control loop. Data visualisation is handled upstream by the SCADA or MES layer, where trend charts, alarm histories, and KPI dashboards give plant managers full transparency over process performance.

For remote sites or multi-plant deployments, the AIMA-01C's data is accessible via secure VPN tunnels to centralised SCADA servers, enabling remote diagnostics, parameter adjustment, and alarm acknowledgement without on-site intervention. This remote monitoring capability is particularly valuable for unmanned substations, water treatment facilities, and offshore installations where the cost of physical site visits is prohibitive.

Protocol fragmentation is one of the most persistent challenges in brownfield automation upgrades. Legacy Profibus DP segments, newer EtherNet/IP rings, and Modbus TCP SCADA polling often coexist in the same plant — creating data silos where process values are trapped in isolated network islands. The ABB AIMA-01C, operating within the AC500 platform's multi-protocol framework, resolves this by acting as a unified data source accessible from any of these network layers simultaneously, without requiring dedicated protocol converters or additional hardware.

Data island elimination is achieved through the AC500's ability to map AIMA-01C analog channel values into multiple protocol address spaces concurrently. A single temperature reading from a field sensor can be simultaneously available as a Profibus DP process data word, a Modbus TCP holding register, and an EtherNet/IP tag — ensuring that the SCADA system, the HMI panel, and the MES database all see consistent, synchronised values.

Remote monitoring and alarm traceability are enhanced by the AIMA-01C's integration with the AC500's diagnostic framework. Out-of-range analog values, wire-break detection, and channel overflow conditions are reported as structured diagnostic messages to the PLC CPU, which forwards them as alarm objects to the SCADA system. Alarm timestamps, engineering unit values, and channel identifiers are preserved through the entire data chain, enabling root-cause analysis without manual log correlation.

Production line transparency is delivered through the AIMA-01C's contribution to real-time OEE (Overall Equipment Effectiveness) calculations. By providing accurate, timestamped analog data — cycle times, energy consumption, process temperatures — the module feeds the KPI engine that drives continuous improvement initiatives on the plant floor.

System scalability is a core design principle of the AC500 platform. Additional AIMA-01C modules can be added to the I/O station without modifying the network topology or the SCADA configuration, thanks to the AC500's modular slot architecture and automatic I/O mapping. This makes the AIMA-01C a future-proof investment for plants planning phased capacity expansions.

Q1: What communication protocols does the ABB AIMA-01C support, and how does this affect SCADA integration? The AIMA-01C supports Profibus DP, Modbus TCP, and EtherNet/IP through the ABB AC500 platform's communication interface modules. This means the module's analog data can be polled by any SCADA system that supports these standard industrial protocols — including Siemens WinCC, Wonderware, Ignition, and iFIX — without requiring custom drivers or middleware. Protocol selection is determined by the communication interface module fitted to the AC500 CPU station, not by the AIMA-01C itself, giving engineers full flexibility to match the existing plant network standard.

Q2: How does the AIMA-01C support remote diagnostics and predictive maintenance? The AIMA-01C reports channel-level diagnostics — including wire-break, over-range, and under-range conditions — as structured Profibus DP or EtherNet/IP diagnostic objects. These are forwarded by the AC500 CPU to the SCADA alarm server in real time, enabling remote engineers to identify faulty field instruments, degraded signal cables, or process excursions without visiting the site. When combined with edge analytics platforms, historical analog trend data from the AIMA-01C can be used to build predictive maintenance models for connected drives, pumps, and compressors.

Q3: What is the network latency performance of the AIMA-01C in a Profibus DP segment? In a standard Profibus DP configuration with the ABB AC500 as the DP master, the AIMA-01C participates in cyclic data exchange at baud rates up to 12 Mbit/s. Typical cycle times for a mixed I/O station including the AIMA-01C are in the range of 1–10 ms, depending on the number of slaves and the configured baud rate. This deterministic, low-latency performance makes the AIMA-01C suitable for closed-loop control applications where analog feedback must be processed within the PLC scan cycle.

Q4: What warranty and pre-shipment testing does the AIMA-01C carry? Every ABB AIMA-01C unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including analog channel accuracy checks, communication interface validation, and visual inspection for physical integrity. In-stock units are available for immediate shipment, with lead times confirmed at the time of order. For volume orders or project-specific delivery schedules, please contact our technical sales team directly.
