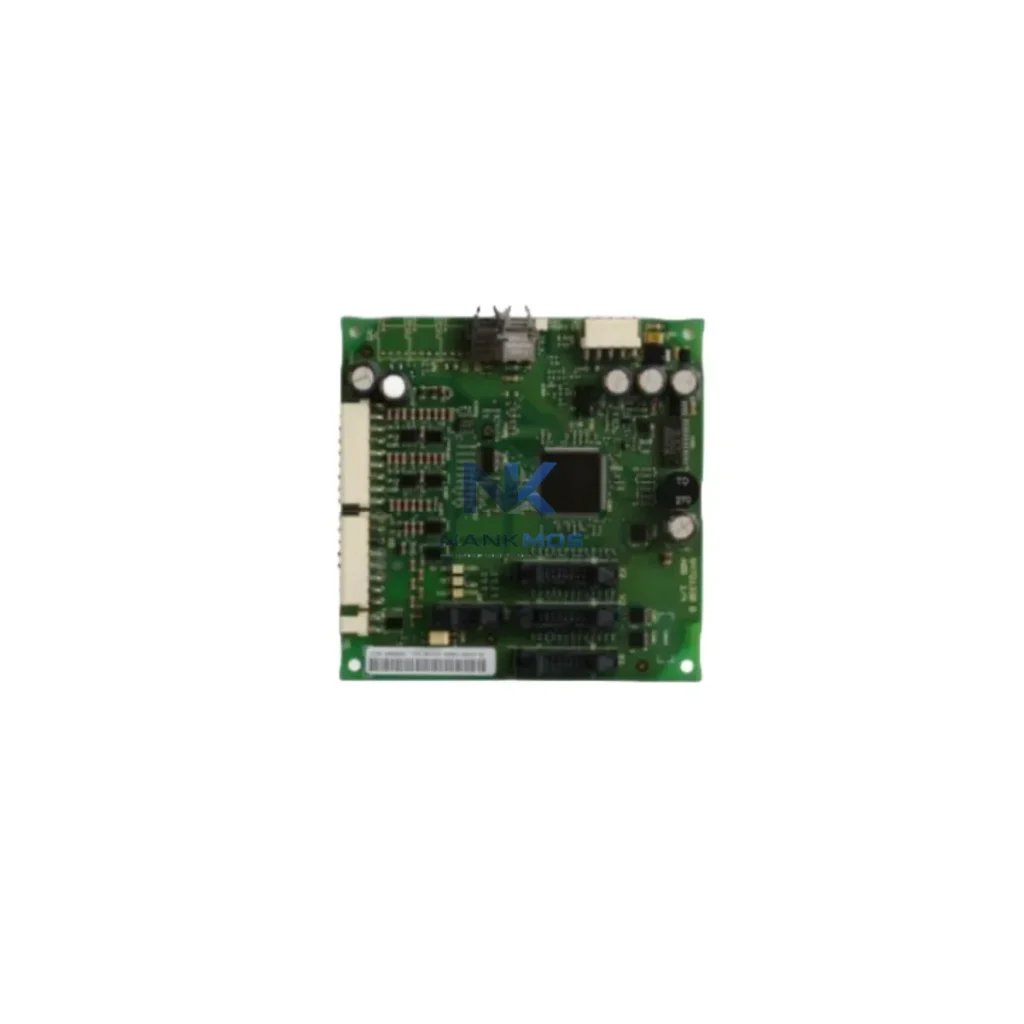

ABB AINT-02C 64802909A Interface Board

Product Details

AINT-02C 64802909A Product Description

The ABB AINT-02C (part number 64802909A) is a precision-engineered interface board designed for ABB Advant series ACS and DCS variable-speed drives. As a core control component within the drive's signal and power management architecture, the AINT-02C plays a direct role in regulating energy flow between the drive controller and the power stage, enabling accurate motor speed control, load-adaptive operation, and measurable reductions in unnecessary energy consumption across continuous and cyclic production processes.

In modern smart production lines where energy efficiency is a key performance indicator, the AINT-02C serves as the communication and control bridge that allows the drive system to respond dynamically to process demands. By maintaining stable signal integrity between the control board and the inverter stage, it ensures that the ABB Advant drive operates within its optimal efficiency band — avoiding over-excitation, minimizing reactive power losses, and reducing thermal stress on connected motor windings.

The AINT-02C is engineered to integrate seamlessly within a layered industrial automation architecture. In a typical smart production line, it operates as the interface layer between the ABB Advant drive's main control board — such as the NAMC-11 or RMIO-11 — and the power electronics stage. This tight integration ensures that speed reference signals from the PLC (for example, an ABB AC500 or Siemens S7-300 series controller) are translated into precise PWM gate commands with minimal latency and signal distortion.

When paired with an ABB ACS 800 variable-frequency drive, the AINT-02C enables direct torque control (DTC) operation, which is ABB's proprietary motor control algorithm known for its superior energy efficiency compared to conventional V/Hz control. DTC reduces motor slip losses and allows the drive to deliver exactly the torque demanded by the load — whether that load is a conveyor, pump, compressor, or centrifuge — without over-supplying power. This directly reduces kWh consumption per production cycle.

In energy management architectures that include power monitoring modules such as the ABB B23 or CM-series power meters, the AINT-02C's role in maintaining stable drive operation ensures that the data captured by these meters accurately reflects true load conditions rather than fault-induced spikes. This clean power data feeds into SCADA systems — such as ABB System 800xA or Wonderware InTouch — where energy KPIs are tracked and production schedules are optimized for off-peak consumption windows.

For facilities using distributed I/O modules (such as ABB S800 I/O or Beckhoff EtherCAT terminals) to monitor motor current, temperature, and vibration, the AINT-02C's signal stability is critical. Noise or instability at the interface board level can corrupt feedback signals, causing false fault trips that interrupt production and waste the energy consumed during restart sequences. A properly functioning AINT-02C eliminates this failure mode entirely.

HMI panels — including ABB CP600 series or Siemens TP700 Comfort — display real-time drive status sourced through the control chain that includes the AINT-02C. Operators rely on this data to make load-shedding decisions, adjust production rates during peak tariff periods, and schedule preventive maintenance without halting the line unnecessarily. Communication modules such as the ABB RDNA-01 (DeviceNet) or RPBA-01 (PROFIBUS) adapter boards connect the Advant drive to the plant network, and the AINT-02C's role in maintaining drive health ensures these fieldbus communications remain stable and uninterrupted.

Unplanned drive downtime is one of the most significant sources of hidden energy waste in manufacturing. When a drive trips due to a faulty interface board, the restart sequence — including re-magnetization of the motor, ramp-up to operating speed, and re-synchronization with upstream and downstream equipment — consumes a disproportionate amount of energy compared to steady-state operation. By replacing a degraded AINT-02C with a QA-verified unit, maintenance teams eliminate this recurring energy penalty.

In pump and fan applications governed by affinity laws, even a 10% reduction in motor speed yields approximately a 27% reduction in power consumption. The AINT-02C enables the ABB Advant drive to maintain precise speed control across this operating range, ensuring that the drive never runs the motor faster than the process demands. This load-matching capability is the foundation of variable-speed drive energy savings and depends entirely on the integrity of the interface board's signal path.

For production lines operating on a takt-time model — where each station must complete its cycle within a fixed time window — drive faults caused by interface board failures disrupt the entire line's rhythm. The resulting idle time at upstream stations, combined with the energy consumed by equipment waiting in standby, accumulates into significant waste over a shift. Maintaining a stocked spare of the AINT-02C as part of a critical spares inventory strategy is a proven method for protecting production efficiency and energy performance simultaneously.

Predictive maintenance programs that use vibration sensors, thermal imaging, and drive diagnostic logs can identify early signs of interface board degradation — such as intermittent communication errors or increased fault frequency — before a full failure occurs. Replacing the AINT-02C during a planned maintenance window, rather than during an emergency shutdown, preserves production continuity and avoids the energy cost of uncontrolled restarts. All units supplied by NANKMOS are pre-shipment tested under functional load conditions to confirm full operational readiness before dispatch.

Q1: How does replacing the AINT-02C improve energy efficiency in my drive system? A degraded or faulty AINT-02C causes signal instability between the drive's control board and power stage, leading to inefficient switching, increased heat generation, and frequent fault trips. Replacing it with a verified unit restores the drive's ability to execute precise motor control algorithms — such as ABB's Direct Torque Control — which directly reduces energy consumption per production cycle and eliminates the energy wasted during fault-recovery restarts.

Q2: Is the AINT-02C 64802909A compatible with my existing ABB Advant drive system? The AINT-02C 64802909A is designed for ABB Advant series ACS and DCS variable-speed drives, including the ACS 600, ACS 800, DCS 400, and DCS 600 families. If you are unsure of compatibility with your specific drive revision or firmware version, please contact us with your drive nameplate data and we will confirm fitment before shipment.

Q3: What does the pre-shipment testing process cover, and how does it support my maintenance workflow? Every AINT-02C unit is subjected to a full functional QA test prior to dispatch. This includes signal integrity verification, communication pathway checks, and operational validation under simulated drive conditions. This process ensures that the board you receive is ready for immediate installation, reducing the risk of secondary failures and the associated downtime and energy costs.

Q4: What warranty and supply support does NANKMOS provide for the AINT-02C? All AINT-02C 64802909A units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Units are held in stock for rapid dispatch to minimize your equipment downtime. For urgent requirements, expedited shipping options are available. For warranty claims, replacement requests, or technical support, contact us directly at [email protected] or +86 18359268345.
