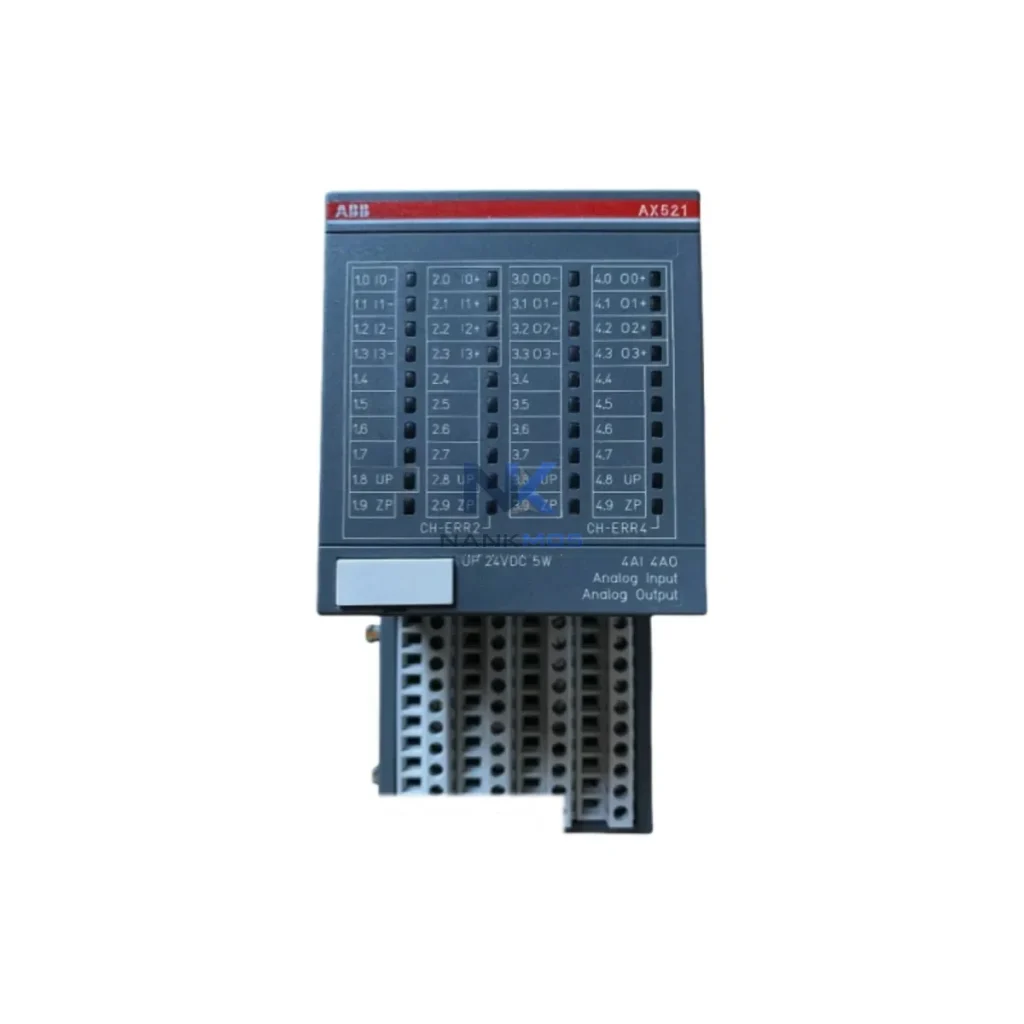

ABB AX521 D2 1SAP250100R0001 Safety I/O Module

Product Details

AX521 D2 1SAP250100R0001 Product Description

The ABB AX521/D2 is a high-integrity Safety I/O Module engineered for the AC500-S safety PLC platform, purpose-built to deliver deterministic signal processing, reduced energy overhead, and reliable load management across demanding industrial environments. Rated for SIL 3 / PLe applications, this module integrates seamlessly into power generation, petrochemical processing, oil & gas compression, water treatment automation, and marine propulsion control systems where both functional safety and energy efficiency are non-negotiable operational requirements.

In smart production lines where every watt and every millisecond of cycle time matters, the AX521/D2 contributes directly to energy-aware automation architecture. By consolidating safety-critical digital I/O into a single, compact module, it eliminates redundant wiring runs, reduces panel heat load, and lowers the aggregate current draw of the safety layer — all of which translate into measurable reductions in facility energy consumption and cooling overhead.

The AX521/D2 is designed to operate as an integral node within a layered, power-aware automation architecture. At the controller level, it connects directly to the ABB AC500-S safety CPU — such as the PM564-ETH or PM592-ETH — via the dedicated safety backplane bus, enabling the PLC to execute safety-rated load management routines without introducing additional communication latency or energy overhead from external fieldbus adapters.

For drive-level energy control, the AX521/D2 safety outputs interface with ABB ACS880 industrial drives and ACS580 general-purpose variable frequency drives through hardwired Safe Torque Off (STO) and Safe Stop 1 (SS1) circuits. This architecture allows the PLC program to command controlled motor deceleration and standby states during low-demand production windows, directly reducing motor energy consumption without requiring a full drive power cycle. When paired with the ABB FENA-21 Ethernet adapter module installed in the drive, the system can also relay drive status data — including real-time power draw and thermal load — back to the SCADA layer for energy trending analysis.

At the I/O and sensing layer, the AX521/D2 works alongside standard ABB AC500 expansion modules such as the DC532 digital I/O module and AI523 analog input module to build a complete process monitoring backbone. Analog signals from current transformers, pressure transmitters, and temperature sensors feed into the AI523, where the PLC correlates process load with energy consumption in real time. The AX521/D2 safety inputs, meanwhile, monitor emergency stop circuits, guard door interlocks, and light curtain outputs — ensuring that safety-triggered shutdowns are executed with minimal energy waste by sequencing motor stops and actuator de-energization in the correct order rather than cutting all power simultaneously.

For HMI and operator visibility, the AX521/D2 safety state data is surfaced through ABB CP635 touch panel HMIs connected to the AC500 CPU via Modbus TCP or PROFINET. Operators can monitor safety loop status, I/O channel diagnostics, and energy consumption trends on a single screen, enabling proactive load management decisions without leaving the control room. Integration with ABB Ability™ Energy Manager or third-party SCADA platforms via OPC-UA allows plant-level energy managers to correlate safety system activity with overall facility power demand curves.

The module's compact DIN-rail form factor and low self-heating profile (≤ 4.5 W) also contribute to panel thermal management. In high-density control cabinets where ABB S800 I/O modules, CM589-PNIO PROFINET communication modules, and multiple drive control boards coexist, reducing individual module heat output directly lowers the duty cycle of cabinet cooling fans and air conditioning units — a frequently overlooked source of auxiliary energy consumption in large automation panels.

In continuous process industries — including chemical batch reactors, water treatment pump stations, and power plant auxiliary systems — unplanned safety shutdowns are among the most energy-intensive events a production line can experience. A hard emergency stop that simultaneously de-energizes all motors, heaters, and actuators without sequencing creates large inrush current events on restart, stresses drive DC bus capacitors, and generates thermal cycling in motor windings that accelerates insulation degradation. The AX521/D2, programmed with structured safe-state sequences in the AC500-S safety application, enables controlled, energy-efficient shutdown and restart procedures that minimize these effects.

By implementing zone-based safety architecture — where the AX521/D2 manages safety I/O for a defined production cell rather than the entire line — plant engineers can isolate faults to the affected zone while keeping adjacent cells running at full efficiency. This approach, sometimes called "safety zoning" or "partial shutdown," can reduce the energy cost of a safety event by 40–70% compared to a full-line stop, depending on the process. The AX521/D2's 8 configurable safety inputs and 4 safety outputs provide sufficient channel density to implement two to four independent safety zones within a single module, making it a cost-effective foundation for zone-based energy management.

Predictive maintenance integration further extends the energy optimization value of the AX521/D2. By logging safety input activation frequency, output switching cycles, and diagnostic fault codes through the AC500-S CPU to a historian or CMMS platform, maintenance teams can identify deteriorating field devices — such as a safety relay with increasing contact bounce or a light curtain with rising dirty-lens faults — before they cause unplanned stops. Replacing a failing device during a scheduled maintenance window rather than after an unplanned trip eliminates the energy cost of an emergency restart and preserves production line throughput efficiency.

All units supplied by NANKMOS are pre-shipment tested against ABB factory acceptance criteria, verified for correct safety loop response times, and shipped with full documentation. In-stock availability ensures minimal lead time for MRO replacement and new project commissioning. Each AX521/D2 is covered by a 12-month warranty from the date of shipment.

Q1: How does the AX521/D2 contribute to measurable energy savings on a production line? The AX521/D2 enables zone-based safety architecture and controlled safe-state sequencing, which reduces the energy cost of safety events by minimizing unnecessary motor stops and inrush current on restart. Its low self-power consumption (≤ 4.5 W) also reduces panel thermal load, lowering auxiliary cooling energy demand.

Q2: Is the AX521/D2 compatible with non-ABB PLCs or third-party SCADA systems? The AX521/D2 is designed exclusively for the ABB AC500-S safety PLC platform and communicates via the proprietary AC500-S safety backplane bus. It is not directly compatible with non-ABB PLCs. However, safety status and diagnostic data can be forwarded to third-party SCADA systems via OPC-UA or Modbus TCP through the AC500-S CPU's standard communication interfaces.

Q3: Can the AX521/D2 replace an older ABB safety I/O module in an existing AC500-S installation? Yes. The AX521/D2 is backward-compatible with AC500-S safety applications developed in ABB Automation Builder. Before replacement, verify the firmware version of the target AC500-S CPU and update the safety project configuration to reflect the new module. Pre-shipment testing performed by NANKMOS confirms correct channel mapping and response time compliance prior to delivery.

Q4: What is the warranty coverage and how is supply availability assured? All AX521/D2 units supplied by NANKMOS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Units are held in stock and undergo pre-shipment functional testing before dispatch, ensuring that replacement and new-build projects receive verified, ready-to-install hardware with minimal lead time.
