ABB BMIO-01 3AXD50000021262 Communication Module

Product Details

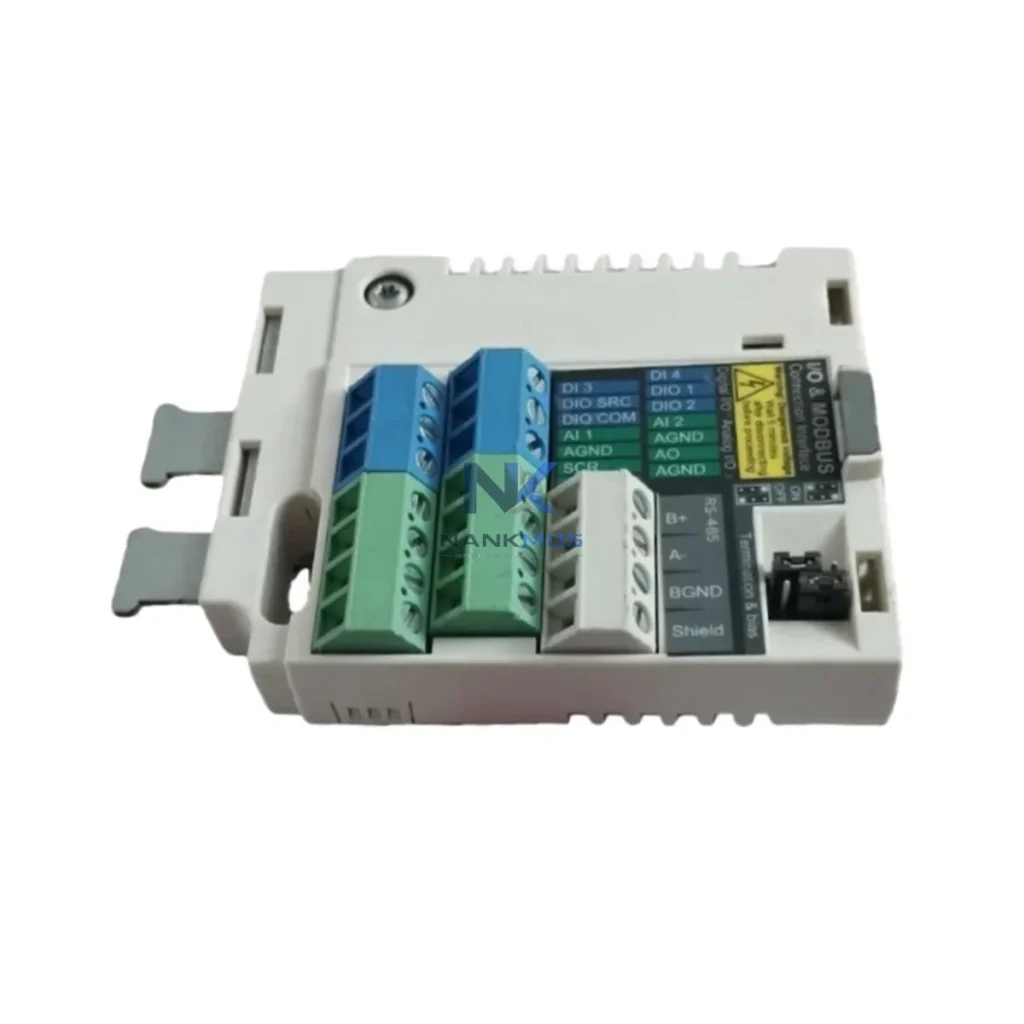

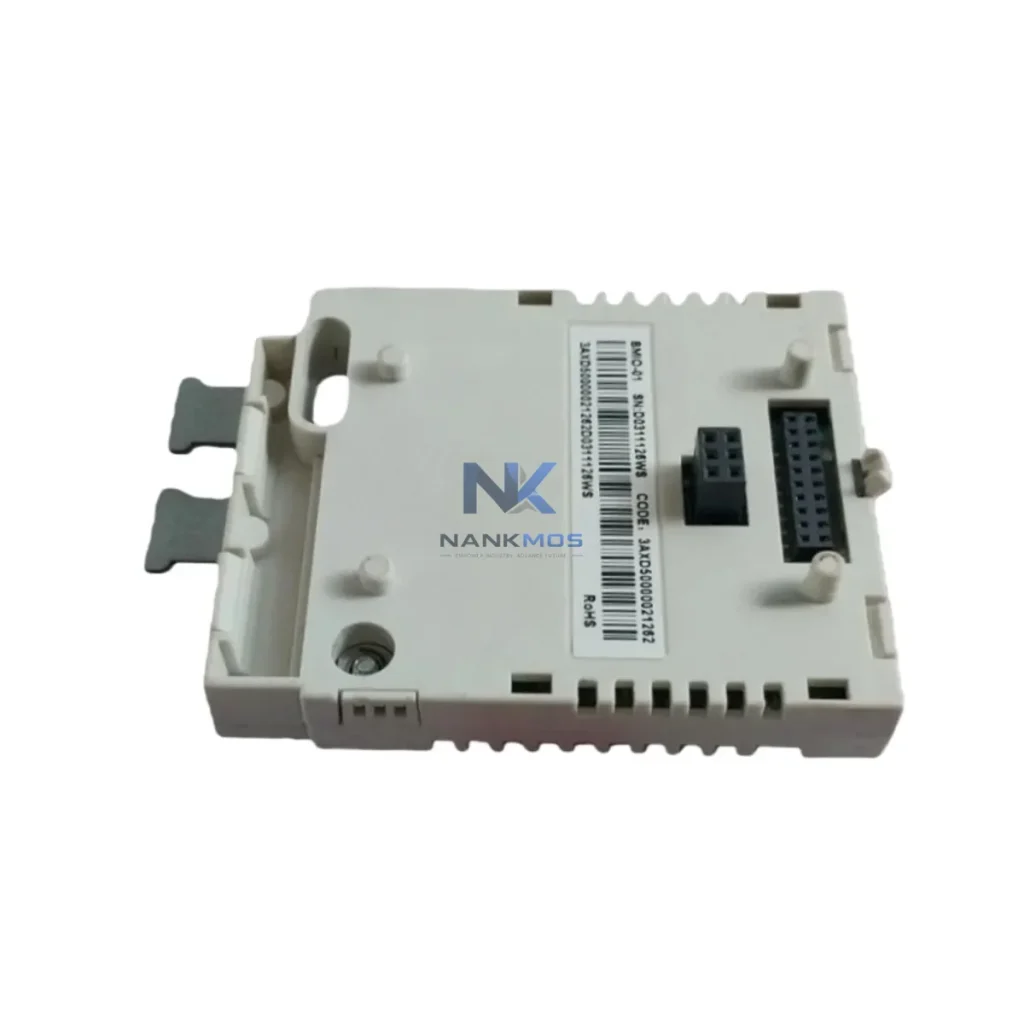

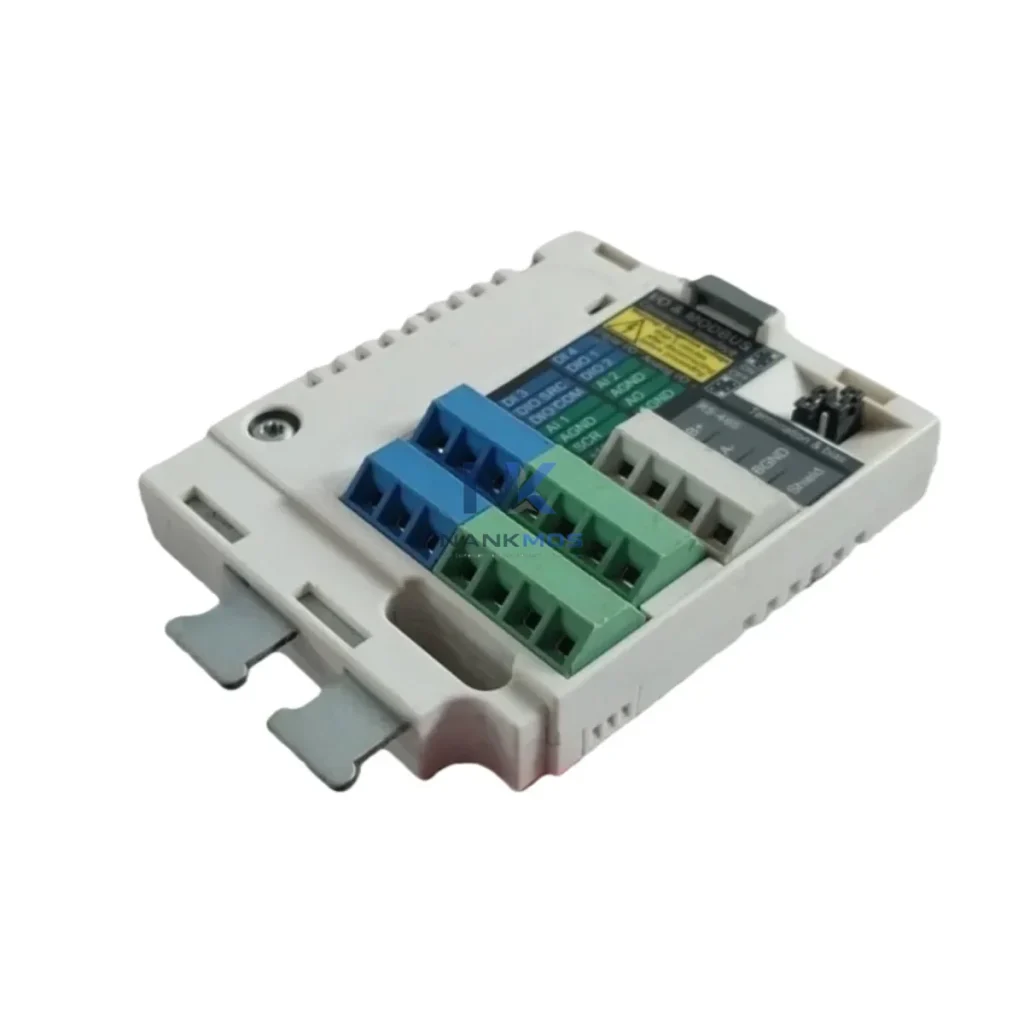

BMIO-01 3AXD50000021262 Product Description

The ABB BMIO-01 (part number 3AXD50000021262) is a dedicated Modbus TCP/IP communication module engineered for seamless integration of ABB ACS880 industrial drives into modern smart factory networks. As industrial automation evolves toward fully connected production environments, the BMIO-01 serves as a critical data bridge — enabling real-time signal exchange between field-level drive systems and upper-layer control and monitoring platforms. Whether your facility relies on Siemens S7 PLCs, Rockwell ControlLogix controllers, or distributed SCADA systems from Wonderware or Ignition, the BMIO-01 delivers the protocol translation and network stability required to eliminate data silos and achieve full production transparency.

Designed specifically for the ACS880 multi-drive platform, the BMIO-01 slots directly into the drive's option slot, providing native Modbus TCP communication without the need for external converters or additional wiring infrastructure. This tight hardware integration ensures minimal latency in data acquisition — a critical requirement when monitoring motor speed, torque feedback, fault codes, energy consumption, and operational status across multiple drive axes in real time.

In a fully connected smart factory, the ABB BMIO-01 occupies a pivotal position in the industrial data chain. At the field level, ACS880 drives equipped with the BMIO-01 continuously report operational parameters — including output frequency, DC bus voltage, motor current, and active fault registers — directly onto the plant Ethernet backbone. This data flows upward through managed industrial Ethernet switches (such as the ABB AF series or compatible Hirschmann SPIDER switches) to reach the plant's control layer without signal degradation or communication bottlenecks.

At the PLC layer, Siemens S7-1500 or Allen-Bradley ControlLogix systems poll the BMIO-01 via Modbus TCP function codes, reading drive status words and writing control commands — start, stop, speed reference, and fault reset — with deterministic cycle times. For facilities using ABB AC500 PLCs alongside ACS880 drives, the BMIO-01 enables a fully native ABB automation architecture, simplifying engineering and reducing integration risk.

Remote I/O modules and distributed I/O nodes connected to the same Ethernet segment can share network resources with the BMIO-01, allowing sensor data from proximity switches, temperature transmitters, and pressure transducers to be correlated with drive performance data in real time. This correlation is essential for predictive maintenance workflows — when a conveyor motor's current draw increases while belt tension sensors report normal values, the SCADA system can flag a potential bearing fault before it causes unplanned downtime.

HMI panels — whether ABB CP600 series, Siemens KTP700, or Weintek cMT series — connect to the same Modbus TCP network and display live drive parameters on operator screens. Alarm thresholds configured in the HMI trigger visual and audible alerts when drive fault codes are detected, enabling rapid operator response. For multi-drive installations, a single HMI can monitor dozens of ACS880 drives simultaneously through the BMIO-01's standard Modbus register map, eliminating the need for proprietary drive-specific communication cards.

At the SCADA and MES layer, platforms such as Ignition by Inductive Automation, Wonderware System Platform, or Siemens WinCC OA connect to the BMIO-01 via standard Modbus TCP drivers, logging drive data at configurable intervals for energy reporting, OEE calculation, and production traceability. Edge gateway devices — such as the Moxa MGate MB3000 series or Advantech ADAM-3600 — can aggregate data from multiple BMIO-01 modules and forward it to cloud-based analytics platforms or on-premise data historians, enabling remote diagnostics and performance benchmarking across multiple plant sites.

For variable frequency drive networks that also include ABB ACS580 or ACS380 drives using FMBT-21 or FENA-21 communication modules, the BMIO-01 ensures protocol consistency across the drive fleet, simplifying SCADA configuration and reducing the number of communication drivers required. Industrial power supplies from the ABB CP-E series provide stable 24 VDC power to the communication infrastructure, ensuring that network uptime is maintained even during grid fluctuations.

Many industrial facilities face persistent challenges with fragmented automation architectures — legacy drives communicating over RS-485 Modbus RTU, newer equipment using Ethernet-based protocols, and SCADA systems unable to consolidate data from both layers without custom middleware. The ABB BMIO-01 directly addresses this by providing a standardized Modbus TCP interface that most modern SCADA, DCS, and MES platforms support natively, eliminating the need for protocol converters or custom OPC server configurations.

Data island problems — where drive performance data exists only in the drive's local memory and is inaccessible to plant-level systems — are resolved by the BMIO-01's continuous cyclic data publishing. Every scan cycle, the module updates its Modbus register map with current drive values, making them immediately available to any Modbus TCP master on the network. This enables production line transparency: supervisors can view real-time energy consumption, cycle counts, and fault histories from any networked workstation without physically accessing the drive panel.

Remote monitoring and diagnostics become straightforward with the BMIO-01 in place. Maintenance engineers can access drive fault logs, runtime hours, and parameter settings remotely through the SCADA system, reducing the need for on-site visits and enabling faster fault resolution. Alarm tracking is centralized — when a drive trips on overcurrent or overtemperature, the fault code is immediately visible in the SCADA alarm list, with timestamp and drive identity, supporting root cause analysis and regulatory compliance reporting.

System expansion is equally simplified. Adding new ACS880 drives to an existing network requires only installing the BMIO-01 option module and configuring the drive's Modbus node address — no additional network hardware or software licenses are required. This scalability makes the BMIO-01 an ideal choice for phased factory automation projects where production capacity grows incrementally.

Q1: What is the communication latency of the ABB BMIO-01 on a Modbus TCP network?The BMIO-01 supports cyclic data exchange with typical response times under 10 ms on a properly configured 100 Mbps Ethernet network. Actual latency depends on network load, switch configuration, and the Modbus master's polling interval. For time-critical applications, it is recommended to use a dedicated VLAN for drive communication traffic to minimize interference from other network devices.

Q2: Is the BMIO-01 compatible with third-party SCADA and HMI systems beyond ABB's own platforms?Yes. Because the BMIO-01 uses standard Modbus TCP/IP — one of the most widely supported industrial protocols — it is compatible with virtually all major SCADA, HMI, and PLC platforms that include a Modbus TCP driver. This includes Ignition, Wonderware, Siemens WinCC, Rockwell FactoryTalk, and most OPC UA gateway solutions that support Modbus TCP as a data source.

Q3: How does NANKMOS ensure the BMIO-01 is functional before shipment?Every ABB BMIO-01 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify communication integrity, register map accessibility, and physical connector condition. Units are inspected for firmware version compatibility with current ACS880 drive software. All products are covered by a 12-month warranty from the date of shipment, with technical support available for installation and commissioning assistance.

Q4: Can the BMIO-01 be used in a network with both Modbus RTU and Modbus TCP devices?The BMIO-01 itself operates exclusively as a Modbus TCP device on the Ethernet network. For facilities that also have legacy Modbus RTU devices on RS-485 serial networks, a Modbus RTU-to-TCP gateway — such as the Moxa MGate MB3170 or equivalent — can bridge both network segments, allowing the SCADA system to communicate with all devices through a unified Modbus TCP interface. NANKMOS can advise on compatible gateway solutions for mixed-protocol environments.
