ABB CI526 Communication Interface Module

Product Details

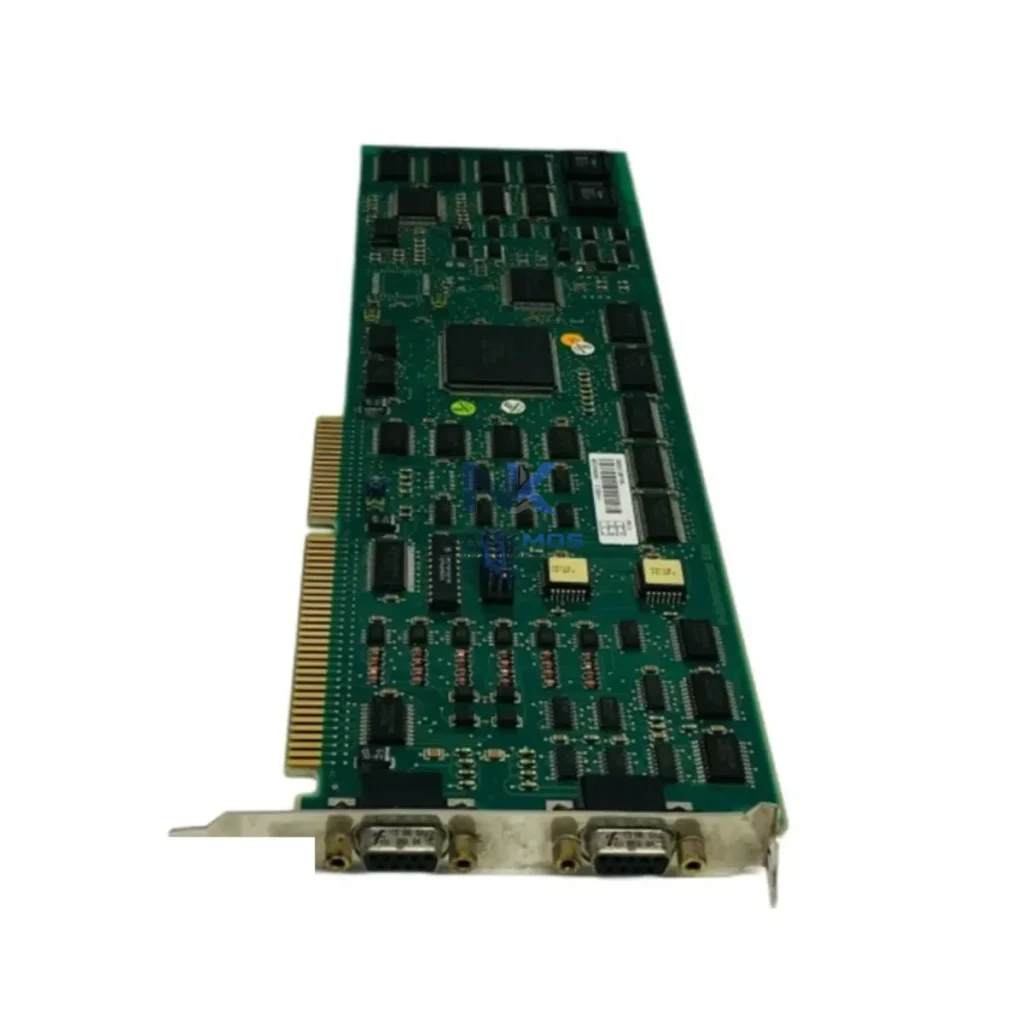

CI526 Product Description

The ABB CI526 is a high-performance PROFIBUS DP communication interface module engineered for the ABB AC500 PLC platform. Designed to serve as the backbone of energy-aware industrial networks, the CI526 enables deterministic, real-time data exchange between the AC500 CPU and field-level devices — including variable frequency drives, servo drives, power monitoring modules, and distributed I/O stations. In energy-intensive production environments, the CI526 plays a critical role in reducing idle-state energy consumption, minimizing thermal load on control cabinets, and ensuring that every connected device operates within its optimal efficiency envelope.

As industrial facilities face increasing pressure to reduce energy costs and meet sustainability targets, the CI526 provides the communication infrastructure that makes intelligent energy management possible. By delivering low-latency, cycle-accurate process data from field devices to the AC500 CPU, the CI526 enables the PLC to execute energy-optimized control strategies — such as demand-based motor speed adjustment via ABB ACS880 variable frequency drives, coordinated soft-start sequencing to suppress inrush current peaks, and real-time load shedding during non-production intervals. These capabilities translate directly into measurable reductions in kWh consumption per production cycle.

The CI526 is most effective when deployed as part of a tightly integrated, energy-conscious automation architecture. In a typical smart production line, the AC500 CPU — such as the PM564-ETH — uses the CI526 to poll real-time process values from ABB ACS880 variable frequency drives controlling conveyor motors, pump stations, and compressor units. By reading actual motor load, speed feedback, and thermal status over PROFIBUS DP at sub-10 ms cycle times, the PLC can dynamically adjust drive setpoints to match actual production demand rather than running at fixed speed — a strategy that can reduce motor energy consumption by 20–40% in variable-load applications.

The CI526 also integrates seamlessly with ABB CM589-PNIO or third-party PROFIBUS-to-PROFINET gateways, allowing legacy PROFIBUS field devices to participate in modern Ethernet-based energy management systems. Distributed I/O modules such as the ABB TU515 terminal unit and DC532 digital I/O module connect as PROFIBUS DP slaves, providing the AC500 with granular visibility into machine states, valve positions, and actuator feedback — all of which are essential inputs for energy-optimized sequencing logic. When combined with ABB CP600 HMI panels, operators gain a real-time dashboard of energy consumption trends, drive efficiency ratings, and alarm states, enabling proactive intervention before inefficiencies escalate into downtime.

For power quality monitoring, the CI526 can be paired with ABB B23 or B24 three-phase energy meters connected via a PROFIBUS DP gateway, feeding kWh, kVAR, and power factor data directly into the AC500 control loop. This closed-loop energy feedback architecture allows the PLC to implement automatic power factor correction commands, coordinate soft-starter sequences on ABB PSR or PST series soft starters, and log energy consumption per production batch for ISO 50001 compliance reporting. The result is a fully instrumented energy management layer built on standard PROFIBUS DP infrastructure — no additional fieldbus or middleware required.

In high-throughput manufacturing environments, uncoordinated energy consumption is one of the leading causes of inflated operating costs and premature equipment wear. The CI526 addresses this at the network level by ensuring that every PROFIBUS DP slave — whether a drive, a soft starter, a power meter, or a remote I/O station — delivers its process data to the AC500 CPU with deterministic timing. This timing precision is the foundation of production line rhythm (takt) optimization: when the PLC knows exactly when each machine segment completes its cycle, it can pre-position downstream drives, pre-charge hydraulic actuators, and stage conveyor speeds to eliminate energy-wasting acceleration bursts between production steps.

Thermal load management is another area where the CI526 delivers measurable value. By enabling the AC500 to monitor drive thermal status registers in real time, the system can implement intelligent cooling strategies — reducing fan speeds during low-load periods, staggering motor starts to prevent simultaneous inrush events, and triggering predictive maintenance alerts when drive temperatures trend above baseline. These strategies reduce heat dissipation in the control cabinet, extend the service life of power electronics, and lower the energy cost of auxiliary cooling systems.

From a supply chain and serviceability perspective, the CI526 is a standardized, widely deployed module within the ABB AC500 ecosystem. NANKMOS maintains verified stock of the CI526 with full pre-shipment functional testing, ensuring that replacement units arrive ready for immediate installation without additional commissioning overhead. Every unit ships with a 12-month warranty covering manufacturing defects and functional performance, backed by documented test records. For facilities operating on tight maintenance windows, this stock availability and warranty assurance directly reduces the risk of extended unplanned downtime — one of the highest-cost events in any energy-intensive production environment.

Q1: How does the CI526 contribute to measurable energy savings on a production line? The CI526 enables the ABB AC500 PLC to receive real-time load, speed, and thermal data from connected PROFIBUS DP devices — including ACS880 drives and power monitoring modules. This data allows the PLC to implement demand-based speed control, coordinated soft-start sequencing, and load shedding during idle periods, which can reduce motor-related energy consumption by 20–40% in variable-load applications.

Q2: Which ABB drive and PLC models are compatible with the CI526? The CI526 is designed for the ABB AC500 platform (PM5xx series CPUs). It supports PROFIBUS DP communication with ABB ACS880, ACS580, and ACS355 variable frequency drives, as well as ABB PSR/PST soft starters equipped with PROFIBUS DP adapter modules. Third-party PROFIBUS DP slaves conforming to IEC 61158 are also supported.

Q3: Can the CI526 replace an existing PROFIBUS DP module without reprogramming the AC500 CPU? In most cases, yes. The CI526 is a direct form-fit-function replacement for compatible ABB AC500 communication slots. If the GSD file and DP configuration in the existing project match the CI526 specification, the module can be swapped without modifying the CPU program. It is recommended to verify the DP master configuration in the AC500 engineering tool (Automation Builder) before installation.

Q4: What does the 12-month warranty cover, and how is the CI526 tested before shipment? Every CI526 unit supplied by NANKMOS undergoes functional verification testing prior to shipment, including PROFIBUS DP communication handshake, power-on self-test, and physical inspection. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with documented test records, and replacement stock is maintained to minimize lead times in the event of a warranty return.
