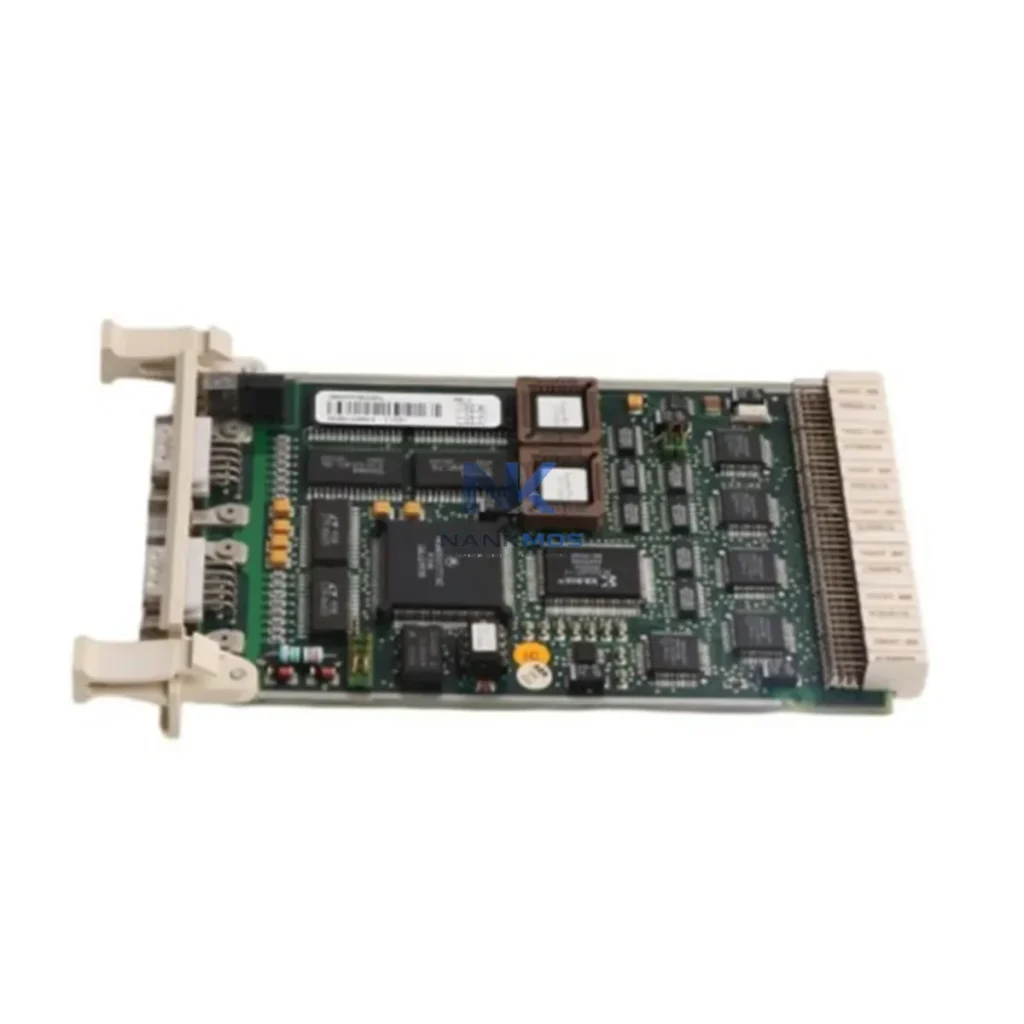

ABB CI531 3BSE003825R1 Communication Interface Module

Product Details

CI531 3BSE003825R1 Product Description

The ABB CI531 (3BSE003825R1) is a dedicated RS-232 serial communication interface module engineered for the Advant Controller AC5x platform. Within a layered industrial control architecture, the CI531 occupies the communication layer, bridging the AC5x CPU subsystem to external serial devices, operator terminals, and legacy instrumentation. Its role extends beyond simple data transfer — it enforces protocol-level synchronization, maintains signal integrity across long cable runs, and supports deterministic communication timing that is essential for process-critical applications in manufacturing, energy, petrochemical, water treatment, and metallurgical industries.

Deployed in control cabinets alongside the AC5x processor rack, the CI531 integrates seamlessly with the Advant Master Bus 300 backplane architecture. Engineers configuring multi-node control systems rely on the CI531 to maintain consistent serial communication between the AC5x controller and devices such as SCADA workstations, HMI panels, and third-party instrumentation that do not support fieldbus protocols. The module's compact DIN-rail compatible form factor and standardized connector interface reduce installation complexity and support modular cabinet design.

In redundant control architectures, the CI531 supports parallel communication path configurations, ensuring that a single interface failure does not interrupt process visibility or control command delivery. This capability is particularly valued in power generation and chemical processing environments where communication continuity directly impacts safety system performance. The module's diagnostic registers are accessible via the AC5x engineering workstation, enabling maintenance engineers to isolate communication faults without interrupting the primary control loop.

The CI531 is fully compatible with the ABB Advant AC5x family, including the AC530, AC532, and AC534 controller variants. It operates within the same rack environment as the PM511 and PM510 processor modules, the DS502 digital I/O modules, the AI531 analog input modules, and the AO531 analog output modules. Communication gateway modules such as the CI532 (PROFIBUS DP interface) and CI534 (MasterBus 300E interface) can be deployed in adjacent slots to create a multi-protocol communication layer within a single rack, maximizing slot utilization and reducing inter-rack wiring complexity.

For HMI integration, the CI531 provides the serial backbone connecting the AC5x controller to operator panels such as the ABB PP836 or third-party terminals running Modbus RTU or proprietary serial protocols. In I/O expansion scenarios, the module works in conjunction with S800 I/O modules and TB820 ModuleBus optical interface modules to extend the control system's reach across distributed process areas. Power supply modules such as the SD821 and SD822 provide the regulated 24 VDC rail that powers the CI531 and adjacent communication modules, ensuring stable operation across the full industrial temperature range.

From an engineering commissioning perspective, the CI531 is configured through the ABB Advant Builder or Control Builder engineering environment. Baud rate, parity, stop bits, and data frame parameters are set via software, eliminating the need for hardware DIP switches and reducing configuration errors during initial system startup. Firmware diagnostics provide real-time status of the RS-232 link, including frame error counts, buffer overflow events, and line state monitoring, all of which are logged to the AC5x event historian for long-term maintenance analysis.

In layered industrial control deployments, the CI531 contributes to system consistency by standardizing the serial communication interface across multiple AC5x nodes. This uniformity simplifies spare parts management, reduces technician training requirements, and supports rapid module replacement during unplanned maintenance events. Each CI531 unit supplied by NANKMOS undergoes pre-shipment functional testing, verifying RS-232 signal levels, connector integrity, and firmware version compatibility before dispatch.

Stock availability is maintained for immediate dispatch, with standard lead times of 3–7 business days for international orders. All units are covered by a 12-Month Warranty from the date of shipment, with technical support available for installation, configuration, and system integration queries.

The CI531 functions as the serial communication anchor within a fully integrated ABB Advant AC5x automation platform. In a typical control cabinet configuration, the CI531 occupies a communication slot adjacent to the PM511 processor module, which executes the primary control program and manages I/O scanning cycles. The DS502 digital input/output module and AI531 analog input module provide field signal acquisition, while the AO531 analog output module delivers 4–20 mA command signals to final control elements such as control valves and variable speed drives.

For multi-protocol environments, the CI532 PROFIBUS DP interface module and CI534 MasterBus 300E interface module can be installed in the same rack as the CI531, creating a layered communication architecture that simultaneously supports RS-232 serial devices, PROFIBUS DP field devices, and MasterBus 300E inter-controller communication. The TB820 ModuleBus optical interface module extends the I/O bus to remote S800 I/O stations, enabling distributed I/O deployment without additional controller hardware.

HMI connectivity is achieved through the CI531's RS-232 port, linking the AC5x controller to ABB PP836 operator panels or third-party SCADA workstations. Power integrity across the rack is maintained by the SD821 and SD822 24 VDC power supply modules, which provide redundant power feed capability for high-availability installations. Terminal modules and marshalling panels complete the field wiring layer, ensuring organized cable management and simplified maintenance access.

The ABB CI531 3BSE003825R1 is deployed across a broad range of industrial sectors where the Advant AC5x platform remains the backbone of process control infrastructure. In power generation and grid management facilities, the CI531 maintains serial communication links between AC5x controllers and protection relay systems, enabling real-time fault data exchange and event logging. In petrochemical and refinery environments, the module supports communication between the DCS controller and legacy analyzer systems, gas chromatographs, and flow computers that use RS-232 as their primary data interface.

In water and wastewater treatment plants, the CI531 connects AC5x controllers to SCADA master stations, supporting remote monitoring of pump stations, chemical dosing systems, and filtration processes. Metallurgical and mining operations use the CI531 to interface AC5x controllers with weighing systems, conveyor drive controllers, and ore processing instrumentation. In marine and offshore applications, the module's robust industrial design supports operation in high-vibration, high-humidity environments typical of vessel automation and offshore platform control systems.

Packaging and discrete manufacturing lines deploy the CI531 to integrate AC5x controllers with barcode readers, vision systems, and serialization equipment that communicate via RS-232. In all these applications, the CI531's deterministic communication timing and diagnostic transparency contribute to reduced unplanned downtime and improved maintenance efficiency.

Q1: Is the ABB CI531 3BSE003825R1 compatible with all AC5x controller variants, and can it coexist with PROFIBUS or MasterBus 300E modules in the same rack? The CI531 is compatible with the AC530, AC532, and AC534 controller variants within the Advant AC5x family. It can be installed in any available communication slot in the Master Bus 300 rack alongside CI532 (PROFIBUS DP) and CI534 (MasterBus 300E) modules without slot conflict, provided the rack's total module count does not exceed the backplane's slot capacity. Configuration is managed through Advant Builder or Control Builder, where each communication module is assigned a unique node address and protocol parameter set.

Q2: What diagnostic capabilities does the CI531 provide for long-term maintenance in continuous process environments? The CI531 exposes diagnostic registers accessible via the AC5x engineering workstation, providing real-time visibility into RS-232 link status, frame error rates, buffer overflow events, and line state conditions. These diagnostics are logged to the AC5x event historian, enabling maintenance engineers to trend communication quality over time and identify degrading cable connections or external interference sources before they cause process disruptions. Module replacement is hot-swap capable in supported AC5x rack configurations, minimizing maintenance downtime.

Q3: What are the stock availability, lead time, and warranty terms for the CI531 3BSE003825R1 supplied by NANKMOS? NANKMOS maintains stock of the CI531 3BSE003825R1 for immediate dispatch. Standard international lead times are 3–7 business days depending on destination. All units undergo pre-shipment functional testing covering RS-232 signal integrity, connector verification, and firmware compatibility checks. Each module is covered by a 12-Month Warranty from the shipment date, with technical support available for installation guidance, system integration queries, and compatibility verification with existing AC5x architectures.
