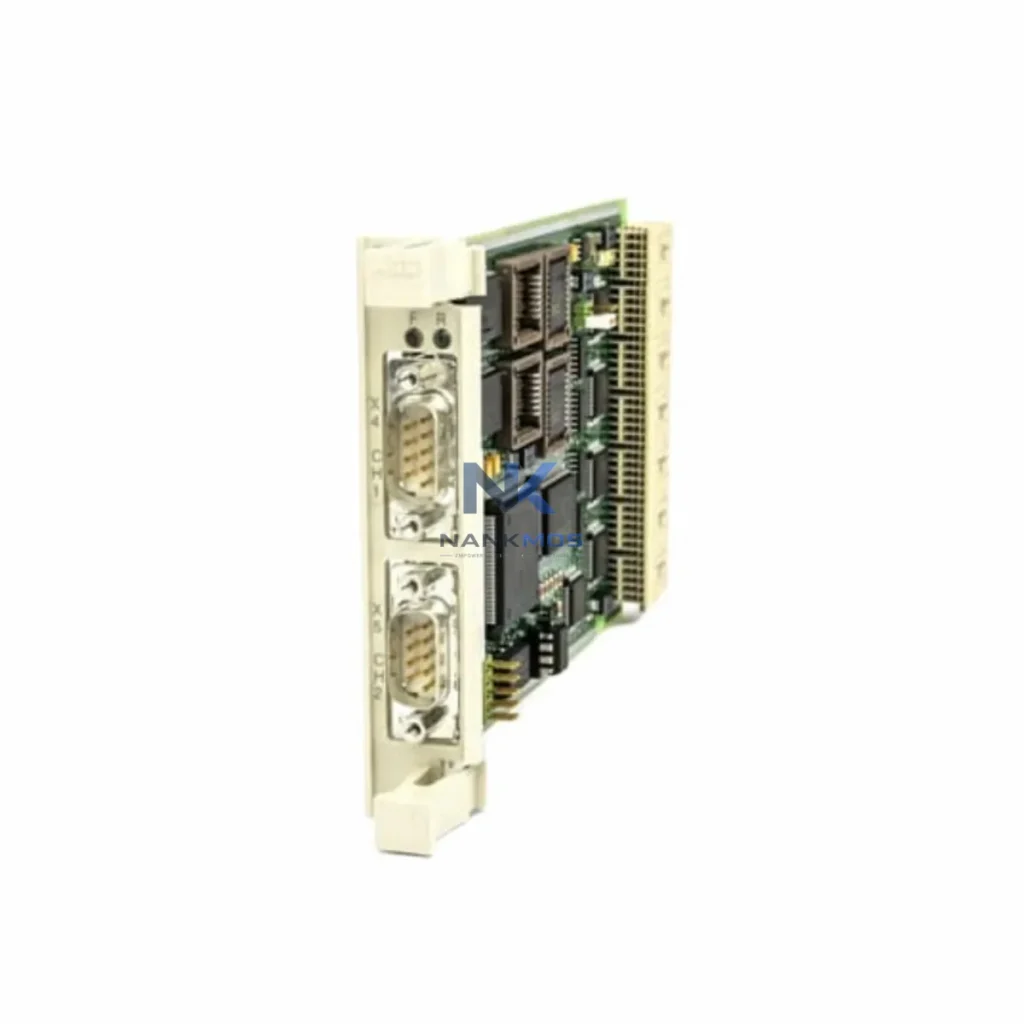

ABB CI534V02 3BSE010700R1 Communication Gateway Module

Product Details

CI534V02 3BSE010700R1 Product Description

The ABB CI534V02 (3BSE010700R1) is a high-performance Modbus communication gateway module engineered for ABB's AC500 PLC platform. Designed to bridge field-level devices and upper-level control systems, this module enables seamless data exchange across the full automation stack — from sensors and actuators on the shop floor to SCADA servers, HMI panels, and cloud-based analytics platforms. In smart factory environments where real-time visibility and deterministic communication are non-negotiable, the CI534V02 delivers the protocol conversion, network stability, and diagnostic transparency that modern industrial data architectures demand.

At its core, the CI534V02 functions as a Modbus RTU and Modbus TCP gateway integrated directly into the AC500 backplane. This tight coupling with the AC500 CPU modules — such as the PM573 and PM591 — eliminates external conversion hardware, reduces wiring complexity, and ensures sub-millisecond data latency between the communication layer and the PLC logic engine. Field devices including variable frequency drives, smart sensors, energy meters, and remote I/O stations connect via the Modbus serial bus, while the gateway simultaneously exposes structured data to Ethernet-based SCADA and HMI systems upstream.

In a typical smart factory data flow, the CI534V02 sits at the intersection of operational technology (OT) and information technology (IT). Analog and digital signals from field instruments — pressure transmitters, flow meters, motor starters — are polled by the gateway at configurable scan rates. The CI534V02 maps these values into the AC500's process image, where the CPU executes control logic and forwards aggregated data to supervisory layers. ABB's CP600 HMI series and third-party SCADA platforms such as Wonderware and Ignition can subscribe to this data stream via Modbus TCP, enabling real-time dashboards, trend logging, and alarm management without additional middleware.

Remote diagnostics is a defining capability of the CI534V02 in connected factory deployments. Network administrators and automation engineers can interrogate the module's communication status, error counters, and bus load metrics through the AC500's diagnostic framework. When a field device drops off the Modbus network — due to cable fault, power interruption, or device failure — the CI534V02 generates structured fault codes that propagate through the PLC program to SCADA alarm lists and email/SMS notification systems. This closed-loop alarm feedback dramatically reduces mean time to repair (MTTR) and supports predictive maintenance workflows.

System integrators deploying the CI534V02 alongside ABB's S900 remote I/O modules benefit from a unified communication architecture. The S900 series connects distributed I/O points across large plant areas via PROFIBUS or Modbus, feeding data back through the CI534V02 to the AC500 controller. For multi-network sites, the CI534V02 can coexist with other AC500 communication modules — such as the CI590-CS31 for CS31 bus integration or the CI501-PNIO for PROFINET — allowing engineers to build layered network topologies that serve both legacy equipment and modern IIoT-ready devices on the same controller platform.

Data visualization and OEE (Overall Equipment Effectiveness) reporting are further enhanced when the CI534V02 is paired with edge computing gateways. Industrial edge devices running Node-RED, Kepware, or OPC-UA servers can subscribe to the Modbus TCP data exposed by the CI534V02, normalize tag structures, and push time-series data to cloud historians or MES platforms. This architecture supports production KPI dashboards, shift reports, and energy consumption analytics — all sourced from the same CI534V02 data pipeline that drives real-time PLC control.

For system expansion, the CI534V02's modular design within the AC500 ecosystem means additional communication modules can be added to the same rack without reprogramming the base CPU. Engineers scaling from a single production cell to a multi-line factory floor can incrementally add CI534V02 units to new AC500 stations, maintaining consistent Modbus addressing conventions and SCADA tag hierarchies. This scalability, combined with ABB's global support network and the module's proven reliability in process industries, makes the CI534V02 a long-term investment for industrial connectivity infrastructure.

Every CI534V02 3BSE010700R1 unit shipped by NANKMOS undergoes pre-shipment functional testing, verifying Modbus communication integrity, backplane interface continuity, and firmware version compliance. Stock is maintained for immediate dispatch, supporting urgent MRO (Maintenance, Repair, and Operations) requirements and planned system upgrades alike. A 12-month warranty covers all units against manufacturing defects, backed by NANKMOS technical support for installation guidance and fault diagnosis.

A complete smart factory data chain built around the CI534V02 typically begins at the field device layer. Variable frequency drives — such as ABB's ACS580 series — report speed, torque, and fault status via Modbus RTU to the CI534V02. Simultaneously, distributed sensor nodes and remote I/O modules (including ABB S900 I/O or third-party Modbus-compatible units) deliver process values — temperature, pressure, flow — into the AC500's data image. The AC500 PM573 or PM591 CPU processes this data in real time, executing PID loops, interlock logic, and sequence control.

Upstream, the CI534V02's Modbus TCP interface connects to the plant Ethernet backbone via industrial managed switches — such as ABB's EL series or Hirschmann MICE switches — ensuring deterministic packet delivery across the factory LAN. ABB CP600 HMI panels subscribe to the Modbus TCP registers exposed by the CI534V02, rendering live process graphics, trend charts, and alarm banners for operators on the production floor. SCADA servers running Ignition or Wonderware InTouch poll the same Modbus TCP endpoints, aggregating data from multiple AC500 stations into plant-wide dashboards and historian databases.

At the edge computing layer, gateways running OPC-UA servers or Kepware KEPServerEX translate the Modbus TCP data from the CI534V02 into standardized OPC-UA nodes, enabling secure, authenticated data delivery to MES platforms and cloud analytics services. This architecture ensures that every data point — from a single motor current reading to a batch production count — flows through a validated, auditable pipeline from the CI534V02 gateway to the enterprise reporting layer.

Industrial sites running mixed-protocol environments frequently encounter data silos where Modbus RTU field devices cannot communicate directly with Ethernet-based SCADA or MES systems. The CI534V02 resolves this by acting as a transparent protocol bridge within the AC500 platform, eliminating the need for standalone protocol converters and reducing single points of failure in the communication chain.

For sites with legacy equipment — older PLCs, analog instrumentation, or proprietary serial devices — the CI534V02's Modbus RTU master capability allows these assets to be integrated into the modern data architecture without hardware replacement. Engineers can map legacy device registers into the AC500's process image and expose them to SCADA via Modbus TCP, achieving production line transparency without capital-intensive retrofits.

Remote monitoring challenges — common in geographically distributed plants, water treatment facilities, and energy substations — are addressed through the CI534V02's network-accessible diagnostic registers. Operations centers can poll communication health metrics, device response times, and error logs remotely, enabling proactive fault detection before production impact occurs. Alarm tracking is further enhanced by configuring the AC500 to generate timestamped event records for every Modbus communication fault, supporting root cause analysis and regulatory compliance reporting.

System expansion is straightforward: additional CI534V02 modules can be added to new AC500 racks as production capacity grows, with consistent Modbus addressing and SCADA tag structures maintained across all stations. This modularity protects the initial engineering investment and accelerates commissioning timelines for new production lines.

Q1: What is the communication latency of the CI534V02 in a Modbus RTU network? The CI534V02 supports configurable Modbus polling cycles within the AC500 task framework. Typical cyclic update times range from 10 ms to 100 ms depending on the number of connected devices and the AC500 CPU task configuration. For time-critical applications, the AC500's priority task scheduling ensures Modbus data is refreshed within deterministic windows.

Q2: Is the CI534V02 compatible with third-party SCADA and HMI systems beyond ABB's own product range? Yes. The CI534V02 exposes standard Modbus TCP registers that are compatible with any SCADA, HMI, or data acquisition system supporting the Modbus TCP protocol — including Ignition, Wonderware, Citect, and FactoryTalk. No proprietary drivers are required for third-party integration.

Q3: How does the CI534V02 support network stability in high-noise industrial environments? The module is designed to ABB's AC500 industrial-grade specifications, with robust EMC shielding and error-detection mechanisms on both the RS-485 serial bus and the Ethernet interface. Modbus CRC error detection, automatic retry logic, and configurable timeout parameters ensure reliable communication even in electrically noisy plant environments.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? Every CI534V02 3BSE010700R1 unit is functionally tested prior to dispatch, verifying Modbus communication integrity, backplane interface operation, and firmware version. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. NANKMOS technical support is available for installation assistance, fault diagnosis, and warranty claims throughout the coverage period.
