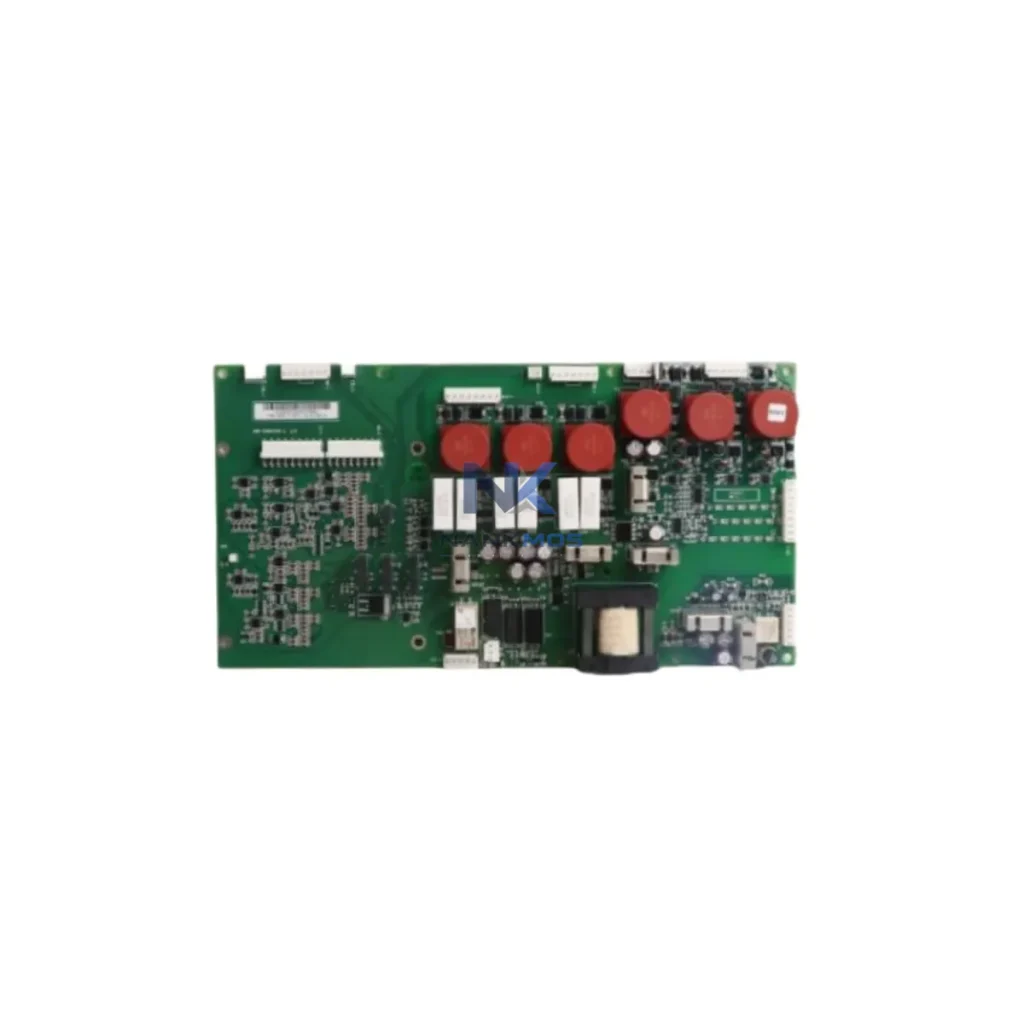

ABB CMIB-11C 3AUA0000041488 MC Interface Board

Product Details

CMIB-11C 3AUA0000041488 Product Description

The ABB CMIB-11C (3AUA0000041488) is a Motor Control Interface Board engineered for seamless integration within the ACS880 industrial drive platform. Designed to operate at the intersection of the control layer and the power electronics layer, this interface board enables precise motor control signal routing, feedback processing, and drive-level diagnostics within complex automation architectures. Its role extends beyond a simple interface component — it functions as a critical coordination node that ensures signal integrity, command fidelity, and system-level coherence across multi-axis and multi-drive deployments.

In modern industrial control architectures, the reliability of the interface between the control system and the drive layer is paramount. The CMIB-11C addresses this requirement by providing a robust, electrically isolated signal path between the ACS880 inverter module and the motor control logic. Whether deployed in a standalone drive configuration or as part of a distributed drive cabinet with multiple ACS880 units, this board maintains consistent performance under demanding electrical environments, including high-frequency switching noise, ground potential variations, and thermal cycling typical of industrial enclosures.

From a system architecture perspective, the CMIB-11C supports the layered design philosophy that underpins modern automation platforms. At the control layer, it interfaces with ABB's AC500 PLC series or third-party controllers via standardized signal protocols, ensuring that torque references, speed setpoints, and enable commands are transmitted with minimal latency and maximum accuracy. At the I/O layer, it processes encoder feedback, resolver signals, and digital status inputs, consolidating motor state information for upstream processing by the drive's main control board — such as the RDCU-02C or RMIO-11C — which manages the overall drive logic and fieldbus communication.

The board's compatibility with the ACS880 platform extends to its integration with ABB's DDCS (Distributed Drive Control System) fiber optic communication architecture. In multi-drive systems, the CMIB-11C participates in the high-speed fiber optic ring that connects the RDCU master controller to individual inverter modules, enabling synchronized torque control across multiple axes. This is particularly relevant in applications such as winding lines, crane systems, and coordinated conveyor drives, where inter-axis synchronization is a critical engineering requirement.

At the power layer, the CMIB-11C operates in conjunction with the ACS880's DC bus architecture, receiving its operating power from the drive's internal supply while maintaining galvanic isolation from the motor-side signals. This isolation is essential for protecting the control electronics from the high-voltage transients generated during motor switching events. The board's design ensures compatibility with ABB's standard power supply modules, including the PSU-A series used in ACS880 cabinet builds, without requiring additional signal conditioning hardware.

For HMI and diagnostics integration, the CMIB-11C supports the ACS880's onboard diagnostic framework, providing fault codes, warning signals, and operational status data that can be accessed via the ACS-AP-I or ACS-AP-W control panels. This data is also available through the drive's fieldbus adapter — such as the FPBA-01 PROFIBUS adapter or the FENA-21 Ethernet adapter — enabling remote monitoring and predictive maintenance workflows within SCADA and DCS environments. The ability to surface granular motor control diagnostics at the system level significantly reduces troubleshooting time during commissioning and ongoing maintenance cycles.

In terms of modular expandability, the CMIB-11C is designed to support ABB's standard drive option slot architecture, allowing it to coexist with other option boards such as the RAIO-01 analog I/O extension, the RDIO-01 digital I/O extension, and the RTAC-01 pulse encoder interface. This modularity enables engineers to tailor the drive's I/O and control capabilities to specific application requirements without redesigning the base hardware configuration, reducing both engineering time and spare parts inventory complexity.

From a maintenance and lifecycle perspective, the CMIB-11C is a stocked replacement component for ACS880 drives in service across manufacturing, energy, and process industries. Its availability as a discrete spare part supports planned maintenance strategies, allowing maintenance teams to replace the interface board without requiring full drive replacement. Pre-shipment functional testing ensures that each unit shipped meets ABB's original performance specifications, and all units are covered by a 12-Month Warranty from the date of shipment.

The CMIB-11C is most effectively deployed as part of a fully integrated ACS880 automation platform, where its performance is amplified by the surrounding system architecture. In a typical cabinet-built drive system, the CMIB-11C operates alongside the RDCU-02C drive control unit, which serves as the master controller for the DDCS fiber optic network. The RDCU-02C manages the high-level drive logic, fieldbus communication, and inter-drive synchronization, while the CMIB-11C handles the low-level motor control signal interface at the inverter module level.

Power distribution within the cabinet is managed by ABB's PSU-A series power supply modules, which provide regulated DC power to the drive's control electronics, including the CMIB-11C. Signal integrity at the I/O layer is further supported by the RAIO-01 analog I/O extension board and the RDIO-01 digital I/O extension board, which expand the drive's ability to interface with field instruments, sensors, and actuators without requiring external signal conditioning hardware.

For applications requiring precise speed or position feedback, the RTAC-01 pulse encoder interface module works in conjunction with the CMIB-11C to process incremental encoder signals from the motor shaft, providing closed-loop feedback data to the drive's speed controller. In multi-drive systems, the RDCU-02C coordinates torque and speed references across multiple inverter modules via the DDCS fiber optic ring, with each module's CMIB-11C ensuring accurate signal translation at the hardware level.

Fieldbus connectivity is provided by the FPBA-01 PROFIBUS DP adapter or the FENA-21 Ethernet multi-protocol adapter, enabling the ACS880 system to integrate with Siemens SIMATIC S7 PLCs, ABB AC500 controllers, or Rockwell ControlLogix systems via PROFIBUS, PROFINET, or EtherNet/IP. The ACS-AP-I control panel provides local parameter access and fault diagnostics, while the ACS-AP-W variant adds a graphical display for more detailed system monitoring during commissioning and maintenance.

In applications where motor protection is a priority, the CMIB-11C's diagnostic outputs integrate with ABB's CM-series motor protection relays, enabling coordinated fault response between the drive and the upstream protection system. For installations requiring signal isolation between the drive cabinet and the field wiring, ABB's RINT-series isolation modules provide additional galvanic separation, ensuring that ground loops and common-mode noise do not compromise the integrity of the motor control signals processed by the CMIB-11C.

The ABB CMIB-11C finds application across a broad spectrum of industrial sectors where the ACS880 drive platform is deployed as the primary motor control solution. In manufacturing and assembly lines, the CMIB-11C supports multi-axis coordinated motion control in conveyor systems, robotic welding lines, and automated material handling equipment, where consistent signal integrity between the control layer and the drive layer is essential for maintaining production throughput and product quality.

In the power generation and energy sector, ACS880 drives equipped with the CMIB-11C are used in wind turbine pitch control systems, hydroelectric generator excitation control, and grid-connected energy storage applications. The board's ability to maintain accurate motor control signal routing under variable load conditions and electrical noise environments makes it well-suited for these demanding applications.

In petrochemical and oil & gas facilities, the CMIB-11C supports pump and compressor drive systems operating in hazardous area classifications, where drive reliability and diagnostic transparency are critical for process safety and regulatory compliance. Its integration with the ACS880's fieldbus communication layer enables remote monitoring of drive health parameters from the facility's DCS, reducing the need for manual inspection in restricted access areas.

For water and wastewater treatment plants, the CMIB-11C enables precise flow control in variable-speed pump drives, supporting energy optimization strategies and process stability across varying demand conditions. In mining and minerals processing, it is deployed in conveyor drives, crusher drives, and mill drives, where high torque at low speed and robust fault tolerance are primary engineering requirements.

In marine and offshore applications, the CMIB-11C supports thruster drive systems and deck machinery drives aboard vessels and offshore platforms, where the combination of compact form factor, robust signal isolation, and compatibility with the ACS880's marine-certified drive variants meets the stringent requirements of classification societies. In packaging and printing lines, its role in multi-axis tension control and register control systems ensures consistent product quality at high production speeds.

Q1: Is the CMIB-11C compatible with all ACS880 drive variants, and can it be retrofitted into existing installations?The CMIB-11C is designed for use within the ACS880 platform and is compatible with ACS880-01, ACS880-04, ACS880-07, and ACS880-17 drive variants that utilize the standard inverter module architecture. Retrofitting into existing ACS880 installations is supported, provided the drive's firmware version is compatible with the board's hardware revision. It is recommended to verify the drive's hardware and firmware compatibility matrix in the ACS880 hardware manual (3AUA0000078093) before installation. Pre-shipment testing on all units ensures that the board meets ABB's original performance specifications prior to dispatch.

Q2: How does the CMIB-11C integrate with third-party PLC and SCADA systems, and what fieldbus protocols are supported?The CMIB-11C itself does not directly interface with PLCs or SCADA systems; this function is handled by the drive's fieldbus adapter, such as the FPBA-01 (PROFIBUS DP), FENA-21 (PROFINET, EtherNet/IP, Modbus TCP), or FSCA-01 (CANopen). The CMIB-11C provides the motor control signal interface at the inverter module level, with its diagnostic and status data accessible to the PLC or SCADA system via the drive's fieldbus communication layer. This architecture supports integration with Siemens TIA Portal, ABB Automation Builder, Rockwell Studio 5000, and Wonderware SCADA platforms without requiring additional hardware at the CMIB-11C level.

Q3: What is the recommended spare parts strategy for CMIB-11C in long-term maintenance programs, and what does the 12-Month Warranty cover?For facilities operating multiple ACS880 drives, maintaining one CMIB-11C per five to ten drive units as a critical spare is a commonly adopted strategy, balancing inventory cost against the risk of unplanned downtime. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, operation outside specified environmental limits, or electrical overstress events. All units are pre-shipment tested to verify signal integrity, isolation resistance, and compatibility with the ACS880 platform before dispatch, ensuring that spare units are ready for immediate installation when required.
