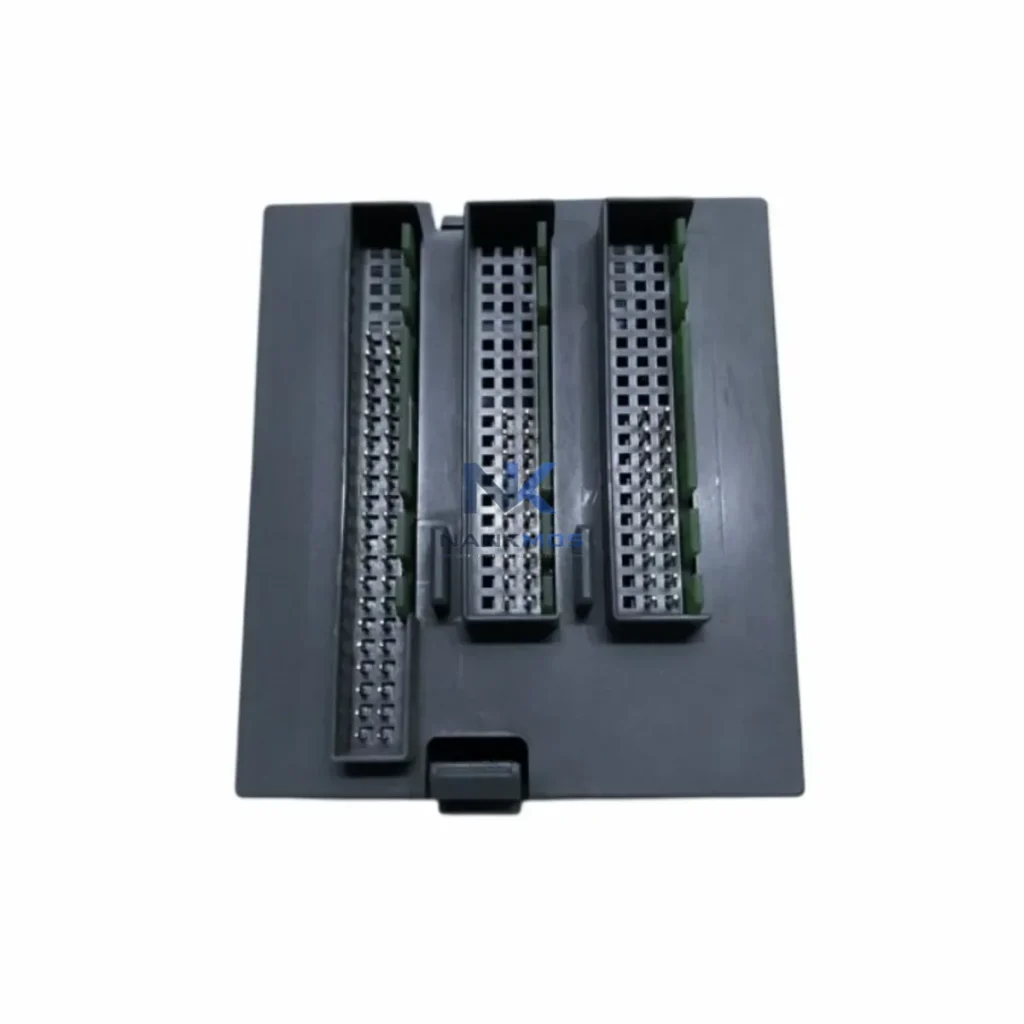

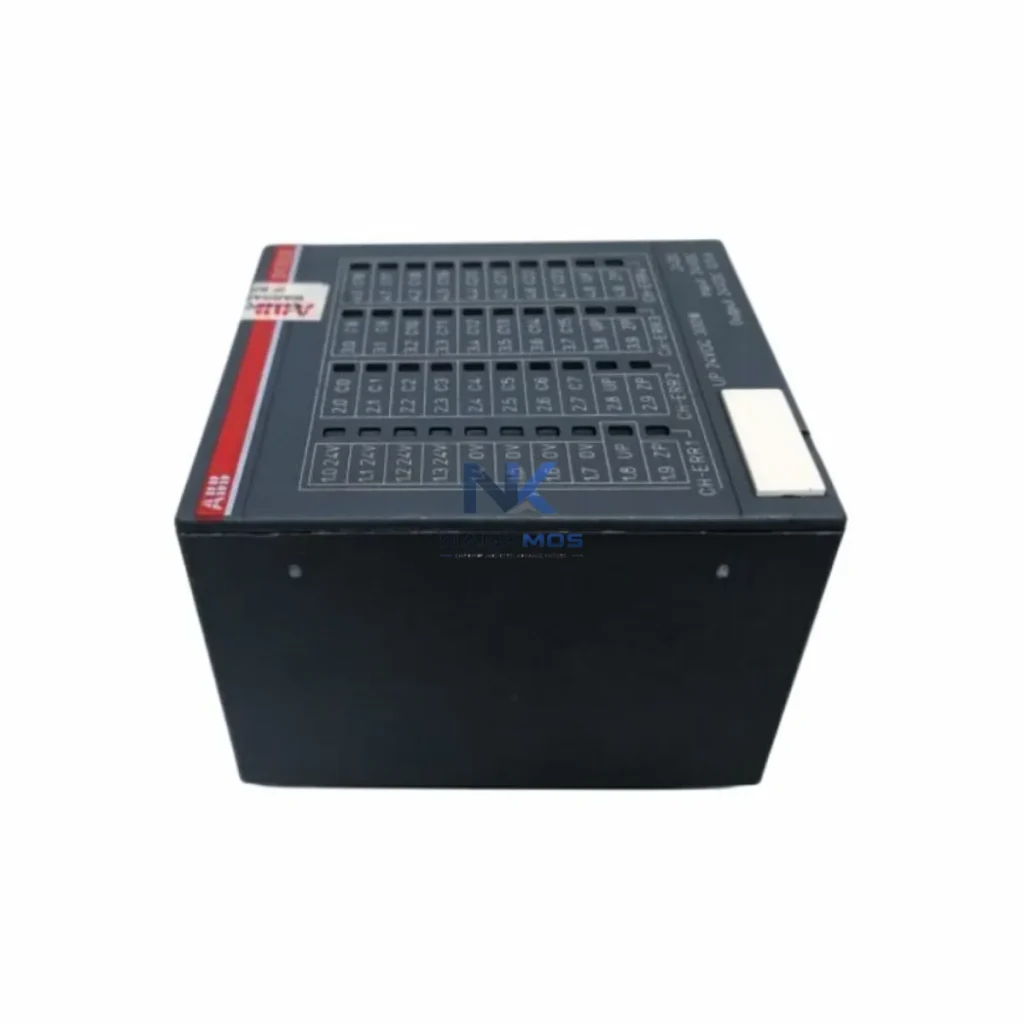

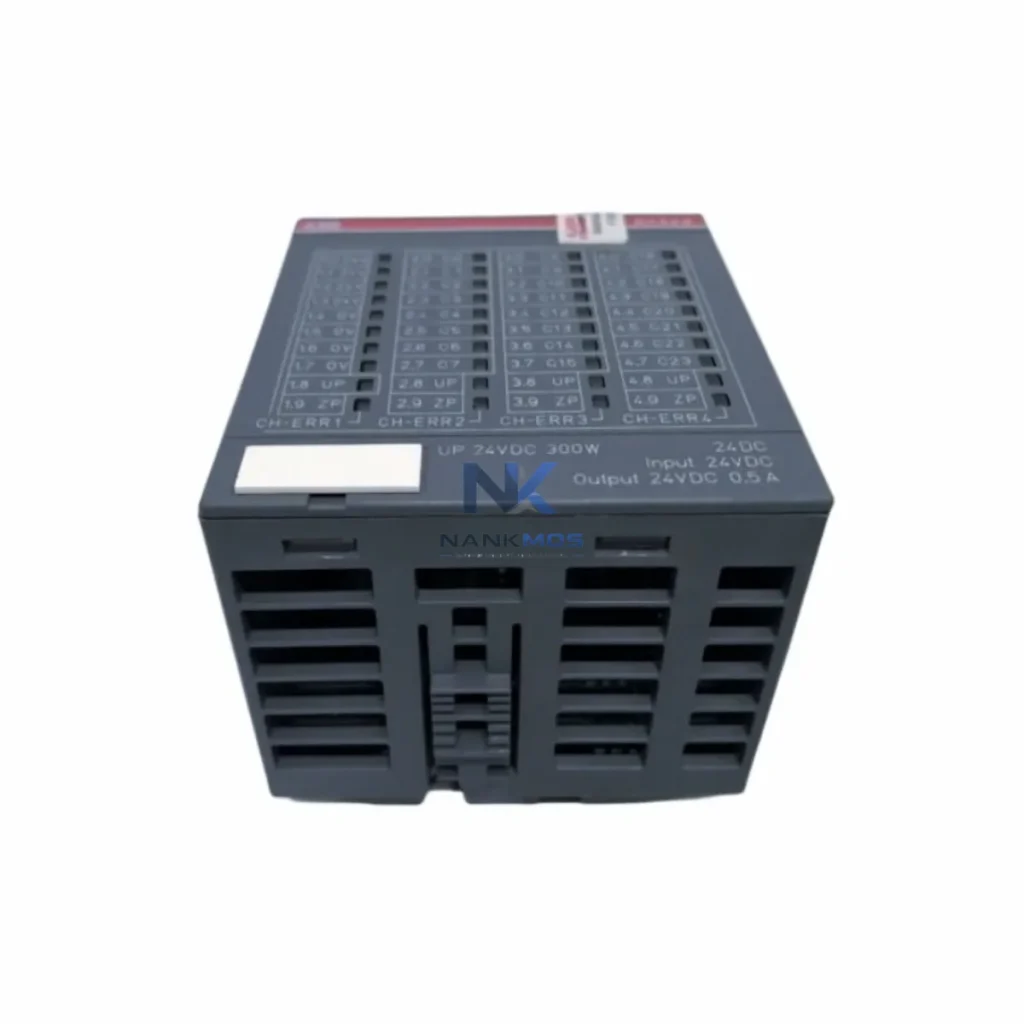

ABB DC523 1SAP240500R0001 Digital I/O Module

Product Details

DC523 1SAP240500R0001 Product Description

The ABB DC523 1SAP240500R0001 is a high-performance digital I/O module engineered for the ABB AC500 PLC platform, delivering seamless integration across industrial Ethernet networks including Profinet and Modbus TCP. Designed for demanding smart factory environments, this module bridges field-level signal acquisition with upper-layer control and monitoring systems, enabling real-time data exchange between sensors, actuators, PLCs, SCADA platforms, and edge computing infrastructure. With 16 digital inputs and 16 digital outputs, the DC523 provides the I/O density and protocol flexibility required for modern industrial automation sites where data transparency and network reliability are non-negotiable.

In a connected factory architecture, the DC523 1SAP240500R0001 functions as a critical node in the automation data chain. Field signals from proximity sensors, limit switches, and pressure transmitters are captured at the I/O level and transmitted via Profinet to the ABB AC500 CPU modules — such as the PM573 or PM591 — where logic processing occurs in real time. The processed data is then forwarded upstream to SCADA systems, MES platforms, and cloud-based analytics dashboards, completing the full data loop from physical process to digital insight. This architecture eliminates data silos and ensures that every field event is traceable, timestamped, and available for remote diagnostics.

The module's Modbus TCP compatibility further extends its integration reach, allowing legacy equipment and third-party controllers to participate in the same network fabric without protocol conversion overhead. When deployed alongside ABB's CI502 Profibus DP communication interface or the CI504 Profinet I/O adapter, the DC523 enables multi-protocol environments where older fieldbus segments coexist with modern Ethernet-based networks. This hybrid connectivity is essential for brownfield automation upgrades where full network replacement is not feasible.

The DC523 1SAP240500R0001 sits at the intersection of field instrumentation and network-level automation, making it a foundational component in smart factory data flow design. In a typical deployment, field sensors — including ABB's TTF300 temperature transmitters or third-party inductive proximity switches — feed digital signals into the DC523's 16 input channels. These signals are processed locally and transmitted via the AC500 I/O bus to the host CPU, such as the ABB PM573-ETH, which runs the control program and manages network communication.

From the CPU, real-time process data is published to the plant's Profinet backbone, where it becomes accessible to HMI panels — such as ABB's CP600 series operator panels — for live visualization of machine states, alarm conditions, and production counters. Simultaneously, the SCADA layer, running platforms like Wonderware or Ignition, subscribes to the same data stream via OPC-UA gateways or direct Modbus TCP polling, enabling plant-wide visibility without additional hardware.

For remote diagnostics and predictive maintenance, the DC523's network-connected architecture allows engineering teams to monitor I/O channel status, diagnose wiring faults, and verify output states from remote workstations without physical site access. When integrated with ABB's AC500 eCo series or paired with an industrial edge gateway running IEC 61131-3 logic, the module supports condition-based monitoring workflows that flag anomalies before they escalate into unplanned downtime.

In drive-intensive applications, the DC523 coordinates digital command signals to ABB ACS580 variable frequency drives, managing start/stop sequences, speed references, and fault acknowledgment across conveyor systems, pump stations, and compressor banks. The module's transistor outputs provide the fast switching response required for precise drive control, while the Profinet interface ensures that drive status data is continuously fed back to the control layer for closed-loop automation.

Power distribution integrity is maintained through coordination with ABB's CP-E series DIN rail power supplies, which provide stable 24 VDC to the DC523 and connected field devices. For installations requiring network segmentation, ABB's unmanaged or managed industrial Ethernet switches — such as the EKS series — are deployed to isolate I/O network segments from the plant backbone, reducing broadcast traffic and improving deterministic communication performance.

Industrial automation sites frequently encounter data gaps caused by protocol fragmentation, aging fieldbus infrastructure, and isolated control islands that cannot share process data with upper-level systems. The DC523 1SAP240500R0001 addresses these challenges directly through its dual-protocol support and native AC500 integration.

Protocol inconsistency is one of the most common barriers to plant-wide data transparency. Sites running a mix of Profibus DP, Modbus RTU, and Ethernet-based systems often struggle to consolidate data into a unified SCADA view. By deploying the DC523 alongside ABB's CI502 Profibus DP coupler or a Modbus TCP-to-RTU gateway, engineers can bridge legacy fieldbus segments into the modern Ethernet network without replacing existing field devices, preserving capital investment while expanding connectivity.

Data island elimination is achieved through the DC523's ability to expose all 32 I/O channels as network-addressable data points, accessible to any Profinet or Modbus TCP master. This means that previously isolated machine cells — such as standalone packaging lines or auxiliary utility systems — can be brought into the plant's central SCADA architecture, enabling cross-system alarm correlation, production reporting, and energy monitoring from a single interface.

Remote monitoring and alarm tracking are significantly enhanced when the DC523 is part of a structured network topology. Alarm events triggered by field conditions — such as motor overloads, valve position faults, or sensor failures — are immediately propagated through the Profinet network to the SCADA alarm management system, where they are logged, timestamped, and routed to the responsible maintenance team via email or SMS notification. This closed-loop alarm workflow reduces mean time to repair (MTTR) and supports regulatory compliance in industries with strict process documentation requirements.

System scalability is built into the AC500 platform architecture. As production capacity grows, additional DC523 modules can be added to the I/O bus without modifying the existing network infrastructure, providing a linear expansion path that protects the initial automation investment. Each unit shipped by NANKMOS undergoes pre-delivery functional testing to verify I/O channel integrity, communication link establishment, and output switching performance, ensuring that the module is ready for immediate commissioning upon arrival.

Q1: What communication protocols does the ABB DC523 1SAP240500R0001 support, and how does this affect integration with existing plant networks? The DC523 supports Profinet IO and Modbus TCP, the two most widely deployed industrial Ethernet protocols in manufacturing and process industries. Profinet IO provides deterministic, real-time communication with cycle times suitable for motion-critical and high-speed I/O applications, while Modbus TCP offers broad compatibility with SCADA systems, energy meters, and third-party controllers. This dual-protocol capability allows the DC523 to integrate into virtually any modern plant network without requiring additional protocol converters, reducing installation complexity and communication latency.

Q2: How does the DC523 support remote diagnostics and predictive maintenance in smart factory deployments? The DC523's network-connected architecture exposes I/O channel diagnostics — including short-circuit detection, wire-break alarms, and output overload status — as readable data objects accessible via the Profinet or Modbus TCP interface. Remote engineering teams can poll these diagnostic registers from SCADA workstations or edge computing platforms to monitor module health in real time, identify developing faults before they cause process interruptions, and generate maintenance work orders automatically. This capability is particularly valuable in geographically distributed sites where on-site inspection is costly or time-consuming.

Q3: Can the DC523 1SAP240500R0001 be expanded as production requirements grow, and what is the maximum I/O configuration supported by the AC500 platform? Yes. The ABB AC500 platform supports modular I/O expansion through the AC500 I/O bus, allowing multiple DC523 modules to be added to a single CPU station without network reconfiguration. The platform supports up to several hundred I/O points per CPU, depending on the CPU model and bus configuration. This scalability makes the AC500 and DC523 combination suitable for both small machine-level controllers and large plant-wide automation systems, with a consistent programming environment across all expansion stages.

Q4: What quality assurance and warranty coverage does NANKMOS provide for the ABB DC523 1SAP240500R0001? Every ABB DC523 1SAP240500R0001 supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes functional verification testing including I/O channel continuity checks, communication link establishment, and output switching validation. Stock is maintained in our warehouse for immediate dispatch, with lead times confirmed at the time of order. For volume procurement, OEM integration projects, or urgent replacement requirements, contact our technical sales team at [email protected] or +86 18359268345 for priority support.
