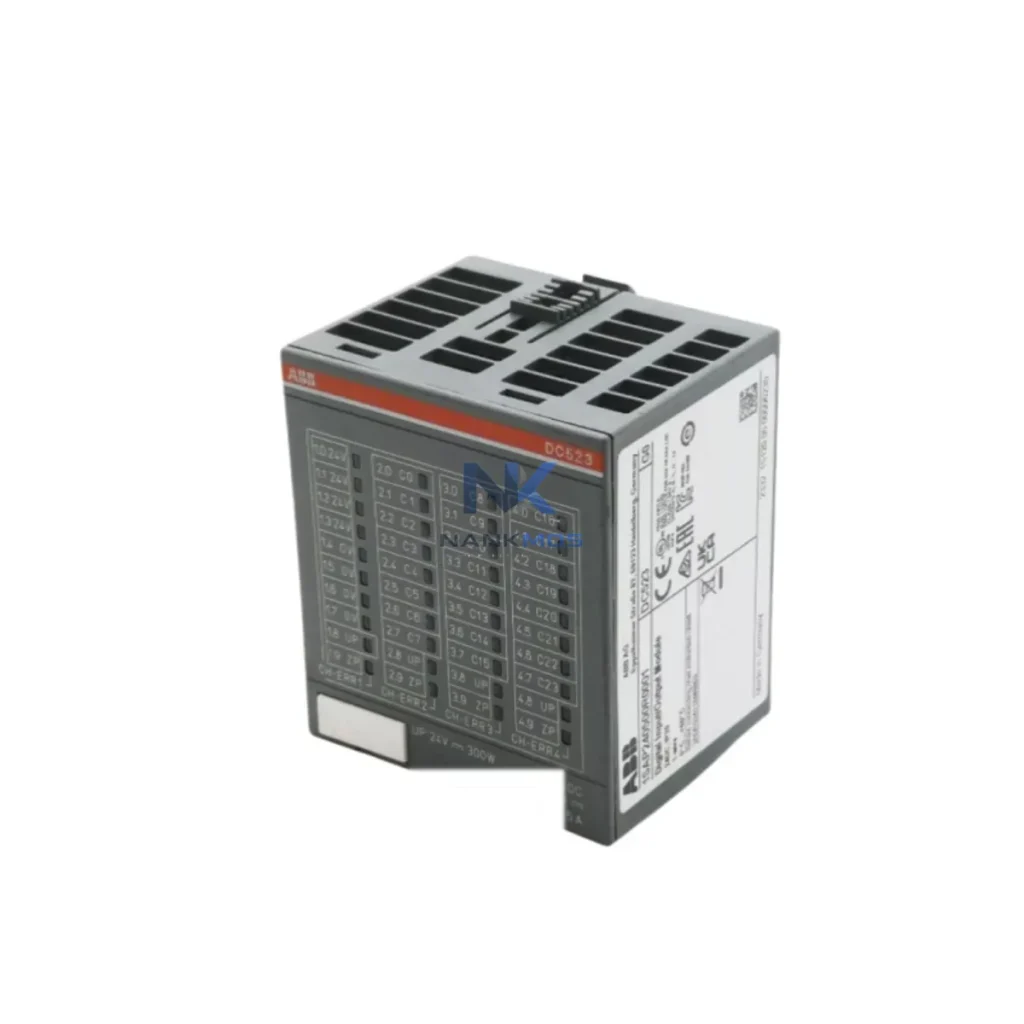

ABB DC523 D3 1SAP240500R0001 Digital I/O Module

Product Details

DC523 D3 1SAP240500R0001 Product Description

The ABB DC523-D3 (1SAP240500R0001) is a high-performance digital I/O module engineered for the AC500 PLC platform, purpose-built to serve as a critical data link node in smart factory environments. Combining native PROFINET and Modbus TCP protocol support, this module bridges field-level digital signals with upper-layer control, monitoring, and SCADA systems — enabling seamless, real-time data flow across the entire industrial network architecture. Whether deployed in power generation, petrochemical processing, water treatment, or advanced manufacturing, the DC523-D3 delivers the connectivity, reliability, and diagnostic transparency that Industry 4.0 demands.

In a modern smart factory, the ABB DC523-D3 1SAP240500R0001 operates at the intersection of field instrumentation and network intelligence. At the field level, digital signals from proximity sensors, limit switches, solenoid valves, and motor contactors are captured directly through the module's 16 digital inputs. These signals are immediately available to the host ABB AC500 CPU module — such as the PM573-ETH or PM591-ETH — via the internal AC500 backplane bus, enabling sub-millisecond scan cycle processing without additional protocol overhead.

Once inside the AC500 control layer, the DC523-D3's PROFINET interface connects the PLC to the plant-wide Ethernet backbone. Industrial managed switches — for example, ABB EKS series or compatible SCALANCE X switches — route PROFINET frames to HMI panels, engineering workstations, and remote I/O clusters. Simultaneously, the Modbus TCP port allows legacy SCADA servers, energy management systems, and third-party data historians to poll real-time I/O status without requiring protocol converters or additional gateways.

For distributed architectures, the DC523-D3 integrates naturally alongside ABB CI501-PNIO PROFINET communication interface modules and TB521-ETH terminal base units, forming a scalable remote I/O station that can be located hundreds of meters from the main control cabinet. Variable frequency drives (VFDs) — such as ABB ACS880 or ACS580 series — connected to the same PROFINET segment receive start/stop commands and status feedback through the same network fabric, eliminating dedicated hardwired control cables and reducing installation complexity.

At the SCADA and MES layer, the DC523-D3's real-time data feeds into platforms such as ABB System 800xA, Wonderware InTouch, or Ignition SCADA via OPC-UA gateways or direct Modbus TCP polling. Edge computing nodes — including ABB Edge Connect or compatible industrial edge gateways — can subscribe to I/O state changes and forward aggregated data to cloud analytics platforms for predictive maintenance and OEE dashboards. This complete data chain — from digital field signal through PLC, Ethernet switch, SCADA, and edge gateway to cloud — is what positions the DC523-D3 as a foundational connectivity component in any IIoT-ready automation architecture.

Many industrial sites still operate with fragmented control architectures: legacy PLCs using proprietary serial protocols, isolated I/O islands with no network visibility, and SCADA systems that rely on manual data entry or periodic polling with unacceptable latency. The ABB DC523-D3 1SAP240500R0001 directly addresses these challenges.

Protocol Fragmentation: By supporting both PROFINET and Modbus TCP natively, the DC523-D3 eliminates the need for standalone protocol converters between modern PROFINET controllers and legacy Modbus-based SCADA or energy monitoring systems. A single module serves both worlds simultaneously.

Data Islands and Blind Spots: Remote equipment — conveyors, pumps, compressors, and packaging lines — that previously had no network connection can be brought online through AC500 remote I/O expansion using the DC523-D3. Every digital signal becomes a live data point visible to operators and engineers in real time.

Remote Monitoring and Diagnostics: PROFINET's built-in diagnostic capabilities allow the AC500 system to detect module faults, wire breaks, and communication errors automatically. Alarm events are propagated to HMI and SCADA within one network scan cycle, enabling rapid response and minimizing unplanned downtime.

Production Line Transparency: With all digital I/O states available over Ethernet, production supervisors can build real-time dashboards showing machine states, cycle counts, and alarm histories — without any additional hardware investment beyond the DC523-D3 and the existing network infrastructure.

System Scalability: The AC500 platform supports hot-swap expansion, meaning additional DC523-D3 modules can be added to an existing rack or remote I/O station without shutting down the control system. This makes capacity expansion straightforward as production lines grow or new equipment is commissioned.

Q1: What is the communication latency of the DC523-D3 over PROFINET? The ABB DC523-D3 supports PROFINET IO with configurable update cycles as low as 1 ms in RT (Real-Time) mode, making it suitable for time-critical digital I/O applications such as safety interlocks, high-speed counting, and synchronized motion control sequences within AC500-based systems.

Q2: Can the DC523-D3 communicate with non-ABB SCADA or HMI systems via Modbus TCP? Yes. The Modbus TCP interface on the DC523-D3 is fully standard-compliant and compatible with any Modbus TCP master, including Wonderware, Ignition, Citect, and iFIX SCADA platforms, as well as third-party HMI panels from Siemens, Schneider, and Weintek. No additional gateway hardware is required.

Q3: How is network stability ensured in high-EMI industrial environments? The DC523-D3 is designed to IEC 61131-2 environmental standards, with robust EMC shielding and surge protection on all communication ports. When deployed with industrial-grade managed Ethernet switches and shielded Cat6 cabling, the module maintains stable PROFINET and Modbus TCP communication even in high-noise environments such as motor control centers and variable frequency drive panels.

Q4: What warranty and pre-shipment testing does the DC523-D3 include? Every ABB DC523-D3 1SAP240500R0001 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes full functional testing prior to dispatch. Testing includes digital I/O channel verification, PROFINET enumeration, and Modbus TCP register read/write validation, ensuring the module arrives ready for immediate installation and commissioning.
