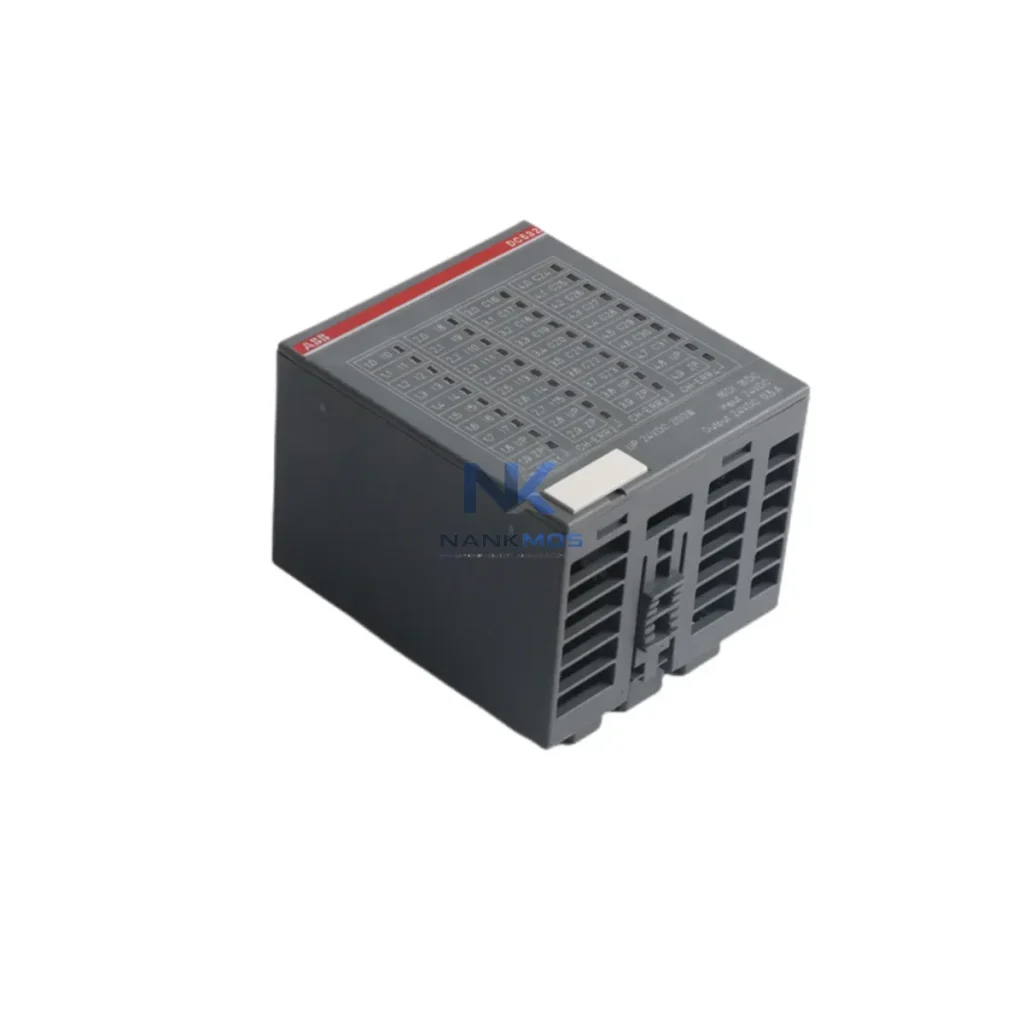

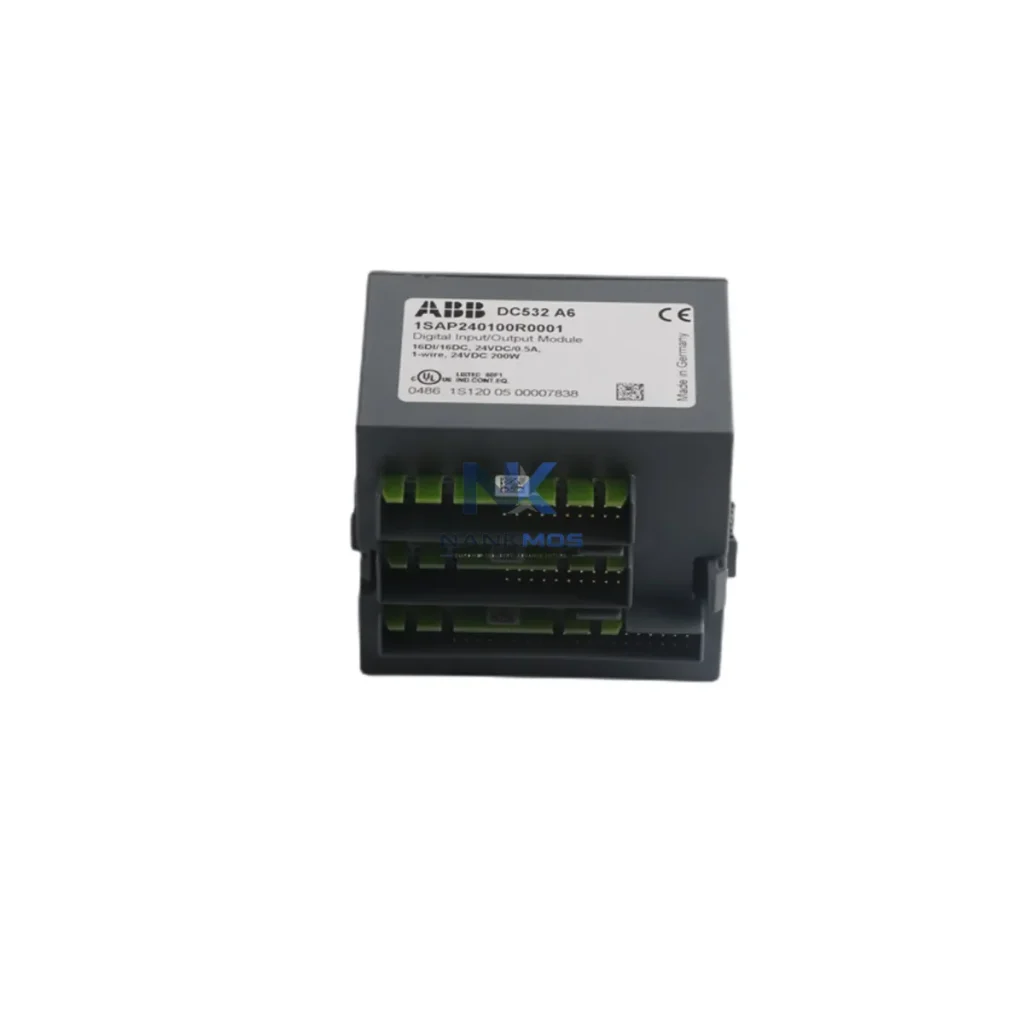

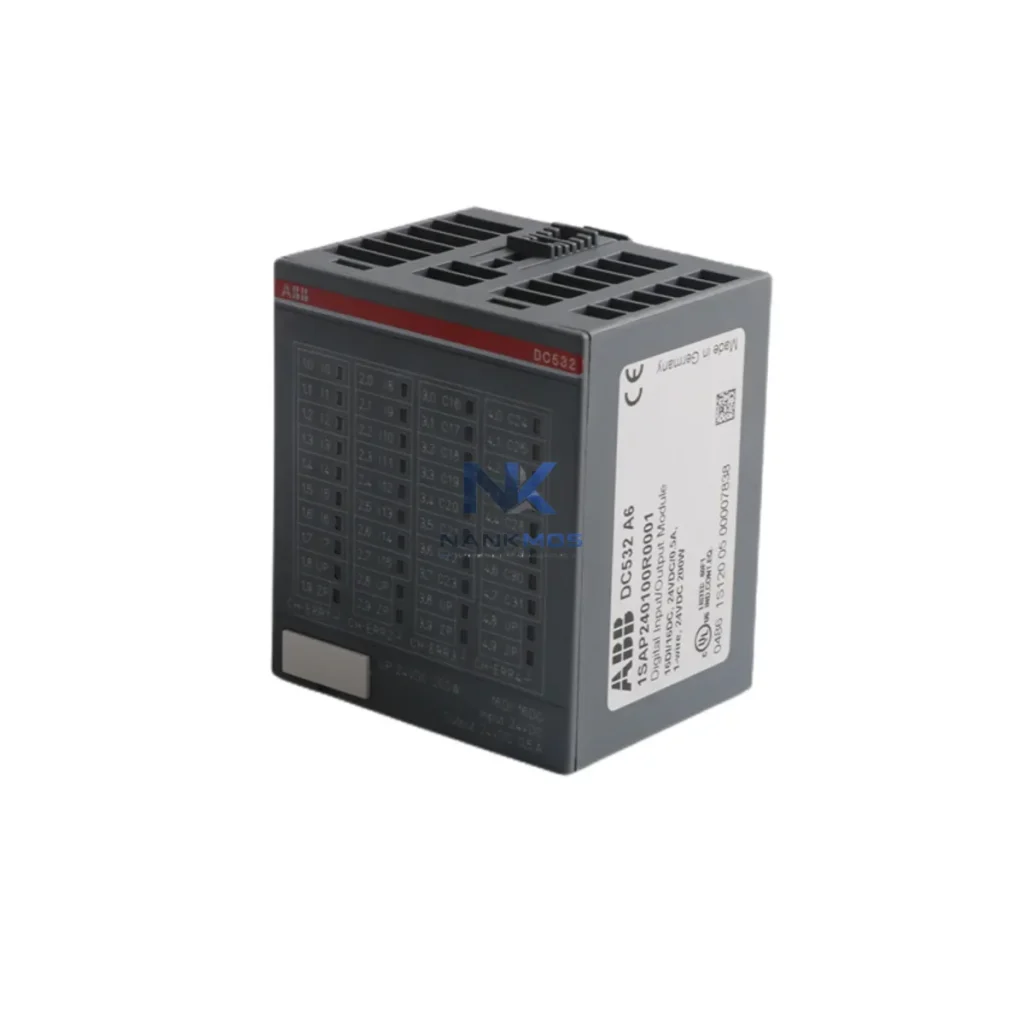

ABB DC532 1SAP240100R0001 Digital I/O Module

Product Details

DC532 1SAP240100R0001 Product Description

The ABB DC532 1SAP240100R0001 is a high-density digital I/O module engineered for the ABB AC500 PLC platform, purpose-built to serve as a critical data node in smart factory environments. Designed to handle 16 digital inputs and 16 digital outputs within a compact, DIN-rail-mounted form factor, the DC532 bridges field-level signal acquisition with upper-layer control and monitoring systems. In modern industrial automation architectures — where real-time data visibility, protocol interoperability, and remote diagnostics are non-negotiable — the DC532 delivers the connectivity backbone that keeps production lines transparent, responsive, and continuously optimized.

From the moment a field sensor triggers a discrete signal, the DC532 captures, conditions, and forwards that data through the AC500 backplane to the CPU module — whether that is the PM573-ETH, PM591, or PM595 — enabling deterministic scan cycles and sub-millisecond response times. This tight integration with the AC500 ecosystem ensures that signal integrity is maintained from the sensor terminal block all the way to the SCADA historian, without data loss or protocol mismatch.

In a fully connected smart factory, the ABB DC532 1SAP240100R0001 operates as a foundational I/O node within a layered automation architecture. At the field level, discrete sensors — including proximity switches, photoelectric sensors, limit switches, and push-button stations — feed 24 V DC signals directly into the DC532's 16 digital input channels. These signals are scanned deterministically by the AC500 CPU, such as the PM573-ETH or PM595, and processed according to the IEC 61131-3 control logic programmed via ABB Automation Builder.

On the output side, the DC532's 16 transistor outputs drive actuators, solenoid valves, indicator lamps, and relay coils — closing the control loop between the PLC decision layer and the physical process. When paired with the CM572-DP communication module, the AC500 rack can participate in a PROFIBUS DP network, allowing the DC532's I/O data to be aggregated alongside data from ABB ACS880 variable frequency drives, ABB PSTX soft starters, and third-party PROFIBUS slaves into a unified process image accessible by the SCADA system.

For Ethernet-based architectures, the CM589-PNIO module enables PROFINET IO integration, allowing the DC532 to publish its I/O status to a Siemens WinCC or ABB 800xA DCS over standard Industrial Ethernet. The real-time data — including input state, output state, diagnostic flags, and module health — is made available to the HMI layer, where operators can monitor discrete signal status, acknowledge alarms, and initiate remote output commands without physical access to the panel.

In distributed control topologies, the DC532 can be deployed as a remote I/O expansion node connected to the AC500 CPU via the TB541-ETH terminal unit, extending the I/O reach across large plant floors without additional cabling infrastructure. Edge gateways — such as the ABB Edge Controller or third-party Moxa MGate series — can further bridge the AC500 data stream to cloud-based MES and ERP platforms, enabling production KPI dashboards, OEE tracking, and predictive maintenance analytics at the enterprise level.

When integrated with ABB CP600 HMI panels or third-party Weintek and Advantech HMI terminals, the DC532's I/O data becomes immediately visible on operator touchscreens, enabling real-time process visualization, alarm pop-ups, and trend logging. Industrial Ethernet switches — such as the ABB EKS series or Hirschmann SPIDER — provide the network backbone that ensures low-latency, deterministic data delivery across all nodes in the automation cell.

Many industrial sites face persistent challenges: legacy field devices that speak different protocols, isolated control islands that cannot share data, and production lines where downtime root causes are invisible until after the fact. The ABB DC532 1SAP240100R0001, deployed within the AC500 platform, directly addresses these pain points.

Protocol Fragmentation: By leveraging the AC500's modular communication architecture — with plug-in modules supporting PROFIBUS DP, PROFINET, Modbus TCP, and EtherCAT — the DC532 enables a single I/O rack to interface with heterogeneous field devices and upper-layer systems without custom protocol converters. This eliminates data silos between legacy PLCs, new SCADA systems, and cloud analytics platforms.

Remote Monitoring and Diagnostics: The DC532 supports ABB Automation Builder's online diagnostic tools, allowing engineers to monitor individual channel states, detect wiring faults, and identify stuck outputs or open-circuit inputs remotely — without dispatching field technicians. This capability is critical for unmanned substations, remote pump stations, and geographically distributed process plants.

Production Line Transparency: By feeding discrete I/O data into SCADA historians and MES platforms, the DC532 enables granular production event logging — machine start/stop cycles, part-present detection, conveyor jam events, and safety interlock activations — providing the data foundation for OEE analysis and continuous improvement programs.

Alarm Tracking and Response: Integrated with ABB 800xA or third-party alarm management systems, the DC532's input channels can trigger prioritized alarm notifications, ensuring that critical process deviations — overpressure, motor trip, valve failure — are escalated to the right operator within seconds, reducing mean time to respond (MTTR) and minimizing production losses.

System Scalability: The AC500 platform supports up to 10 I/O modules per CPU station, and multiple stations can be networked via PROFIBUS or PROFINET, allowing the DC532 to scale from a single machine cell to a plant-wide I/O network without architectural redesign. This modularity protects capital investment as production capacity grows.

Q1: What communication protocols does the ABB DC532 1SAP240100R0001 support for SCADA integration? The DC532 itself communicates via the AC500 internal expansion bus. Protocol connectivity to SCADA systems is provided by plug-in communication modules: the CM572-DP for PROFIBUS DP, the CM589-PNIO for PROFINET IO, and the CM579-ETHCAT for EtherCAT. This architecture allows the DC532's I/O data to be published to any major SCADA platform — including ABB 800xA, Siemens WinCC, Wonderware, and Ignition — without additional protocol converters.

Q2: How does the DC532 support remote diagnostics and predictive maintenance? The AC500 platform provides channel-level diagnostics accessible via ABB Automation Builder's online monitoring interface. Engineers can remotely inspect input signal states, output load conditions, and module fault codes over Ethernet without physical panel access. When integrated with edge gateways and cloud analytics platforms, historical I/O data can be analyzed for anomaly detection and predictive maintenance scheduling.

Q3: Is the ABB DC532 compatible with third-party PLCs and HMI systems? The DC532 is natively designed for the ABB AC500 platform. However, when the AC500 CPU is configured as a PROFIBUS DP slave or PROFINET IO device, its I/O data — including DC532 channels — can be consumed by third-party master PLCs such as Siemens S7-300/400/1500 or Rockwell ControlLogix. Similarly, any OPC UA or Modbus TCP-capable HMI can access the AC500 data via the appropriate communication module.

Q4: What warranty and stock availability does NANKMOS provide for the DC532 1SAP240100R0001? NANKMOS provides a 12-Month Warranty on all ABB DC532 1SAP240100R0001 units, covering manufacturing defects and functional failures from the date of shipment. Units are maintained in stock and subject to pre-shipment functional testing to verify I/O channel integrity, communication bus handshake, and power consumption within specification. For volume orders, lead time and pricing inquiries, contact [email protected] or call +86 18359268345.
