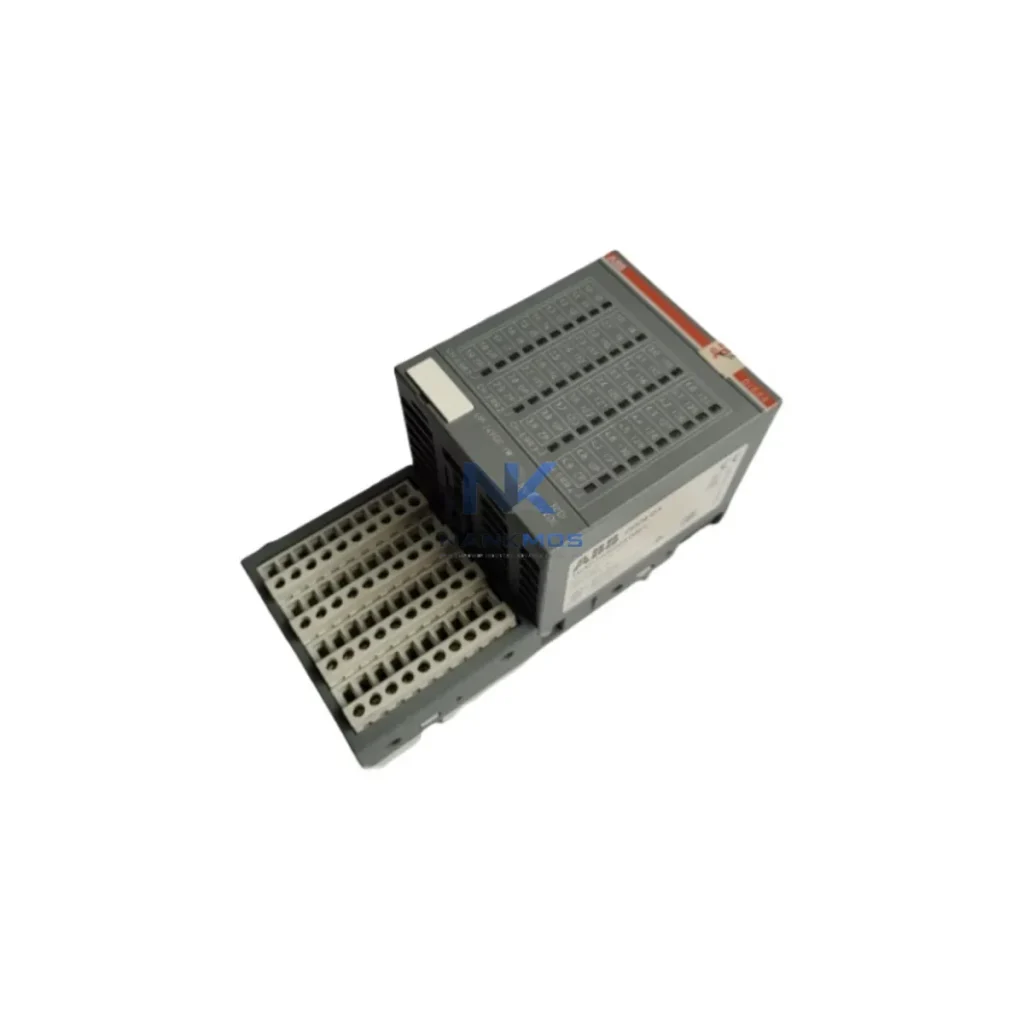

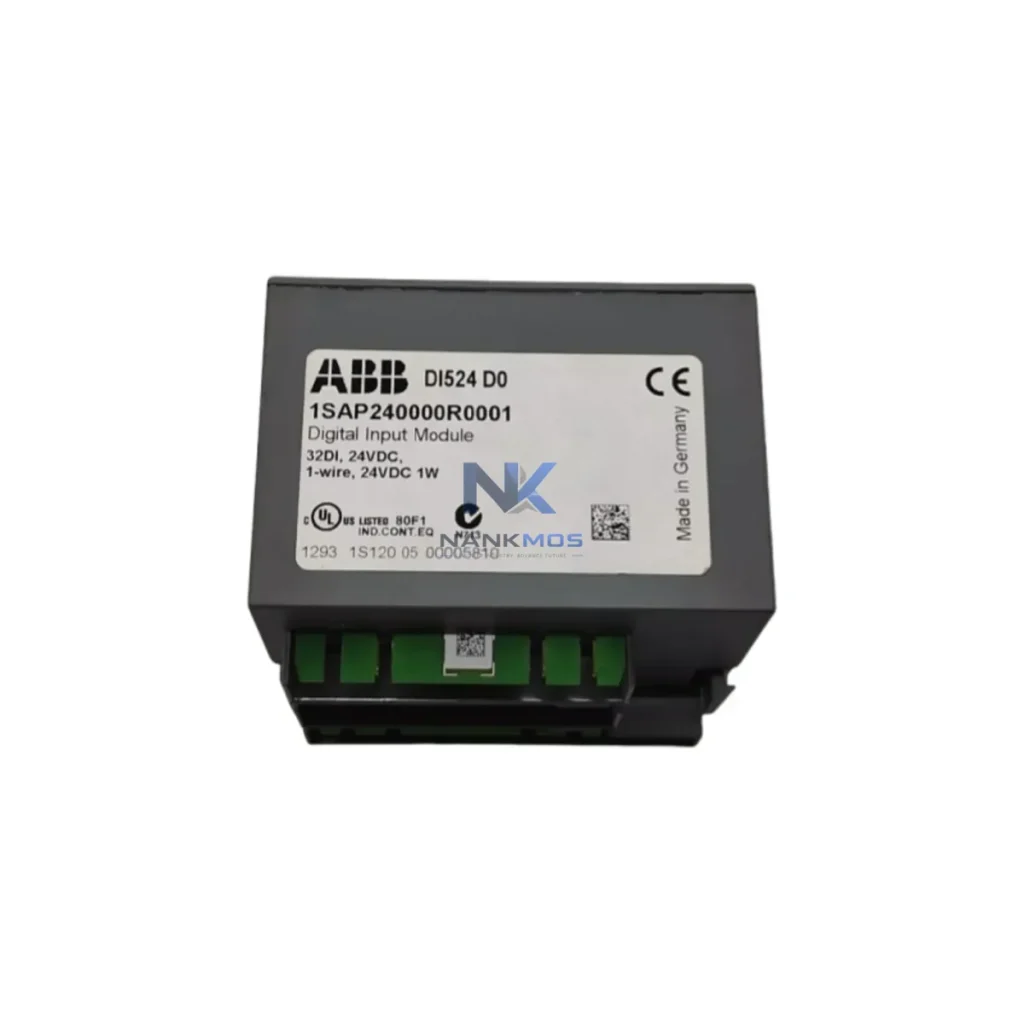

ABB DI524 Digital Input Module

Product Details

DI524 Product Description

The ABB DI524 is a high-density digital input module engineered for the AC500 PLC platform, delivering precise signal acquisition and energy-aware automation across demanding industrial environments. Designed for smart production lines in power generation, petrochemicals, water treatment, and discrete manufacturing, the DI524 enables real-time load monitoring and equipment state feedback that directly supports energy optimization strategies. With 32 configurable digital input channels, it captures machine status, motor run/stop signals, drive fault conditions, and process interlocks at millisecond resolution — giving control systems the data they need to eliminate idle energy consumption and reduce unnecessary thermal load on downstream equipment.

In modern energy management architectures, the DI524 serves as the sensing backbone that connects field-level devices to higher-level control and monitoring systems. When integrated with the ABB AC500 CPU modules such as the PM573 or PM591, the DI524 feeds real-time digital states into PLC logic that governs variable frequency drives (VFDs), servo drives, and motor starters. By accurately detecting when a conveyor, pump, or compressor transitions to idle or standby, the PLC can issue speed-reduction commands to connected ABB ACS580 or ACS880 variable frequency drives, cutting motor energy consumption by 20–40% during low-demand periods. This closed-loop feedback between the DI524 and the drive system is a foundational element of any production-line energy reduction program.

The DI524 also plays a critical role in load management and production rhythm stabilization. In multi-axis systems where ABB servo drives and motion controllers coordinate pick-and-place or assembly operations, the DI524 monitors limit switches, proximity sensors, and safety interlocks to ensure that energy-intensive actuators are only powered when mechanically required. This prevents unnecessary inrush current events and reduces peak demand charges — a key concern in facilities operating under time-of-use electricity tariffs. Integration with power monitoring modules such as the ABB CM-EFS or third-party power quality analyzers via the AC500's communication backplane allows energy data to be correlated with production throughput in real time.

For SCADA and MES connectivity, the DI524 operates seamlessly within AC500 systems configured with communication modules supporting PROFIBUS DP, PROFINET, Modbus TCP, or EtherNet/IP. This means that every digital input state captured by the DI524 — whether a motor running signal, a valve open/close confirmation, or a drive fault flag — can be published to SCADA platforms for energy dashboarding and predictive maintenance analytics. Operators gain visibility into equipment utilization rates, enabling data-driven decisions about maintenance scheduling, load balancing across production shifts, and identification of energy waste hotspots on the factory floor.

The DI524 is fully compatible with the AC500 I/O bus and can be combined with analog input modules such as the AI523 for mixed-signal energy monitoring applications, or with digital output modules like the DO531 to form complete control loops for motor management and lighting control. When paired with HMI panels running ABB CP600 or CP400 series displays, operators can visualize real-time equipment states and energy consumption trends without leaving the production floor. This tight integration between I/O, control, visualization, and communication layers is what makes the AC500 ecosystem a preferred platform for Industry 4.0 energy optimization projects.

All DI524 units supplied by NANKMOS are pre-shipment tested against ABB factory specifications, verified for channel isolation integrity, input threshold accuracy, and bus communication reliability. Each unit is backed by a 12-month warranty and is available from in-stock inventory for immediate dispatch, minimizing procurement lead times for maintenance replacements or system expansions.

Deploying the DI524 within a power-aware automation architecture requires thoughtful integration across multiple system layers. At the field level, the DI524 collects binary states from motor contactors, pressure switches, flow sensors, and position encoders — all of which inform the AC500 PLC's energy management logic. The PLC, running on an ABB PM591 or PM595 CPU, processes these inputs against configurable energy thresholds and issues output commands to ABB ACS880 variable frequency drives to modulate motor speed in real time. Simultaneously, the DO531 digital output module activates or deactivates auxiliary loads such as cooling fans, solenoid valves, and lighting circuits based on occupancy and production state signals received through the DI524.

At the network layer, an ABB CM589-PNIO PROFINET communication module bridges the AC500 backplane to the plant's industrial Ethernet infrastructure, enabling the DI524's input data to reach SCADA systems and energy management platforms with sub-100ms latency. For legacy installations using PROFIBUS DP, the CM572-DP module provides equivalent connectivity. Power quality data from ABB M2M or CM-EFS power monitoring modules can be correlated with DI524 input states in the SCADA historian, creating a complete picture of energy consumption per production cycle. HMI panels such as the ABB CP635 display real-time equipment states and energy KPIs, empowering operators to make immediate adjustments to production scheduling and load distribution.

The DI524's contribution to production line energy optimization extends beyond simple signal acquisition. By providing the AC500 PLC with accurate, low-latency equipment state data, it enables a range of energy-saving strategies that compound over time. Idle detection logic — triggered when the DI524 reports that a conveyor motor contactor has opened or a machine cycle-complete signal has been active for more than a configurable timeout — allows the PLC to command connected VFDs to ramp down to minimum speed or enter sleep mode, eliminating the significant energy waste associated with motors running at full speed during production gaps.

Thermal load management is another key benefit. By monitoring cooling system run signals and temperature switch states through the DI524, the PLC can implement demand-based cooling control, running compressors and cooling fans only when thermal conditions require it rather than on fixed schedules. This reduces both energy consumption and mechanical wear on cooling equipment, extending service intervals and reducing unplanned downtime. Over a 12-month operating period, facilities using DI524-based idle detection and demand cooling control typically report measurable reductions in energy cost per unit produced, improved OEE scores, and fewer emergency maintenance events driven by thermal stress.

Predictive maintenance integration is also supported: by tracking the frequency and pattern of motor fault signals, drive trip events, and interlock activations through the DI524, maintenance teams can identify degrading equipment before it fails, scheduling interventions during planned downtime windows rather than responding to unplanned breakdowns. This keeps production rhythm stable, avoids the energy spikes associated with emergency restarts, and maximizes equipment utilization across all production shifts.

Q1: How does the DI524 contribute to measurable energy savings on a production line? The DI524 provides the AC500 PLC with real-time equipment state signals that enable idle detection and demand-based control of motors, drives, and auxiliary loads. When integrated with ABB ACS580 or ACS880 VFDs, this feedback loop can reduce motor energy consumption by 20–40% during low-demand periods, directly lowering electricity costs per production cycle.

Q2: Is the DI524 compatible with existing AC500 systems and third-party SCADA platforms? Yes. The DI524 is fully compatible with all AC500 CPU generations and integrates with SCADA systems via PROFIBUS DP, PROFINET, Modbus TCP, and EtherNet/IP communication modules. It can be combined with AI523 analog input modules, DO531 digital output modules, and CP600 series HMI panels within the same AC500 backplane without additional configuration overhead.

Q3: Can the DI524 replace older ABB digital input modules in legacy AC500 installations? The DI524 is designed for direct replacement of earlier-generation AC500 digital input modules. Before substitution, verify the input voltage range, channel count, and bus slot compatibility with your existing AC500 configuration. NANKMOS technical support can assist with compatibility verification prior to order placement.

Q4: What testing and warranty coverage is provided with each DI524 unit? Every DI524 unit supplied by NANKMOS undergoes pre-shipment functional testing covering channel isolation, input threshold accuracy, and AC500 bus communication. Units are shipped from in-stock inventory and are covered by a 12-month warranty against manufacturing defects. Replacement or repair is arranged promptly to minimize production downtime.
