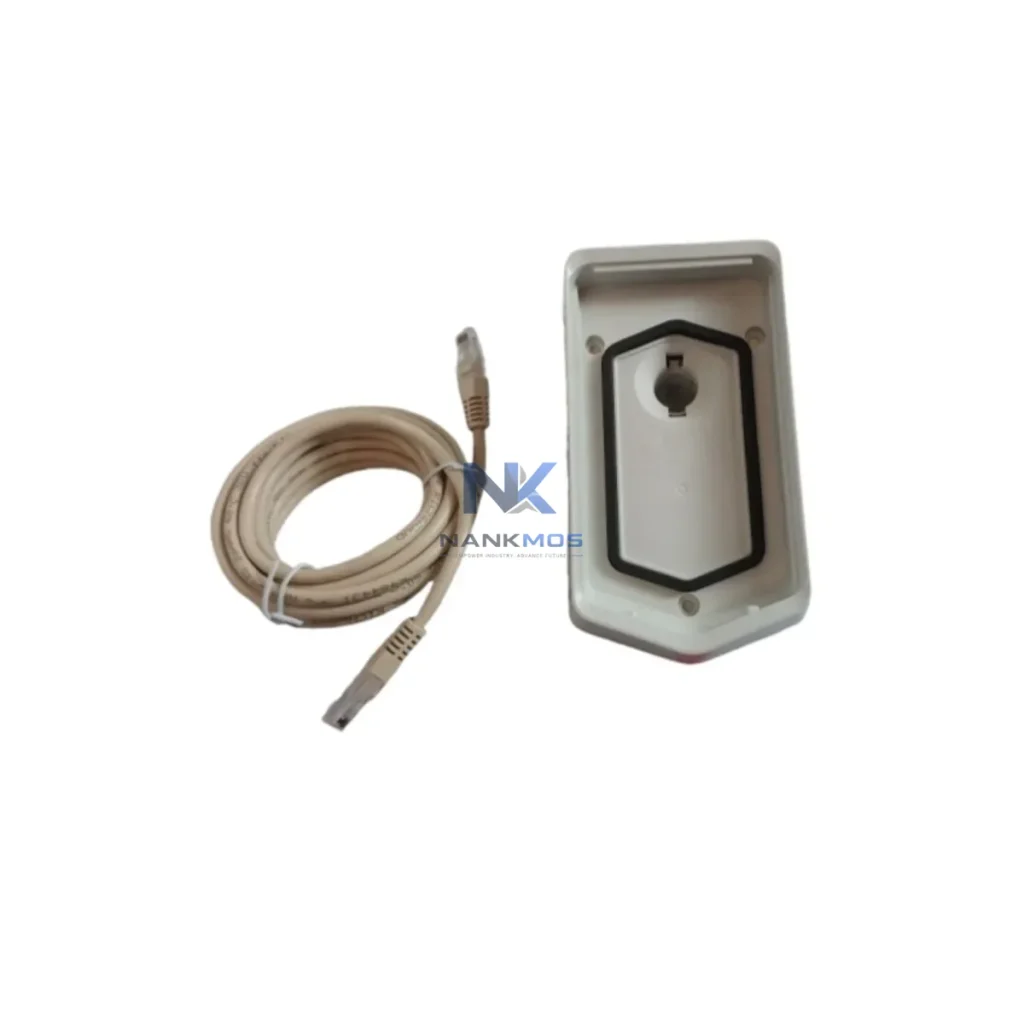

ABB DPMP-02/3AXD50000009374 Drive Control Accessory

Product Details

DPMP-02/3AXD50000009374 Product Description

The ABB DPMP-02 (3AXD50000009374) is a precision-engineered control panel mounting platform designed for ABB ACS880 series variable frequency drives. Far beyond a passive mechanical accessory, the DPMP-02 plays a critical role in the physical and logical integration of drive control panels into smart factory environments — enabling operators, SCADA systems, and remote diagnostic platforms to maintain continuous, real-time visibility over drive status, process variables, and alarm conditions across the entire automation network.

In modern industrial facilities, the path from field device to enterprise dashboard depends on every component in the data chain performing reliably. The DPMP-02 secures the ACS880 control panel — such as the ABB ACS-AP-I or ACS-AP-W assistant control panels — in a stable, vibration-resistant position, ensuring that the panel's communication interface maintains consistent contact with the drive's DDCS (Distributed Drives Communication System) bus. Any interruption at this physical layer can cascade into data loss, communication timeouts, or false alarms in upstream SCADA and HMI systems.

Understanding the DPMP-02's role requires tracing the complete data flow from field device to control room. At the lowest layer, sensors and encoders feed real-time process signals — speed, torque, temperature, current — into the ACS880 drive. The drive processes these signals and exposes them through its fieldbus interface, which may be configured using an ABB FPBA-01 PROFIBUS Adapter or an FENA-21 EtherNet/IP / PROFINET Adapter, depending on the plant's network architecture.

The DPMP-02 ensures that the ACS-AP-I control panel — the local operator interface — remains firmly mounted and electrically connected to the drive's DDCS port. This panel provides local parameter access, fault history, and real-time status display, acting as the first line of visibility for maintenance technicians on the factory floor. When the panel is properly secured by the DPMP-02, operators can confidently navigate drive parameters, acknowledge alarms, and initiate controlled starts or stops without risk of panel disconnection during machine vibration or thermal cycling.

Above the drive layer, an ABB AC500 PLC or third-party controller collects process data from multiple ACS880 drives via PROFIBUS-DP or EtherNet/IP. The PLC aggregates this data and forwards it to an industrial edge gateway — such as the ABB Edge Controller EC2 series — which performs local data preprocessing, protocol normalization, and secure transmission to cloud or on-premise SCADA platforms. An industrial managed Ethernet switch (e.g., ABB AF series or equivalent) provides the network backbone, ensuring deterministic, low-latency communication between PLCs, gateways, remote I/O modules, and HMI terminals.

At the SCADA and HMI layer, platforms such as ABB Ability™ System 800xA or third-party systems like Wonderware or Ignition receive structured drive data — including speed references, output frequency, fault codes, and energy consumption — and present it on operator dashboards. Remote I/O modules, such as the ABB CI854 PROFIBUS DP Interface, extend the network to distributed field devices, enabling a single SCADA system to monitor dozens of drives across a large facility. Alarm conditions detected at the ACS880 level are propagated through this chain in milliseconds, triggering automated responses in the PLC logic and visual alerts on HMI screens.

For remote diagnostic scenarios, the edge gateway tunnels drive data over secure VPN connections to remote engineering workstations running ABB DriveWindow Light or DriveAP software. This allows ABB-certified engineers or plant maintenance teams to perform parameter audits, firmware checks, and fault analysis without physical access to the drive cabinet — reducing mean time to repair (MTTR) and minimizing unplanned downtime. The physical stability provided by the DPMP-02 is a prerequisite for this entire remote diagnostic chain: a loose or intermittently connected control panel introduces communication noise that can corrupt diagnostic data and trigger false fault events in the SCADA historian.

Many industrial sites operate with a mix of legacy and modern equipment, creating protocol fragmentation and data silos that undermine production transparency. The ACS880 platform — with the DPMP-02 securing its control panel interface — addresses several of these challenges directly.

Protocol Unification: The ACS880 supports multiple embedded fieldbus protocols and optional adapter modules, allowing it to communicate natively with PROFIBUS, PROFINET, EtherNet/IP, and Modbus networks. This eliminates the need for external protocol converters between the drive and the plant network, reducing latency and potential points of failure.

Eliminating Data Islands: When the DPMP-02 ensures a stable panel connection, the ACS880's full parameter dataset — including energy counters, thermal models, and predictive maintenance indicators — becomes continuously available to the SCADA historian. Previously isolated drive data can now be correlated with upstream process variables from PLCs and downstream quality data from MES systems, enabling true end-to-end production visibility.

Remote Monitoring and Alarm Tracking: With a stable panel mount and reliable fieldbus connection, alarm events are captured with accurate timestamps and transmitted to the SCADA alarm management system without gaps. Maintenance teams can review alarm sequences, identify root causes, and implement corrective actions remotely — without dispatching technicians to the drive cabinet for routine diagnostics.

Production Line Transparency and System Expansion: As production lines expand, additional ACS880 drives can be integrated into the existing network architecture with minimal reconfiguration. The DPMP-02's standardized mounting interface ensures that new drives are commissioned with the same panel configuration as existing units, maintaining consistency across the fleet and simplifying SCADA tag management.

Q1: Does the DPMP-02 affect communication latency between the ACS880 drive and the SCADA system? The DPMP-02 is a mechanical mounting platform and does not introduce any electronic latency. However, by ensuring a stable, vibration-resistant connection between the control panel and the drive's DDCS port, it eliminates intermittent disconnections that can cause communication retries and effective latency spikes in the fieldbus network. A secure panel mount is a prerequisite for deterministic, low-latency drive communication.

Q2: Is the DPMP-02 compatible with all ACS880 fieldbus adapter modules? Yes. The DPMP-02 mounts the control panel independently of the drive's fieldbus adapter slot. It is fully compatible with all ACS880 optional fieldbus adapters, including the FPBA-01 (PROFIBUS-DP), FENA-21 (EtherNet/IP / PROFINET), FSCA-01 (CANopen), and FDNA-01 (DeviceNet). The panel mount does not interfere with adapter installation or network configuration.

Q3: How does the DPMP-02 support remote diagnostic workflows? By maintaining a stable physical connection between the ACS-AP-I or ACS-AP-W control panel and the ACS880 drive, the DPMP-02 ensures that the drive's full parameter set and fault history remain continuously accessible to remote diagnostic tools such as ABB DriveWindow Light. Unstable panel connections can cause parameter read errors and incomplete fault logs, which degrade the quality of remote diagnostics. The DPMP-02 eliminates this risk.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the DPMP-02? All DPMP-02 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment inspection to verify part number, physical integrity, and compatibility markings before dispatch. NANKMOS maintains ready stock of the DPMP-02 / 3AXD50000009374 for immediate shipment to global destinations. For volume orders or urgent requirements, contact [email protected] or call +86 18359268345 for a rapid quotation.
