ABB DSAI146 Analog Input Module

Product Details

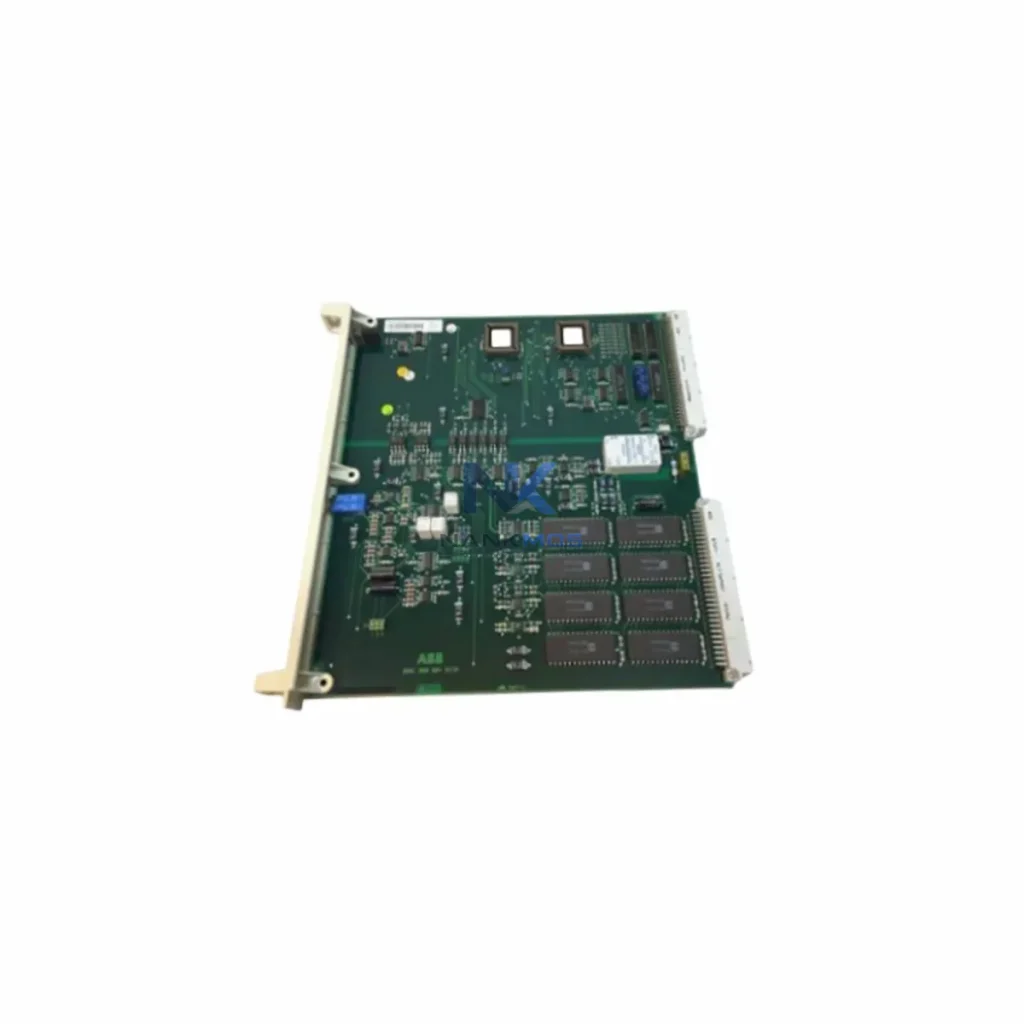

DSAI146 Product Description

The ABB DSAI146 is a high-precision analog input module engineered for the Advant OCS (Open Control System) platform, delivering reliable real-time signal acquisition that forms the backbone of energy-aware industrial automation. Designed for demanding environments in manufacturing, petrochemical processing, energy generation, and semiconductor fabrication, the DSAI146 captures analog process variables — including current, voltage, temperature, and pressure — with the accuracy required to drive intelligent energy control decisions across the production line.

In modern smart factories, every watt counts. The DSAI146 enables control systems to continuously monitor energy-relevant process signals, feeding precise data to the Advant OCS controller for real-time load balancing, motor control optimization, and drive regulation. By providing clean, conditioned analog inputs to the PLC logic layer, the module eliminates the signal noise that causes unnecessary actuator cycling — a leading source of hidden energy waste in automated production environments.

The DSAI146 sits at the intersection of signal intelligence and energy efficiency. Within an Advant OCS architecture, it works in close coordination with the DSPC110 and DSPC172 processor modules, which execute the PLC logic that interprets analog feedback and issues control commands to downstream actuators and drives. When paired with ABB's ACS800 or ACS550 series variable frequency drives (VFDs), the analog signals captured by the DSAI146 — such as motor load current or process pressure — enable the drive to dynamically adjust output frequency, eliminating the energy penalty of fixed-speed motor operation.

For servo-driven axes, the DSAI146 complements DSDP140 digital pulse modules and servo drive feedback loops by providing the analog reference signals needed for torque and velocity profiling. This is particularly valuable in packaging lines and CNC machining centers where precise energy-per-cycle metrics directly impact production cost.

On the power monitoring side, the DSAI146 integrates naturally with DSMB176 bus communication modules and external power measurement transducers, channeling real-time kW and power factor data into the Advant OCS SCADA layer. Operators viewing the DSMON monitoring station or a connected HMI panel can observe live energy consumption trends, set demand thresholds, and trigger load-shedding routines automatically when peak demand limits are approached.

The module also interfaces with DSDO115 digital output modules to close control loops — for example, switching off non-critical loads when the DSAI146 detects that a primary process variable has reached its setpoint, avoiding the energy waste of over-running equipment. Combined with DSDP110 digital input modules for status feedback and DSAX110 analog output modules for setpoint transmission, the DSAI146 forms a complete signal chain that supports both energy metering and active load management within a single Advant OCS rack.

Factory energy optimization is not a single-point solution — it requires continuous, high-fidelity data from every node in the production process. The ABB DSAI146 provides exactly that: a stable, calibrated analog input channel that feeds the control system with the process intelligence needed to make energy-saving decisions in real time.

In motor-intensive applications such as pump stations, compressor banks, and conveyor systems, the DSAI146 monitors load current and process feedback signals that the Advant OCS controller uses to determine whether a motor is operating within its optimal efficiency band. When the signal indicates underload or overload conditions, the controller can adjust VFD output, stagger motor start sequences to reduce inrush current peaks, or activate standby modes — all of which reduce both energy consumption and thermal stress on the equipment.

For production line takt optimization, the DSAI146 enables the control system to correlate process cycle times with energy consumption data. By identifying which production phases consume disproportionate energy relative to output, plant engineers can redesign motion profiles, adjust acceleration ramps on servo drives, and reschedule high-load operations to off-peak tariff windows — delivering measurable reductions in energy cost per unit produced.

Predictive maintenance is another key benefit. Gradual drift in analog signal baselines — detected by the DSAI146 and logged through the Advant OCS historian — can indicate developing faults in sensors, actuators, or mechanical components before they cause unplanned downtime. Early intervention not only prevents costly failures but also avoids the energy spikes associated with degraded equipment operating outside its design parameters.

Every DSAI146 unit supplied by NANKMOS undergoes a full outgoing shipment test to verify channel accuracy, signal integrity, and communication handshake with the Advant OCS backplane. Units are sourced from verified supply channels, held in climate-controlled inventory, and covered by a 12-month warranty from the date of shipment — giving procurement and maintenance teams the confidence to plan long-cycle replacements without risk.

Q1: How does the DSAI146 contribute to measurable energy savings on the production line? The DSAI146 provides the real-time analog signal data that enables the Advant OCS controller to make dynamic energy control decisions — adjusting VFD speeds, managing motor start sequences, and activating load-shedding routines. Facilities that implement closed-loop energy control using accurate analog feedback typically report 10–25% reductions in motor-related energy consumption compared to fixed-speed or open-loop configurations.

Q2: Is the DSAI146 compatible with modern SCADA and energy management systems? Yes. The DSAI146 operates within the ABB Advant OCS framework, which supports MasterBus and Advant Fieldbus communication protocols. Process data acquired by the module can be surfaced to SCADA platforms, historian databases, and energy management systems (EMS) via the Advant OCS communication layer, enabling enterprise-level energy monitoring and reporting.

Q3: Can the DSAI146 replace a faulty module in an existing Advant OCS installation without system reconfiguration? In most cases, yes. The DSAI146 is a direct replacement module for compatible Advant OCS racks. NANKMOS recommends verifying the rack slot assignment and firmware revision of the host controller before installation. Our technical team can assist with compatibility confirmation prior to shipment to ensure a drop-in replacement experience with minimal downtime.

Q4: What does the 12-month warranty cover, and what is the lead time for in-stock units? The 12-month warranty covers defects in materials and workmanship under normal operating conditions from the date of shipment. In-stock DSAI146 units are available for same-day or next-business-day dispatch following order confirmation. Each unit is tested prior to shipment, and a test report can be provided upon request for quality assurance documentation purposes.
