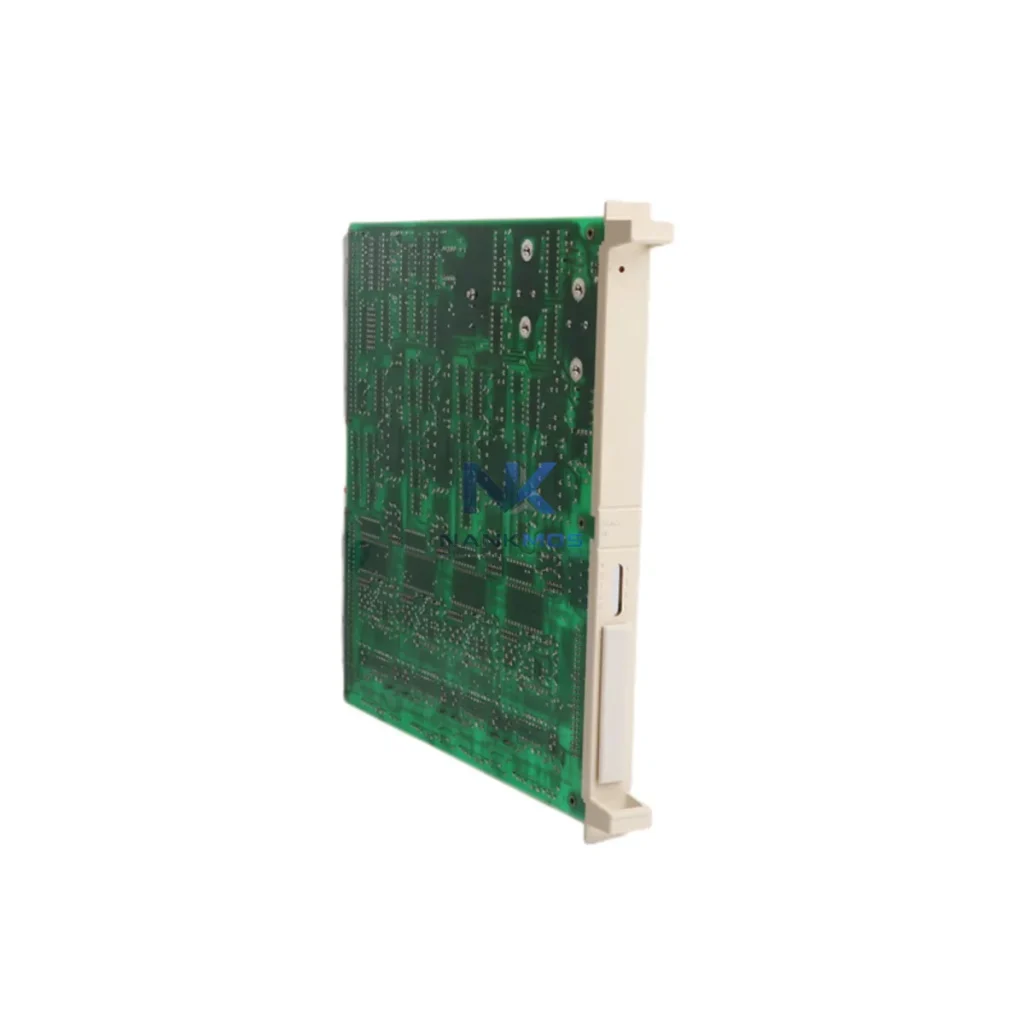

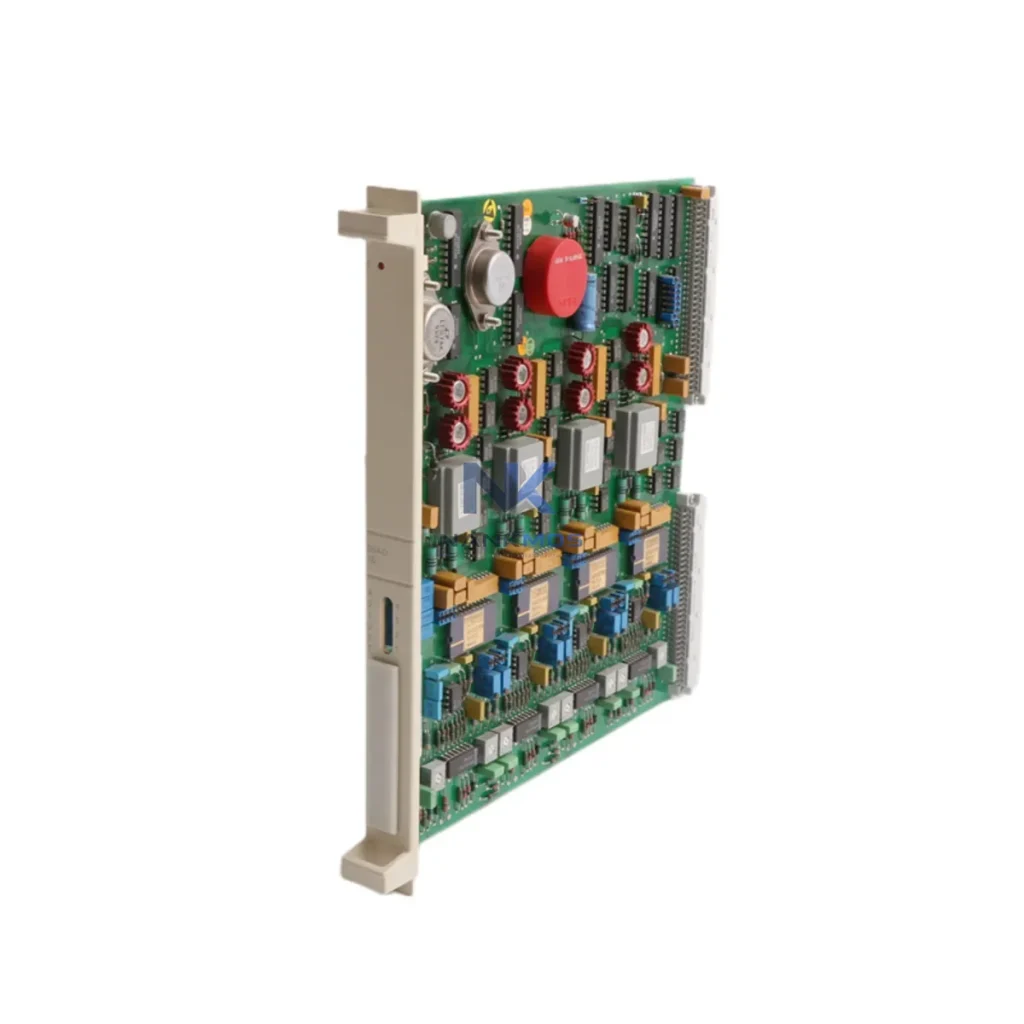

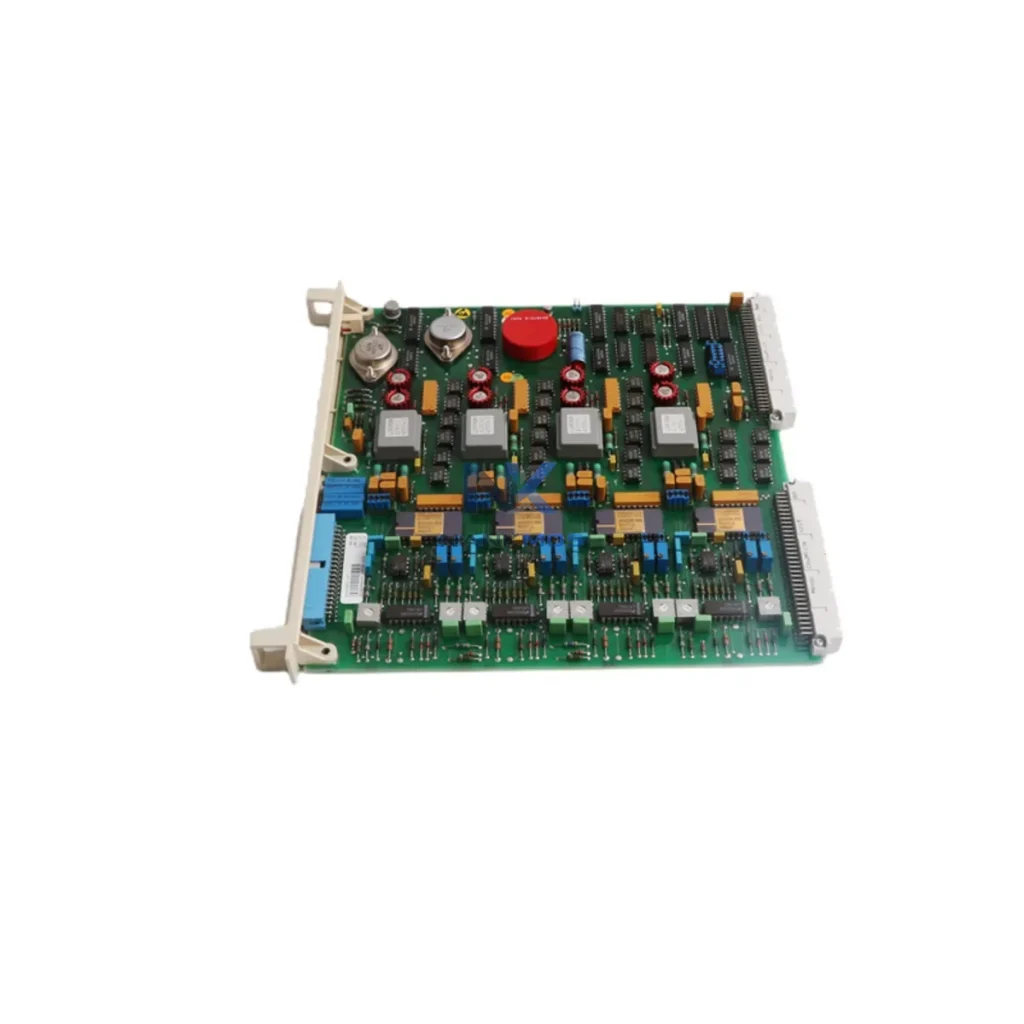

ABB DSAO110 57120001-AT Analog Output Module

Product Details

DSAO110 57120001-AT Product Description

The ABB DSAO110 (57120001-AT) is a field-proven analog output module engineered for deployment within ABB's Advant Controller platform — a distributed control system (DCS) architecture widely adopted across power generation, petrochemical processing, pulp and paper, water treatment, and heavy industrial manufacturing. Designed to deliver precise, stable analog signal output to final control elements such as control valves, variable-speed drives, and positioners, the DSAO110 occupies a critical role in the execution layer of any Advant-based control architecture.

In a fully integrated Advant system, the DSAO110 does not operate in isolation. It functions as a coordinated output node within a layered automation hierarchy that spans the control layer (AC450 or AC410 controllers), the I/O layer (DSAI, DSDO, DSDI, and DSAO modules), the communication layer (DSMB, DSCS, or MasterBus 300 gateways), the power supply layer (DSPU or DSTA units), and the HMI/SCADA layer (Advant Station or third-party OPC-connected supervisory systems). Understanding this layered interdependency is essential for engineers specifying replacement modules, planning system expansions, or executing long-term maintenance strategies.

The DSAO110 outputs industry-standard 4–20 mA analog signals, providing the downstream actuation commands that close the control loop between the controller's PID output and the physical process. Signal integrity is maintained through galvanic isolation between channels, ensuring that ground loops, common-mode noise, and field-side transients do not propagate back into the controller backplane. This isolation characteristic is especially critical in high-noise environments such as motor control centers, switchgear rooms, and outdoor substations where electromagnetic interference is a persistent engineering challenge.

From a system architecture perspective, the DSAO110 is mounted on the Advant S100 I/O bus backplane, sharing the rack with complementary modules such as the DSAI130 analog input module, the DSDI110 digital input module, and the DSDO110 digital output module. This co-location on a common backplane minimizes wiring complexity, reduces cabinet footprint, and simplifies the signal routing between field instruments and the controller. The backplane's bus architecture also supports hot-swap capability in certain Advant configurations, enabling module replacement without full system shutdown — a significant advantage in continuous-process industries where unplanned downtime carries substantial operational cost.

Communication between the DSAO110 and the AC450 or AC410 controller is managed through the S100 I/O bus protocol, a deterministic, time-division multiplexed communication standard that guarantees scan-cycle consistency across all I/O nodes. This determinism is foundational to the Advant platform's ability to execute high-speed regulatory control loops with predictable latency. Engineers integrating the DSAO110 into an existing Advant architecture should verify bus address configuration, module slot assignment, and controller I/O database mapping to ensure seamless commissioning without signal aliasing or address conflicts.

For system integrators managing multi-vendor control cabinets, the DSAO110 can coexist within enclosures that also house ABB drives such as the ACS800 or ACS580 series, ABB soft starters, and third-party PLCs communicating via PROFIBUS DP or Modbus RTU gateways. In such hybrid architectures, the DSAO110 typically serves as the authoritative analog output source for ABB-controlled loops, while the gateway modules handle cross-platform signal translation. Proper grounding, shielding, and cable segregation between analog signal cables and power conductors remain essential engineering disciplines in these mixed-signal environments.

Long-term maintenance planning for Advant-based systems should account for the DSAO110's role as a lifecycle-critical component. As ABB has transitioned its DCS portfolio toward the System 800xA platform, original Advant hardware has entered a managed availability phase. Maintaining a qualified inventory of DSAO110 modules — sourced from reputable suppliers with documented testing and 12-month warranty coverage — is a prudent risk mitigation strategy for plant engineers responsible for system uptime over multi-year operational horizons. Each DSAO110 unit supplied by NANKMOS undergoes pre-shipment functional verification to confirm channel output accuracy, isolation integrity, and bus communication compliance before dispatch.

The DSAO110 achieves its full engineering value when deployed as part of a coherent Advant automation platform rather than as a standalone replacement component. A complete Advant control node typically integrates the following co-platform components:

The AC450 Controller Module serves as the central processing unit, executing control strategies, managing I/O scan cycles, and maintaining communication with the supervisory layer. Paired with the DSAI130 Analog Input Module, the system establishes a closed-loop signal path: process variables are acquired by the DSAI130, processed by the AC450, and actuation commands are issued through the DSAO110 to field devices. The DSDI110 Digital Input Module and DSDO110 Digital Output Module complement the analog I/O layer by handling discrete signals from limit switches, solenoid valves, motor starters, and alarm annunciators.

Power integrity across the I/O rack is maintained by the DSPU110 Power Supply Unit or the DSTA130 Power Distribution Module, which regulate backplane voltage and provide redundant power paths in high-availability configurations. Communication between the Advant controller and plant-level SCADA or MES systems is facilitated by the DSMB125 MasterBus 300 Communication Module or compatible PROFIBUS DP gateway modules, enabling seamless data exchange with Advant Station HMI platforms or third-party OPC servers.

In cabinet-level integration, the DSAO110 rack assembly is frequently co-located with ABB ACS800 Variable Speed Drives receiving 4–20 mA speed reference signals directly from the DSAO110 output channels, and with ABB SACE circuit breakers providing upstream protection for the control cabinet power distribution. Signal conditioning between the DSAO110 and field instruments with non-standard input impedance may require DIN-rail signal isolators or loop-powered transmitter barriers, ensuring signal fidelity across long cable runs in large-scale plant installations.

Power Generation: In thermal and hydroelectric power plants, the DSAO110 provides analog output signals to turbine governor actuators, boiler feedwater control valves, and generator excitation systems. The module's galvanic isolation and deterministic bus communication are essential for maintaining control loop stability in high-EMI generator hall environments.

Petrochemical & Refining: Continuous process plants rely on the DSAO110 for precise flow, pressure, and temperature control loop outputs to pneumatic valve positioners and I/P converters. The module's compatibility with the AC450 controller's advanced PID and cascade control strategies supports complex multi-loop regulatory schemes common in distillation columns and reactor systems.

Pulp & Paper Manufacturing: ABB Advant systems have a strong installed base in pulp and paper mills, where the DSAO110 manages analog outputs for stock flow control, press section load control, and dryer section steam pressure regulation. Long-term module availability is a critical procurement consideration for mills operating legacy Advant systems on extended lifecycle plans.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the DSAO110 to control chemical dosing pump speeds, aeration blower VFD references, and filter backwash valve positions. The module's robust isolation characteristics protect the control system from the electrochemical noise generated by electrochlorination and UV disinfection equipment.

Mining & Minerals Processing: In ore processing and mineral concentration plants, the DSAO110 provides analog control outputs for conveyor belt speed drives, flotation cell level control valves, and thickener rake drive systems. The module's industrial temperature rating and backplane-mounted form factor suit the demanding environmental conditions of mining control rooms.

Q1: Is the ABB DSAO110 57120001-AT directly interchangeable with other DSAO110 variants in an existing Advant S100 rack?A: The 57120001-AT suffix designates the specific hardware revision and firmware variant of the DSAO110. In most Advant S100 rack configurations, modules sharing the same base part number (DSAO110) are physically and electrically interchangeable at the backplane level. However, engineers should verify the controller's I/O database configuration and any revision-specific firmware dependencies documented in the Advant system engineering manual before substituting modules in a live production system. NANKMOS recommends a bench-level functional test of the replacement module prior to installation in safety-critical or continuous-process applications.

Q2: Can the DSAO110 be integrated into a hybrid control architecture that includes both legacy Advant controllers and modern ABB System 800xA nodes?A: Yes. ABB's System 800xA platform supports legacy Advant I/O integration through the S800 I/O migration path and MasterBus 300 connectivity options, allowing DSAO110 modules on existing S100 backplanes to remain operational while the control layer is progressively migrated to 800xA controllers. This hybrid architecture is a common migration strategy for plants seeking to extend the operational life of their field wiring and I/O infrastructure while upgrading the controller and HMI layers. Detailed migration engineering should reference ABB's Advant to 800xA migration application guides.

Q3: What warranty and supply assurance does NANKMOS provide for the DSAO110 57120001-AT?A: Every DSAO110 57120001-AT unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each module undergoes a documented pre-shipment functional verification covering analog output channel accuracy, galvanic isolation integrity, and S100 bus communication compliance. NANKMOS maintains a qualified inventory of Advant-series I/O modules to support fast global dispatch for both planned maintenance procurement and emergency replacement requirements. For volume orders, scheduled delivery programs, and long-term supply agreements, contact [email protected] or +86 18359268345.
