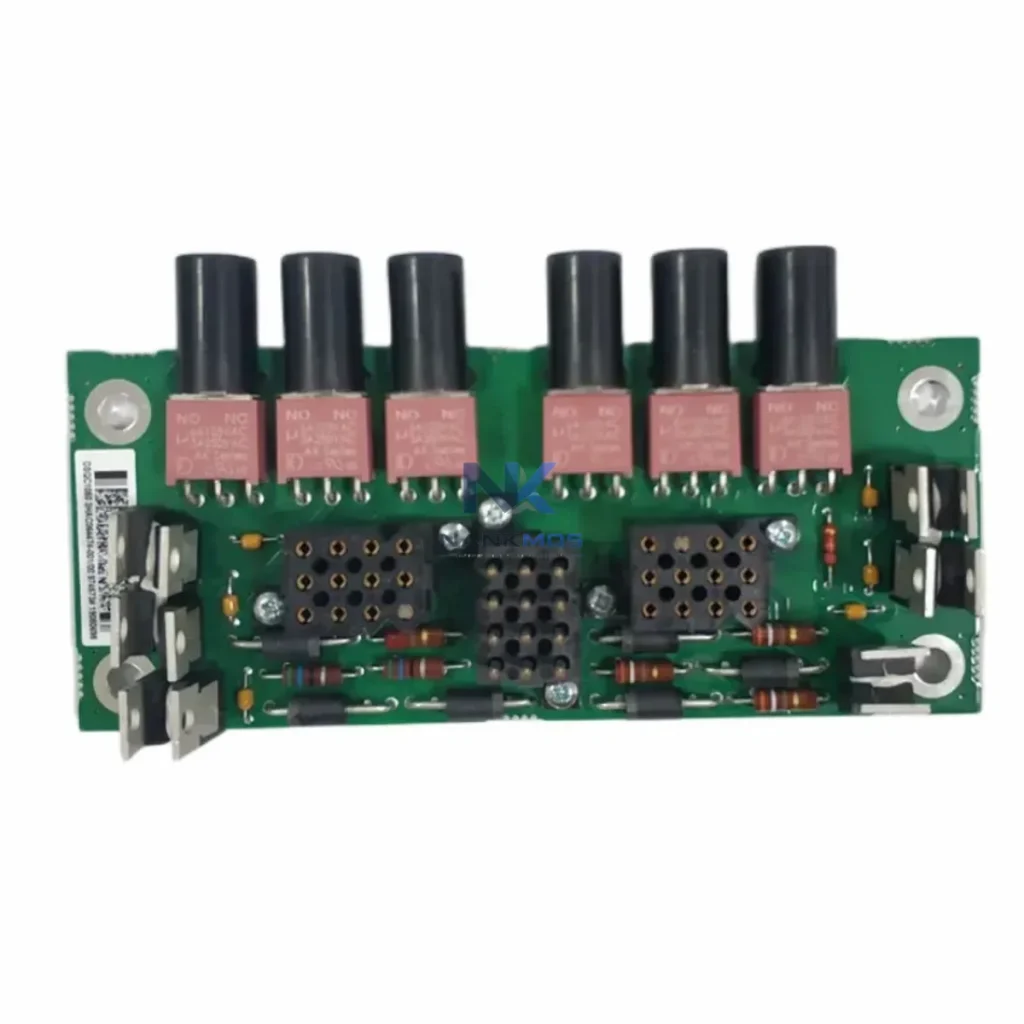

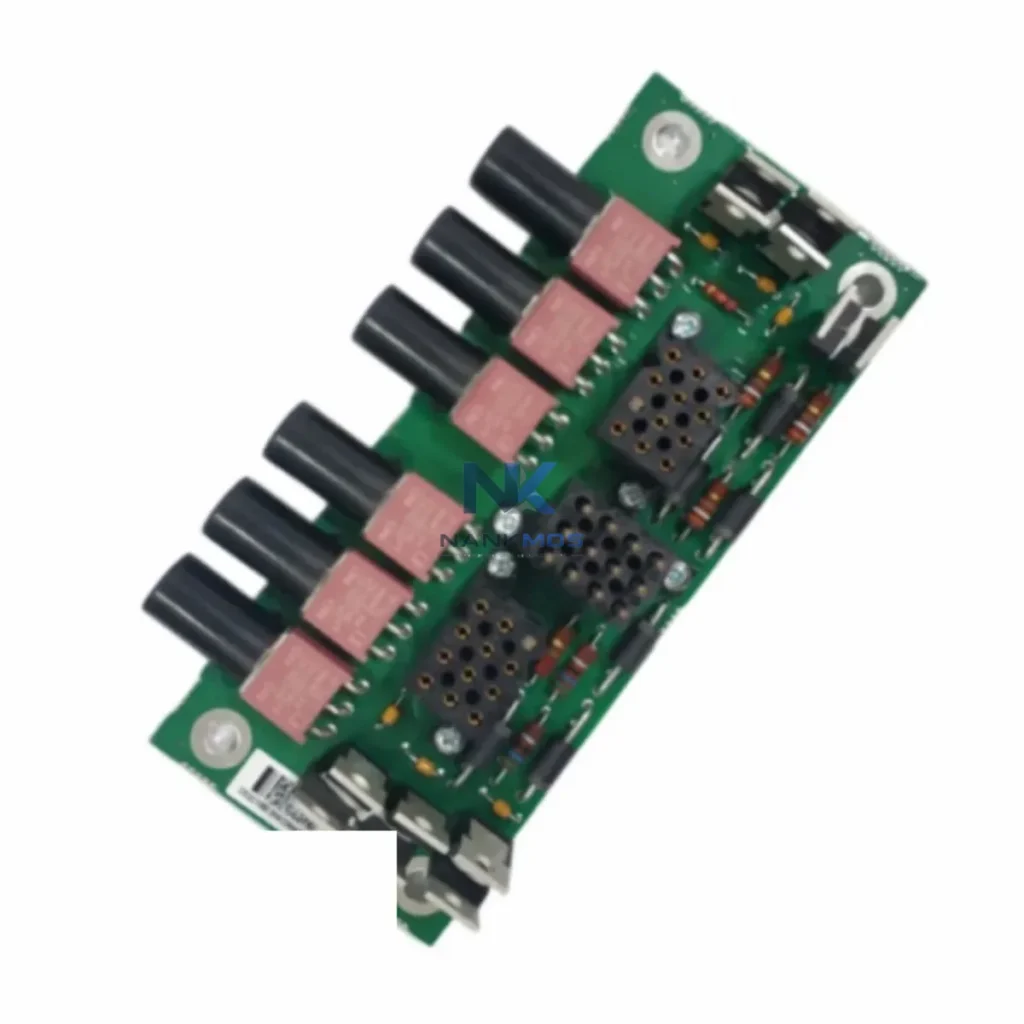

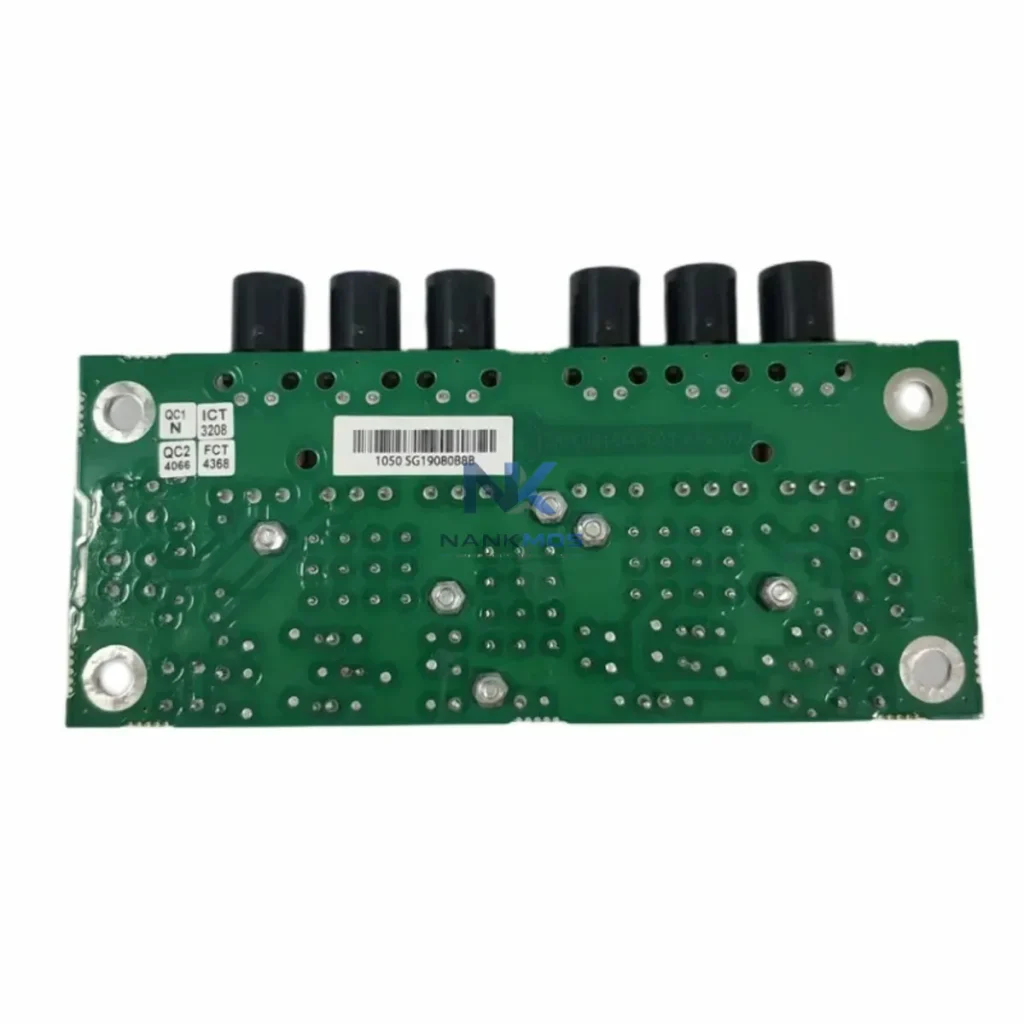

ABB DSQC1050 3HAC064474-001 Robot Controller Module

Product Details

DSQC1050 3HAC064474-001 Product Description

The ABB DSQC1050 (3HAC064474-001) is a dedicated brake control module engineered for deployment within the ABB IRC5 robot controller architecture. Designed to manage and coordinate the electromechanical braking functions of ABB industrial robot axes, this module plays a critical role in ensuring safe, precise, and repeatable motion control across multi-axis robotic systems. As a system-matched component within the IRC5 platform, the DSQC1050 integrates seamlessly with the controller's drive, power, and safety layers, enabling consistent brake engagement and release timing that is essential for high-throughput manufacturing and process automation environments.

In modern industrial automation, the reliability of brake control directly impacts system uptime, axis positioning accuracy, and personnel safety. The DSQC1050 addresses these requirements by providing deterministic brake signal management, coordinated with the IRC5's main computer module and drive units. Whether deployed in automotive body-in-white welding lines, foundry handling, palletizing systems, or precision assembly cells, this module ensures that each robot axis holds position reliably during power-down sequences, emergency stops, and maintenance intervals.

From a system architecture perspective, the DSQC1050 occupies the motion safety and drive coordination layer of the IRC5 controller cabinet. It interfaces directly with the axis computer boards and servo drive modules, receiving brake command signals from the IRC5 main computer (DSQC1000 or DSQC1018) and translating them into precise electrical outputs to the robot's joint brake coils. This tight integration with the IRC5 drive chain — including DSQC663 rectifier units, DSQC668 drive modules, and DSQC609 power distribution boards — ensures that brake actuation is synchronized with the drive enable/disable cycle, eliminating the risk of axis drift or uncontrolled movement during transitions.

The module is designed for installation within the standard IRC5 single cabinet and IRC5 panel-mounted controller configurations. Its compact form factor and standardized connector interface allow for straightforward replacement during scheduled maintenance or unplanned fault recovery, minimizing mean time to repair (MTTR) and reducing the impact of component-level failures on overall line availability. Spare inventory of the DSQC1050 is a recommended practice for facilities operating multiple IRC5-based robot cells, particularly in continuous production environments where unplanned downtime carries significant cost implications.

From a commissioning and engineering integration standpoint, the DSQC1050 requires no independent parameterization — its operation is governed by the IRC5 system software (RobotWare) and the robot's axis configuration data stored in the main computer. This plug-and-replace architecture simplifies field service procedures and reduces the skill threshold required for component-level maintenance, enabling faster return-to-production after a brake control fault event. Diagnostic feedback from the module is accessible via the IRC5 FlexPendant (DSQC679 or TP3) and the RobotStudio offline programming environment, allowing maintenance engineers to isolate brake faults to the axis and module level without requiring specialized test equipment.

For facilities managing mixed fleets of ABB robots — including IRB 1600, IRB 2600, IRB 4600, IRB 6700, and IRB 7600 series — the DSQC1050 provides a consistent brake control interface across multiple payload classes, simplifying spare parts management and reducing the total number of unique components held in maintenance inventory. This cross-model compatibility is a key advantage in large-scale automation deployments where standardization of controller hardware reduces training overhead and accelerates fault resolution.

NANKMOS maintains verified stock of the ABB DSQC1050 3HAC064474-001, sourced from authorized supply channels and subject to pre-shipment functional testing. Each unit is covered by a 12-Month Warranty, providing assurance of component integrity and performance from the date of delivery. Our global logistics capability supports expedited shipment to manufacturing facilities, system integrators, and MRO procurement teams across Asia, Europe, the Middle East, and the Americas. For urgent requirements or volume procurement inquiries, contact our technical sales team at [email protected] or +86 18359268345.

The DSQC1050 brake control module functions as an integral component within the broader IRC5 automation platform, operating in close coordination with multiple hardware layers of the controller architecture. At the compute layer, the IRC5 main computer modules — DSQC1000 and DSQC1018 — issue brake command sequences as part of the robot's motion program execution cycle, with timing governed by RobotWare's motion supervision and safety monitoring functions. These commands are routed through the IRC5 internal bus to the DSQC1050, which translates them into the electrical signals required to engage or release the joint brake coils on each robot axis.

At the drive layer, the DSQC1050 operates in synchronization with the IRC5 servo drive modules (DSQC668 series) and the system rectifier unit (DSQC663), ensuring that brake release is coordinated with drive enable signals to prevent mechanical stress on the gearbox and joint structures. The DSQC609 power distribution board provides the 24 VDC supply rail that powers the brake control outputs, and its health directly affects brake response time and reliability. In redundant or high-availability IRC5 configurations, the power supply architecture may include dual DSQC661 or DSQC662 power units to ensure uninterrupted brake control capability during single-point power failures.

At the I/O and safety layer, the IRC5 safety controller (DSQC400 or integrated safety board) monitors brake status signals and integrates with the robot's SafeMove2 safety software to enforce axis-level safe standstill and safe speed monitoring functions. The DSQC1050's brake outputs are included in the safety circuit monitoring loop, ensuring that any brake control fault triggers an immediate safe stop and generates a diagnostic event accessible via the FlexPendant (DSQC679) or the IRC5 service port. For facilities using DeviceNet or PROFIBUS communication backbones, the IRC5 fieldbus adapter modules (DSQC651 for DeviceNet, DSQC667 for PROFIBUS) provide the communication gateway between the robot controller and the plant-level PLC or DCS, enabling remote brake status monitoring and fault acknowledgment from the control room.

The ABB DSQC1050 3HAC064474-001 is deployed across a wide range of industrial sectors where IRC5-based robot systems are used for high-precision, high-throughput automation tasks. In automotive manufacturing — including body-in-white welding, press tending, and paint shop applications — reliable brake control is essential for maintaining axis position during tool changes, fixture loading, and emergency stop events. The DSQC1050 ensures that robot axes hold their programmed positions without drift, protecting tooling, fixtures, and workpieces from damage during non-motion intervals.

In the electronics and semiconductor assembly sector, IRC5 robots equipped with the DSQC1050 are used for precision pick-and-place, soldering, and inspection tasks where sub-millimeter positioning repeatability is required. The module's deterministic brake engagement timing supports the tight cycle time requirements of high-speed assembly lines while maintaining the safety margins required for collaborative and semi-collaborative robot deployments.

In the food and beverage, pharmaceutical, and chemical processing industries, IRC5 robots with reliable brake control are deployed for palletizing, packaging, filling, and material handling tasks in environments that may include washdown, temperature variation, and chemical exposure. The DSQC1050's integration with the IRC5 safety architecture supports compliance with machinery safety standards (ISO 10218, EN 954-1) applicable in these regulated production environments.

In the metals, mining, and heavy industry sectors, IRC5 robots are used for foundry handling, welding, cutting, and surface treatment tasks where the robot must hold heavy payloads in position during process intervals. The DSQC1050's brake control capability is critical in these high-payload applications, where axis drift during brake engagement could result in significant equipment damage or safety incidents. NANKMOS supplies the DSQC1050 to MRO procurement teams and system integrators serving these sectors, with expedited shipping available for urgent maintenance requirements.

Q1: Is the ABB DSQC1050 3HAC064474-001 compatible with all IRC5 controller variants, and does it require any software configuration after replacement?The DSQC1050 is designed for use within the IRC5 single cabinet and IRC5 panel-mounted controller platforms and is compatible with IRC5 systems running RobotWare 5.x and 6.x. After physical replacement, no independent parameterization of the DSQC1050 is required — the module's operation is fully governed by the IRC5 system software and the robot's axis configuration data stored in the main computer (DSQC1000 or DSQC1018). A system restart and brake function test via the FlexPendant is recommended following replacement to confirm correct brake engagement and release on all axes.

Q2: What is the recommended spare parts strategy for facilities operating multiple IRC5 robot cells, and how does NANKMOS support urgent procurement requirements?For facilities operating three or more IRC5 robot cells in continuous production, maintaining at least one DSQC1050 unit in local spare inventory is recommended to minimize MTTR in the event of a brake control fault. NANKMOS maintains verified stock of the DSQC1050 3HAC064474-001 and supports expedited global shipment for urgent MRO requirements. All units are subject to pre-shipment functional testing and are covered by a 12-Month Warranty. For volume procurement or framework supply agreements, contact [email protected] or +86 18359268345.

Q3: How does the DSQC1050 integrate with the IRC5 safety architecture, and what diagnostic tools are available for brake fault isolation?The DSQC1050 brake control outputs are integrated into the IRC5 safety monitoring circuit, which is supervised by the IRC5 safety controller (DSQC400 or integrated safety board) and the SafeMove2 safety software. Any brake control fault — including open circuit, short circuit, or response timeout — triggers a safe stop event and generates a diagnostic event code accessible via the FlexPendant (DSQC679) event log and the RobotStudio diagnostic interface. This allows maintenance engineers to isolate brake faults to the specific axis and module without requiring external test equipment, reducing diagnostic time and accelerating return-to-production.
