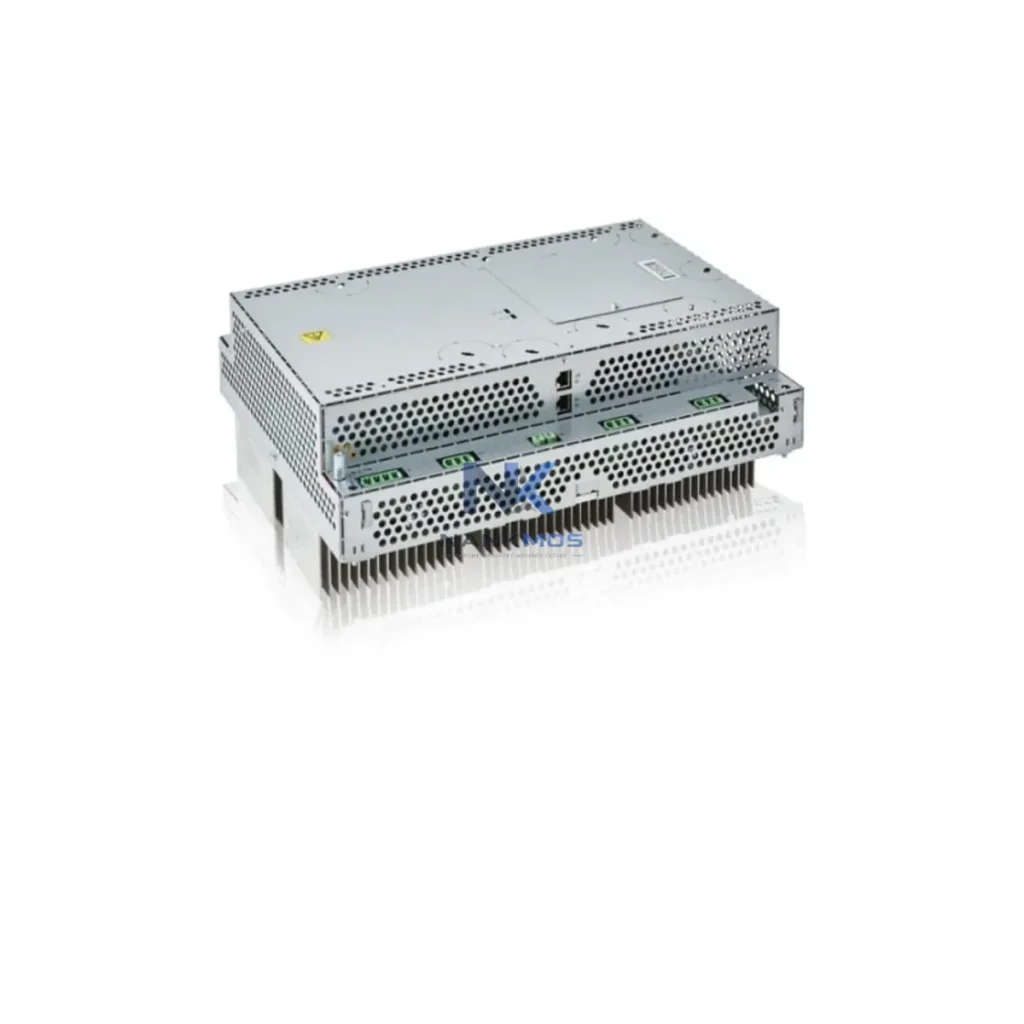

ABB DSQC3041 3HAC063913-001 Robot Drive Module

Product Details

DSQC3041 3HAC063913-001 Product Description

The ABB DSQC3041 (3HAC063913-001) is a precision-engineered drive module designed for the ABB IRC5 robot controller platform. As industrial facilities face increasing pressure to reduce energy consumption and maximise equipment utilisation, this drive module plays a central role in delivering measurable efficiency gains across robotic production lines. By managing motor excitation, current regulation, and power delivery with high accuracy, the DSQC3041 directly reduces wasted energy during both active operation and standby cycles — making it a critical component in any energy-aware automation strategy.

In a modern smart production line, the ABB DSQC3041 does not operate in isolation. It functions as part of a tightly integrated drive and control ecosystem where every component contributes to overall energy efficiency. Within the IRC5 controller architecture, the DSQC3041 works in close coordination with the ABB DSQC662 main computer board, which handles motion planning and axis interpolation, ensuring that drive commands are issued with minimal overshoot and unnecessary torque demand.

On the power supply side, the module interfaces with the ABB DSQC661 axis computer and the IRC5 drive system's internal DC bus, where energy recovered during deceleration phases can be redistributed rather than dissipated as heat. This regenerative capability is particularly valuable in high-cycle applications such as spot welding or pick-and-place lines, where robots decelerate hundreds of times per shift.

For facilities running mixed automation environments, the DSQC3041 integrates seamlessly with ABB AC500 PLCs via the IRC5 controller's fieldbus interface, enabling centralised energy monitoring and load scheduling. When paired with ABB Ability™ Energy Manager or third-party SCADA systems via OPC-UA or PROFINET communication modules, plant engineers can track per-axis power consumption in real time, identify inefficient motion profiles, and implement corrective measures without halting production.

The drive module also supports integration with ABB DSQC688 I/O units, allowing energy-related signals — such as thermal warnings, overcurrent flags, and drive-ready states — to be fed directly into the plant's HMI or DCS. Operators using ABB Panel 800 HMI terminals can monitor drive health and energy KPIs from a single interface, reducing the diagnostic time that typically leads to extended unplanned downtime.

In servo-intensive lines, the DSQC3041 complements ABB MicroFlex e190 servo drives on auxiliary axes, ensuring that the robot's primary drive system and peripheral servo actuators share a coherent energy management strategy. This cross-system coordination reduces peak demand spikes on the facility's power infrastructure, lowering both energy costs and the risk of nuisance tripping on upstream protection devices.

Factory energy audits consistently identify robotic drive systems as one of the top contributors to avoidable energy waste — primarily through inefficient motion profiles, excessive standby power draw, and thermal losses in ageing or mismatched drive hardware. The ABB DSQC3041 (3HAC063913-001) addresses each of these vectors directly.

Reducing idle-state energy consumption: The DSQC3041 supports the IRC5 controller's low-power standby modes, allowing the drive to reduce motor excitation current during robot idle periods without losing position reference. In a typical automotive body shop running two shifts, this alone can represent a meaningful reduction in per-robot energy consumption over a 12-month period.

Stabilising production cycle times: Drive faults and thermal shutdowns are among the leading causes of unplanned stoppages in robotic cells. By replacing a degraded or end-of-life drive module with a tested DSQC3041, maintenance teams restore the drive system's ability to deliver consistent torque and velocity profiles — directly stabilising cycle times and preventing the cascading delays that occur when one robot cell falls behind line pace.

Lowering thermal load in the drive cabinet: An inefficient or failing drive module generates excess heat, forcing the cabinet's cooling system to work harder and increasing the thermal stress on adjacent components such as capacitor banks, gate driver boards, and the IRC5 power unit. The DSQC3041, operating within its designed parameters, maintains a lower thermal footprint, extending the service life of surrounding hardware and reducing cooling energy demand.

Supporting predictive maintenance programmes: When integrated with the plant's condition monitoring infrastructure, the DSQC3041's status outputs provide early indicators of developing faults — elevated current draw, irregular switching patterns, or thermal margin reduction — that can be captured by the SCADA system and acted upon during planned maintenance windows rather than during production hours. This shift from reactive to predictive maintenance is one of the highest-value strategies available to industrial energy managers.

Inventory and supply continuity: Maintaining a stocked DSQC3041 as a critical spare eliminates the extended lead times associated with sourcing obsolete or low-volume drive modules from the open market. Every hour of robot downtime in a high-throughput line carries a measurable cost in lost output and energy inefficiency across the broader production system. Having a pre-tested, warranty-backed replacement available on-site converts a potential multi-day outage into a same-shift recovery.

Q1: How does the DSQC3041 contribute to measurable energy savings on the production line? The DSQC3041 reduces energy waste through precise motor current regulation, support for low-power standby modes, and lower thermal dissipation compared to degraded or mismatched drive hardware. In high-cycle robotic applications, these factors combine to deliver a meaningful reduction in per-robot energy consumption over a full operating year.

Q2: Is the DSQC3041 compatible with all IRC5 controller variants? Yes. The DSQC3041 (3HAC063913-001) is designed for the ABB IRC5 platform and is compatible with IRC5 Single Cabinet, IRC5 Panel Mounted Controller, and IRC5 Compact configurations. If you are unsure whether this module matches your specific controller revision, please contact us with your controller serial number for confirmation before ordering.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover? Every DSQC3041 unit undergoes full functional and load testing prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that develop a fault within the warranty period are replaced or repaired at no additional cost, subject to standard warranty terms.

Q4: How quickly can a replacement DSQC3041 be sourced, and is stock held locally? We maintain dedicated inventory of the DSQC3041 to support rapid replacement requirements. Orders are processed and dispatched promptly, with global shipping options available to minimise downtime. Contact us directly for lead time confirmation based on your location and urgency.
