ABB DSQC334 3HAB5845-1 Power Supply Module

Product Details

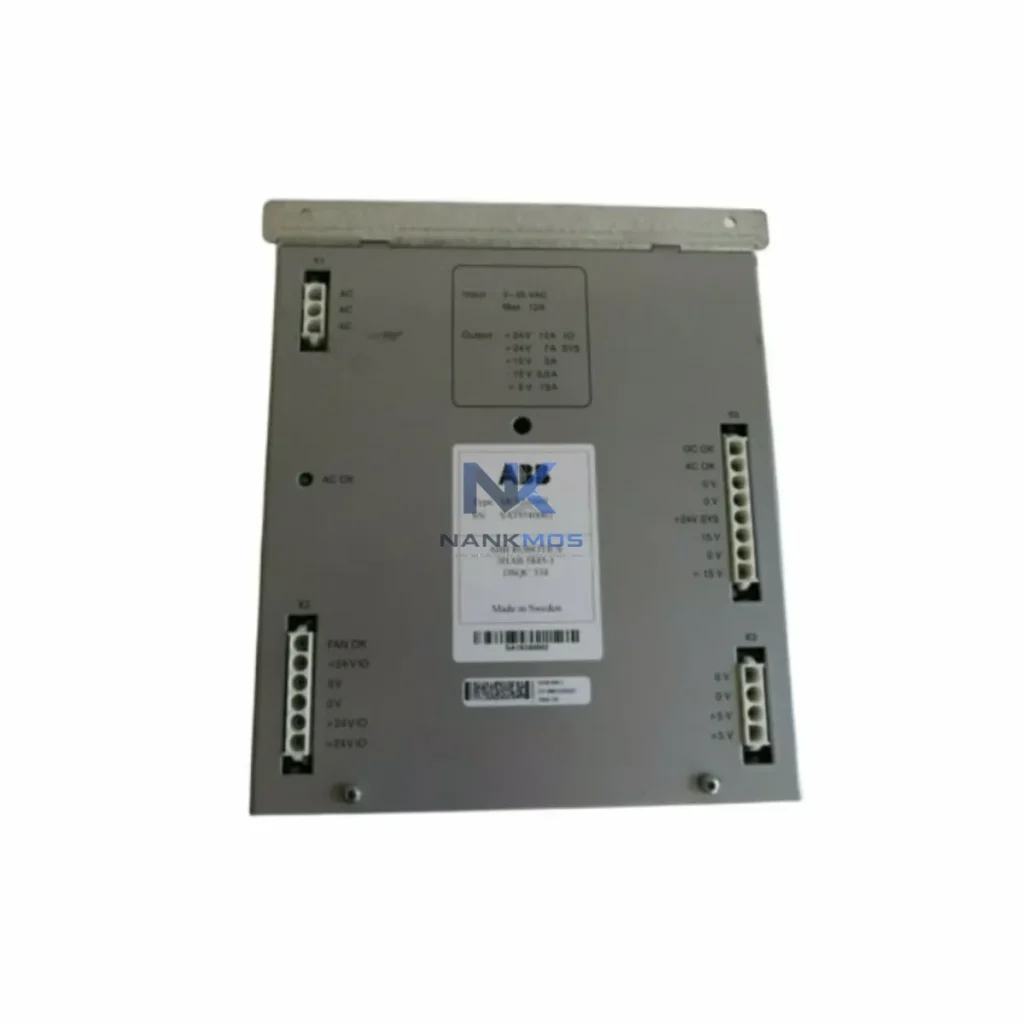

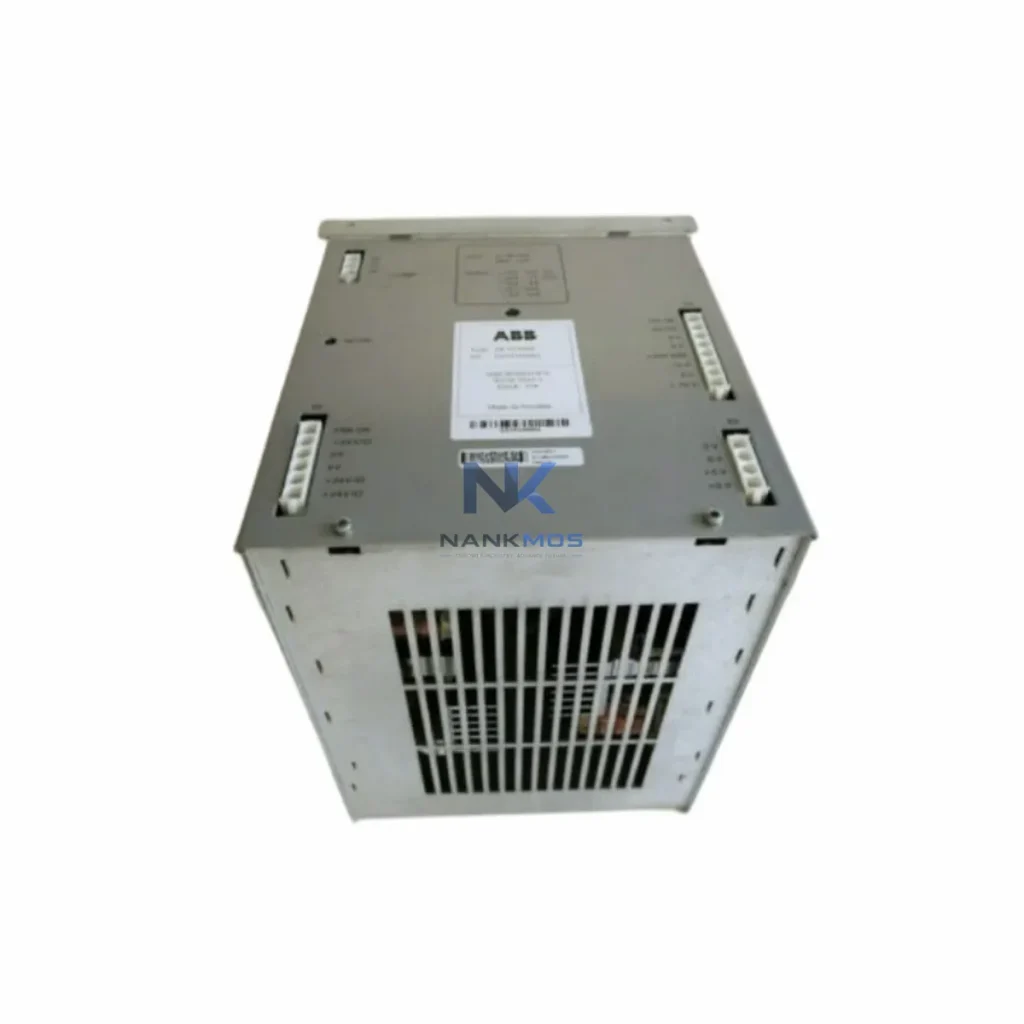

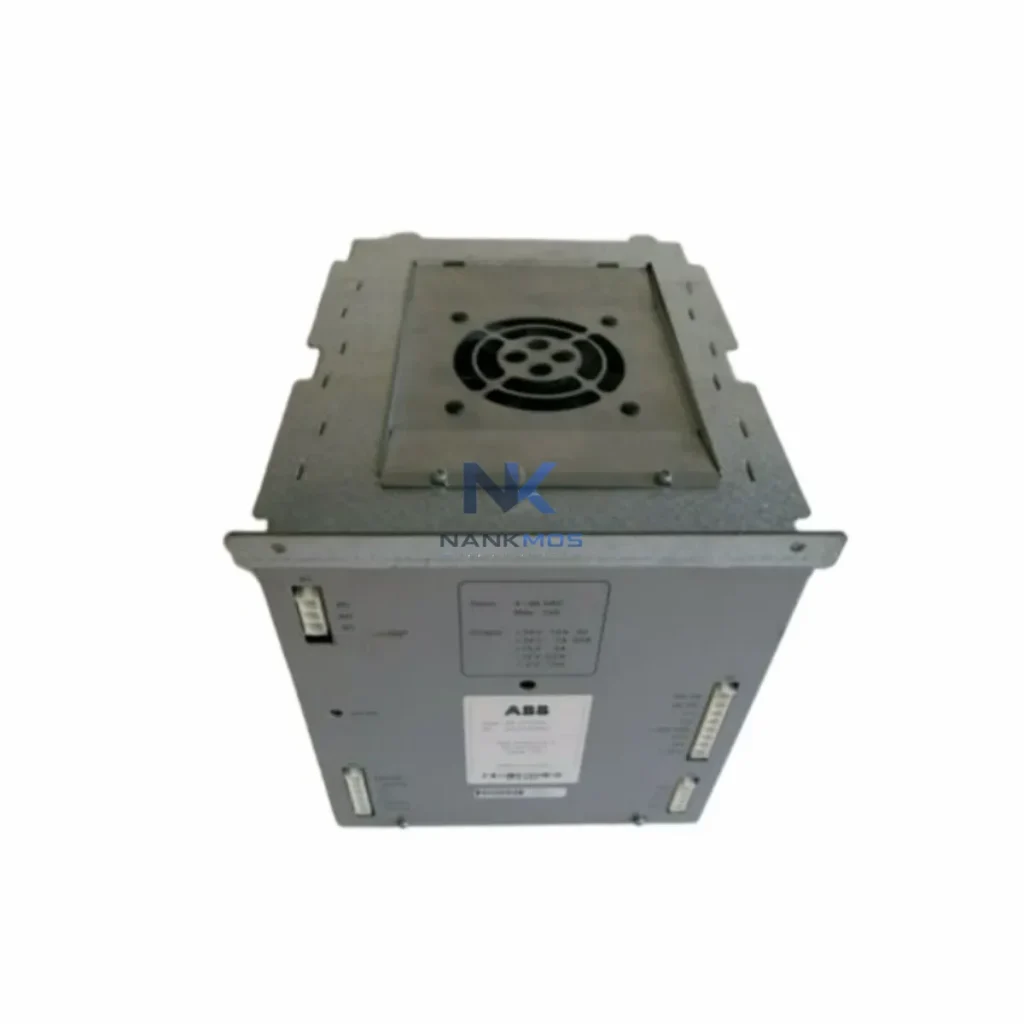

DSQC334 3HAB5845-1 Product Description

The ABB DSQC334 (3HAB5845-1) is a dedicated DC power supply module engineered for the ABB S4C+ robot controller platform, delivering regulated, stable power to the controller's internal logic boards, I/O backplane, and communication subsystems. Designed as a core component within ABB's modular control architecture, the DSQC334 ensures that every layer of the automation system — from the main CPU to field-level I/O — receives clean, conditioned power with the voltage stability and current capacity required for continuous industrial operation. Each unit supplied by NANKMOS undergoes pre-shipment functional testing and is backed by a 12-Month Warranty, ensuring verified performance and long-term deployment confidence.

The DSQC334 does not operate in isolation — it is the power foundation upon which the entire S4C+ control architecture depends. Within a fully configured ABB S4C+ cabinet, the DSQC334 supplies regulated DC rails to the DSQC373 main computer board (the primary CPU handling motion planning and program execution), the DSQC377 I/O board (managing digital input/output signal routing to field devices), and the DSQC352 Profibus-DP communication board (enabling deterministic fieldbus communication with PLCs, drives, and remote I/O stations).

In multi-axis robot cells, the DSQC334 also supports the DSQC378 DeviceNet master board, which coordinates distributed I/O nodes across the production line. The power supply's multi-rail output architecture ensures that logic-level signals on the DSQC355 digital I/O expansion module remain stable even under high-cycle-rate conditions, preventing signal jitter that could compromise robot path accuracy or trigger nuisance faults.

For system integrators designing redundant or high-availability cells, the DSQC334 is typically paired with an external UPS module or 24VDC buffer capacitor bank to bridge brief mains interruptions without triggering an emergency stop sequence. This approach is common in automotive body-in-white welding lines and foundry automation, where unplanned downtime carries significant production cost. The DSQC334's stable output also supports the DSQC390 teach pendant interface board, ensuring that operator HMI interactions — jogging, program loading, and fault acknowledgment — remain responsive throughout the controller's operational lifecycle.

When integrated alongside the DSQC369 axis computer board and DSQC361 drive system interface, the DSQC334 completes the power layer that underpins servo drive coordination, enabling synchronized multi-axis motion with the current stability required for high-precision path following. In process automation contexts — such as arc welding, dispensing, or machine tending — this power consistency directly translates to repeatable process quality and reduced rework rates.

Automotive Manufacturing: In body-in-white spot welding and assembly lines, ABB S4C+ robots equipped with DSQC334 power supplies operate in high-duty-cycle environments where controller uptime is critical. The module's regulated output sustains CPU and I/O board performance across multi-shift production schedules, supporting weld timer synchronization and gun force control without voltage-induced drift.

Foundry & Metal Processing: Harsh foundry environments — characterized by electromagnetic interference from induction furnaces and high ambient temperatures — demand power supply modules with robust filtering and thermal tolerance. The DSQC334's design within the enclosed S4C+ cabinet provides the shielding and thermal management needed for reliable operation in these conditions, supporting robot tasks such as die casting extraction, grinding, and deburring.

Petrochemical & Process Industries: In process automation applications where robots perform inspection, valve actuation assistance, or sample handling, controller availability is paramount. The DSQC334 supports continuous operation by maintaining stable power to the communication boards that interface with DCS and SCADA systems via Profibus-DP, ensuring that robot status data flows uninterrupted to the plant control layer.

Packaging & Palletizing Lines: High-speed packaging lines require robot controllers to execute rapid pick-and-place cycles with minimal latency. The DSQC334's clean DC output prevents the micro-interruptions that can cause I/O board resets or communication timeouts, maintaining the cycle-time consistency that packaging line OEE targets depend on.

Shipbuilding & Heavy Industry: Large-scale fabrication environments using ABB robots for welding, cutting, and material handling rely on S4C+ controllers for their proven reliability. Replacement DSQC334 units from NANKMOS allow maintenance teams to restore controller function quickly, minimizing the impact of power supply failures on project schedules.

Q1: Is the DSQC334 (3HAB5845-1) compatible with both S4C and S4C+ controllers, and can it be used in IRC5 systems? The DSQC334 is primarily designed and validated for the ABB S4C+ controller platform. While the S4C and S4C+ share some architectural similarities, power supply modules are not universally interchangeable between generations due to differences in backplane connector pinouts and output rail specifications. For IRC5 controllers, the power supply architecture differs significantly — IRC5 uses the DSQC662 or DSQC609 power supply family. Always verify the controller generation and cabinet revision before ordering. NANKMOS technical support can assist with compatibility confirmation based on your controller serial number.

Q2: What does the 12-Month Warranty cover, and what is the replacement process if the unit fails in service? The 12-Month Warranty provided by NANKMOS covers functional failure of the DSQC334 under normal operating conditions — including output voltage regulation failure, internal component failure, and communication-related power faults attributable to the module. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, NANKMOS will arrange unit replacement or repair following fault verification. Each unit is pre-tested before shipment to minimize the risk of DOA (dead-on-arrival) failures, and test records are retained for traceability.

Q3: How should the DSQC334 be installed and commissioned in an S4C+ cabinet, and what diagnostic steps are recommended if the controller fails to power up after replacement? Installation requires powering down the S4C+ cabinet fully and following ABB's lockout/tagout procedure before removing the existing power supply. The DSQC334 is secured to the controller backplane via its mounting bracket and connector interface — ensure all connector pins are fully seated and locking tabs engaged before restoring mains power. After installation, perform a controlled power-up sequence: observe the controller's status LEDs on the DSQC373 CPU board for normal boot indication. If the controller fails to initialize, check the 24VDC output rail with a calibrated multimeter at the backplane test points, verify that no downstream I/O boards are drawing excessive current (indicating a short), and review the controller's error log via the teach pendant. NANKMOS provides post-sale technical guidance to support commissioning and fault diagnosis for all supplied units.
