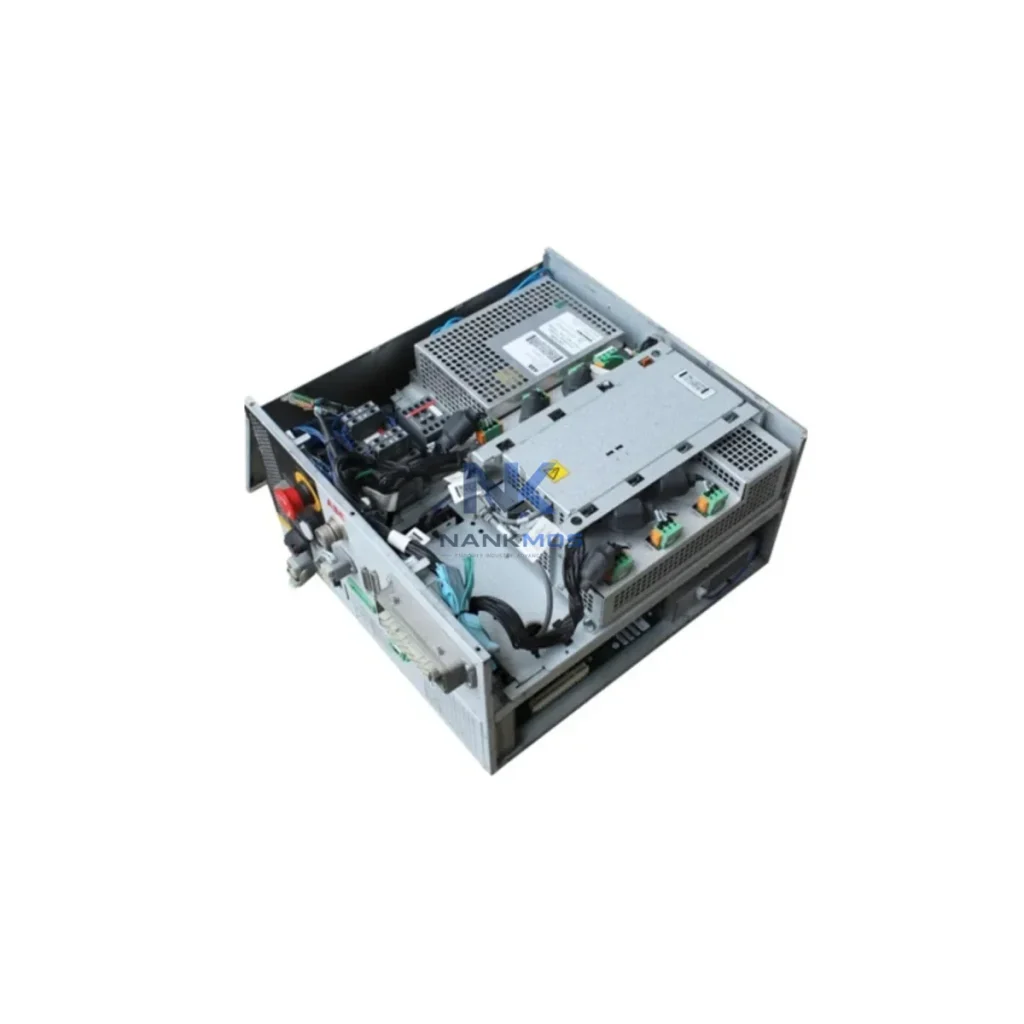

ABB DSQC431 3HAC036260-001/04 Robot Drive Unit

Product Details

DSQC431 3HAC036260-001/04 Product Description

The ABB DSQC431 (part number 3HAC036260-001/04) is a precision-engineered drive unit designed for the ABB IRC5 robot controller platform. As a core component in the IRC5 cabinet's power electronics architecture, the DSQC431 governs motor drive output, regulates energy delivery to the robot's axis motors, and plays a central role in reducing unnecessary power consumption across the full motion cycle. For production environments where energy efficiency, uptime, and motion accuracy are non-negotiable, the DSQC431 delivers the control-layer performance required to sustain high-throughput operations with minimal thermal and electrical waste.

In a fully integrated IRC5 robot cell, the DSQC431 does not operate in isolation — it functions as the energy-control bridge between the IRC5 controller's power distribution board and the servo motors driving each robot axis. When paired with the ABB DSQC662 main computer board, the DSQC431 receives real-time motion commands and translates them into precisely modulated drive signals, ensuring that each axis motor receives only the energy required for the commanded trajectory — no more, no less. This demand-matched energy delivery is fundamental to reducing idle-state power draw and eliminating the thermal accumulation that shortens component service life.

The DSQC431 integrates directly with the IRC5's internal I/O architecture, including the DSQC652 digital I/O module, which provides the discrete signal feedback necessary for coordinated motion sequencing and safe-state management. When the robot enters a hold or standby condition — triggered by a PLC signal via PROFIBUS or DeviceNet through the DSQC378B fieldbus adapter — the DSQC431 responds by reducing drive output to minimum sustain levels, cutting unnecessary energy consumption during non-productive intervals. This behavior is especially valuable in multi-robot cells where coordinated idle management across several IRC5 units can produce measurable reductions in facility energy demand.

For facilities running Siemens S7-300 or S7-1500 PLCs as the cell controller, the DSQC431-equipped IRC5 robot communicates motion status and fault conditions back to the PLC via the fieldbus layer, enabling the PLC to make real-time scheduling decisions that optimize the production line's energy profile. Similarly, when integrated with a SCADA system monitoring overall plant energy consumption, the IRC5 controller — with the DSQC431 maintaining stable drive performance — provides consistent, predictable power draw data that supports accurate energy budgeting and anomaly detection.

The DSQC431 also works in concert with the ABB DSQC609 power supply unit, which conditions incoming three-phase AC power before it reaches the drive stage. A stable, clean power input directly improves the DSQC431's switching efficiency and reduces the risk of drive faults caused by voltage transients — a common source of unplanned downtime in high-cycle manufacturing environments. When the DSQC609 and DSQC431 are both operating within specification, the IRC5 robot's overall power electronics stack maintains the thermal stability needed for continuous multi-shift operation without forced cooling interventions.

In servo-intensive applications — such as spot welding, arc welding, or precision assembly — the DSQC431 manages the dynamic load demands of the ABB IRB 6700 or IRB 2600 robot's axis motors, ensuring that acceleration and deceleration profiles are executed with energy-efficient current ramp profiles. This reduces peak current draw events that would otherwise stress the facility's power infrastructure and increase reactive power charges on the energy bill. The DSQC431's role in smoothing these load transitions is a direct contributor to both energy cost reduction and motor longevity.

Production lines running ABB IRC5 robots with the DSQC431 drive unit benefit from a layered energy optimization strategy that spans motion control, thermal management, and system-level scheduling. At the motion layer, the DSQC431 ensures that each robot axis operates on a demand-matched power profile — delivering full drive current only during active motion phases and stepping down to minimum sustain levels during dwell, wait, or inter-cycle pauses. Across a full production shift, this behavior compounds into significant reductions in total energy consumed per part produced.

At the thermal layer, the DSQC431's efficient switching topology reduces the heat generated within the IRC5 cabinet during high-cycle operation. Lower internal temperatures translate directly into reduced cooling load for the cabinet's ventilation system, extended service intervals for heat-sensitive components such as capacitors and gate drivers, and a lower probability of thermal-triggered fault shutdowns that interrupt production flow. In facilities where robot uptime is directly tied to throughput targets, eliminating thermally induced stoppages is a measurable contribution to overall equipment effectiveness (OEE).

At the system scheduling layer, the DSQC431's reliable drive performance enables the IRC5 controller to execute predictable, repeatable cycle times — a prerequisite for line balancing and takt time optimization. When every robot in a cell completes its motion cycle within the expected time window, the upstream and downstream equipment (conveyors, vision systems, end-of-line testers) can be scheduled to match, eliminating buffer accumulation and the energy waste associated with equipment running at partial load while waiting for the robot to complete its cycle.

Predictive maintenance strategies also benefit from the DSQC431's stable operating characteristics. By monitoring drive current signatures and fault log patterns through the IRC5's RobotWare diagnostic interface, maintenance teams can identify early indicators of drive degradation — such as increasing current ripple or intermittent overcurrent events — before they escalate into unplanned failures. Replacing a DSQC431 during a scheduled maintenance window, with a pre-tested unit from verified stock, costs a fraction of the production loss associated with an emergency shutdown. NANKMOS maintains ready inventory of the DSQC431 (3HAC036260-001/04) to support exactly this kind of proactive replacement strategy, with units dispatched after full pre-shipment functional testing and covered by a 12-month warranty from the date of delivery.

Q1: How does the DSQC431 contribute to energy savings in an IRC5 robot cell? The DSQC431 regulates motor drive output to match actual motion demand, reducing idle-state power draw and minimizing reactive power losses during non-productive intervals. When coordinated with PLC-level scheduling and fieldbus-triggered standby commands, the energy savings across a multi-shift operation are measurable at both the robot and facility level.

Q2: Is the DSQC431 (3HAC036260-001/04) compatible with all IRC5 controller variants? Yes. The DSQC431 is designed for the ABB IRC5 platform and is compatible with the IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller configurations. It is recommended to verify the revision suffix (/04) matches your controller's hardware revision requirements before installation. Our technical team can assist with compatibility confirmation prior to order.

Q3: What is the recommended replacement process and how quickly can a unit be dispatched? For planned replacements, the DSQC431 should be swapped during a scheduled maintenance window with the IRC5 controller powered down and locked out. NANKMOS units are pre-shipment tested to verify full functional performance before dispatch. In-stock units are available for immediate global shipping, minimizing the replacement lead time for both planned and emergency maintenance scenarios.

Q4: What warranty coverage applies to the DSQC431 supplied by NANKMOS? All DSQC431 (3HAC036260-001/04) units supplied by NANKMOS are covered by a 12-month warranty from the date of delivery. Each unit undergoes pre-shipment functional testing to confirm drive output performance and communication integrity before dispatch. Warranty claims are supported directly through NANKMOS with prompt response and replacement coordination.
