ABB DSQC546A 3HAB8101-18/09A DSQC546A 3HAB8101-18/09B

Product Details

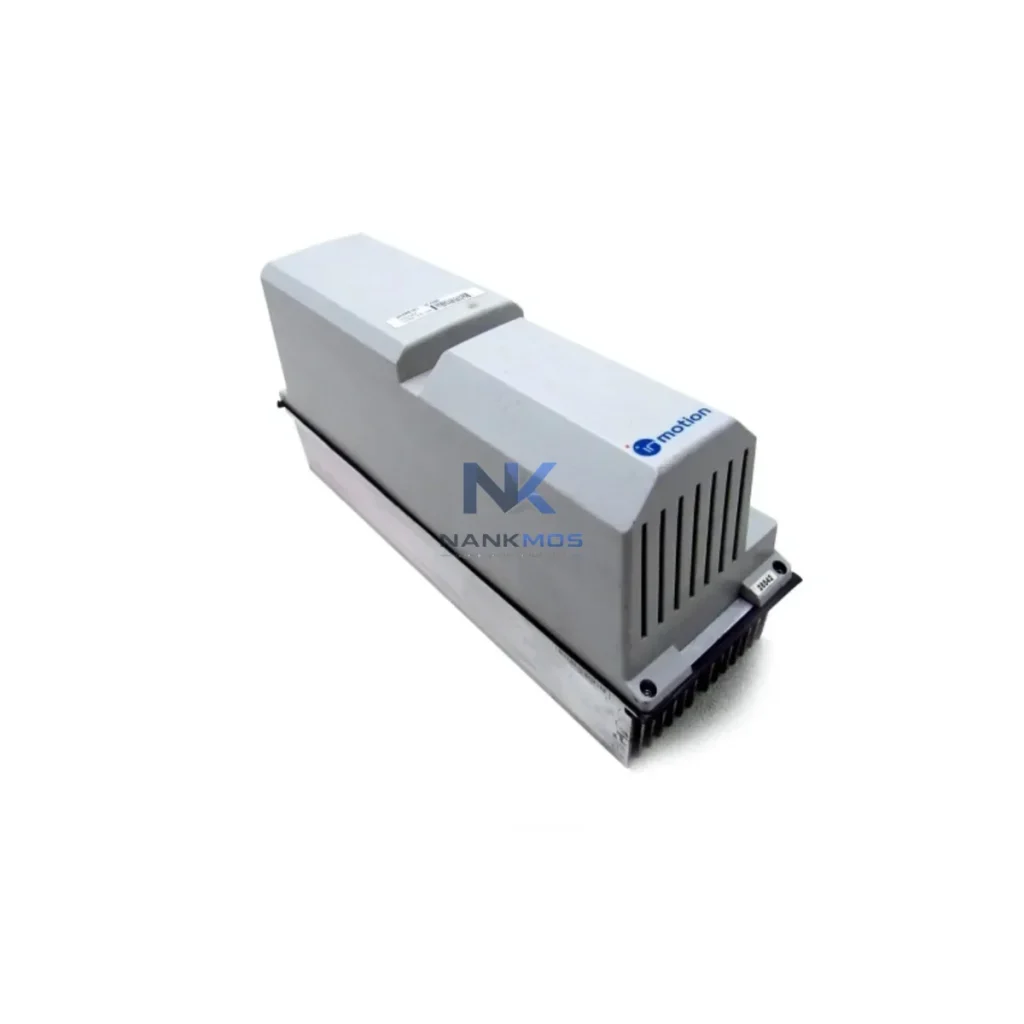

DSQC546A 3HAB8101-18/09A DSQC546A 3HAB8101-18/09B Product Description

The ABB DSQC546A (3HAB8101-18/09A, 3HAB8101-18/09B) is a precision-engineered AC servo drive unit designed as a native component within the ABB IRC5 robot controller architecture. As a dedicated axis drive module, the DSQC546A delivers closed-loop servo amplification for ABB industrial robot manipulators, ensuring deterministic torque response, stable current regulation, and seamless integration with the IRC5 main computer and drive system backplane. Its role within the IRC5 drive cabinet is not peripheral — it is a load-bearing element of the robot's motion control stack, directly governing axis velocity, position accuracy, and dynamic braking across the full operational envelope.

In modern automated manufacturing cells, the DSQC546A operates as part of a coordinated multi-axis servo architecture. The IRC5 controller distributes motion commands from the main computer unit (MCU) through the drive system bus to each axis drive module. The DSQC546A receives these interpolated trajectory commands, converts them into precise PWM switching signals, and drives the servo motor windings with high-frequency current control. This architecture eliminates latency between path planning and physical axis response — a critical requirement in high-speed welding, material handling, assembly, and palletizing applications.

The DSQC546A does not function in isolation. Within a complete ABB IRC5 robot cell, it operates as one node in a tightly coupled drive and control hierarchy. The IRC5 main computer — typically the DSQC652 or DSQC639 controller board — executes the RAPID motion program and dispatches interpolated axis setpoints via the internal drive bus. Each DSQC546A axis drive module receives its command stream, closes the current loop at high bandwidth, and returns encoder feedback to the axis computer for position verification.

Power distribution within the IRC5 cabinet is managed by the DSQC608 power supply unit, which conditions incoming three-phase mains into regulated DC bus voltage for the drive modules. The DSQC611 rectifier unit and DSQC627 capacitor bank provide energy buffering and regenerative braking absorption, protecting the DSQC546A from voltage transients during rapid deceleration cycles. For multi-robot cells or coordinated motion applications, the DSQC377B I/O unit and DSQC652 fieldbus adapter extend digital and analog signal routing between the IRC5 controller and external PLC systems — commonly Siemens S7-300 or Allen-Bradley ControlLogix — via PROFIBUS-DP or DeviceNet.

At the HMI and supervision layer, the ABB FlexPendant (IRC5 teach pendant) provides real-time axis status monitoring, drive fault diagnostics, and manual jogging capability. For remote monitoring integration, the IRC5 supports OPC-UA and socket messaging interfaces, enabling SCADA systems to poll drive status, axis load, and thermal margin data from the DSQC546A in real time. This layered architecture — from RAPID program execution through drive bus command dispatch to physical axis current control — defines the IRC5 as a fully integrated motion platform, with the DSQC546A as its fundamental servo execution element.

The DSQC546A is deployed across a broad spectrum of industrial automation environments where ABB IRC5 robots provide the motion backbone:

Automotive Manufacturing: In body-in-white welding lines, DSQC546A-equipped IRC5 robots execute multi-pass MIG and spot welding sequences with sub-millimeter TCP repeatability. The drive module's high current bandwidth ensures stable arc initiation and consistent weld penetration across high-cycle production schedules.

Petrochemical & Energy: In hazardous material handling and drum filling stations, IRC5 robots with DSQC546A drives operate in coordinated pick-and-place sequences under zone-classified enclosures. The drive's deterministic response supports safe-speed monitoring integration with functional safety controllers.

Electronics & Semiconductor Assembly: High-precision dispensing and component placement cells rely on the DSQC546A's low-speed torque stability and fine position resolution to maintain process consistency across millions of cycles without axis drift or servo hunting.

Food & Beverage Packaging: In high-throughput palletizing and case-packing lines, the DSQC546A supports rapid acceleration profiles and smooth velocity transitions, reducing product damage while maintaining line rate targets. Washdown-compatible IRC5 enclosures pair with the drive module for hygienic zone compliance.

Metal Fabrication & Foundry: Plasma cutting, laser welding, and press-tending applications demand robust drive performance under thermal and vibration stress. The DSQC546A's thermal management within the IRC5 forced-air cabinet sustains continuous duty cycles in harsh foundry environments.

Q1: Is the DSQC546A compatible with all IRC5 controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller?The DSQC546A is designed for the standard IRC5 drive cabinet architecture. Compatibility with IRC5 Compact or Panel Mounted Controller variants depends on the specific robot model and drive cabinet configuration. Always verify the robot's axis configuration file (ACF) and drive system revision against the DSQC546A part number suffix (09A or 09B) before installation. Our engineering team can assist with compatibility verification prior to shipment.

Q2: What is the recommended procedure for replacing a DSQC546A in a live production environment, and how does the 12-Month Warranty apply?Replacement of the DSQC546A requires IRC5 controller shutdown, drive cabinet de-energization, and axis brake engagement before module extraction. After installation, the IRC5 axis calibration routine must be executed to restore encoder offset data. All DSQC546A units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failure under normal operating conditions. Pre-shipment functional testing is performed on every unit to confirm drive output integrity and bus communication before dispatch.

Q3: How does the DSQC546A support long-term maintenance planning and spare parts inventory strategy?Given the IRC5's extended service life in industrial deployments — often exceeding 10–15 years — maintaining a strategic spare of the DSQC546A is recommended for critical production cells. NANKMOS maintains global inventory of DSQC546A units with short lead times, supporting both emergency replacement and planned maintenance schedules. Contextual Integration support is available to assist engineering teams in mapping DSQC546A spares to specific robot models, axis configurations, and IRC5 cabinet revisions within your facility's maintenance management system.
