DSQC633A 3HAC031851-001 3HAC031977-001 6901ZZ Product Description

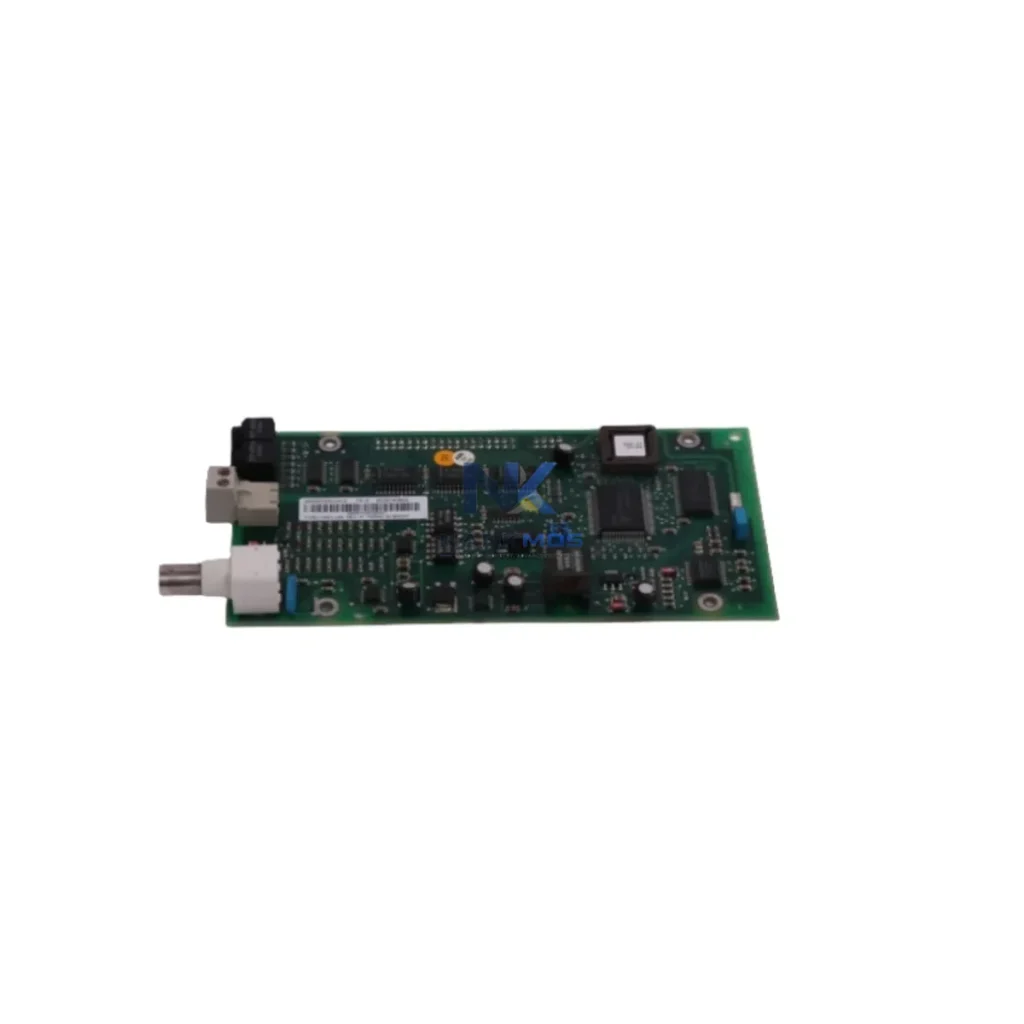

The ABB DSQC633A (part number 3HAC031851-001, cross-reference 3HAC031977-001) is a Serial Measurement Board (SMB) unit engineered for deployment within the ABB IRC5 robot controller platform. As a core component of the IRC5 motion control architecture, the DSQC633A serves as the primary interface between the robot's servo drive system and the resolver/encoder feedback chain, enabling precise axis position measurement, real-time signal conditioning, and closed-loop motion fidelity across all six robot axes. This module is not a standalone device — it is a system-critical node that defines the accuracy, reliability, and diagnostic transparency of the entire robot control stack.

In high-throughput manufacturing environments, the integrity of position feedback directly determines cycle time consistency, path repeatability, and long-term mechanical wear patterns. The DSQC633A ensures that resolver signals from each joint are accurately digitized and transmitted to the IRC5 drive module (DSQC668 or DSQC669) without phase distortion or signal dropout, maintaining sub-millisecond synchronization across the full kinematic chain. This level of signal fidelity is essential in arc welding, precision assembly, semiconductor handling, and palletizing applications where positional deviation of even a fraction of a millimeter can result in process failure or product rejection.

The DSQC633A operates as the sensory backbone of the IRC5 motion control hierarchy. Its role becomes fully apparent when examined within the context of the complete IRC5 controller architecture. At the compute layer, the DSQC656 Main Computer Unit executes RobotWare motion programs and issues axis trajectory commands. These commands are routed through the DSQC668 Drive Unit or DSQC669 Drive Module, which convert digital motion references into high-current PWM signals for the servo motors. The DSQC633A closes the feedback loop by capturing resolver output from each motor and returning digitized position data to the drive and compute layers in real time.

Power distribution within the IRC5 cabinet is managed by the DSQC604 Power Supply Unit, which provides regulated 24 VDC to the SMB board and all logic-level modules. The DSQC652 I/O Module handles digital and analog process I/O, enabling the robot controller to interface with external PLCs, safety relays, and field sensors. For multi-robot or coordinated motion applications, the DSQC658 Fieldbus Adapter extends the IRC5 communication capability to PROFIBUS-DP, DeviceNet, or EtherNet/IP networks, allowing the robot cell to integrate seamlessly into plant-wide SCADA or DCS architectures.

The DSQC679 FlexPendant Interface Board manages the teach pendant communication channel, ensuring that operator inputs and safety acknowledgments are processed with deterministic latency. In safety-critical installations, the DSQC400 Safety Board provides hardwired emergency stop, safeguard input monitoring, and category 3 / PLd safety functions in compliance with ISO 13849. The DSQC611 Axis Computer supplements the main compute unit in high-axis-count configurations, distributing motion calculation load and maintaining trajectory synchronization across extended kinematic chains.

For applications requiring battery-backed position retention during power-off cycles — common in automotive body-in-white and foundry environments — the SMB unit works in conjunction with the IRC5 battery backup assembly to preserve resolver calibration offsets and axis reference data. This eliminates the need for full re-mastering after unplanned shutdowns, reducing restart time from hours to minutes and protecting production schedules in continuous-operation facilities.

Automotive Manufacturing: In body-in-white welding lines and powertrain assembly cells, the DSQC633A supports multi-robot synchronized motion with the positional accuracy required for laser welding, seam sealing, and press-fit assembly. Its resolver feedback architecture tolerates the electromagnetic interference generated by high-current welding equipment, maintaining signal integrity where encoder-based systems may experience noise-induced faults.

Semiconductor & Electronics Assembly: Precision pick-and-place and die-bonding applications demand sub-millimeter repeatability across thousands of cycles per shift. The DSQC633A's resolver interface provides inherent immunity to vibration and contamination that can degrade optical encoder performance in cleanroom and near-cleanroom environments.

Petrochemical & Energy: In hazardous-area robot deployments for valve actuation, pipeline inspection, and tank cleaning, the IRC5 controller with DSQC633A provides the motion fidelity and diagnostic transparency required for remote operation with minimal on-site intervention. Integration with PROFIBUS or EtherNet/IP via the DSQC658 adapter enables full supervisory control from a central DCS.

Packaging & Palletizing: High-speed case erecting, product grouping, and layer palletizing lines rely on consistent cycle times and predictable axis behavior. The DSQC633A's real-time feedback processing supports the rapid acceleration and deceleration profiles characteristic of delta and SCARA robot configurations operating within IRC5-based multi-robot cells.

Metal Fabrication & Foundry: Arc welding, plasma cutting, and die casting extraction expose robot systems to extreme thermal gradients and particulate contamination. The resolver-based feedback captured by the DSQC633A is inherently more robust in these environments than optical alternatives, supporting long mean-time-between-failure intervals and reducing unplanned maintenance events.

Q1: Is the DSQC633A compatible with all IRC5 controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller? A: Yes. The DSQC633A (3HAC031851-001) is designed for use across the IRC5 controller family, including the standard single-cabinet, dual-cabinet, IRC5 Compact, and IRC5 Panel Mounted Controller configurations. The SMB unit interfaces with the IRC5 internal backplane bus and is compatible with all standard RobotWare versions that support the IRC5 platform. Prior to installation, verify the RobotWare version and axis configuration against ABB's hardware compatibility matrix to confirm no firmware update is required. Our technical team can assist with compatibility verification for specific robot models and software revisions.

Q2: What diagnostic capabilities does the DSQC633A provide for predictive maintenance and fault isolation? A: The DSQC633A supports the IRC5 controller's built-in event log and error management system. Resolver signal anomalies, communication faults, and board-level hardware errors are reported as structured error codes accessible via the FlexPendant or RobotStudio offline programming environment. This enables maintenance engineers to distinguish between resolver cable faults, motor bearing degradation, and board-level failures without physical disassembly, reducing mean time to repair and supporting condition-based maintenance scheduling. Integration with plant SCADA systems via the DSQC658 fieldbus adapter allows fault events to be forwarded to centralized maintenance management platforms.

Q3: What does the 12-Month Warranty cover, and what is the supply lead time for the DSQC633A? A: All DSQC633A units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. Each unit undergoes function verification testing prior to dispatch to confirm resolver interface operation, backplane communication integrity, and power rail stability. Stock is maintained for immediate dispatch, with standard international shipping lead times of 3–7 business days depending on destination. Expedited logistics options are available for urgent production recovery requirements. Contact [email protected] or +86 18359268345 for real-time stock confirmation and shipping quotations.
