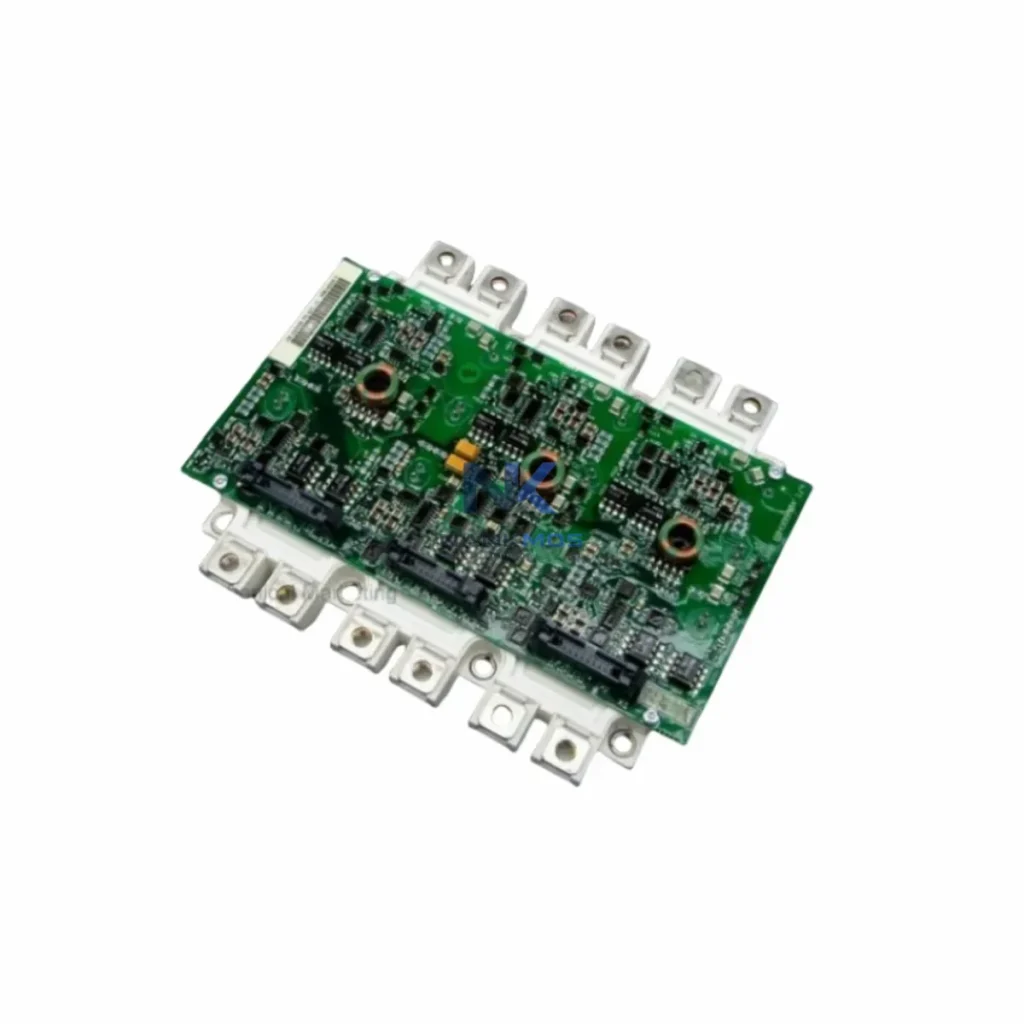

ABB FS300R12KE3/AGDR-62C IGBT Module

Product Details

FS300R12KE3/AGDR-62C Product Description

The ABB FS300R12KE3/AGDR-62C is a high-performance HiPak IGBT module rated at 1200V / 300A, engineered for demanding industrial drive and inverter applications. Paired with the AGDR-62C gate driver unit, this assembly delivers precise switching control, robust thermal management, and seamless integration into modern smart factory power conversion architectures. Whether deployed in medium-voltage variable frequency drives (VFDs), regenerative inverters, or active front-end rectifiers, the FS300R12KE3/AGDR-62C forms a critical node in the industrial data and power chain — bridging field-level energy conversion with supervisory control and monitoring systems.

In a connected factory environment, the power conversion layer is no longer isolated from the data layer. The FS300R12KE3/AGDR-62C is designed to operate within ABB's broader drive ecosystem, where gate driver feedback signals, fault status outputs, and thermal monitoring data are fed upstream to PLC controllers, SCADA platforms, and HMI dashboards. This integration enables real-time visibility into drive health, switching losses, junction temperature trends, and fault event logs — all essential inputs for predictive maintenance and remote diagnostics in Industry 4.0 deployments.

When integrated with ABB ACS880 or ACS580 series variable frequency drives, the FS300R12KE3/AGDR-62C operates as the core switching element, with the AGDR-62C gate driver providing isolated gate signals, desaturation protection, and active clamping. Fault signals from the gate driver are transmitted via fiber optic links to the drive control board, which in turn communicates drive status to upstream Modbus RTU, PROFIBUS DP, or PROFINET IO networks. This multi-layer communication path ensures that any switching anomaly — overcurrent, overtemperature, or short-circuit — is captured, logged, and escalated to the SCADA layer within milliseconds, enabling rapid alarm response and minimizing unplanned downtime.

The AGDR-62C gate driver's fiber optic interface eliminates ground loop interference in high-voltage environments, making it particularly well-suited for installations where the drive cabinet is physically separated from the control room. In such topologies, the FS300R12KE3/AGDR-62C assembly connects to remote I/O modules and edge gateways that aggregate drive status data alongside signals from current transformers, temperature sensors, and vibration monitors mounted on the driven motor. This aggregated data stream is then forwarded to the plant's industrial Ethernet backbone — typically PROFINET or EtherNet/IP — for ingestion by the SCADA historian and MES layer.

For facilities running ABB Ability™ or third-party SCADA platforms such as Wonderware, Ignition, or Siemens WinCC, the FS300R12KE3/AGDR-62C's operational data — switching frequency, DC bus voltage, output current, and thermal margin — can be visualized on real-time dashboards, enabling operators to track drive performance across multiple production lines simultaneously. When paired with ABB RDNA-01 or RETA-02 communication adapters installed in the host drive, the module's status is fully accessible over PROFINET IO or EtherNet/IP without additional protocol conversion hardware.

In applications where legacy fieldbus infrastructure is still in place — such as PROFIBUS DP or DeviceNet — an industrial protocol gateway such as the HMS Anybus X-gateway or Moxa MGate series can bridge the drive's native communication port to the plant's Ethernet backbone, ensuring that the FS300R12KE3/AGDR-62C's operational data reaches the SCADA layer regardless of the installed network architecture. This protocol-agnostic approach is central to NANKMOS's supply philosophy: providing components that fit into existing automation topologies without requiring wholesale infrastructure upgrades.

The FS300R12KE3/AGDR-62C is also well-suited for integration with energy management systems (EMS) and power quality analyzers. In regenerative drive applications, the module's switching performance directly influences harmonic distortion levels and power factor at the point of common coupling. By monitoring DC bus ripple and switching losses through the AGDR-62C's diagnostic outputs, plant engineers can correlate power quality events with specific drive operating conditions, enabling targeted optimization of switching frequency and dead-time compensation parameters.

Every unit supplied by NANKMOS undergoes pre-shipment functional testing, including gate drive signal verification, insulation resistance measurement, and thermal interface inspection. Units are shipped with full traceability documentation, and all stock is covered by a 12-month warranty from the date of delivery. NANKMOS maintains ready inventory of the FS300R12KE3/AGDR-62C to support urgent MRO requirements, planned maintenance shutdowns, and new drive commissioning projects across manufacturing, energy, and process industries.

In a typical smart factory deployment, the ABB FS300R12KE3/AGDR-62C sits at the power conversion layer, but its operational data flows upward through a structured automation hierarchy. At the field level, current sensors and temperature probes mounted on the motor and drive cabinet feed analog signals into remote I/O modules — such as the ABB CI830 or Siemens ET 200SP — which digitize and forward these readings to the PLC controller over PROFIBUS DP or PROFINET IO.

The host drive — typically an ABB ACS880 with an RDNA-01 PROFINET adapter or an ACS580 with a FPBA-01 PROFIBUS adapter — receives gate driver fault signals from the AGDR-62C via fiber optic link and maps them to drive status words accessible on the fieldbus network. The PLC — for example, a Siemens S7-1500 or ABB AC500 — reads these status words cyclically and forwards alarm conditions to the SCADA layer via industrial Ethernet.

At the SCADA and HMI layer, platforms such as Ignition by Inductive Automation or ABB Ability™ Operations Management System aggregate drive data from multiple FS300R12KE3/AGDR-62C-equipped drives across the plant floor. Operators can view real-time DC bus voltage, output current, switching frequency, and thermal margin on process mimic screens, with alarm banners triggered automatically when fault thresholds are exceeded.

For plants with mixed protocol environments, an edge gateway — such as the Moxa MGate MB3660 or HMS Anybus X-gateway — performs protocol translation between the drive's Modbus RTU port and the plant's PROFINET backbone, ensuring that legacy drives equipped with the FS300R12KE3/AGDR-62C remain visible to modern SCADA historians. Industrial managed switches — such as the Hirschmann MACH104 or Cisco IE-3400 — provide the Layer 2 network infrastructure that carries this data reliably across the factory floor, with VLAN segmentation isolating drive control traffic from general IT traffic.

At the data visualization layer, KPI dashboards display energy consumption per production cycle, drive availability metrics, and predictive maintenance alerts derived from thermal trend analysis of the FS300R12KE3/AGDR-62C junction temperature data. This end-to-end data chain — from field-level power conversion to enterprise-level analytics — exemplifies the connected factory architecture that NANKMOS components are selected to support.

Many industrial sites operating medium-voltage drives face persistent data gaps that undermine production transparency and maintenance efficiency. The ABB FS300R12KE3/AGDR-62C addresses several of these challenges directly.

Protocol fragmentation is a common barrier in brownfield plants where PROFIBUS DP drives coexist with newer PROFINET or EtherNet/IP infrastructure. The AGDR-62C's fiber optic gate interface and the host drive's modular communication adapter architecture allow the FS300R12KE3/AGDR-62C to be integrated into virtually any fieldbus topology without replacing the drive cabinet, preserving capital investment while enabling modern data connectivity.

Data island elimination is achieved by mapping gate driver fault codes, thermal readings, and switching statistics to standard PLC data blocks, making drive health data available to SCADA historians and MES systems that previously had no visibility into the power conversion layer. This transparency enables condition-based maintenance scheduling, replacing time-based replacement intervals with data-driven decisions.

Remote monitoring and diagnostics are enabled through the drive's communication adapter, which exposes the FS300R12KE3/AGDR-62C's operational parameters to remote access platforms. Maintenance engineers can interrogate drive status, review fault logs, and adjust switching parameters from the control room or via secure remote access, reducing the need for physical inspection of high-voltage cabinets.

Production line transparency is enhanced by integrating drive energy consumption data into the plant's MES layer, enabling per-product energy cost tracking and identification of inefficient operating points. Alarm tracking and escalation workflows ensure that gate driver faults are routed to the correct maintenance team with full context, reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

System expansion is straightforward: additional drives equipped with the FS300R12KE3/AGDR-62C can be added to the PROFINET or PROFIBUS network without architectural changes, with each new drive automatically appearing in the SCADA tag database upon commissioning.

Q1: What communication protocols does the ABB FS300R12KE3/AGDR-62C support for SCADA integration?The FS300R12KE3/AGDR-62C itself communicates via the AGDR-62C gate driver's fiber optic interface. When installed in an ABB ACS880 or ACS580 drive with an appropriate communication adapter (RDNA-01 for PROFINET, FPBA-01 for PROFIBUS DP, FENA-21 for EtherNet/IP), the module's operational data is accessible over the corresponding industrial network and can be integrated into any SCADA or HMI platform that supports these protocols.

Q2: How does the AGDR-62C gate driver contribute to network stability and fault response time?The AGDR-62C provides isolated gate drive signals via fiber optic links, eliminating electromagnetic interference from the high-voltage switching environment. Desaturation detection and active clamping circuits respond to fault conditions within microseconds, generating a fault output signal that is transmitted to the drive control board and subsequently to the PLC and SCADA layer, ensuring alarm escalation within one PLC scan cycle.

Q3: Can the FS300R12KE3/AGDR-62C be integrated into existing PROFIBUS DP networks without replacing the host drive?Yes. If the host drive already has a PROFIBUS DP communication adapter installed, the FS300R12KE3/AGDR-62C can be retrofitted as a direct replacement for the existing IGBT module without any changes to the network configuration. The drive's PROFIBUS node address, baud rate, and GSD file remain unchanged, ensuring transparent integration with the existing PLC and SCADA infrastructure.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the FS300R12KE3/AGDR-62C?All FS300R12KE3/AGDR-62C units supplied by NANKMOS are covered by a 12-month warranty from the date of delivery. Each unit undergoes pre-shipment testing including gate drive signal verification, insulation resistance measurement between power terminals and gate driver circuitry, and thermal interface inspection to ensure the module is ready for immediate installation. Full traceability documentation is included with every shipment.
