ABB FS300R12KE3/AGDR-72CS FS300R12KE3/AGDR-72C

Product Details

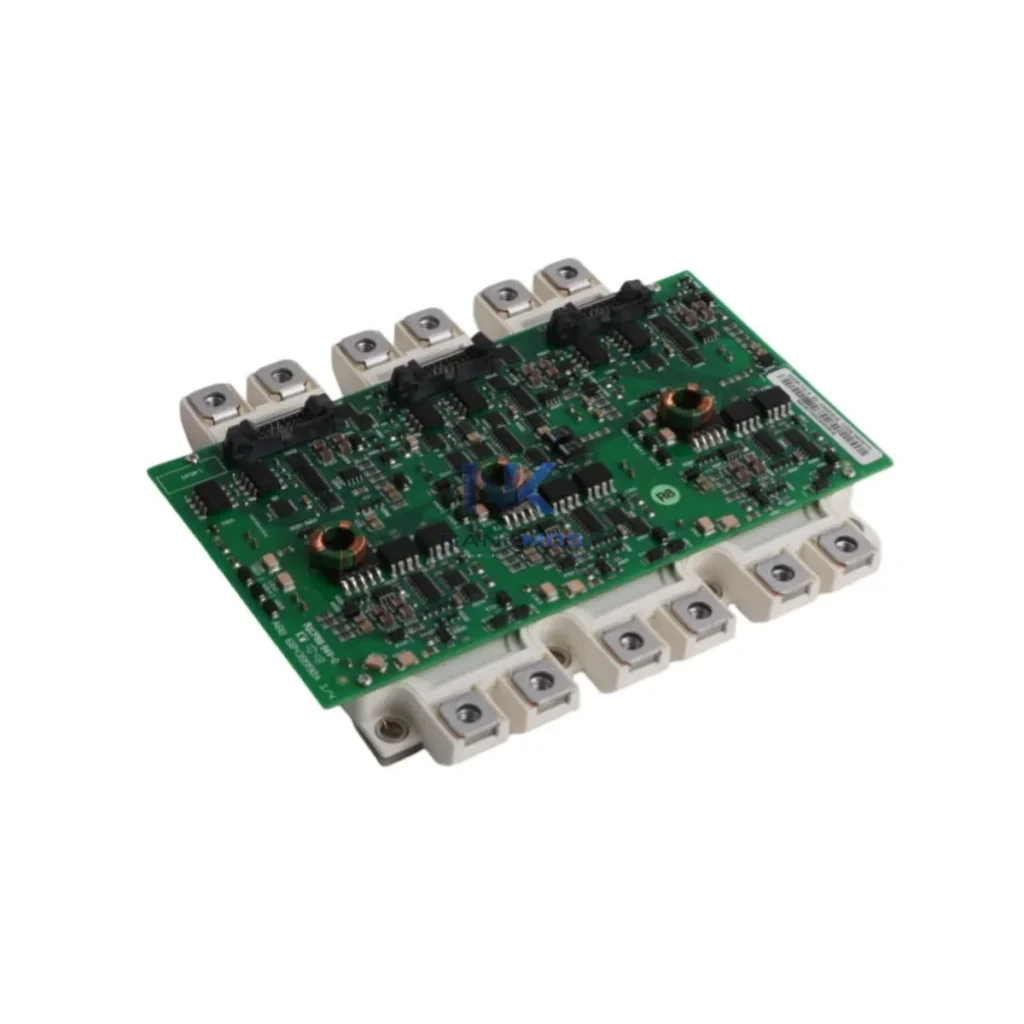

FS300R12KE3/AGDR-72CS FS300R12KE3/AGDR-72C Product Description

The ABB FS300R12KE3/AGDR-72C is a high-performance IGBT power module engineered for demanding industrial drive applications, most notably the ABB ACS800 series of AC drives. Rated at 300 A / 1200 V, this module delivers the switching precision and thermal stability required to sustain continuous, energy-efficient motor control across heavy-duty production environments. Whether deployed in steel processing, paper mills, chemical plants, or large-scale HVAC systems, the FS300R12KE3/AGDR-72C serves as the core power-switching element that translates DC bus energy into precisely modulated AC output — minimizing harmonic distortion, reducing switching losses, and keeping motor efficiency at its peak across the full load range.

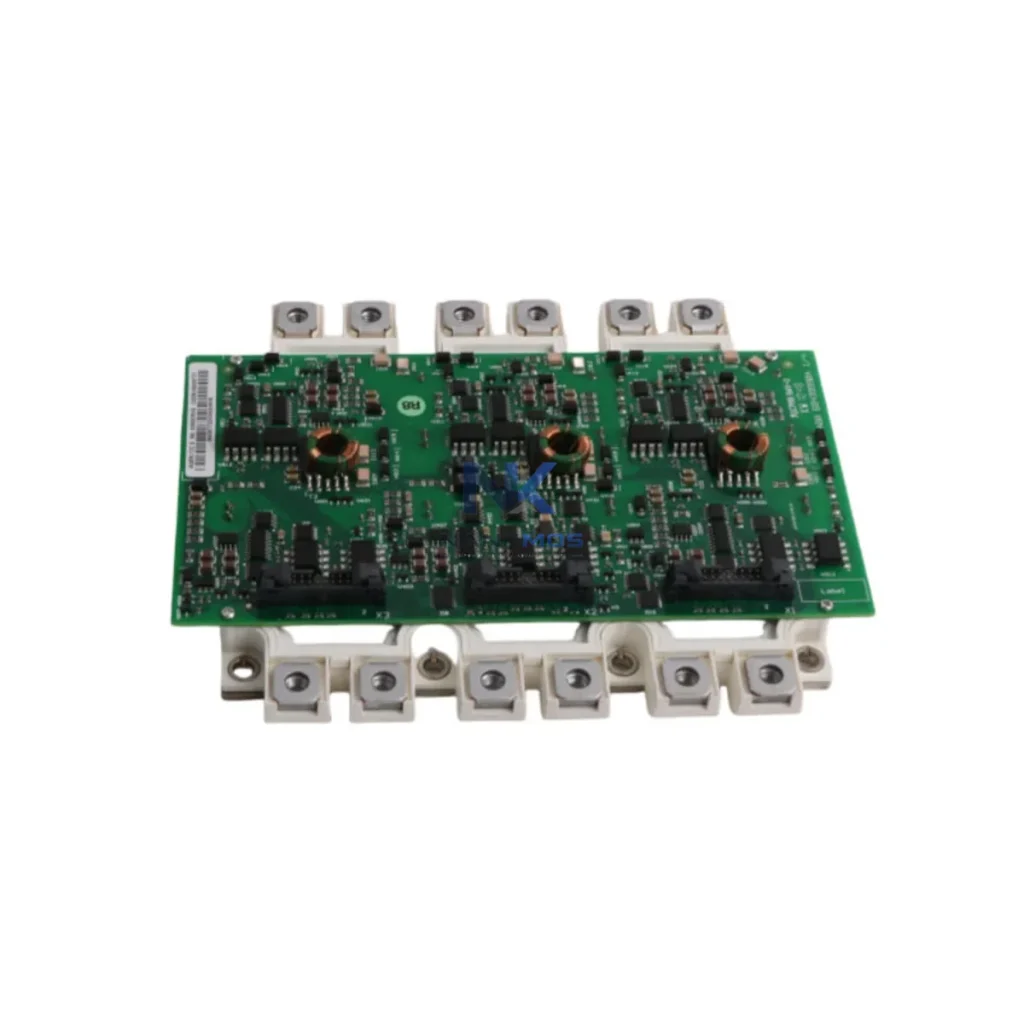

Paired with the AGDR-72C gate driver board, this assembly provides isolated, high-speed gate drive signals that protect the IGBT die from shoot-through events and over-current faults. The AGDR-72C monitors collector-emitter saturation voltage in real time, triggering a controlled soft-turn-off the moment an over-current condition is detected — a critical safeguard that prevents catastrophic module failure and unplanned production downtime. This integrated protection logic reduces the burden on the ACS800 main control board and shortens fault-response latency to microseconds, keeping the drive online and the production line running.

In a fully integrated smart factory, the FS300R12KE3/AGDR-72C does not operate in isolation — it is the switching heart of a coordinated energy management chain. The ABB ACS800-04 drive cabinet houses this module and receives speed and torque references from an upstream ABB AC500 PLC, which executes the production recipe and load-scheduling logic. The PLC reads real-time power consumption data from an ABB B23 power monitoring module installed on the MCC bus, enabling closed-loop energy budgeting: when total plant load approaches a demand threshold, the AC500 automatically ramps motor speed via the ACS800, reducing peak kW draw without interrupting the production cycle.

On the feedback side, ABB ACS800 encoder interface modules (such as the RTAC-01 or RPBA-01 PROFIBUS adapter) relay actual shaft speed and torque back to the control layer, allowing the drive to maintain slip compensation and minimize reactive power. The RPBA-01 also exposes drive fault codes and energy counters to the plant SCADA system over PROFIBUS DP, giving energy managers a live view of kWh consumed per production batch. When integrated with an ABB Panel Builder 800 HMI, operators can visualize drive efficiency curves, set energy-saving speed profiles for off-peak hours, and acknowledge fault events without leaving the control room.

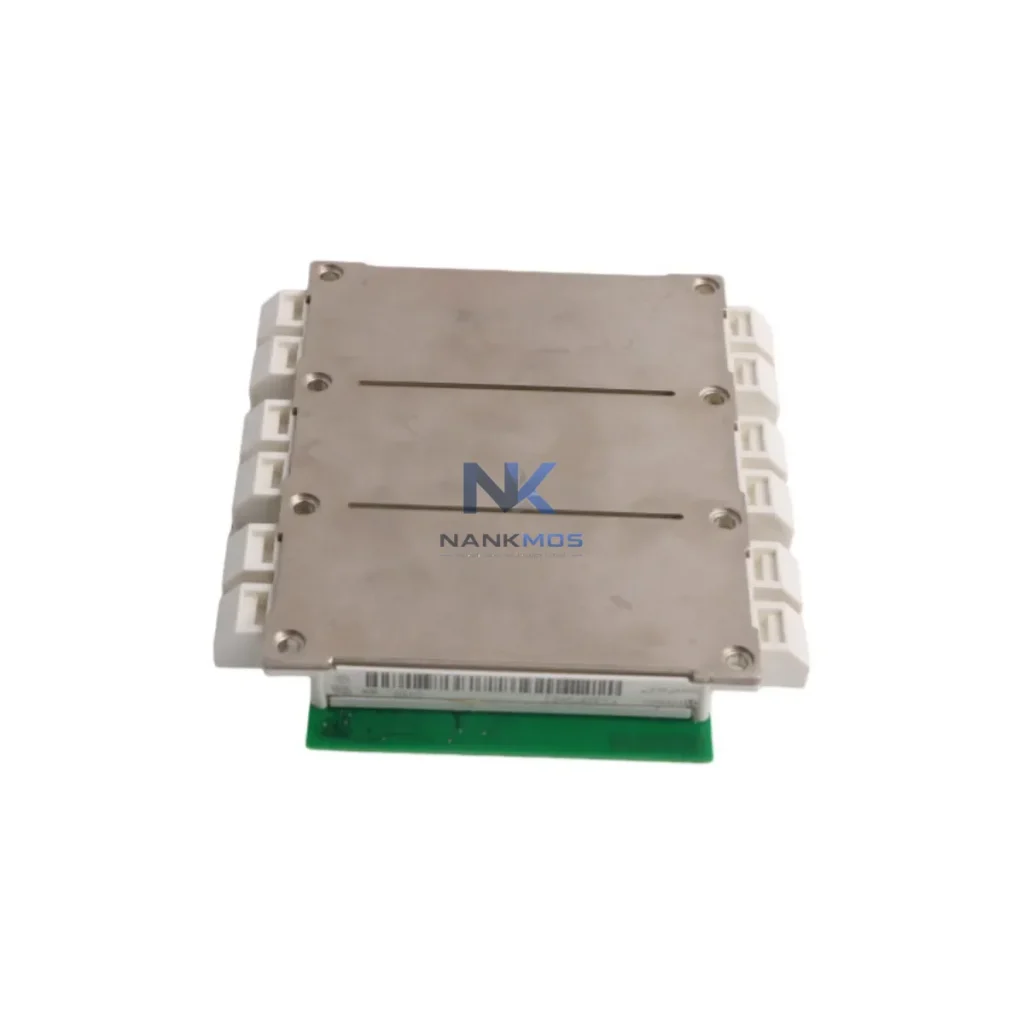

Thermal management is equally critical. The FS300R12KE3/AGDR-72C's copper base-plate interfaces directly with the ACS800's liquid-cooled heatsink assembly. Coolant flow is regulated by a dedicated pump controller that responds to NTC thermistor signals embedded in the module housing. Should coolant flow drop below the minimum threshold, the ACS800 AINT board raises a thermal warning via the DDCS fiber-optic link before the junction temperature reaches the 150 °C limit — a predictive safeguard that prevents thermal runaway and extends module service life well beyond the standard replacement interval.

For multi-drive installations — common in rolling mills or extruder lines — multiple ACS800 units share a common DC bus supplied by an ABB ACS800-31 regenerative supply unit. This topology allows braking energy from decelerating motors to be fed back into the DC bus and consumed by accelerating axes, rather than dissipated as heat in braking resistors. The FS300R12KE3/AGDR-72C's low on-state voltage drop (VCE(sat)) is essential in this regenerative architecture: even a 0.1 V reduction in saturation voltage across a 300 A module translates to 30 W of continuous loss savings per switching cycle — meaningful at the scale of a multi-megawatt drive system.

Factory energy audits consistently identify variable-speed motor drives as the single highest-impact intervention for reducing industrial electricity consumption. The FS300R12KE3/AGDR-72C enables the ACS800 to implement Direct Torque Control (DTC) — ABB's proprietary algorithm that eliminates the need for a shaft encoder in most applications while delivering torque response times under 2 ms. This rapid torque response means the drive can follow load variations on a conveyor, pump, or compressor without over-speeding or under-speeding the motor, keeping the operating point on the motor's efficiency curve at all times.

In pump and fan applications governed by affinity laws, reducing motor speed by just 20% cuts power consumption by nearly 50%. The FS300R12KE3/AGDR-72C's low switching losses allow the ACS800 to operate at the optimal switching frequency for each load condition — higher frequencies for smoother current waveforms at light loads, lower frequencies to minimize switching losses at full load — dynamically balancing motor noise, efficiency, and thermal stress. The result is a measurable reduction in energy cost per unit of production output, typically 15–40% compared to fixed-speed DOL starters.

Predictive maintenance integration further amplifies these gains. By monitoring the AGDR-72C's gate drive current waveform and comparing it against baseline signatures stored in the SCADA historian, maintenance engineers can detect early-stage IGBT degradation — increased gate charge, rising VCE(sat), or asymmetric switching times — weeks before a module failure would cause an unplanned shutdown. Scheduled replacement during planned maintenance windows eliminates the 4–8 hour emergency repair cycles that disrupt production schedules and inflate energy consumption through inefficient restart sequences.

Every unit supplied by NANKMOS undergoes a full pre-shipment functional test: gate drive signal integrity, VCE(sat) measurement at rated current, insulation resistance verification, and thermal cycling. This ensures that the module installed in your ACS800 cabinet performs to ABB's original specification from day one, with no infant-mortality failures that could compromise your line's energy efficiency targets.

Q1: What energy savings can I expect after replacing a degraded FS300R12KE3/AGDR-72C in my ACS800? A degraded IGBT module typically exhibits increased VCE(sat), which raises conduction losses and heats the drive cabinet — forcing cooling systems to work harder. Replacing with a new, tested FS300R12KE3/AGDR-72C restores rated switching efficiency, reduces cabinet thermal load, and allows the ACS800's DTC algorithm to operate at its designed accuracy. Customers in continuous-process industries have reported a return to baseline energy consumption within the first production shift after replacement.

Q2: Is the FS300R12KE3/AGDR-72C compatible with all ACS800 variants? This module is the standard power stage for ACS800-04, ACS800-07, and ACS800-17 frame sizes in the 160–250 kW range (400 V class). Compatibility depends on the specific drive frame and firmware revision. Always cross-reference the ACS800 hardware manual (3AFE64527592) and confirm the gate driver interface matches the AGDR-72C pinout before installation. NANKMOS technical support can assist with cross-referencing your drive's serial number.

Q3: What does the pre-shipment test cover, and how does it relate to the 12-month warranty? Each FS300R12KE3/AGDR-72C shipped by NANKMOS is tested for gate drive integrity, collector-emitter saturation voltage, diode forward voltage, and insulation resistance — all logged against the module's serial number. The 12-month warranty covers failures attributable to manufacturing defects or latent damage not detectable at the time of shipment. Warranty claims are supported by the pre-shipment test record, providing a clear baseline for failure analysis.

Q4: How quickly can NANKMOS supply the FS300R12KE3/AGDR-72C for emergency replacement? NANKMOS maintains buffer stock of high-demand ACS800 power modules, including the FS300R12KE3/AGDR-72C, to support emergency dispatch. Standard lead time for in-stock units is 3–5 business days to most destinations. For critical production lines, contact our team directly to confirm current inventory status and expedited shipping options.
