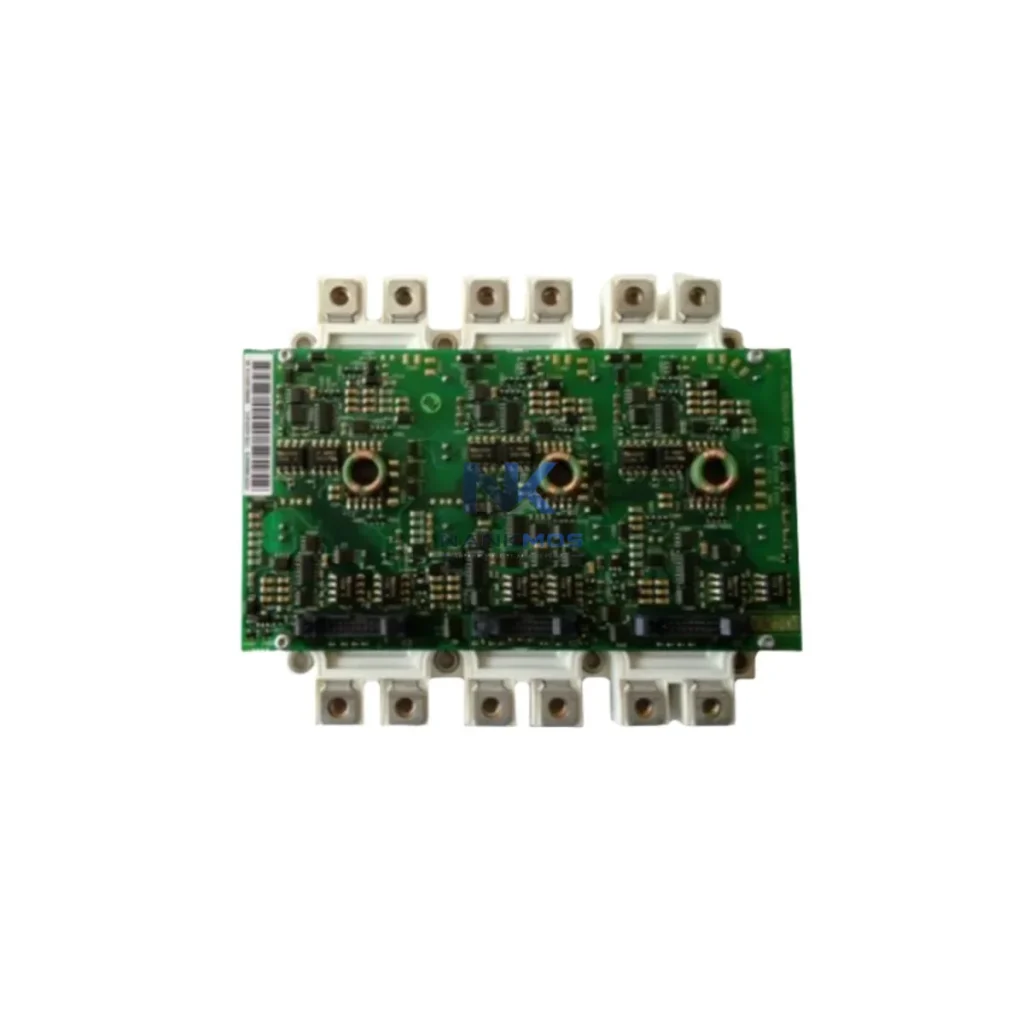

ABB FS300R12KE3/AGDR-72CS IGBT Module

Product Details

FS300R12KE3/AGDR-72CS Product Description

The ABB FS300R12KE3/AGDR-72CS is a high-performance IGBT power module paired with the AGDR-72CS gate driver unit, engineered for precision energy control in demanding industrial drive applications. Rated at 300A / 1200V, this module serves as the core switching element in ABB ACS800 series variable frequency drives, enabling accurate motor torque regulation, reduced switching losses, and measurable improvements in overall drive efficiency. Every unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty.

In a fully integrated smart production line, the FS300R12KE3/AGDR-72CS does not operate in isolation — it functions as the energy conversion core within a coordinated automation architecture. When paired with an ABB ACS800 variable frequency drive, the module enables precise speed and torque control of AC induction and permanent magnet motors, directly reducing energy consumption during partial-load cycles. The AGDR-72CS gate driver ensures clean, low-loss switching transitions, minimizing electromagnetic interference that could otherwise degrade the performance of nearby ABB AC500 PLC I/O modules or communication interfaces.

In motor control center (MCC) configurations, this IGBT module works alongside ABB SAMI or ACS880 drive inverter boards to distribute load across multiple motor axes. When the production line demand drops — during idle conveyor segments or between batch cycles — the drive modulates output frequency, and the FS300R12KE3 responds with reduced conduction losses, contributing directly to measurable kWh savings tracked by ABB B23 or B24 series power monitoring meters. These meters feed real-time energy data to the plant's SCADA layer, enabling demand-response strategies and shift-level energy benchmarking.

For servo-intensive applications such as CNC machining centers or robotic welding cells, the module's fast switching capability supports regenerative braking energy recovery when used in conjunction with ABB servo drive units and a shared DC bus architecture. Recovered braking energy is redistributed to other active axes rather than dissipated as heat, reducing both energy cost and thermal load on the control cabinet. Cabinet thermal management is further supported by integrating ABB FENA-21 Ethernet adapter modules for remote diagnostics, allowing maintenance teams to monitor drive temperature, load factor, and fault history without physical access to the panel.

At the field level, ABB NAIO or NTAC encoder interface modules provide accurate motor shaft feedback to the ACS800 drive, ensuring the FS300R12KE3 operates within its optimal switching window. Accurate speed feedback prevents over-current events that would otherwise stress the IGBT junctions and shorten module service life. On the HMI layer, operators use ABB CP600 or CP635 touch panels to visualize drive output power, motor efficiency curves, and energy consumption trends — giving production supervisors the data needed to optimize line throughput per kWh consumed.

Factory energy audits consistently identify variable speed drives as the single highest-impact intervention for reducing motor system energy consumption — and the quality of the IGBT switching module determines how much of that potential is actually realized. A degraded or counterfeit IGBT module introduces excess switching losses, increases DC bus ripple, and forces the drive's thermal protection to reduce output frequency — all of which translate directly into lost production throughput and higher energy cost per unit produced.

The ABB FS300R12KE3/AGDR-72CS addresses this at the component level. Its low saturation voltage (Vce(sat)) characteristic reduces conduction losses during the ON state, while the AGDR-72CS gate driver's optimized gate resistance values control dV/dt and dI/dt during switching transitions — suppressing voltage spikes that would otherwise require larger snubber networks or more conservative drive derating. The result is a drive system that can operate closer to its rated capacity without thermal runaway risk, improving equipment utilization rates across multi-shift production schedules.

In continuous process industries — petrochemical pumping stations, water treatment blower systems, or paper mill refiner drives — where motors run 24/7, even a 1–2% improvement in drive efficiency translates into significant annual energy savings. The FS300R12KE3's design supports this by maintaining stable switching characteristics across a wide junction temperature range, reducing the frequency of thermal-cycle-induced micro-fatigue that leads to bond wire failure and unplanned downtime. Predictive maintenance programs that monitor drive output current harmonics and DC bus voltage stability can use these parameters as early indicators of IGBT degradation — enabling planned replacement during scheduled maintenance windows rather than emergency shutdowns.

Stock availability is maintained to support rapid replacement cycles. Each unit undergoes pre-shipment functional testing covering gate threshold voltage, leakage current, and on-state voltage drop verification. Shipment lead times are confirmed at order placement, and all units are covered by a 12-Month Warranty from the date of delivery.

Q1: What energy savings can I expect after replacing a degraded IGBT module with the FS300R12KE3/AGDR-72CS? A degraded IGBT module typically increases drive losses by 15–30% due to elevated Vce(sat) and increased switching energy. Replacing it with a specification-correct FS300R12KE3 restores the drive to its designed efficiency curve. In high-duty-cycle applications, this can recover 1–3% of total motor system energy consumption — measurable within the first billing cycle when monitored via an ABB power meter or SCADA energy dashboard.

Q2: Is the FS300R12KE3/AGDR-72CS compatible with all ACS800 drive variants? The FS300R12KE3 paired with the AGDR-72CS gate driver is the specified power module for ACS800 drives in the 160–250 kW output range (400V class). Compatibility depends on the specific ACS800 frame size and firmware revision. Cross-reference the drive's inverter module part number from the hardware manual or the existing module's label before ordering. Our technical team can assist with cross-referencing if the drive documentation is unavailable.

Q3: What does the pre-shipment testing process cover? Each FS300R12KE3/AGDR-72CS unit is tested for: gate-emitter threshold voltage (Vge(th)), collector-emitter leakage current (Ices), on-state saturation voltage (Vce(sat)), and gate driver output signal integrity. Units that do not meet ABB datasheet parameters are rejected. A test record is available upon request. All units ship with the 12-Month Warranty active from delivery date.

Q4: What is the recommended replacement interval, and how do I identify early IGBT degradation? There is no fixed calendar interval — IGBT service life depends on thermal cycling frequency, load profile, and cooling system condition. Early degradation indicators include: increasing drive output current imbalance between phases, rising heatsink temperature at equivalent load, and increased DC bus ripple voltage. If the ACS800 drive logs recurring overcurrent or IGBT overtemperature faults without load changes, the FS300R12KE3 module should be prioritized for inspection and replacement. Maintaining a spare unit on-site eliminates lead time risk during unplanned events.
