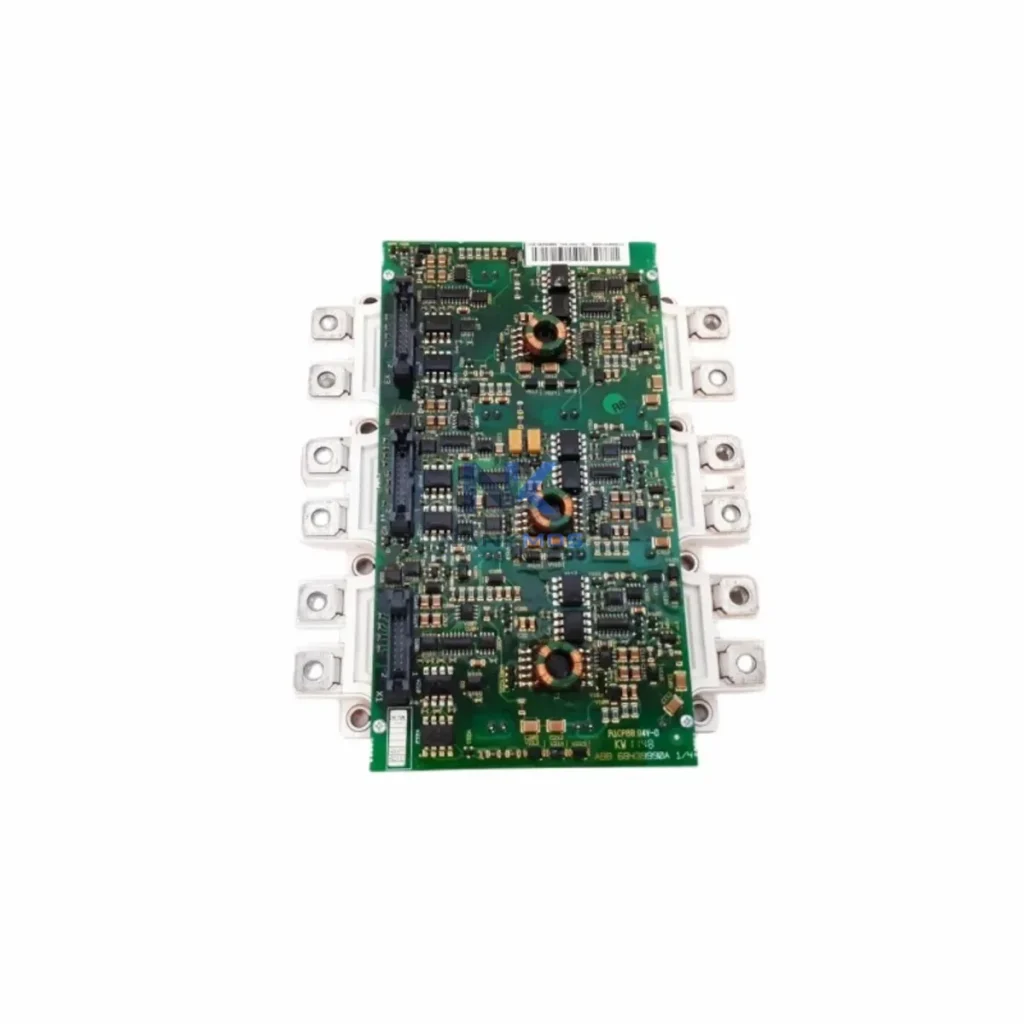

ABB FS300R17KE3/AGDR-76 IGBT Module

Product Details

FS300R17KE3/AGDR-76 Product Description

The ABB FS300R17KE3/AGDR-76 is a high-power IGBT module engineered for precision energy control in demanding industrial drive applications. Designed to operate within ABB's ACS800 and ACS6000 variable frequency drive platforms, this module delivers exceptional switching efficiency, reduced thermal dissipation, and reliable load management across continuous production cycles. With a rated current of 300 A and a blocking voltage of 1700 V, it is purpose-built for high-torque motor control, regenerative braking, and dynamic load balancing in energy-intensive manufacturing environments.

As industrial facilities face increasing pressure to reduce energy consumption and meet sustainability targets, the FS300R17KE3/AGDR-76 plays a central role in minimizing switching losses and optimizing inverter efficiency. Its low saturation voltage (VCE(sat)) characteristics directly reduce conduction losses during high-frequency PWM operation, translating into measurable reductions in heat generation and cooling overhead — two of the largest contributors to auxiliary energy consumption in drive systems.

The FS300R17KE3/AGDR-76 does not operate in isolation — its energy control value is fully realized when integrated into a coordinated automation architecture. In a typical ACS800-based drive system, the IGBT module works in conjunction with the AGDR-76 gate driver board to regulate switching transitions with precision, reducing electromagnetic interference and protecting downstream motor windings from voltage spikes. The AGDR-76 provides isolated gate signals, desaturation protection, and short-circuit response, ensuring the IGBT operates within its safe operating area even under transient overload conditions.

Within a broader plant automation framework, the ACS800 drive communicates with the facility's PLC — such as an ABB AC500 or Siemens S7-300 — via PROFIBUS-DP or PROFINET, enabling real-time speed and torque commands that align motor output with actual production demand. This demand-driven control strategy eliminates the energy waste associated with fixed-speed motor operation, which can account for 20–30% of avoidable energy consumption in pump, fan, and conveyor applications.

Power monitoring is further enhanced when the drive system is paired with an ABB B23 or B24 energy meter or a dedicated power quality analyzer, allowing the SCADA system to log kWh consumption per production cycle. The FS300R17KE3/AGDR-76's low-loss switching profile contributes directly to cleaner power signatures, reducing harmonic distortion and improving power factor — both of which are tracked by energy management systems (EMS) operating under ISO 50001 frameworks.

On the I/O and feedback side, digital I/O modules connected to the ACS800 control board relay fault status, thermal warnings, and run/stop signals to the plant DCS or HMI panel. An ABB CP600 or similar operator panel provides local visibility into drive parameters, energy consumption trends, and fault history. Proximity sensors and encoder feedback modules connected to the motor shaft provide closed-loop speed data, enabling the drive to maintain precise process control without energy-wasting overshoot or hunting.

For communication-intensive installations, the ACS800's RDCO-02 or RDCO-03 optical communication module enables fiber-optic connectivity between the drive control unit and the IGBT power stage, reducing susceptibility to electrical noise in high-current environments — a critical consideration when the FS300R17KE3/AGDR-76 is switching at kilohertz frequencies in close proximity to other high-power equipment.

In continuous production environments — including paper mills, steel rolling lines, water treatment facilities, and chemical processing plants — the FS300R17KE3/AGDR-76 contributes to energy optimization at multiple levels. At the device level, its low switching losses reduce the thermal load on the drive cabinet, decreasing the duty cycle of cooling fans and lowering auxiliary power consumption. At the system level, its compatibility with the ACS800's energy optimizer function allows the drive to automatically reduce magnetizing current during light-load conditions, further cutting no-load losses.

Predictive maintenance integration is another key efficiency lever. By monitoring IGBT junction temperature trends via the drive's thermal model — cross-referenced with actual cabinet temperature sensors — maintenance teams can identify degradation patterns before they result in unplanned downtime. A single unplanned stoppage on a high-throughput production line can cost significantly more in lost output than the cost of a proactive module replacement, making the 12-month warranty and pre-shipment testing protocol a meaningful operational safeguard.

From a production rhythm perspective, the FS300R17KE3/AGDR-76 supports consistent line speed and torque stability, which is essential for maintaining product quality in tension-controlled winding, extrusion, and conveyor applications. Variations in motor torque caused by degraded IGBT performance can introduce micro-stoppages, speed fluctuations, and quality rejects — all of which carry hidden energy costs in the form of rework, scrap, and restart cycles. A properly functioning, high-efficiency IGBT module eliminates these sources of energy and productivity loss.

NANKMOS maintains in-stock inventory of the FS300R17KE3/AGDR-76 to support rapid project timelines and emergency replacement scenarios. Each unit undergoes functional testing prior to shipment, with results documented to support incoming inspection at the customer's facility. This reduces commissioning time and ensures the module is ready for immediate installation into the drive system.

Q1: How does the FS300R17KE3/AGDR-76 contribute to measurable energy savings in an ACS800 drive system?The module's low VCE(sat) and optimized switching characteristics reduce both conduction and switching losses within the inverter stage. When combined with the ACS800's built-in energy optimizer and demand-based speed control, total drive system efficiency improvements of 5–15% are achievable compared to fixed-speed or older-generation IGBT technology, depending on load profile and operating hours.

Q2: Is the FS300R17KE3/AGDR-76 compatible with both ACS800 and ACS6000 platforms, and are there cross-reference alternatives?Yes, the FS300R17KE3/AGDR-76 is designed for use in ABB ACS800 and ACS6000 drive families. The AGDR-76 gate driver is an integral part of the assembly and must be used together with the FS300R17KE3 power module. Cross-reference alternatives from other manufacturers should be evaluated carefully against gate charge, thermal resistance, and short-circuit withstand time specifications to ensure compatibility with the existing drive control firmware.

Q3: What does the pre-shipment testing process cover, and how does it support the 12-month warranty?Each FS300R17KE3/AGDR-76 unit supplied by NANKMOS is functionally tested prior to dispatch. Testing covers gate-emitter threshold voltage, collector-emitter leakage current, and gate driver signal integrity. The 12-month warranty covers defects in materials and workmanship under normal operating conditions, providing assurance for both new installations and replacement scenarios in existing drive systems.

Q4: What is the recommended replacement procedure to minimize production downtime?Prior to replacement, the ACS800 drive should be fully de-energized and DC bus voltage verified at zero using a calibrated meter. The AGDR-76 gate driver connections should be documented and disconnected before removing the IGBT module. Thermal interface material should be renewed on the heatsink contact surface. After installation, a controlled ramp-up test at reduced load is recommended before returning the drive to full production speed. NANKMOS's in-stock availability ensures replacement units can be dispatched promptly to minimize line downtime.
