ABB FS450R17KE3/AGDR-61C IGBT Power Module

Product Details

FS450R17KE3/AGDR-61C Product Description

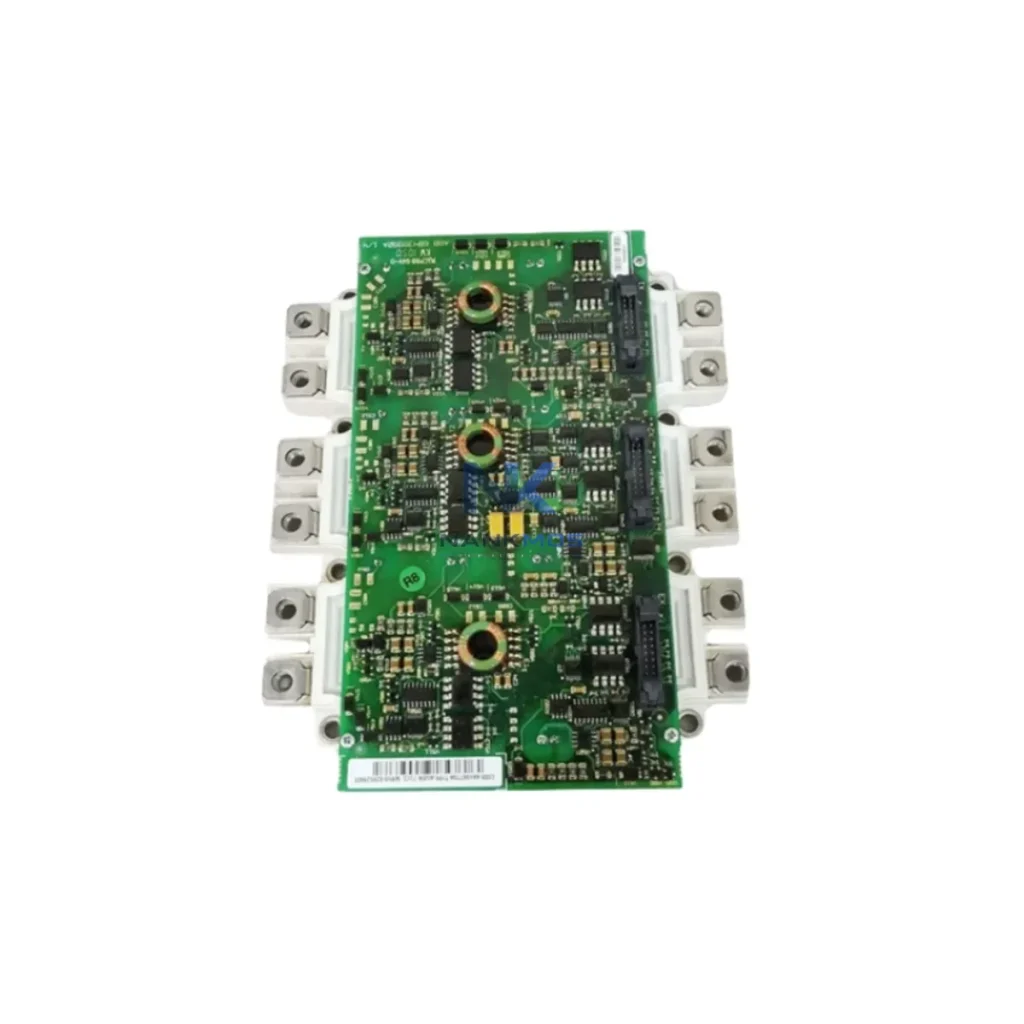

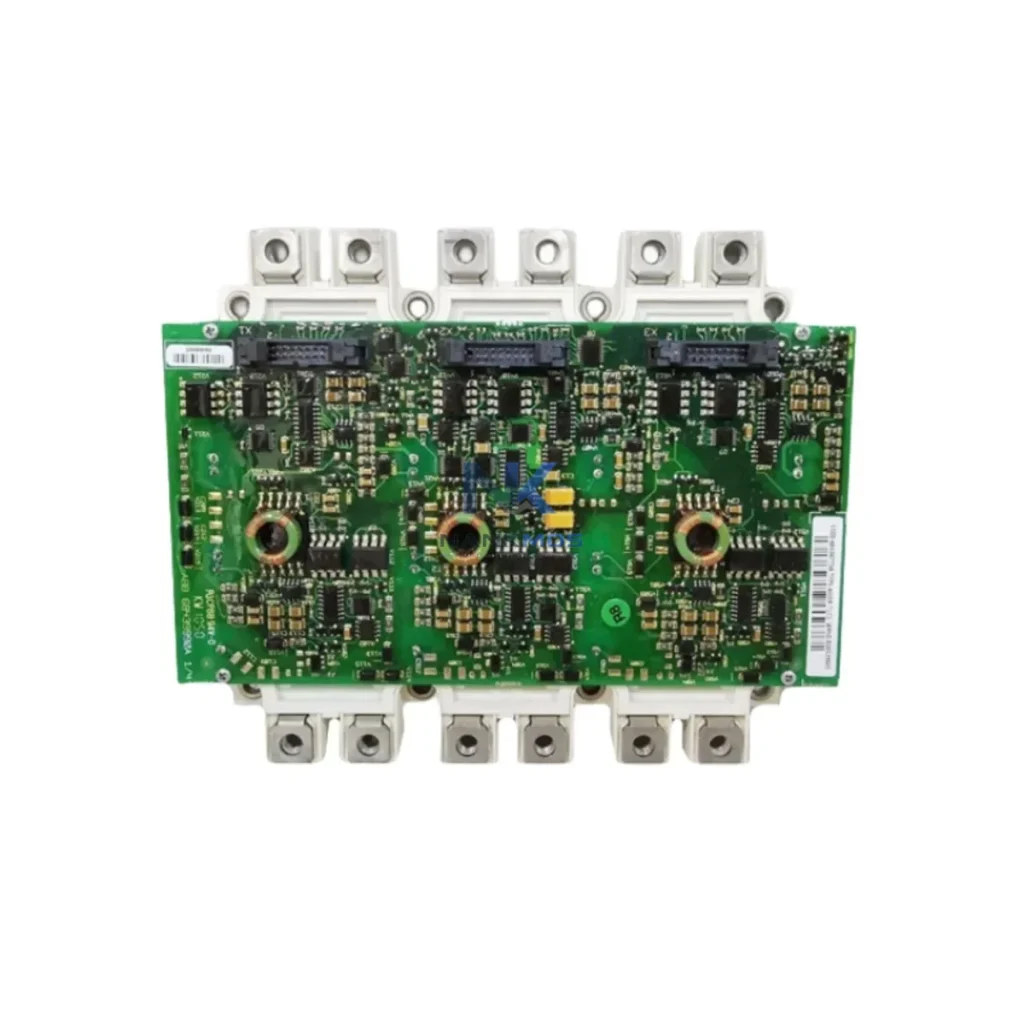

The ABB FS450R17KE3/AGDR-61C is a high-power IGBT module assembly engineered for seamless integration into ABB ACS800 series variable frequency drive architectures. Combining the FS450R17KE3 IGBT power brick with the AGDR-61C gate driver board, this matched pair delivers precise switching control, thermal stability, and long-term reliability across demanding industrial power conversion environments. Designed for system-level deployment rather than isolated component replacement, the FS450R17KE3/AGDR-61C supports the full control hierarchy of the ACS800 platform — from DC bus conditioning and inverter switching to motor torque regulation and regenerative braking sequences.

In modern industrial automation architectures, the IGBT power stage is the critical interface between the control layer and the motor execution layer. The FS450R17KE3/AGDR-61C occupies this role with a 1700V blocking voltage rating and 450A continuous collector current capacity, making it suitable for medium-voltage motor drive applications in steel mills, cement plants, paper machines, marine propulsion systems, and large-scale HVAC installations. The AGDR-61C gate driver provides isolated gate signal conditioning, short-circuit protection, desaturation detection, and fault feedback to the ACS800 control board — ensuring that switching events are precisely timed and that fault conditions are communicated upstream without delay.

Every unit in our inventory has been pre-shipment tested under load conditions to verify gate threshold voltage, on-state voltage drop, leakage current, and thermal resistance parameters. Stock is maintained in climate-controlled storage to preserve junction integrity and prevent moisture ingress into the gate oxide layer. All units ship with a 12-Month Warranty covering manufacturing defects and parametric drift beyond datasheet tolerances.

The FS450R17KE3/AGDR-61C does not operate in isolation — it is one node in a tightly coupled ACS800 drive architecture where every layer contributes to system consistency and uptime. At the control layer, the ACS800 main control board (RMIO-11C or RMIO-02C) generates the PWM reference signals that the AGDR-61C translates into isolated gate pulses. The AGDR-61C's optical isolation barrier ensures that high-voltage switching transients on the power stage do not propagate back into the low-voltage control circuitry, preserving signal integrity across the entire drive.

On the power supply side, the APOW-01C or APOW-02C auxiliary power supply board provides the regulated ±15V and +24V rails that the AGDR-61C requires for gate drive operation. Any instability in these supply rails directly affects switching timing and can cause asymmetric conduction losses across the IGBT bridge. Pairing the FS450R17KE3/AGDR-61C with a verified APOW board eliminates this variable from the commissioning process.

The DC bus capacitor bank — typically a bank of film or electrolytic capacitors mounted on the ACS800 power frame — works in conjunction with the IGBT switching stage to smooth rectified DC voltage and absorb switching ripple. When replacing the FS450R17KE3/AGDR-61C, it is standard practice to inspect the capacitor bank for ESR degradation, as aged capacitors increase voltage stress on the IGBT during turn-off transients. Similarly, the ACS800 brake chopper module (if installed) shares the DC bus and must be verified for correct threshold voltage settings after an IGBT replacement.

At the I/O and fieldbus layer, the RDCO-01C or RDCO-04C communication adapter boards connect the ACS800 to PROFIBUS-DP, DeviceNet, or Modbus RTU networks, enabling the drive to receive speed and torque references from a PLC such as the ABB AC500 series or a Siemens S7-300/S7-400 controller. The FS450R17KE3/AGDR-61C replacement does not require fieldbus reconfiguration, but a full parameter backup via DriveWindow or the ACS800 control panel (ACS-CP-C) is recommended before and after the swap to confirm that motor model parameters and protection thresholds are preserved.

For HMI integration, the ACS-CP-C control panel or an external Beijer Electronics or Weintek HMI connected via RS-485 provides real-time monitoring of DC bus voltage, output current, heatsink temperature, and fault history — all of which are directly relevant to IGBT health monitoring. Post-replacement commissioning should include a full load ramp test with current and temperature logging to confirm that the new IGBT assembly is operating within thermal design margins.

In redundant drive architectures — common in critical process lines such as petrochemical compressor trains or water treatment pump stations — a standby ACS800 drive unit with a pre-installed FS450R17KE3/AGDR-61C assembly can be brought online within minutes of a primary drive fault, minimizing process interruption. Maintaining a spare IGBT assembly in the control cabinet spares kit is a recognized best practice in IEC 62443-compliant maintenance programs.

Steel & Metals Processing: In rolling mill and continuous casting lines, ACS800 drives equipped with FS450R17KE3/AGDR-61C IGBT stacks control the torque and speed of main drive motors ranging from 200kW to over 1MW. The high current capacity and robust short-circuit protection of this assembly are essential for handling the regenerative braking loads generated during coil deceleration sequences.

Cement & Mining: Kiln drives, ball mill drives, and conveyor systems in cement plants and open-pit mining operations rely on ACS800 drives for variable-speed control under high-inertia load conditions. The FS450R17KE3/AGDR-61C's thermal stability under continuous high-load operation makes it the preferred replacement component for drives operating in ambient temperatures up to 45°C.

Marine Propulsion & Offshore: Vessel propulsion systems and thruster drives using ACS800 technology require IGBT assemblies that meet DNV GL or ABS marine type approval standards. The FS450R17KE3/AGDR-61C is used in marine-grade ACS800 variants where vibration resistance, humidity tolerance, and salt-air protection are specified in the drive enclosure design.

Pulp & Paper: Paper machine section drives — including wire, press, dryer, and calendar sections — use ACS800 drives in coordinated multi-drive configurations. The FS450R17KE3/AGDR-61C supports the precise torque matching required between adjacent drive sections to prevent web breaks and maintain sheet tension consistency.

Water & Wastewater Treatment: Large pump and blower drives in municipal water treatment facilities benefit from the ACS800's energy optimization algorithms, which depend on accurate IGBT switching to implement flux optimization and energy-saving modes. A degraded IGBT assembly increases switching losses and reduces the effectiveness of these energy management features.

Q1: Is the AGDR-61C gate driver board included with the FS450R17KE3, and must they be replaced as a matched pair? Yes. The FS450R17KE3/AGDR-61C is supplied as a matched assembly. The AGDR-61C is factory-calibrated to the specific gate charge characteristics of the FS450R17KE3 IGBT brick. Replacing only the IGBT without the gate driver — or vice versa — risks mismatched switching timing, increased switching losses, and potential desaturation fault triggering under normal load conditions. Always replace as a complete assembly to maintain ACS800 drive performance and protection integrity.

Q2: What commissioning steps are required after installing the FS450R17KE3/AGDR-61C in an ACS800 drive? After mechanical installation and torque verification of all bus bar connections, perform the following: (1) Verify DC bus pre-charge circuit operation before enabling the main contactor; (2) Confirm AGDR-61C fault feedback signal continuity to the RMIO control board; (3) Run the ACS800 motor identification routine (ID Run) to re-establish motor model parameters; (4) Perform a no-load test at 10%, 50%, and 100% speed reference; (5) Log heatsink temperature at full load for 30 minutes to confirm thermal resistance is within specification. All steps should be documented in the site maintenance log per IEC 60364 requirements.

Q3: What does the 12-Month Warranty cover, and what is the process for a warranty claim? The 12-Month Warranty covers manufacturing defects, parametric drift beyond published datasheet tolerances, and gate driver board failures attributable to component quality. It does not cover damage resulting from incorrect installation torque, DC bus overvoltage events, coolant system failures, or operation outside the rated current and temperature envelope. To initiate a warranty claim, contact [email protected] with the order reference, installation date, fault description, and ACS800 fault log extract. Units must be returned in anti-static packaging with all bus bar hardware included. Replacement units are dispatched from verified stock within 3–5 business days of claim approval.
