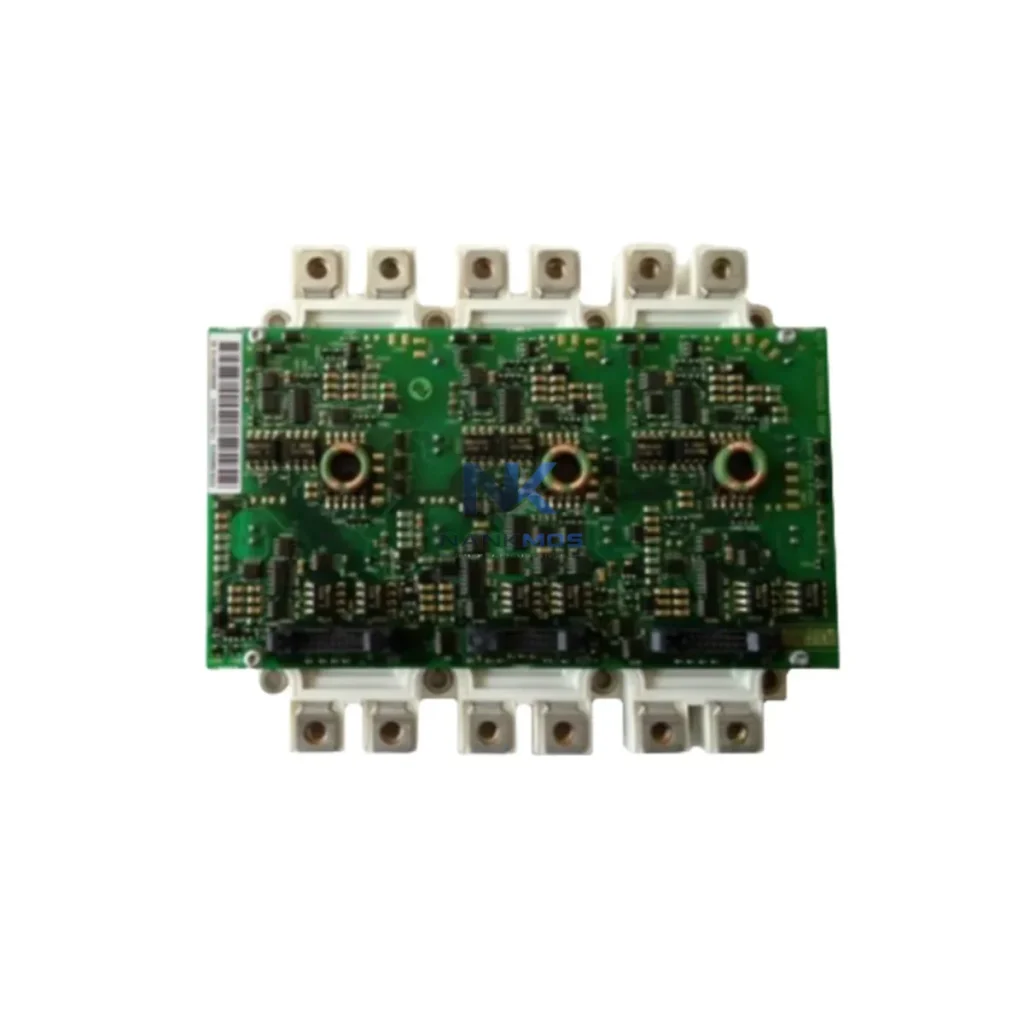

ABB FS450R17KE3/AGDR-72C S 68569427 Gate Driver Board

Product Details

FS450R17KE3/AGDR-72C S 68569427 Product Description

The ABB AGDR-72C (part of the FS450R17KE3/AGDR-72C S assembly, 68569427) is a precision gate driver board engineered for direct integration within ABB's ACS800 industrial drive platform. Designed to interface with high-power IGBT modules — specifically the FS450R17KE3 — this gate driver delivers the switching accuracy, isolation integrity, and fault-response speed required in demanding industrial control architectures. Whether deployed in a new drive system or as a verified replacement in an existing installation, the AGDR-72C maintains the electrical and functional consistency that multi-axis, high-availability automation environments demand.

In modern industrial control architecture, the gate driver occupies a critical position between the control layer and the power conversion layer. It translates low-level PWM command signals from the drive's main control board into precisely timed, galvanically isolated gate pulses that switch the IGBT module. Any deviation in switching timing, gate voltage level, or fault propagation speed directly impacts drive efficiency, thermal performance, and system uptime. The AGDR-72C is factory-calibrated to the FS450R17KE3 IGBT module's gate charge characteristics, ensuring that turn-on and turn-off transitions remain within the IGBT's safe operating area across the full load and temperature range.

From a system architecture perspective, the AGDR-72C does not operate in isolation. It is one node in a tightly coupled signal and power chain that spans from the PLC or DCS command layer through the ACS800 drive's RMIO control board, across the DDCS fiber-optic communication link, into the AINT or AINT-02 inverter control interface board, and finally to the IGBT power module stack. Disruption or degradation at any layer — whether in the RMIO firmware, the DDCS link integrity, the DC bus capacitor bank, or the gate driver itself — propagates as a fault condition that can trip the entire drive or, in worst cases, cause uncontrolled IGBT conduction. The AGDR-72C's integrated desaturation detection and short-circuit protection circuitry provides the first line of defense at the power stage, isolating fault events within microseconds before they can cascade to adjacent phases or connected mechanical loads.

The AGDR-72C achieves its full value when understood within the complete ACS800 automation platform rather than as a standalone component. At the control layer, the ACS800's RMIO-11 or RMIO-02 main control board generates the PWM reference signals and manages drive logic, speed references, and fieldbus communication via PROFIBUS-DP or Modbus RTU adapters such as the RPBA-01 or RMBA-01. These signals traverse the DDCS fiber-optic ring to the AINT-02 inverter interface board, which distributes phase-specific gate commands to each AGDR-72C driver in the inverter stack.

On the power supply side, the APOW-01 or equivalent auxiliary power supply board provides the isolated gate driver supply rails that the AGDR-72C requires for stable operation. Voltage ripple or dropout on these rails directly degrades gate switching quality, making the power supply board a critical companion component in any AGDR-72C replacement or commissioning scenario. The DC bus capacitor bank — typically a bank of electrolytic capacitors rated for the drive's DC link voltage — must also be verified for capacitance and ESR before a gate driver replacement is considered complete, as degraded capacitors increase voltage transients that stress the IGBT and gate driver simultaneously.

For multi-drive installations, the ACS800 supports master-follower configurations using the DDCS link, where a master drive's RMIO board coordinates speed and torque references across follower drives. In these architectures, gate driver consistency across all inverter stacks is essential: a single degraded AGDR-72C in a follower drive can introduce phase asymmetry that the master drive's torque control loop cannot fully compensate, leading to mechanical stress on coupled loads such as multi-motor conveyor systems or coordinated winding lines.

At the I/O and signal layer, the AIAO-01 analog I/O extension board and ADIO-01 digital I/O board extend the drive's process interface capability, while the RETA-01 Ethernet adapter enables integration with plant-level SCADA systems. The AGDR-72C's fault output signal feeds back through the AINT board to the RMIO, where it is logged as a drive fault event and can be transmitted upstream to the control system for predictive maintenance workflows. This closed-loop fault visibility — from gate driver to PLC to SCADA — is a defining characteristic of well-engineered ACS800 installations and a key reason why using a system-matched, verified AGDR-72C replacement preserves the integrity of the entire diagnostic chain.

In cabinet-level design, the AGDR-72C assembly is typically mounted within a forced-air-cooled inverter section alongside the FS450R17KE3 IGBT module, heat sink, and thermal interface material. Proper torque on the IGBT module mounting screws, correct thermal paste application, and verified gate driver connector seating are all commissioning steps that directly affect long-term reliability. NANKMOS supplies the AGDR-72C with pre-shipment functional verification, reducing the risk of infant failure during drive recommissioning.

The ABB AGDR-72C and its matched FS450R17KE3 IGBT assembly are deployed across a wide range of high-power industrial drive applications where ACS800 platforms are the standard of choice.

In metals and mining, ACS800 drives with AGDR-72C gate driver stacks control hoist motors, conveyor drives, and mill drives where regenerative braking and four-quadrant operation are required. The gate driver's fast fault response is critical in these applications, where an uncontrolled IGBT conduction event could result in mechanical runaway on a loaded hoist.

In oil, gas, and petrochemical facilities, ACS800 drives manage pump and compressor motors in hazardous area installations. Drive availability is directly tied to process continuity, making verified spare parts — including gate driver boards — a standard element of site maintenance inventory. The 12-Month Warranty on NANKMOS-supplied AGDR-72C units supports the spare parts qualification process required by many site maintenance programs.

In power generation and utilities, ACS800 drives are used in excitation systems, cooling tower fan drives, and auxiliary motor control. In these applications, the drive's ability to maintain stable output voltage and frequency under varying load conditions depends on the gate driver's switching precision. The AGDR-72C's calibrated gate timing ensures that the IGBT module operates within its characterized switching loss envelope, supporting the drive's thermal management design.

In marine and offshore applications, ACS800 drives control thruster motors, winches, and cargo handling systems. The harsh vibration and humidity environment of marine installations places additional stress on PCB-mounted components, making the use of genuine, factory-specification gate driver boards essential for long-term reliability.

In water and wastewater treatment, ACS800 drives manage large pump motors in variable-flow applications. Energy efficiency in these installations is directly linked to the drive's ability to modulate motor speed accurately, which in turn depends on gate driver switching quality. A degraded AGDR-72C can introduce harmonic distortion into the motor current waveform, increasing motor heating and reducing pump efficiency.

In packaging and material handling production lines, ACS800 multi-drive systems coordinate multiple axes of motion. Gate driver consistency across all inverter stacks is essential for maintaining synchronization between conveyor sections, robotic pick-and-place systems, and palletizing equipment.

Q1: Is the AGDR-72C directly interchangeable with other ABB gate driver boards used in the ACS800 series? The AGDR-72C is specifically matched to the FS450R17KE3 IGBT module (1700V / 450A, Infineon). It is not a universal gate driver and should not be substituted for gate driver boards matched to different IGBT types or voltage ratings within the ACS800 family. Using a mismatched gate driver risks incorrect gate voltage levels, incompatible fault threshold settings, and potential IGBT damage. Always verify the IGBT module part number before ordering a replacement gate driver. NANKMOS can assist with cross-referencing if the original IGBT module label is damaged or missing.

Q2: What commissioning steps are required after installing a replacement AGDR-72C in an ACS800 drive? After mechanical installation and connector seating, the drive should be powered up with the motor disconnected and the DC bus pre-charged through the standard charging circuit. Verify that the RMIO board reports no gate driver fault (fault code 0022 or similar) before enabling the PWM output. Perform a no-load run at low speed to confirm phase current symmetry across all three phases. Check drive event log for any recurring desaturation or short-circuit fault events during the initial run. If the drive is part of a master-follower configuration, verify follower synchronization after the replacement unit is confirmed stable. NANKMOS provides pre-shipment functional verification data on request to support site commissioning documentation.

Q3: What does the 12-Month Warranty cover for the AGDR-72C, and how does NANKMOS support long-term spare parts availability? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, mismatched IGBT modules, overvoltage events caused by external system faults, or physical damage during handling. NANKMOS maintains inventory of AGDR-72C units and associated ACS800 drive components to support both planned maintenance programs and emergency replacement requirements. For sites with multiple ACS800 drives, NANKMOS recommends maintaining at least one AGDR-72C unit as a critical spare, given the lead times associated with sourcing obsolete or low-volume drive components through standard distribution channels. Contact [email protected] for volume pricing, consignment stock arrangements, or expedited shipping requirements.
