ABB FS450R17KE3'AGDR-72C IGBT Module

Product Details

FS450R17KE3'AGDR-72C Product Description

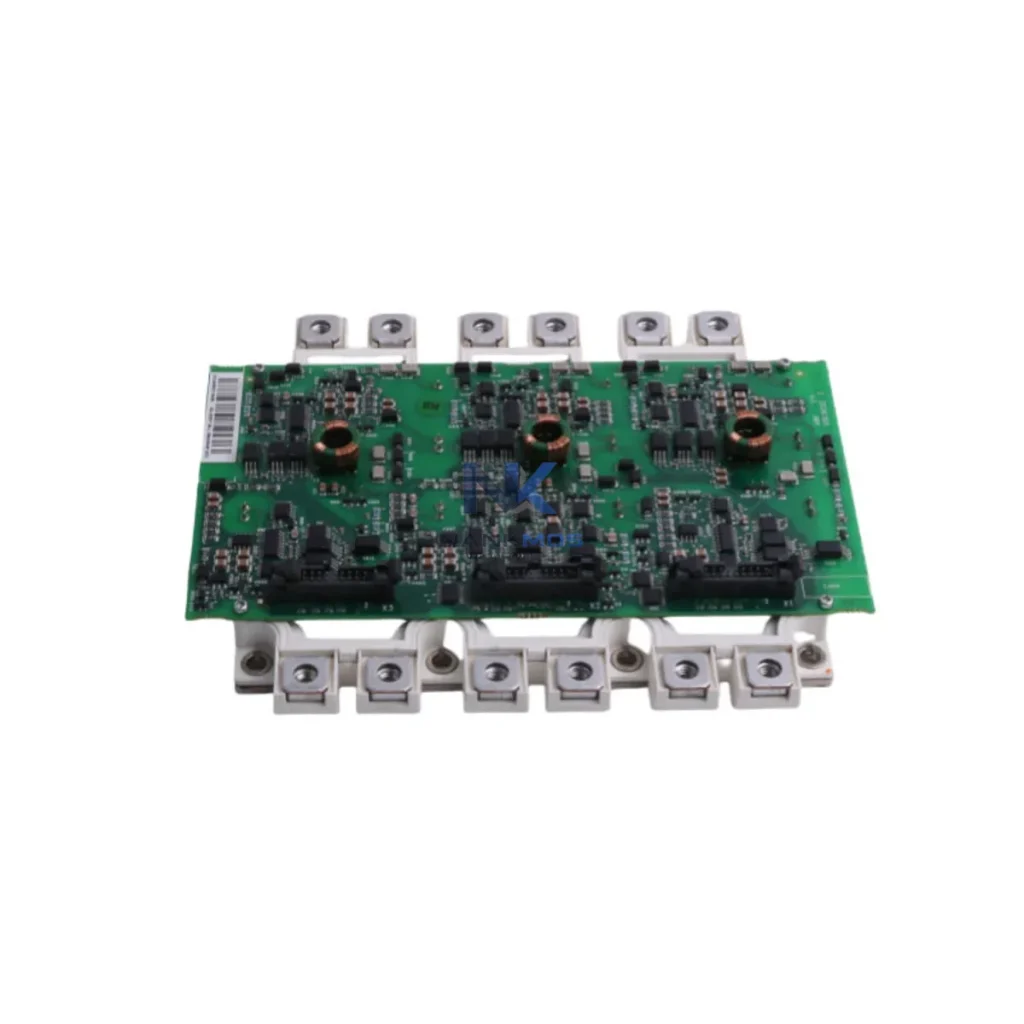

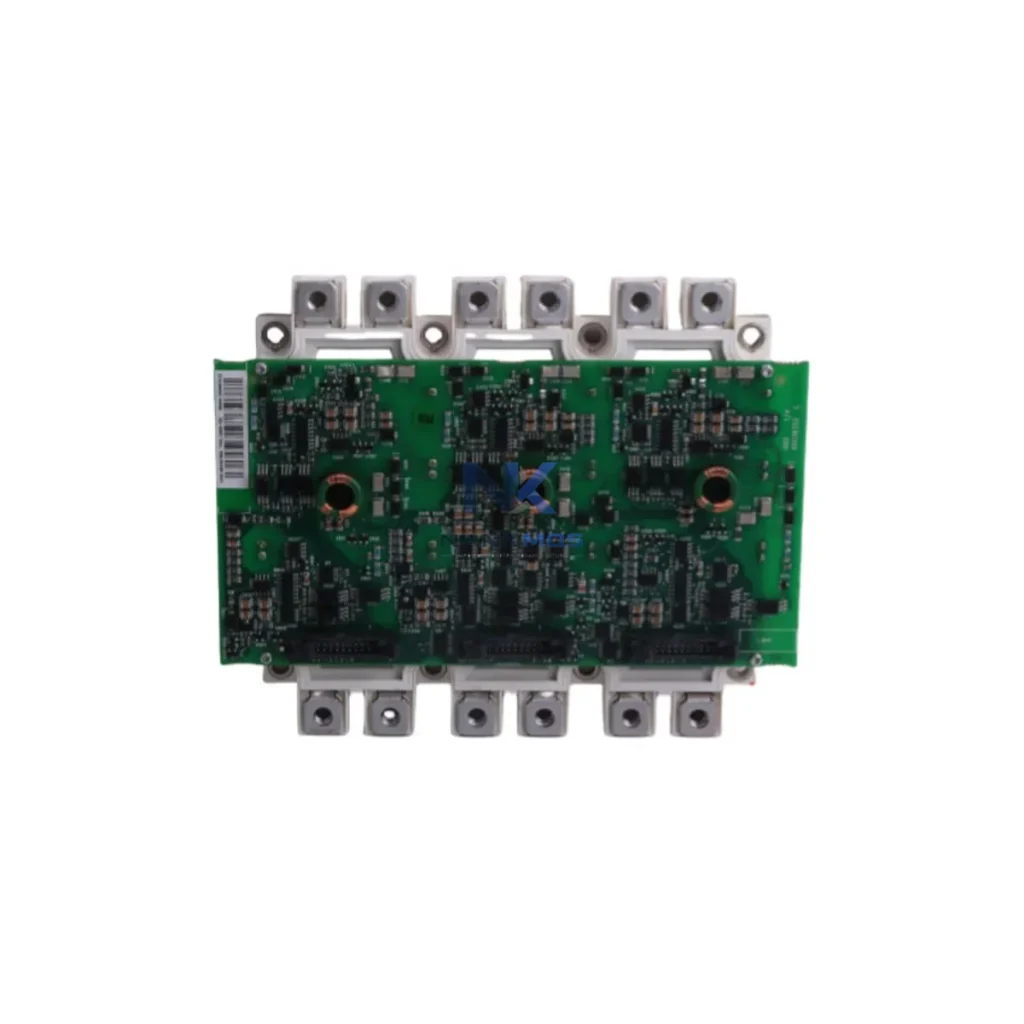

The ABB FS450R17KE3/AGDR-72C is a high-power IGBT module paired with the AGDR-72C gate driver unit, engineered as a precision power switching assembly within ABB's ACS800 industrial drive platform. Designed for demanding continuous-duty applications in manufacturing, energy, and process industries, this module delivers the switching performance, thermal stability, and gate-drive integrity required to sustain reliable inverter operation across multi-axis and multi-drive control architectures. Its system-matched design ensures direct compatibility with ACS800 drive cabinets, eliminating integration uncertainty and reducing commissioning time in both new installations and field replacement scenarios.

As a core power conversion component, the FS450R17KE3/AGDR-72C occupies the inverter bridge position within the drive's power stage. Its role extends beyond simple switching: the AGDR-72C gate driver provides isolated gate signal conditioning, desaturation fault detection, and active clamping, all of which are essential for protecting the DC bus, motor windings, and upstream control hardware from transient overvoltage and shoot-through events. This level of integrated protection directly supports the fault-tolerance and uptime requirements of continuous-process industries.

Every unit supplied by NANKMOS undergoes pre-shipment functional verification, including gate threshold testing, leakage current measurement, and driver signal integrity checks. A 12-Month Warranty is included as standard, covering manufacturing defects and premature failure under normal operating conditions. Global logistics support ensures rapid delivery to plant maintenance teams across Asia, Europe, and the Americas.

The FS450R17KE3/AGDR-72C does not operate in isolation — it is a functional node within a layered ACS800 drive architecture that spans control, power, I/O, communication, and protection layers. Understanding its system context is essential for correct specification, commissioning, and long-term maintenance planning.

At the control layer, the ACS800 drive's main control board (RMIO-11C or RMIO-02C) generates the PWM switching commands that are transmitted via fiber-optic cables to the AGDR-72C gate driver. This fiber-optic interface isolates the low-voltage control electronics from the high-voltage power stage, a critical design feature for both EMC compliance and personnel safety. The AGDR-72C translates these optical signals into the gate voltage pulses that drive the FS450R17KE3 IGBT module.

At the power layer, the FS450R17KE3 module works in conjunction with the ACS800's DC bus capacitor bank, input rectifier bridge (typically a diode or thyristor assembly), and braking chopper circuit (NBRA-6xx series) to form the complete power conversion chain. Proper DC bus voltage balance and capacitor pre-charge sequencing are prerequisites for safe IGBT operation, and these are managed by the drive's charging contactor and pre-charge resistor assembly.

At the I/O and signal layer, the RDIO-01C digital I/O extension module and RAIO-01C analog I/O module provide the process variable feedback signals — speed reference, torque feedback, and fault status — that the control board uses to modulate switching duty cycle. Signal integrity at this layer directly affects the quality of gate pulse timing and, consequently, the thermal loading of the IGBT module.

At the communication layer, the RDNA-01 DeviceNet adapter or RPBA-01 PROFIBUS adapter connects the ACS800 drive to the plant-level PLC or DCS, enabling remote start/stop, speed setpoint, and fault acknowledgment commands. In multi-drive systems, the RDCO-03C drive-to-drive communication module allows master-follower torque sharing, which distributes load evenly across parallel IGBT modules and extends their service life.

At the protection layer, the AGDR-72C's built-in desaturation detection circuit monitors the collector-emitter voltage during conduction. If a short-circuit or overload condition causes Vce to rise above the desaturation threshold, the driver initiates a controlled soft-turn-off sequence, preventing catastrophic IGBT failure and protecting the motor and cable insulation. This function complements the drive's external motor protection relay (for example, the ABB M102-M motor protection relay) and the upstream circuit breaker or fuse assembly.

At the HMI and diagnostics layer, the ACS800's CDP312R control panel or an external PC running DriveWindow Light software provides real-time monitoring of DC bus voltage, output current, heatsink temperature, and fault history. These diagnostic channels are essential for predictive maintenance scheduling and for verifying IGBT module health without requiring drive disassembly.

Related components and modules that are commonly specified alongside the FS450R17KE3/AGDR-72C in ACS800 system builds include: RMIO-11C main control board, RDCO-03C fiber-optic communication module, NBRA-655 braking chopper, RDNA-01 DeviceNet adapter, RAIO-01C analog I/O module, RDIO-01C digital I/O module, CDP312R control panel, and the ACS800 DC bus capacitor bank assembly. Specifying these components from the same platform generation ensures firmware compatibility, consistent fault code mapping, and simplified spare-parts management.

Manufacturing & Packaging Lines: In high-throughput packaging and assembly lines, ACS800 drives equipped with FS450R17KE3/AGDR-72C modules control conveyor motors, servo-class spindle drives, and tension-control winders. The module's 450 A continuous rating supports large induction and permanent-magnet motors operating under variable-torque and constant-torque load profiles. Fast switching response and low switching losses reduce motor heating and improve energy efficiency across multi-shift production schedules.

Power Generation & Energy: In wind turbine pitch and yaw control systems, and in grid-connected inverter applications, the 1700 V voltage rating of the FS450R17KE3 provides the necessary headroom for DC bus voltages derived from medium-voltage transformer secondaries. The AGDR-72C's active clamping function is particularly valuable in these applications, where grid transients and generator-side voltage spikes can otherwise cause nuisance tripping or module damage.

Oil, Gas & Petrochemical: Pump and compressor drives in hazardous-area installations rely on the ACS800's robust fault management and the IGBT module's short-circuit withstand capability to maintain process continuity. In these environments, unplanned drive shutdowns carry significant safety and financial consequences, making the 12-Month Warranty and pre-shipment testing protocol a critical procurement consideration.

Water & Wastewater Treatment: Variable-speed pump drives in water treatment plants use ACS800 systems to optimize flow rates and reduce energy consumption. The FS450R17KE3/AGDR-72C's thermal stability under continuous partial-load operation — typical of pump duty cycles — ensures long module service life and minimizes maintenance intervention frequency.

Mining & Metals: In mine hoist, conveyor, and mill drive applications, the combination of high current capacity and integrated gate protection makes the FS450R17KE3/AGDR-72C suitable for the high-inertia, high-peak-torque load profiles characteristic of these industries. Redundant drive configurations using parallel IGBT modules benefit from the AGDR-72C's consistent gate timing, which is essential for current sharing between parallel devices.

Q1: Is the FS450R17KE3/AGDR-72C directly interchangeable with other IGBT assemblies in the ACS800 platform? The FS450R17KE3/AGDR-72C is a matched assembly — the AGDR-72C gate driver is calibrated for the specific gate charge and threshold voltage characteristics of the FS450R17KE3 IGBT module. Substituting either component independently, or replacing with a non-ABB equivalent, may result in incorrect gate timing, increased switching losses, or desaturation threshold mismatch. Always replace as a matched pair and verify compatibility with the specific ACS800 drive frame size and firmware revision before installation.

Q2: What commissioning steps are required after replacing the IGBT module in an ACS800 drive? After physical installation, verify DC bus pre-charge operation, confirm fiber-optic cable seating at both the RDCO-03C and AGDR-72C connectors, and perform a no-load power-up to check for gate driver fault codes (F-0022, F-0023 series in ACS800 fault history). Run a motor identification routine (ID Run) to re-establish motor model parameters, and monitor heatsink temperature during the first loaded run cycle to confirm thermal interface integrity. Document the fault history clear and parameter backup before returning the drive to service.

Q3: What does the 12-Month Warranty cover, and what is NANKMOS's supply lead time for this module? The 12-Month Warranty covers manufacturing defects and premature failure under normal operating conditions, including gate driver malfunction and IGBT junction failure not attributable to installation error or overvoltage events beyond rated Vces. NANKMOS maintains stock of the FS450R17KE3/AGDR-72C for rapid dispatch; standard lead time is 3–7 business days for most regions, with expedited options available for critical plant shutdowns. Contact [email protected] or +86 18359268345 for real-time stock confirmation and logistics coordination.
