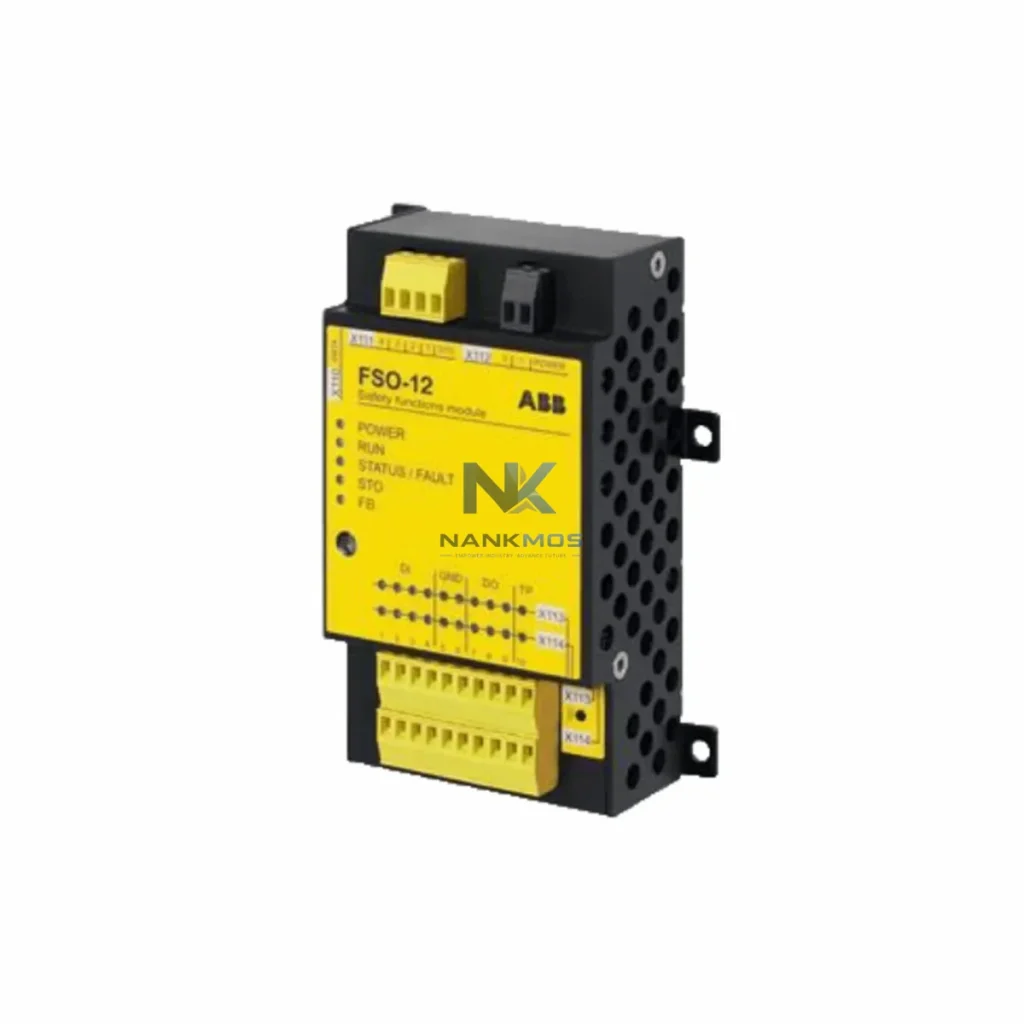

ABB FSO-12 Safety Option Module

Product Details

FSO-12 Product Description

The ABB FSO-12 is not a standalone safety relay — it is a deeply embedded functional safety layer within the ACS880 drive architecture. Its value is realized only when understood in the context of the full automation stack it operates within.

At the control layer, the FSO-12 interfaces directly with ABB AC500 Safety PLCs (e.g., SM560-S, SM560-S-FD-4) via hardwired safe I/O or PROFIBUS/PROFINET safety protocols. The PLC issues safety commands — STO, SS1, SLS — and the FSO-12 executes them within the drive's power stage without requiring external contactors, reducing panel wiring complexity and improving response latency to sub-2 ms levels.

At the power and drive layer, the FSO-12 slots directly into the ACS880-01, ACS880-07, ACS880-11, and ACS880-17 drive families. It shares the drive's internal 24 VDC supply, eliminating the need for a separate safety power rail. When paired with the ACS880's built-in BREL (brake relay) and the optional FDPI-02 diagnostics panel interface, the FSO-12 enables a fully integrated drive-level safety architecture without external safety relays such as the ABB JOKAB PLUTO or Pilz PNOZ series.

At the I/O and signal layer, the FSO-12's four safe digital inputs connect directly to safety sensors — light curtains, emergency stop buttons, door interlock switches, and two-hand control devices. Its two safe digital outputs can drive external safety contactors or signal upstream safety PLCs. When combined with ABB's ACSM1 motion control drives or the ACS580 general-purpose drive series in mixed-topology panels, the FSO-12 provides a consistent safety signaling standard across the entire drive lineup.

At the communication layer, the FSO-12 supports integration with ABB Ability™ Drive Manager and the FENA-21 Ethernet adapter for remote diagnostics. In PROFINET Safety (PROFIsafe) environments, the FSO-12 can receive safety commands over the network, enabling centralized safety management from a Siemens S7-1500F or Rockwell GuardLogix controller in mixed-vendor architectures. This makes the FSO-12 a critical interoperability node in multi-vendor control cabinets.

At the HMI and diagnostics layer, the FSO-12 generates detailed fault codes readable via the ACS880's standard control panel (ACS-AP-I or ACS-AP-W) or through ABB Drive Composer Pro software. Maintenance engineers can view safety function activation history, response time logs, and STO event counters without specialized safety diagnostic tools. This significantly reduces mean time to repair (MTTR) in high-availability production environments.

At the redundancy and protection layer, the FSO-12 supports dual-channel safe input wiring (1oo2 architecture) for PLe/SIL 3 compliance. In cabinet-level redundant drive systems — such as those using the ACS880-17 cabinet drive with redundant supply modules — the FSO-12 maintains safety function integrity even during partial drive faults, ensuring that STO is executed reliably without nuisance tripping.

At the maintenance and lifecycle layer, the FSO-12's proof test interval (PTI) is configurable via Drive Composer, allowing maintenance teams to schedule periodic safety function verification without full system shutdowns. Combined with ABB's NETA-21 remote monitoring gateway, the FSO-12 enables predictive maintenance workflows that align with IEC 61511 functional safety management requirements for process industries.

Manufacturing & Automotive Assembly: In robotic welding cells and automated assembly lines, the FSO-12 provides STO and SS1 functions for ACS880 servo-class drives controlling conveyor systems, rotary indexers, and press feeders. Its sub-2 ms STO response meets EN ISO 10218-1 robot safety requirements without external safety contactors, reducing panel footprint by up to 30%.

Power Generation & Utilities: In turbine auxiliary systems and cooling water pump drives, the FSO-12's SLS (Safely Limited Speed) function enforces maximum speed limits during maintenance access, replacing mechanical speed governors with a software-configurable safety boundary. This is particularly valuable in combined heat and power (CHP) plants where drive speed must be limited during boiler inspection windows.

Oil, Gas & Petrochemical: In ATEX Zone 2 compressor and pump drive panels, the FSO-12 enables STO without breaking the drive's DC bus, preserving motor insulation integrity during emergency stops. Its SIL 3 rating satisfies IEC 61511 requirements for Safety Instrumented Systems (SIS) in hydrocarbon processing environments, reducing the need for separate SIS-rated safety relays.

Water & Wastewater Treatment: In variable-speed pump stations, the FSO-12's SDI (Safe Direction) function prevents reverse rotation during maintenance, protecting pump seals and impellers. Combined with the ACS880's built-in PID control and the FENA-21 Ethernet adapter, the FSO-12 enables remote safety function monitoring from SCADA systems running on Wonderware or Ignition platforms.

Mining & Minerals Processing: In conveyor drive systems and crusher drives, the FSO-12's SBC (Safe Brake Control) function manages mechanical brake engagement sequences, ensuring that brakes are applied only when the drive has confirmed zero speed — preventing brake wear and mechanical shock in high-inertia load applications.

Marine & Offshore: In thruster drive panels and winch control systems, the FSO-12 meets DNV GL and Bureau Veritas functional safety requirements for marine drive systems. Its compact form factor and direct drive integration reduce panel weight and wiring complexity in space-constrained marine electrical rooms.

Q1: Is the FSO-12 compatible with all ACS880 drive variants, and does it require a separate safety PLC? The FSO-12 is compatible with ACS880-01 (single drives, 0.55–250 kW), ACS880-07 (cabinet drives), ACS880-11, and ACS880-17 variants. It does not require a separate safety PLC for standalone STO/SS1 operation — safe digital inputs can be wired directly from safety sensors. For advanced safety functions (SLS, SDI, SBC) with network-based safety commands, an AC500-S Safety PLC or a PROFIsafe-capable controller is recommended for full SIL 3 system compliance.

Q2: How does the FSO-12 maintain SIL 3 compliance in a multi-drive cabinet with shared safety bus wiring? In multi-drive cabinets using the ACS880-17 or ACS880-07 with common DC bus topology, each drive requires its own FSO-12 module — safety functions are not shared across drives. Each FSO-12 maintains an independent dual-channel safe I/O connection to the safety PLC or safety relay. The shared safety bus (e.g., PROFIsafe over PROFINET) assigns unique F-addresses to each FSO-12, ensuring that a single drive fault triggers only the affected drive's STO without cascading to adjacent drives. This architecture is validated per IEC 62061 for SIL 3 multi-drive systems.

Q3: What does the 12-Month Warranty cover, and how is pre-shipment testing documented? Every FSO-12 unit supplied by NANKMOS carries a 12-Month Warranty covering functional defects in safety I/O, communication interface, and safety function execution. Prior to shipment, each unit undergoes a pre-shipment functional test protocol: STO activation/deactivation cycle verification, safe input channel continuity check, safe output load test, and firmware version confirmation against ABB's latest release. A test report is available upon request. Units are shipped in original ABB anti-static packaging with full traceability documentation. For urgent project requirements, expedited shipping with 48-hour dispatch is available globally.
