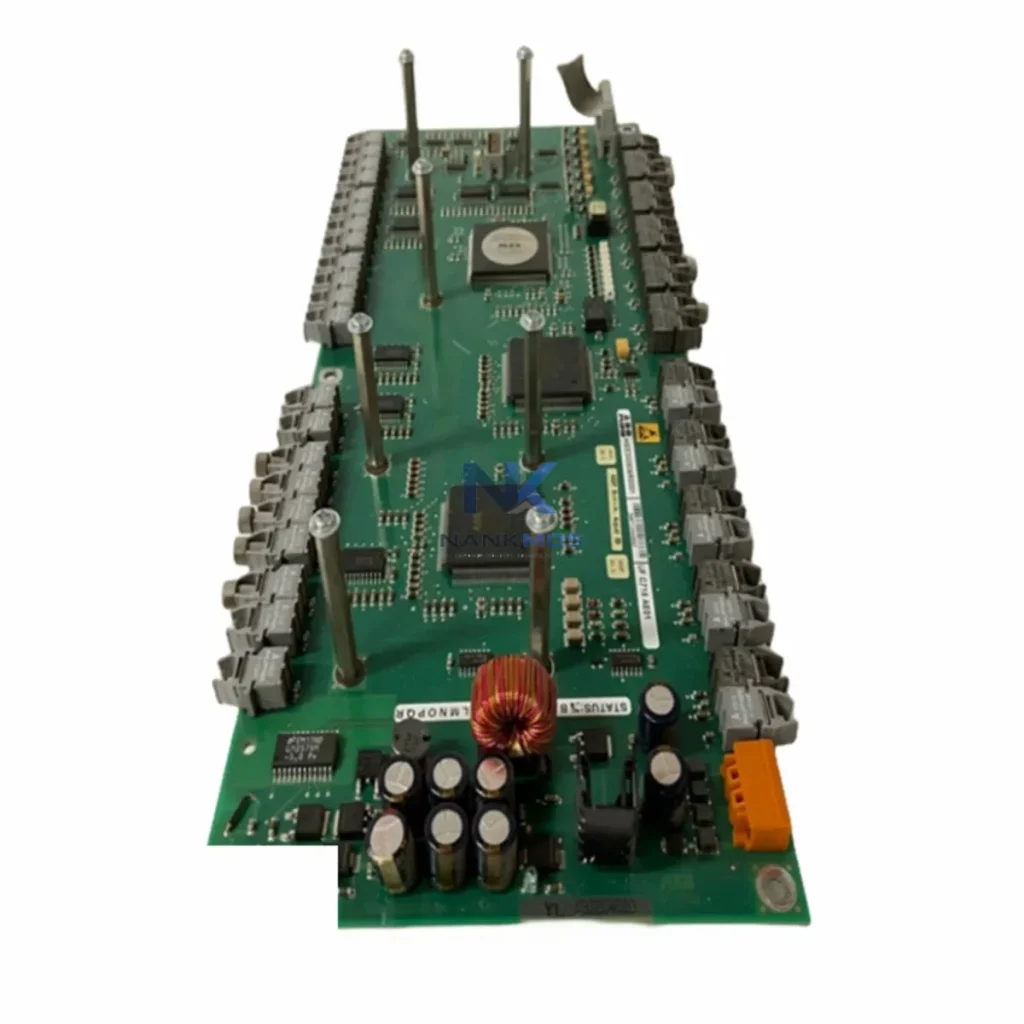

ABB HIEE300698R0001 Industrial Network Interface Module

Product Details

HIEE300698R0001 Product Description

The ABB HIEE300698R0001 is a high-performance industrial network interface module engineered for the Unitrol UNS Series excitation and control platform. Designed to bridge field-level devices with supervisory control systems, this module serves as a critical data link in modern smart factory architectures — enabling seamless protocol conversion, real-time signal transmission, and remote diagnostics across complex automation networks.

In today's connected manufacturing environment, the ability to move data reliably from field instruments to upper-level systems is no longer optional — it is foundational. The HIEE300698R0001 addresses this need by providing a robust, standards-compliant communication interface that integrates directly into ABB's Unitrol UNS control backbone, supporting continuous data exchange between PLCs, SCADA platforms, HMI terminals, and remote I/O nodes.

The HIEE300698R0001 operates at the intersection of field instrumentation and supervisory control, making it indispensable in multi-layer smart factory data architectures. Its role begins at the signal acquisition layer, where field sensors — including current transformers, voltage transducers, and temperature probes — feed raw process data into the Unitrol UNS excitation system. The HIEE300698R0001 then packages and transmits this data upstream via its fieldbus interface, ensuring that every measurement reaches the control layer without latency or data loss.

At the PLC layer, the module interfaces directly with ABB AC500 series programmable logic controllers and compatible third-party PLCs, enabling coordinated control logic execution based on real-time field feedback. Alongside the PLC, ABB's PM866 processor module and CI854 PROFIBUS communication interface work in tandem with the HIEE300698R0001 to maintain deterministic data cycles across the control network. This ensures that excitation commands, fault signals, and status updates are synchronized across all connected nodes.

Moving up the architecture, the HIEE300698R0001 connects to SCADA platforms such as ABB System 800xA and third-party supervisory systems via Industrial Ethernet or Modbus TCP. This integration enables operators to monitor generator excitation parameters, reactive power output, and voltage regulation status from centralized control rooms. HMI terminals — including ABB's CP600 series operator panels — display live process data sourced through the HIEE300698R0001, giving plant personnel immediate visibility into system health and performance trends.

For remote I/O expansion, the module supports integration with ABB S800 I/O modules, including AI810 analog input and DI810 digital input cards, which extend the data acquisition reach to distributed field points across large plant footprints. These I/O nodes feed structured data back through the HIEE300698R0001's communication path, consolidating field signals into a unified data stream for SCADA processing and historian logging.

Edge computing is increasingly central to smart factory deployments, and the HIEE300698R0001 accommodates this trend by supporting connectivity to industrial edge gateways. These gateways — such as ABB's Ability Edge platform or compatible third-party devices — aggregate data from the Unitrol UNS system and push it to cloud analytics or MES platforms, enabling predictive maintenance models and energy optimization algorithms to operate on live plant data.

Variable frequency drives, including ABB's ACS880 series, are frequently deployed alongside Unitrol UNS excitation systems in power generation and heavy industrial applications. The HIEE300698R0001 facilitates coordinated communication between the excitation controller and drive systems, ensuring that speed, torque, and voltage references are exchanged accurately and in real time. Industrial Ethernet switches — such as the ABB EL1000 series — provide the network backbone that carries this data reliably across the plant floor, with managed switching capabilities that prioritize time-critical automation traffic.

Alarm management and remote diagnostics are fully supported through the HIEE300698R0001's network interface. When a fault condition is detected — whether a communication timeout, an out-of-range analog signal, or a hardware fault in the excitation system — the module generates structured alarm messages that propagate through the SCADA network to operator workstations and mobile notification systems. This closed-loop alarm architecture reduces mean time to repair (MTTR) and supports compliance with IEC 62682 alarm management standards.

Many industrial sites operating legacy excitation and control systems face persistent data integration challenges: protocol mismatches between field devices and supervisory systems, isolated data silos that prevent cross-system visibility, and limited remote monitoring capability that forces on-site intervention for routine diagnostics. The HIEE300698R0001 directly addresses these pain points.

Protocol unification is achieved through the module's multi-protocol communication stack, which supports PROFIBUS DP, Modbus RTU, Modbus TCP, and Industrial Ethernet simultaneously. This eliminates the need for external protocol converters and reduces network complexity, allowing legacy field devices to communicate natively with modern SCADA and DCS platforms without gateway bottlenecks.

Data silo elimination is enabled by the module's ability to aggregate signals from multiple field sources — sensors, drives, I/O modules, and protection relays — into a single, structured data stream. This consolidated data flow feeds directly into historian databases and analytics platforms, giving engineers a complete, time-stamped record of plant operations for performance analysis and regulatory reporting.

Remote monitoring and diagnostics are supported through the module's network-transparent architecture. Maintenance engineers can access live excitation system parameters, communication health metrics, and fault logs from remote workstations or mobile devices, without requiring physical access to the control panel. This capability is particularly valuable for geographically distributed power generation assets, where on-site visits are costly and time-consuming.

Production line transparency is enhanced by integrating the HIEE300698R0001 into MES and ERP data pipelines. Real-time production data — including generator output, excitation current, and system availability — can be surfaced in dashboards and KPI reports, enabling operations managers to make data-driven decisions about maintenance scheduling, load balancing, and capacity planning.

System scalability is built into the module's design. As plant automation requirements grow — adding new I/O points, integrating additional drives, or expanding SCADA coverage — the HIEE300698R0001 accommodates these changes without requiring hardware replacement, protecting the capital investment in the Unitrol UNS platform.

Q1: What communication protocols does the ABB HIEE300698R0001 support, and is it compatible with third-party SCADA systems?The HIEE300698R0001 supports PROFIBUS DP, Modbus RTU, Modbus TCP, and Industrial Ethernet protocols, making it compatible with a wide range of SCADA platforms including ABB System 800xA, Siemens WinCC, Wonderware, and Ignition. Protocol configuration is performed through ABB's engineering tools, and the module supports both cyclic and acyclic data exchange modes to meet diverse supervisory system requirements.

Q2: How does the module ensure network stability and minimize communication latency in real-time automation environments?The HIEE300698R0001 is designed for deterministic communication, with fixed scan cycles and prioritized data handling that minimize jitter and latency in time-critical control loops. Its backplane integration within the Unitrol UNS chassis eliminates external cabling delays, and its managed network interface supports QoS configurations that prioritize automation traffic over non-critical data flows.

Q3: Can the HIEE300698R0001 support remote diagnostics and firmware updates without interrupting plant operations?Yes. The module's network-transparent architecture allows remote access to diagnostic registers, communication health counters, and fault logs via the connected SCADA or DCS network. Firmware updates can be staged and applied during planned maintenance windows, and the module supports hot-swap capability within the Unitrol UNS chassis to minimize downtime during hardware servicing.

Q4: What quality assurance and warranty coverage is provided with the HIEE300698R0001?Every HIEE300698R0001 unit supplied by NANKMOS undergoes pre-shipment functional testing, including communication interface verification, protocol handshake validation, and hardware integrity checks. All units are covered by a 12-Month Warranty from the date of shipment. In-stock units are available for immediate dispatch with full traceability documentation, supporting fast project timelines and minimizing procurement lead times.
