ABB IMMFP03 6639001J1 DCS Communication Module

Product Details

IMMFP03 6639001J1 Product Description

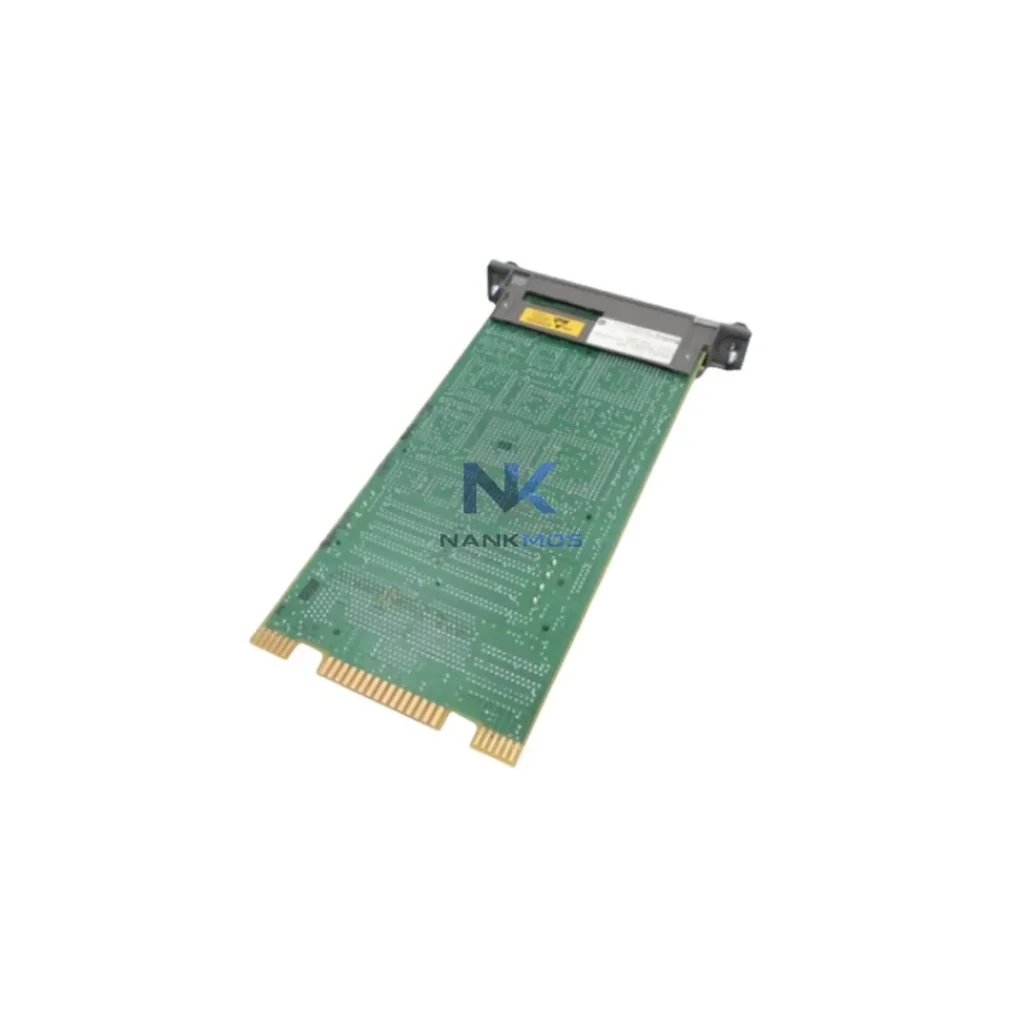

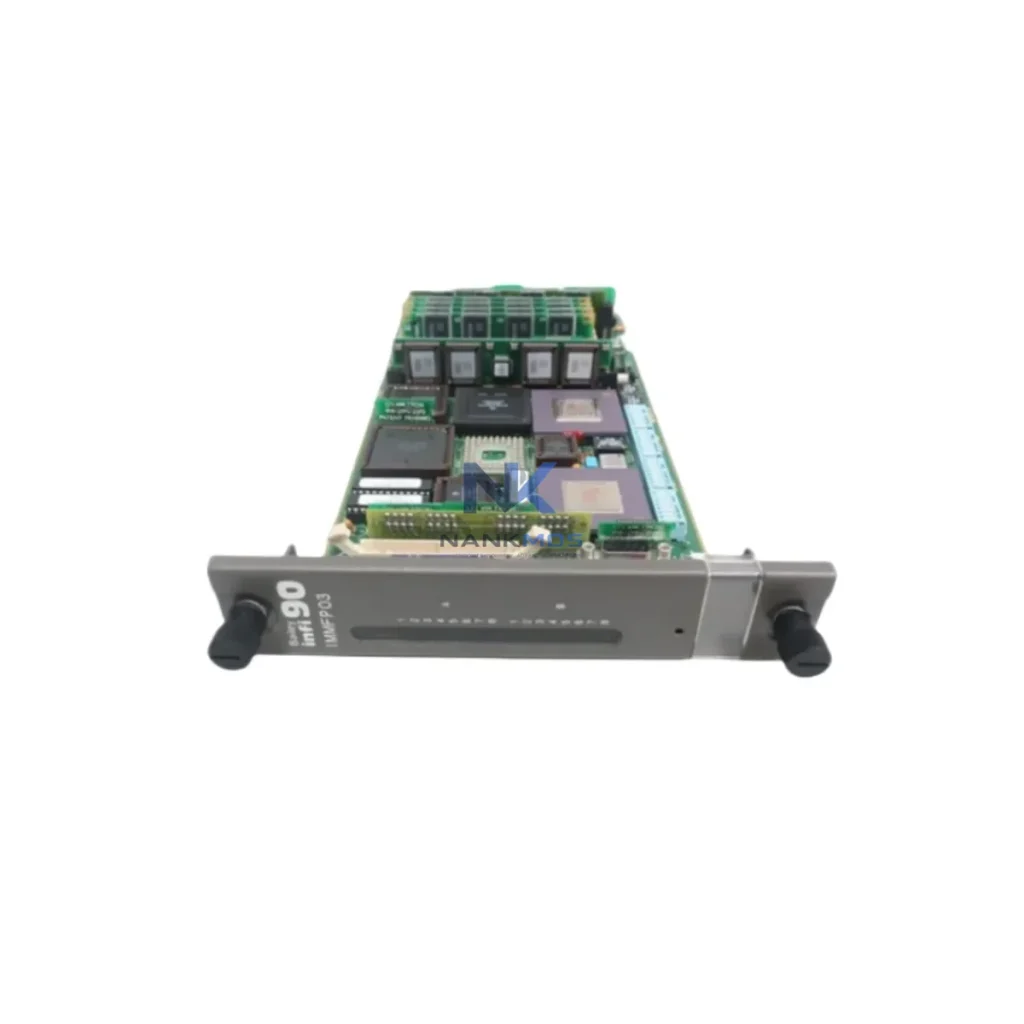

The ABB IMMFP03 6639001J1 is a high-performance Multifunction Processor Module engineered for the INFI 90 Distributed Control System (DCS) platform. Designed to serve as the central communication and processing node within complex industrial environments, this module enables seamless data exchange between field instrumentation, remote I/O racks, PLC controllers, HMI terminals, SCADA supervisory systems, and enterprise-level data historians. Its role in the smart factory data chain is foundational — bridging legacy process control infrastructure with modern industrial Ethernet and protocol-transparent communication architectures.

In today's connected production environments, the ability to move real-time process data reliably across multiple network layers is not optional — it is the backbone of operational transparency. The IMMFP03 6639001J1 fulfills this requirement by acting as both a processing engine and a network-linked communication gateway within the INFI 90 rack assembly, ensuring that every signal from the plant floor reaches the control room and beyond with minimal latency and maximum integrity.

The IMMFP03 6639001J1 sits at the heart of a layered industrial data architecture. At the field level, analog and digital signals from pressure transmitters, flow sensors, temperature probes, and actuator feedback loops are collected through INFI 90 I/O modules such as the IMASI03 analog input module and the IMDSO14 digital output module. These signals are processed locally within the rack and then forwarded via the INFI-NET plant network — a deterministic, token-passing communication bus — to the IMMFP03 for centralized execution of control logic and data routing.

From the IMMFP03, processed data travels upstream to the INFI 90 Network Interface Module (NIM), which bridges the proprietary INFI-NET protocol to plant-wide Ethernet infrastructure. This enables integration with SCADA platforms such as ABB System 800xA or third-party supervisory systems via OPC DA/UA data servers. HMI terminals on the plant floor — including panel-mounted operator workstations — receive real-time process values, setpoint confirmations, and alarm states directly from the IMMFP03's control execution cycle.

In multi-loop process environments such as boiler control, turbine management, or chemical reactor regulation, the IMMFP03 6639001J1 coordinates with peer modules including the IMMFP02 and IMFEC12 Function Execution Controllers to distribute computational load across the DCS rack. This peer-to-peer coordination over the INFI-NET bus ensures that no single processor becomes a bottleneck in high-scan-rate applications.

For facilities integrating variable frequency drives (VFDs) into the control loop — such as ABB ACS series drives managing pump and fan motor speeds — the IMMFP03 provides the upstream data aggregation point that collects drive status, speed feedback, and fault codes via serial Modbus RTU links or through dedicated I/O modules. This data is then normalized and forwarded to the SCADA historian for trend analysis and energy consumption reporting.

Edge gateway devices deployed at the network boundary — such as protocol converters bridging Modbus TCP to PROFIBUS DP or EtherNet/IP — feed their translated data streams into the INFI-NET network where the IMMFP03 acts as the receiving and processing node. This architecture supports brownfield integration scenarios where legacy field devices must coexist with modern industrial Ethernet infrastructure without requiring full hardware replacement.

Industrial managed switches within the plant Ethernet backbone ensure that data packets from the IMMFP03 reach the SCADA server, remote engineering workstations, and cloud-connected data platforms with QoS-prioritized, low-jitter transmission. Redundant power supply modules within the INFI 90 rack — such as the IMPS10 power supply — ensure that the IMMFP03 maintains continuous operation even during single-point power failures, supporting the uninterrupted data flow that smart factory operations demand.

Many industrial facilities operating legacy DCS platforms face a common set of challenges: protocol fragmentation between field devices and control systems, data silos that prevent cross-system visibility, and the inability to perform remote diagnostics without physical site access. The IMMFP03 6639001J1 directly addresses these pain points within the INFI 90 ecosystem.

Protocol Unification: By serving as the central processing and communication node within the INFI 90 rack, the IMMFP03 consolidates data from multiple I/O module types — analog, digital, pulse, and serial — into a unified process data model that can be accessed by any SCADA or HMI system connected to the INFI-NET network. This eliminates the need for separate protocol converters at each field device level.

Eliminating Data Silos: In multi-unit process plants where separate DCS racks control independent process areas, the IMMFP03 enables peer-to-peer data sharing across racks via the INFI-NET bus. This cross-rack visibility allows operators to monitor interdependent process variables — such as feed flow rates and reactor temperatures — from a single SCADA display without manual data reconciliation.

Remote Monitoring and Diagnostics: The IMMFP03 supports remote diagnostic access through the INFI 90 engineering workstation interface. Maintenance engineers can interrogate module health, review control loop execution status, and retrieve alarm histories without being physically present at the DCS cabinet. This capability is critical for facilities with distributed control rooms or remote unmanned substations.

Production Line Transparency: By feeding real-time process data into SCADA historians and data visualization platforms, the IMMFP03 enables production managers to track OEE (Overall Equipment Effectiveness), identify bottlenecks, and generate compliance reports — all from a centralized dashboard. This level of transparency is the foundation of data-driven continuous improvement in smart manufacturing environments.

Alarm Tracking and System Expansion: The IMMFP03's alarm management capabilities allow operators to configure priority-based alarm routing, ensuring that critical process deviations trigger immediate notifications at the HMI and SCADA level. As production requirements grow, additional INFI 90 racks and I/O modules can be integrated into the existing INFI-NET network without disrupting ongoing operations, providing a scalable path to expanded automation coverage.

Q1: What communication protocols does the ABB IMMFP03 6639001J1 support for SCADA integration?The IMMFP03 operates natively on the INFI-NET token-passing network protocol within the INFI 90 DCS architecture. For upstream SCADA integration, data is typically bridged via the INFI 90 Network Interface Module (NIM) to OPC DA or OPC UA servers, enabling compatibility with major SCADA platforms including ABB System 800xA, Wonderware, and Ignition. Modbus RTU communication is also supported for legacy device integration via serial interface modules within the same rack.

Q2: How does the IMMFP03 ensure network stability and low-latency data transmission in high-demand process environments?The IMMFP03 leverages the deterministic, collision-free INFI-NET ARCNET-based communication bus, which guarantees bounded transmission delays regardless of network load. This makes it suitable for time-critical control loops in power generation, chemical processing, and continuous manufacturing applications where scan-cycle consistency is essential for process stability.

Q3: Can the IMMFP03 6639001J1 support remote diagnostics and predictive maintenance workflows?Yes. The IMMFP03 provides module-level diagnostic data accessible through the INFI 90 engineering workstation, including processor load, communication error counters, and control loop execution status. This data can be integrated into predictive maintenance platforms via the SCADA historian, enabling condition-based maintenance scheduling and reducing unplanned downtime.

Q4: What warranty and pre-shipment testing standards apply to the IMMFP03 6639001J1 supplied by NANKMOS?Every IMMFP03 6639001J1 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify communication integrity, processor operation, and backplane interface compatibility. In-stock availability ensures rapid dispatch to support urgent maintenance and system expansion requirements. For procurement inquiries, contact [email protected] or call +86 18359268345.
