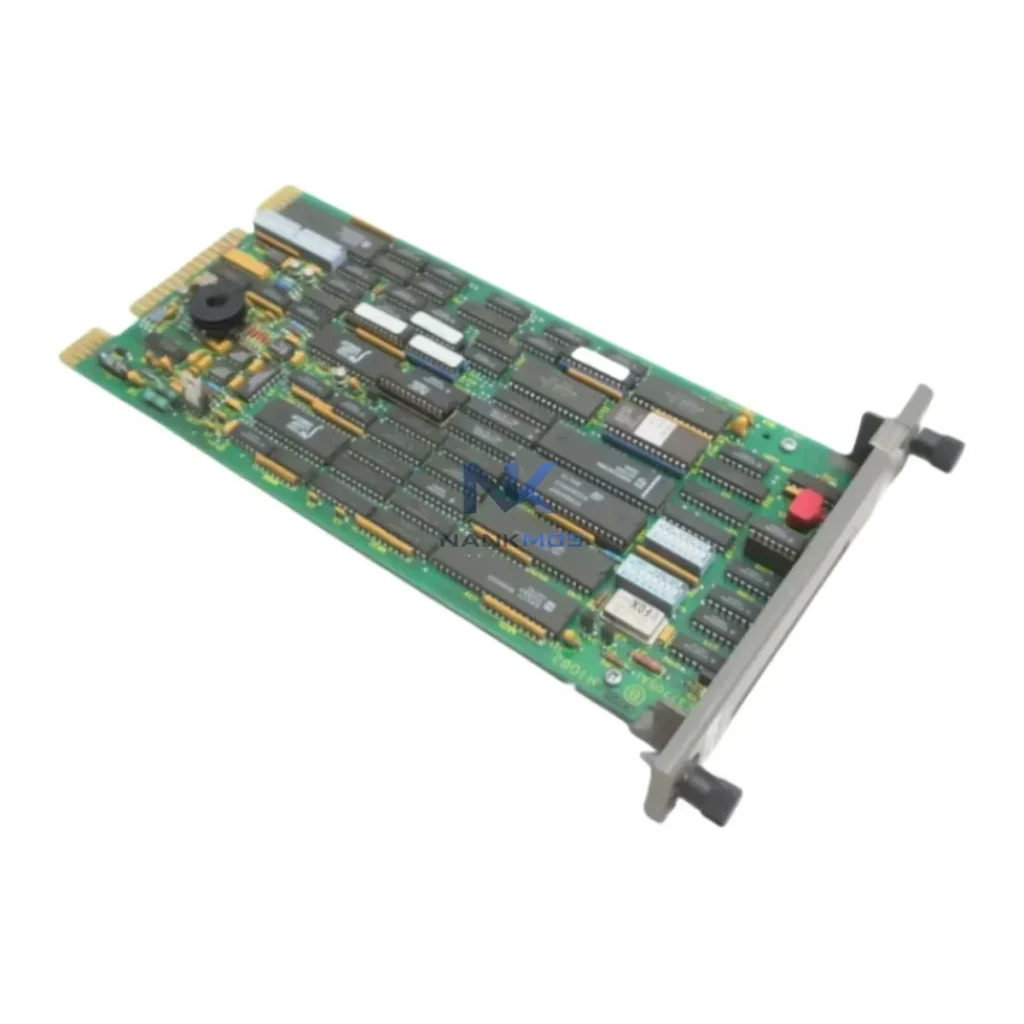

ABB IMRIO22 DCS Digital Output Module

Product Details

IMRIO22 Product Description

The ABB IMRIO22 is a system-matched digital output module engineered for seamless deployment within the INFI 90 Distributed Control System (DCS) architecture. Designed to operate as a precision output interface at the I/O layer, the IMRIO22 delivers reliable discrete signal conditioning, deterministic switching, and robust field-device actuation across demanding industrial environments. Its modular form factor and native compatibility with the INFI 90 control bus make it an essential component for engineers seeking to maintain system consistency, expand I/O capacity, and reduce commissioning complexity across multi-loop control architectures.

In a fully integrated automation platform, the IMRIO22 does not function in isolation. It operates as part of a coordinated signal chain that spans the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. Understanding this layered interdependency is critical for engineers designing scalable, redundant, and diagnostically capable control systems for power generation, petrochemical processing, oil and gas, water treatment, mining, metallurgy, marine propulsion, and continuous process industries.

The IMRIO22 achieves its full operational value when integrated within a coherent INFI 90 system architecture. At the control layer, the IMMFP12 Multi-Function Processor or IMMFP02 Processor Module executes the control strategy and issues discrete output commands to the IMRIO22 via the INFI 90 module bus. The IMRIO22 translates these logic-level commands into field-level switching signals that actuate solenoid valves, motor starters, relay coils, and indicator lamps connected at the execution layer.

Power integrity is maintained through the IMPS10 Power Supply Module, which provides regulated 24 VDC to the module rack and ensures that output switching transients do not propagate back into the control bus. For redundant power architectures, dual IMPS10 units are deployed in parallel, with automatic failover to eliminate single-point power failures in critical process loops.

At the communication layer, the INICT03A Communication Interface Module bridges the INFI 90 module bus to plant-level SCADA and DCS supervisory networks, enabling real-time output status reporting and remote diagnostic access. This contextual integration capability allows operators to monitor IMRIO22 channel states from the HMI layer without requiring physical access to the control cabinet.

HMI integration is typically achieved through ABB System 800xA or legacy INFI 90 OPEN operator stations, which display IMRIO22 output channel status, fault flags, and forced-output conditions in real time. This visibility is essential for process engineers performing loop checkout, commissioning verification, and post-trip diagnostics.

For I/O expansion, the IMRIO22 is deployed alongside complementary modules such as the IMRIO12 Digital Output Module, IMDSI02 Digital Input Module, and IMDSO14 Digital Output Module, all of which share the same INFI 90 backplane and module bus protocol. This modular I/O architecture allows engineers to scale discrete output capacity incrementally without redesigning the control network or replacing the processor module.

Signal isolation and field wiring integrity are supported by NTAI05 Termination Units and NKTU01 Cable Termination Assemblies, which provide marshalling-cabinet-level signal conditioning and protect the IMRIO22 from field-side wiring faults, ground loops, and EMI-induced noise. In high-density installations, these termination assemblies significantly reduce wiring errors during commissioning and simplify field replacement during maintenance cycles.

In power generation facilities, the IMRIO22 controls turbine auxiliary systems, including lube oil pump starters, cooling fan contactors, and emergency trip solenoids. Its deterministic output switching and optical isolation ensure that control commands are executed reliably even in the presence of high-voltage switching transients from adjacent motor control centers.

In petrochemical and oil and gas plants, the IMRIO22 is deployed in safety-instrumented system (SIS) support roles, actuating shutdown valves, blowdown valves, and flare ignition systems under the direction of the INFI 90 processor. Its 16-channel output density reduces rack space requirements in congested control rooms and minimizes cable routing complexity in hazardous-area installations.

In water treatment and municipal utilities, the IMRIO22 controls pump station motor starters, chemical dosing pump relays, and UV disinfection system contactors. Its module-level fault detection capability allows maintenance teams to identify failed output channels without interrupting adjacent process loops, reducing mean time to repair (MTTR) and improving overall system availability.

In mining and metallurgy applications, the IMRIO22 operates in high-vibration, high-dust environments where its rack-mounted form factor and robust optical isolation provide superior reliability compared to discrete relay panels. Conveyor belt starters, crusher motor contactors, and ore-handling system actuators are all candidates for IMRIO22 control in these demanding environments.

In marine propulsion and offshore systems, the IMRIO22 is integrated into vessel automation systems controlling ballast pump starters, thruster control relays, and fire and gas system outputs. Its compact module format and INFI 90 bus compatibility make it suitable for space-constrained marine control cabinets where reliability and ease of replacement are paramount.

Q1: Is the ABB IMRIO22 compatible with both INFI 90 and INFI 90 OPEN architectures, and can it be mixed with newer ABB I/O modules in the same rack? The IMRIO22 is fully compatible with both the original INFI 90 and the INFI 90 OPEN platform variants, sharing the same module bus protocol and backplane pinout. It can be installed in the same rack alongside other INFI 90-series I/O modules, including IMDSI02 digital input modules and IMDSO14 output modules, without protocol conflicts. However, mixing INFI 90 modules with 800xA S800 I/O modules in the same physical rack is not supported; separate racks and communication bridges are required for cross-platform integration.

Q2: What commissioning steps are required to verify IMRIO22 output channel integrity before process startup? Pre-startup commissioning of the IMRIO22 involves three key steps: (1) module insertion verification via the INFI 90 processor's module status display, confirming that the IMRIO22 is recognized on the module bus without fault flags; (2) forced-output testing of each of the 16 channels using the operator station's manual output override function, verifying field-device response at the execution layer; and (3) loop-back continuity testing using NTAI05 termination units to confirm field wiring integrity before enabling automatic control. All IMRIO22 units supplied by NANKMOS are pre-shipment tested and documented, reducing on-site commissioning time.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement units? The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions as defined by ABB's INFI 90 installation and environmental specifications. It does not cover damage resulting from incorrect installation, field wiring faults, or operation outside rated voltage and temperature ranges. NANKMOS maintains in-stock inventory of IMRIO22 modules, with standard lead times of 1–3 business days for domestic shipments and 5–10 business days for international orders. Expedited shipping options are available for critical plant maintenance requirements. Contact [email protected] or +86 18359268345 for availability confirmation and technical pre-sales support.
