IRB6603HAC024779-001 DSQC401 3HAC032243-016 Product Description

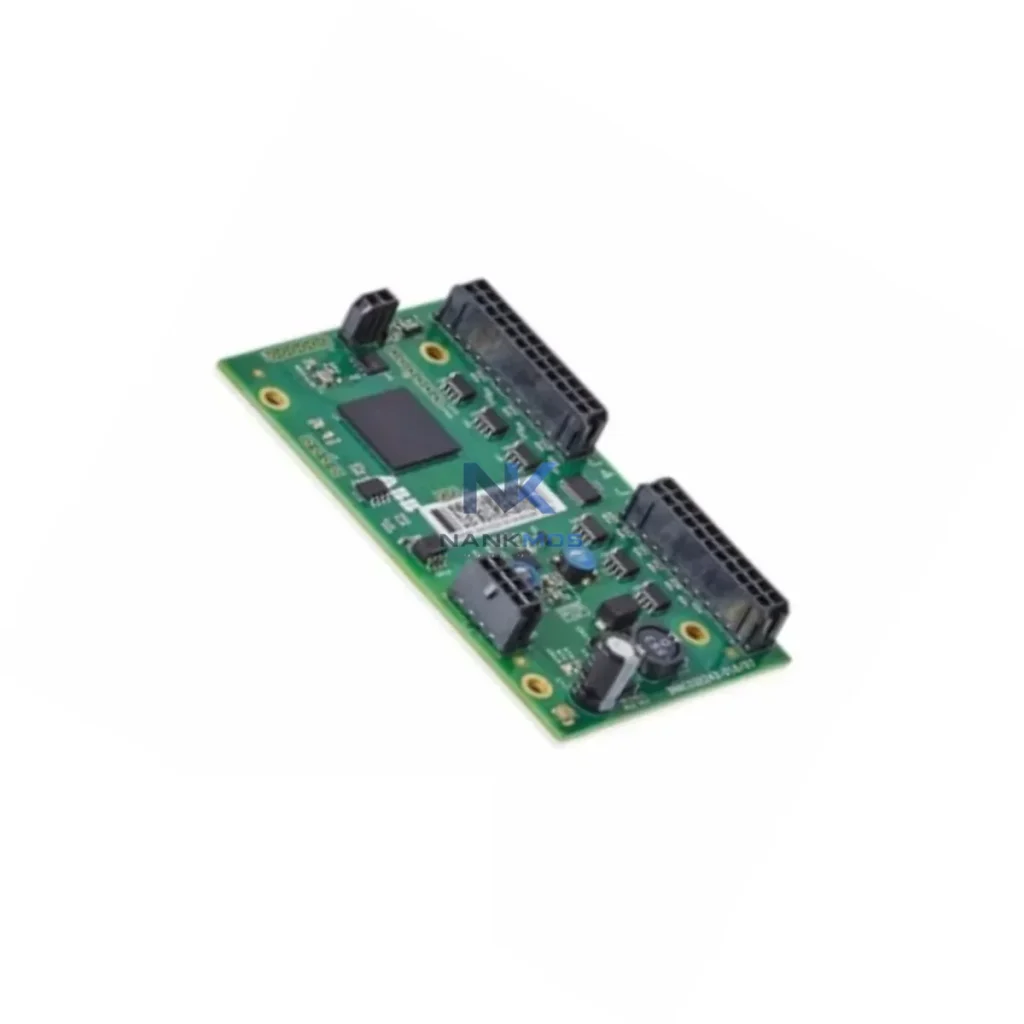

The ABB 3HAC032243-016 (DSQC401) is a precision-engineered drive control board designed for ABB IRC5 robot controllers, delivering intelligent motor control, load-aware energy management, and real-time drive regulation across high-demand industrial production environments. As a core component within the IRC5 drive system, the DSQC401 governs axis drive communication, power distribution logic, and motor feedback integration — enabling factories to reduce unnecessary energy consumption, lower thermal load on drive hardware, and maintain consistent production line throughput.

In modern smart manufacturing, energy efficiency is no longer optional. The 3HAC032243-016 plays a direct role in ensuring that robotic drive systems operate within optimal power envelopes, preventing over-current conditions, minimizing reactive power losses, and supporting predictive maintenance strategies that reduce unplanned downtime. Whether deployed in automotive body welding lines, semiconductor handling cells, or precision assembly stations, this drive board ensures that each robot axis draws only the power it needs — when it needs it.

The DSQC401 drive board does not operate in isolation — it is the nerve center of a tightly integrated power and motion control architecture. Within the IRC5 cabinet, it works in direct coordination with the ABB DSQC604 (main computer board) to synchronize axis motion commands with real-time power availability, ensuring that drive bursts during acceleration phases do not exceed system capacity. The ABB DSQC662 fieldbus communication module bridges the drive system to plant-level SCADA and energy management platforms, enabling centralized monitoring of per-axis power draw and cycle-level energy profiling.

On the motion side, the 3HAC032243-016 interfaces with ABB servo drive modules — including units in the DSQC508 and DSQC374 families — to regulate torque output and deceleration energy recovery. When paired with the ABB DSQC643 I/O board, the system gains granular feedback from field sensors, limit switches, and torque transducers, allowing the drive control logic to adapt motor output in real time based on actual load conditions rather than fixed setpoint assumptions.

For facilities running mixed automation environments, the DSQC401 integrates cleanly with Siemens S7-1500 PLCs and Rockwell ControlLogix platforms via standard industrial Ethernet protocols, enabling unified energy dashboards that consolidate robot drive data alongside VFD (variable frequency drive) performance metrics from conveyor and pump systems. This cross-platform visibility is essential for factories pursuing ISO 50001 energy management certification or implementing demand-response strategies tied to utility tariff schedules.

HMI systems — including ABB CP600 panels and Siemens TP1200 Comfort displays — can surface drive health indicators and energy consumption trends sourced from the DSQC401's diagnostic outputs, giving line operators immediate visibility into abnormal load patterns before they escalate into thermal faults or unplanned stops. Power monitoring modules such as the ABB B23 energy meter series can be deployed at the cabinet level to validate that drive efficiency targets are being met across production shifts.

In high-cycle robotic applications — where a single IRC5 robot may complete 1,200 or more pick-and-place or welding cycles per shift — the cumulative energy impact of suboptimal drive control is significant. A drive board operating outside its calibrated parameters can introduce micro-inefficiencies in motor switching that, across thousands of cycles, translate into measurable increases in electricity consumption and heat generation. The ABB 3HAC032243-016 is factory-calibrated and shipment-tested to ensure it restores the IRC5 drive system to its original efficiency specification, eliminating the energy drift that accumulates when aging or counterfeit boards are left in service.

From a production line rhythm perspective, the DSQC401 contributes to cycle time stability by ensuring that axis drive responses are consistent and latency-free. Inconsistent drive behavior — often caused by failing control boards — introduces micro-pauses in robot motion that disrupt line synchronization, force buffer accumulation, and reduce overall equipment effectiveness (OEE). Replacing a degraded drive board with a tested 3HAC032243-016 unit restores motion determinism, tightens cycle time variance, and allows downstream stations to operate at their designed throughput rates.

Predictive maintenance integration is another key energy optimization lever. By monitoring the health signals output by the DSQC401 through the IRC5 diagnostic interface, maintenance teams can identify early indicators of drive stress — such as elevated switching temperatures or irregular current waveforms — before they cause failures. This shifts maintenance from reactive (costly, unplanned) to predictive (scheduled, low-impact), reducing both energy waste from degraded operation and the production losses associated with emergency stops.

All units supplied are drawn from verified inventory, subjected to functional load testing prior to shipment, and covered by a 12-month warranty — ensuring that your energy optimization investment is protected from day one of installation.

Q1: How does the 3HAC032243-016 contribute to energy savings in an IRC5 robot system?The DSQC401 manages axis drive power distribution and motor switching logic within the IRC5 controller. A properly functioning board ensures motors draw current proportional to actual load demand, reducing reactive power losses and preventing the over-current conditions that waste energy and generate excess heat. Replacing a degraded board with a tested unit typically restores the drive system to within 2–5% of its original energy efficiency specification.

Q2: Is the 3HAC032243-016 compatible with all IRC5 variants?The DSQC401 (3HAC032243-016) is designed for the ABB IRC5 robot controller platform and is compatible with IRC5 single-cabinet and dual-cabinet configurations used with IRB 1600, IRB 2600, IRB 4600, IRB 6600, and IRB 6640 robot models. For IRC5 Compact or IRC5 Panel Mounted Controller variants, compatibility should be verified against the specific cabinet revision. Our technical team can assist with cross-referencing your cabinet serial number.

Q3: What is the testing and inspection process before shipment?Each 3HAC032243-016 unit undergoes a multi-stage inspection process: visual inspection for component integrity, functional power-on testing under simulated IRC5 drive load conditions, and communication interface verification. Units that do not pass all test stages are quarantined and not offered for sale. A test report summary is available upon request for quality-critical applications.

Q4: What does the 12-month warranty cover, and what is the supply lead time?The 12-month warranty covers functional failure under normal operating conditions, including drive communication faults, power regulation failures, and axis control errors attributable to the board itself. Physical damage caused by installation errors or external electrical events is excluded. For in-stock units, standard lead time is 3–7 business days for international shipment. Express logistics options are available for urgent production recovery situations.
