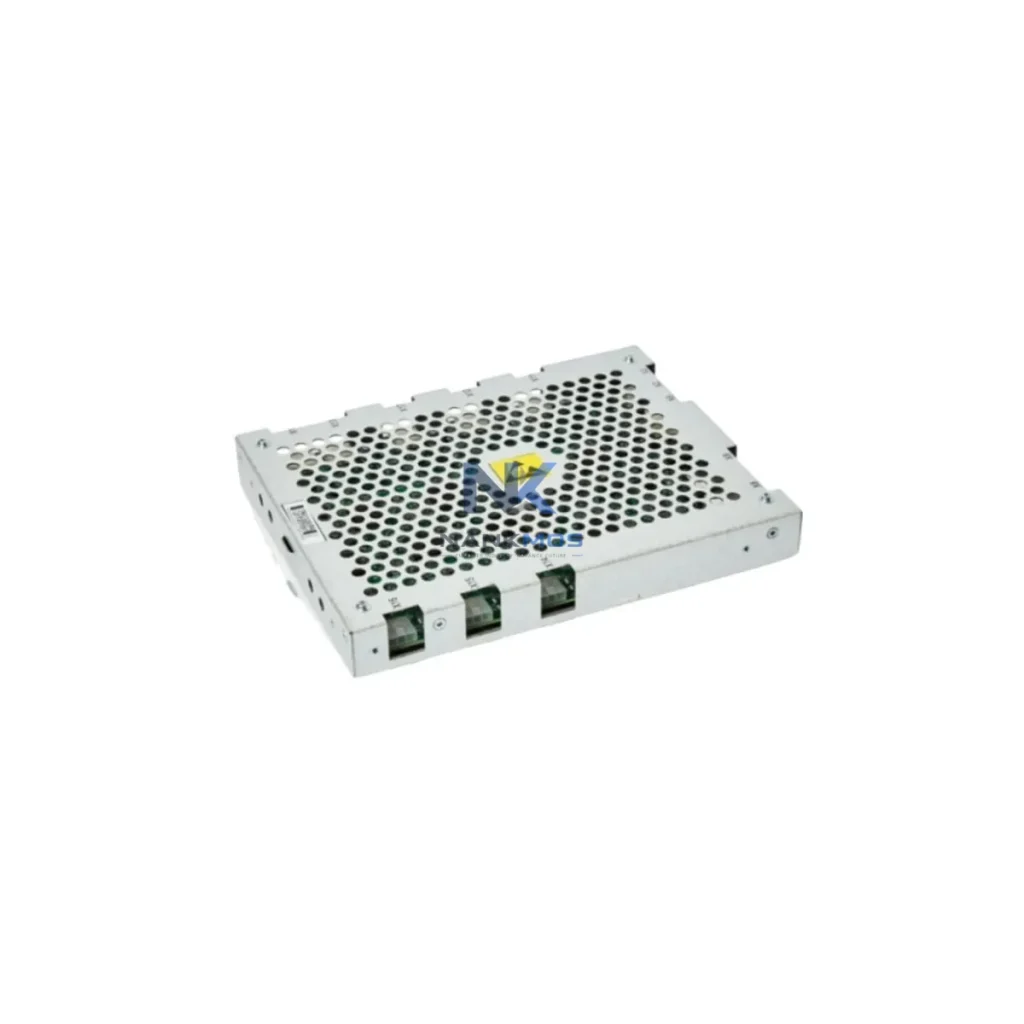

ABB IRB67003-43HAC043522-003 IRB67003-43HAC043522-005 IRB670

Product Details

IRB67003-43HAC043522-003 IRB67003-43HAC043522-005 IRB67003-43HAC059650-001 Product Description

The ABB 3HAC043522-003 is a precision-engineered motor module designed as a system-matched drive component within the ABB IRB 6700 robotic control architecture. As a critical element of the axis drive chain, this module ensures consistent torque delivery, signal integrity, and motion synchronization across the full six-axis kinematic structure of the IRB 6700 series. Engineered to ABB's RobotWare compatibility standards, the 3HAC043522-003 integrates seamlessly into the IRC5 controller platform, supporting high-cycle industrial applications in automotive assembly, heavy fabrication, foundry operations, and large-payload material handling.

Unlike generic replacement components, the 3HAC043522-003 is validated against ABB's axis calibration database, ensuring that encoder feedback, resolver signals, and brake control outputs remain within the tolerance bands required for path accuracy and repeatability. This system-matched design eliminates the risk of axis drift, torque ripple, and thermal derating that can occur when non-OEM modules are introduced into a calibrated robotic cell. For facilities operating multiple IRB 6700 units on a shared IRC5 MultiMove platform, maintaining OEM motor module integrity is essential to preserving coordinated motion performance across all axes.

The 3HAC043522-003 motor module operates within a layered automation architecture where each subsystem contributes to overall cell performance. At the control layer, the ABB IRC5 Controller executes RobotWare motion programs and manages axis interpolation, while the ABB DSQC1000 Main Computer Unit handles real-time process coordination and fieldbus communication. The drive layer, where the 3HAC043522-003 resides, receives torque commands from the IRC5 Drive Module and translates them into precise axis motion through the IRB 6700's servo motor assembly.

Power distribution to the drive layer is managed through the ABB DSQC609 Power Supply Unit, which conditions incoming three-phase supply and provides regulated DC rails to the drive modules. Signal integrity between the motor module and the controller is maintained via the ABB SMB (Serial Measurement Board), which aggregates resolver and encoder data from all six axes and transmits calibrated position feedback to the IRC5 main computer. For cells requiring functional safety compliance, the ABB SafeMove2 safety controller monitors axis velocity and position limits in real time, working in conjunction with the motor module's brake output to enforce safe stop functions.

At the I/O layer, the ABB DSQC652 Digital I/O Board manages discrete signals for gripper control, fixture confirmation, and cell interlock logic, while the ABB DSQC378B Analog I/O Board handles process variable inputs such as weld current feedback or force sensor data. Communication to the plant network is routed through the ABB DSQC688 Ethernet Switch Module, enabling RobotStudio remote monitoring, OPC-UA data export, and integration with MES or SCADA platforms. For multi-robot cells, the ABB IRC5 MultiMove Drive Module coordinates synchronized motion across up to four IRB 6700 units, with each axis drive module — including the 3HAC043522-003 — contributing to the shared kinematic solution.

HMI interaction is supported through the ABB FlexPendant (DSQC679), which provides operators with axis jog control, program selection, and alarm diagnostics directly at the robot cell. Maintenance teams can use the FlexPendant's service routines to verify motor module status, check resolver calibration offsets, and initiate brake test sequences without requiring laptop-based tools. This integrated diagnostic capability reduces mean time to repair (MTTR) and supports predictive maintenance scheduling across multi-robot production lines.

Automotive Body-in-White Assembly: In high-volume automotive stamping and welding lines, the IRB 6700 with 3HAC043522-003 motor modules handles spot welding, seam sealing, and panel transfer operations. The motor module's torque consistency ensures repeatable weld gun positioning across millions of cycles, maintaining dimensional accuracy within ±0.05 mm for body panel assembly. IRC5 MultiMove coordination allows multiple IRB 6700 robots to perform synchronized door frame assembly without mechanical interference.

Heavy Fabrication and Structural Welding: Shipbuilding yards, rail car manufacturers, and heavy equipment OEMs deploy the IRB 6700 for large-structure MIG and submerged arc welding. The 3HAC043522-003 motor module sustains consistent axis torque under the high inertia loads generated by long-reach welding torch movements, ensuring stable arc length and bead geometry across extended weld seams. Integration with ABB's WeldGuide III adaptive welding system allows real-time seam tracking without interrupting the motion program.

Foundry and Die Casting: In high-temperature foundry environments, the IRB 6700 performs die casting extraction, quenching, and trimming operations. The motor module's thermal monitoring output allows the IRC5 controller to detect abnormal operating temperatures and initiate controlled deceleration before thermal damage occurs, protecting both the module and the casting tooling. IP67-rated axis covers combined with OEM motor modules ensure reliable operation in environments with metal splash and coolant mist.

Petrochemical and Process Plant Maintenance: For robotic inspection and maintenance tasks in refineries and chemical processing facilities, the IRB 6700's payload capacity and reach make it suitable for valve manipulation, pipe inspection, and sample handling. The 3HAC043522-003 motor module's resolver-based feedback system provides absolute position data without battery backup, ensuring that axis positions are retained through power cycles — a critical requirement for safety-classified process environments.

Packaging and Palletizing Lines: High-throughput consumer goods and food processing facilities use the IRB 6700 for layer palletizing, case erecting, and stretch wrapping operations. The motor module's consistent torque delivery supports smooth acceleration and deceleration profiles that protect fragile product packaging while maintaining cycle times compatible with upstream conveyor speeds. Integration with ABB's PickMaster vision system enables dynamic product tracking and orientation correction without mechanical guides.

Q1: Is the 3HAC043522-003 compatible with all IRB 6700 variants, including the IRB 6700-235/2.65 and IRB 6700-300/2.7? The 3HAC043522-003 is designed for specific axis positions within the IRB 6700 mechanical platform. Compatibility depends on the axis number and payload variant. NANKMOS technical staff verify axis assignment and variant compatibility against ABB's spare parts database before shipment. Customers should provide their robot serial number and axis position to confirm the correct part number prior to ordering. Related variants such as 3HAC043522-005 and 3HAC059650-001 cover additional axis positions within the same IRB 6700 family.

Q2: How does replacing the motor module affect IRC5 axis calibration, and what steps are required after installation? Replacing the 3HAC043522-003 requires a full axis calibration update using ABB's CalPendulum or Levelmeter 2000 calibration tools, followed by a fine calibration routine executed through the FlexPendant service menu. The IRC5 controller stores calibration offsets in the SMB memory unit; if the SMB is also replaced, all six axes must be recalibrated from reference position. NANKMOS recommends retaining the original SMB unit during motor module replacement to minimize recalibration scope. Post-installation, a brake test and resolver signal verification should be performed before returning the robot to production.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for multi-robot facilities? NANKMOS's 12-Month Warranty covers the 3HAC043522-003 against manufacturing defects, premature failure under normal operating conditions, and resolver signal degradation attributable to the module itself. Warranty claims are processed with a replacement-first policy to minimize robot downtime. For facilities operating fleets of IRB 6700 robots, NANKMOS offers reserved stock agreements that guarantee availability of critical motor modules, SMB units, and drive components over multi-year maintenance contracts. Pre-shipment functional testing is performed on all units, with test records available upon request for quality documentation requirements.
